Apollo REACH WIRELESS RW1700-030APO Quick Start Manual

RW1700-030APO
REACH XP95 Loop Interface Module
IMPORTANT TO CONSIDER
When mounting a wireless device, a comprehensive radio survey
should have been carried out to establish the location that provides
the best coverage and optimum reach. Taking into consideration the building
structure and materials, the survey identifies the wireless infrastructure
required and product locations for optimum performance, identifying
any factor that could prevent radio integrity.
Avoid fixing or mounting the unit close to the following:
• Equipment that utilises large electrical currents
• Large metal objects or structures
• Fluorescent lighting fittings
• Metal ceiling structures
• IT cabling.
Keep 2 meters minimum spacing between other wireless equipment
in the area to avoid signal interference.
EN54 approved environmental temperature range is -10°C to +55°C
UNBOXING
• The Translator has removable top and bottom front plastics to cover screw housings.
• The Translator is housed in an IP Rated box, with knock-outs for IP-rated glands.
• 4 plastic screws are provided to secure the lid.
For more information, please refer to the user manual. Available on apollo-fire.co.uk
Apollo Fire Detectors Ltd. 36 Brookside Road, Havant, Hampshire, United Kingdom, PO9 1JR
T: +44 (0)23 9244 2706 - E: techsales@apollo-fire.com - W: www.apollo-fire.co.uk
REACH XP95 Loop Interface Module
QUICK START GUIDE
THE BOX INSIDE THE BOX
Product Part Number • 1 x Loop Interface Module
Product Description • 4 x Screws
• 1 x Quick start guide
Scan QR code
for full user manual
RW1700-030APO
RW1700-030APO

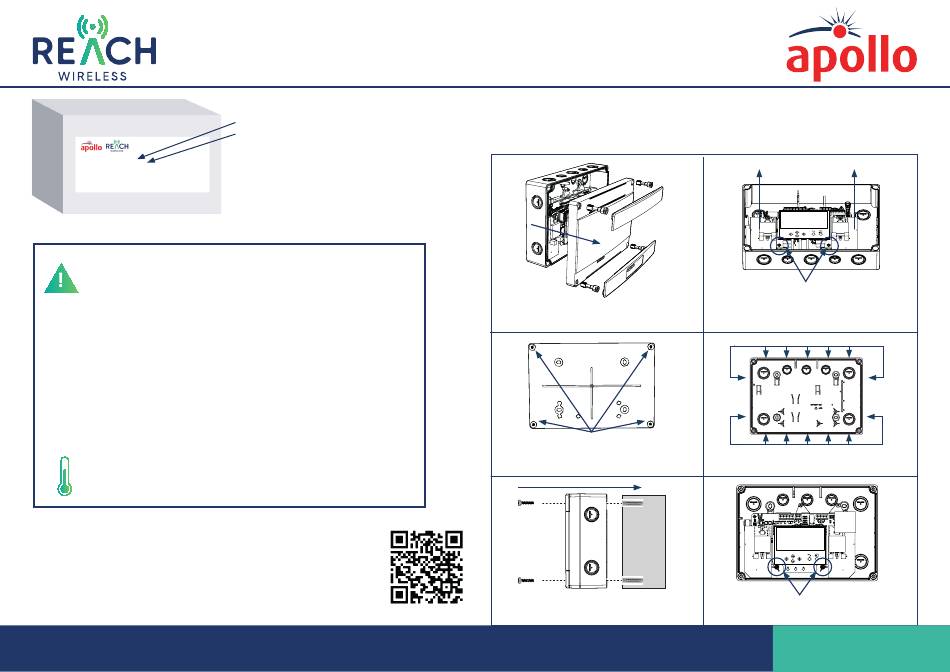

MOUNTING STEPS
The Translator Module is IP65 rated, suitable for external mounting. The backbox must be installed on the wall
as flat as possible to retain IP-rating, to prevent distortion of the housing and the ingress of contamination and/or moisture.
Proceed as follows to complete the device installation.
Remove top and bottom front plastics that cover screws,
unscrew all four screws and remove the lid from the backbox.
MOUNTING HOLES
Using a suitable-sized drill bit (4mm) drill the pre-defined
screw mounting points in the 4 corners of the backbox.
Screw the backbox to the wall using all fixing holes
and appropriate-sized roundhead screws (do not use
countersunk screws).
1
SCREWS
Remove the electronic PCB assembly from the enclosure.
The PCB is held by two Philips screws below the display,
it then slides up and out.
3 YES
NO
Prepare apertures (20mm knockouts) required for cable
access and fit appropriate rated glands.
5
SCREWS HOLES
Insert cable, tighten glands and refit PCB and securing screws.
RW_IG_LOOP_INTERFACE_REV_A.1
