Primera 1-86-729C Fittings Manual

175
282
22.5
36
90
32
25
3

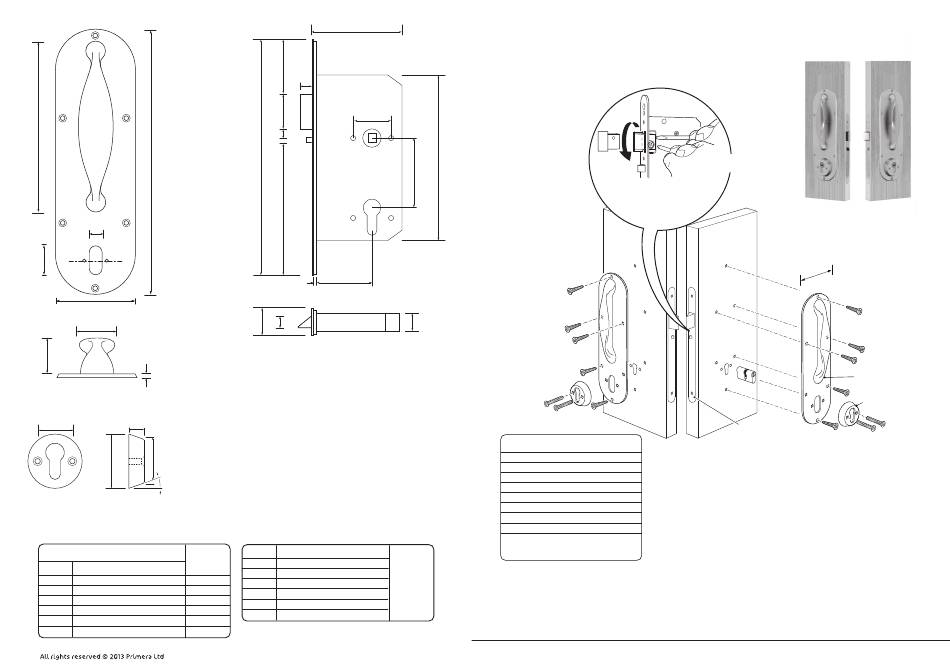

PR4-729A
Anti-ligature Pull Handle
10
32
48.50
58
25°
PR4-58E
Euro Profile Escutcheon
Addition for
PR1 Variant
Turn/Pull
Repair Plate
Model Spindle Length Calculation
46 Door Thickness ÷ 2 + 20mm +3mm
56 Door Thickness + 11mm +3mm
66 Door Thickness ÷ 2 + 20mm +3mm
76 N/A N/A
86 N/A N/A
96 N/A N/A
103
59.5
11
31
38
22
10
235
72
133.5
3 80
25
11 14
PR6136-AL NL-(NHB)
Dead locking Nightlactch
-(HB) with Holdback (Non-Holdback Standard)
Turn/Pull Screw Length
If Fitting
46 Door Thickness Less 3mm
Turn/Pull
56 Door Thickness Less 3mm
Repair Plate
66 Door Thickness Less 3mm
Screw Length
76 N/A
= Door
86 N/A
Thickness
96 N/A
Note A : Check exact door thickness of each door
Note B : Turn/Pull support plate must not be recessed
deeper than the surface of the door.
165
To change the handing of the latch, firstly
remove the retaining screw, insert a flat
bladed screwdriver behind the latch to
ease it out, rotate the latch 180° and
reposition in the lockcase securing
Description
Auto Locking Night Latch 103x235
Spindle Universal 44mm-63mm
Thumb Turn/Pull complete
729 Pull Handle x 2
Escutcheon 58mm Euro
729, 90x282 Radius Back plate x 2
Fixings Included
Note: Unless ordered seperatley the
cylinder is not included in this kit.
Note: If, when fitting the pull handle, the screws make direct contact with the lock-case, please use the shorter (5/8")
screws included in the fixing pack.
Standard Primera Products are designed for internal applications only. For external applications products plated to
"Service Condition 5" should be used.
Important Note: products are protected by Intellectual Property Rights including UK and Community Unregistered Design Rights, UK and Community Registered Designs and UK Patents and Patent Applications.
Primera Limited, Unit 8 Bankfield House, 250 Bristol Avenue, Blackpool, FY2 0JF
t 0330 058 0988
1-86-729C
Automatic Lockset Key/Key
SOP141 Revision (2)
Note: Please ensure this
screw is secured tighly.
screw from the opposite side.
PR6136-AL NL-(NHB)
Dead locking
Nightlactch
-(HB) with Holdback
(Non-Holdback Standard)
For further details please contact Safehinge Primera Limited.
e sales@safehingeprimera.com w www.safehingeprimera.com
