Summary of Contents for Yada AC532713

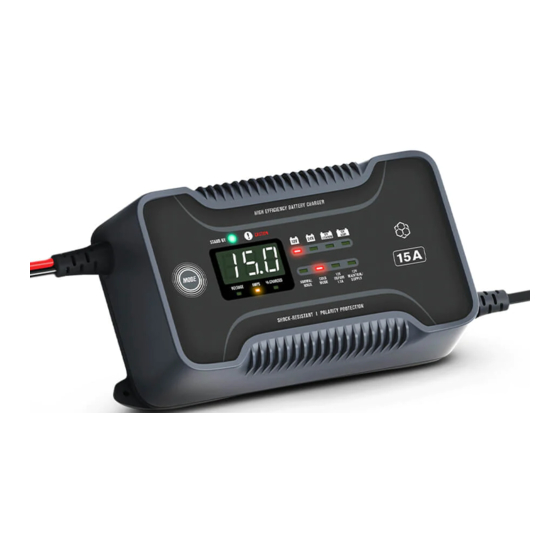

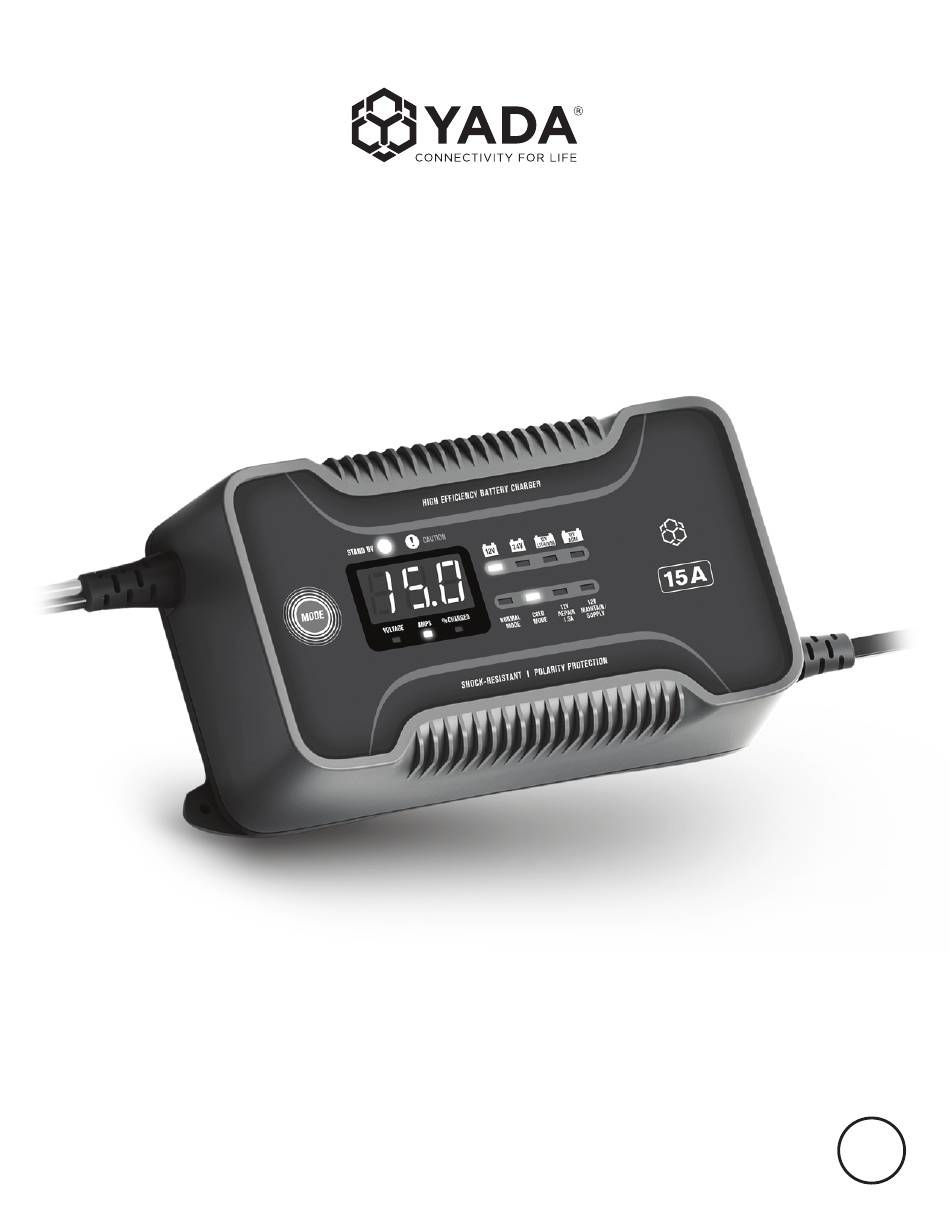

- Page 1 15A Battery Charger and Maintainer WP ITM. AC532713 User Manual IMPORTANT! READ THE ENTIRE INSTRUCTION MANUAL CAREFULLY AND MAKE SURE THAT YOU FULLY UNDERSTAND IT BEFORE YOU USE THE EQUIPMENT. KEEP THE MANUAL FOR FUTURE REFERENCE.
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS: Input: 100-120VAC, 50-60Hz, 300W Output : 12.9VDC 15.0A, 25.6V DC 7.5A Charging Voltage: 12VDC, 24VDC Charging Current: 15A (12VDC), 7.5A (24VDC) Reverse Current: <5mA Low Voltage Detection: 3.75V (12VDC), 15.5V (24VDC)* Low Voltage Detection (Push Mode): 0.5V (12VDC) Operating Temperature: 32°F - 104°F / 0°C - 40°C Storage Temperature:... - Page 3 WARNING: Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS - This manual contains important safety and operating instructions for battery charger Model AC532713. 1. Do not expose charger to rain or snow. 2. Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons. -
Page 5: Preparing To Charge
least 10 minutes and get medical attention immediately. e) NEVER smoke or allow a spark or flame in vicinity of battery or engine. f) Be extra cautious to reduce risk of dropping a metal tool onto battery. It might spark or short-circuit battery or other electrical part that may cause explosion. -
Page 6: Dc Connection Precautions
DC CONNECTION PRECAUTIONS a) Connect and disconnect dc output Battery Clamps only after setting any charger switches to “off” position and removing ac cord from electric outlet. Never allow Battery Clamps to touch each other. b) Attach Battery Clamps to battery and chassis as indicated. FOLLOW THESE STEPS WHEN BATTERY IS INSTALLED IN VEHICLE. -
Page 7: Care And Maintenance
b) Attach at least a 24-inch-long 6-gauge (AWG) insulated battery cable to NEGATIVE (NEG, N, –) battery post. c) Connect POSITIVE (RED) charger Battery Clamp to POSITIVE (POS, P, +) post of battery. d) Position yourself and free end of cable as far away from battery as possible – then connect NEGATIVE (BLACK) charger Battery Clamp to free end of cable. - Page 8 OPERATING INSTRUCTIONS: Note: Please read the vehicle’s Owner’s Manual before charging its battery or removing any of its battery leads. Check if there are any recommendations for charging the battery of your vehicle. LED DISPLAY GUIDE STAND BY CAUTION LITHIUM VOLTAGE AMPS % CHARGED...
-
Page 9: Charging Status
OPERATING INSTRUCTIONS CONT.: 12V AGM Battery 12V AGM Battery Normal Mode is designed for AGM / GEL batteries (Normal Mode) orbatteries with capacities higher than 50Ah being charged under normal weather conditions. 12V Lead-Acid Battery Cold Mode is designed for 12V Lead-Acid 12V Lead-Acid Battery and AGM batteries with capacities higher than 50Ah being charged at (Cold Mode) -
Page 10: Automatic Charging
OPERATING INSTRUCTIONS CONT.: 24V Lead-Acid Battery i) 24V Battery Connected ii) Charging in Process iii) Fully Charged; Maintenance Mode in Progress % CHARGED Test Mode Reverse Polarity Low Battery Voltage Test Mode: If 12V or 24V flashes alternatively it means that the connected battery is either a discharged 24V battery (down to roughly 15.5-21V) or a fully charged 12V battery. - Page 11 OPERATING INSTRUCTIONS CONT.: 5. While you are in 12V Charging Mode, press MODE once to cycle through the following charge modes. i) 12V Lead-Acid Battery Normal Mode is designed for 12V Lead-Acid batteries with capacities higher than 50Ah being charged under normal weather conditions.
- Page 12 5 minutes if 3.75V can not be reached. FCC Compliance Statement: 15A Battery Charger and Maintainer Model: AC532713 / Responsible Party: YADA 2975 Red Hill Ave., Ste. 100, Costa Mesa, CA 92626 / Tel: 866-294-9244 This device complies with Part 15 of the FCC Rules.
