Sauder worksense MASON PEAK Credenza 427805 Manual

Prime oak finish
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CONTACT US FIRST
CONTACT US FIRST
sauder.com
sauder.com
sauder.com
BEFORE MAKING ANY RETURNS TO THE STORE.
BEFORE MAKING ANY RETURNS TO THE RETAILER.
How can we help you? To reach our customer service, visit
live rep or email us.
Prefer the phone? Give us a ring at
Our award-winning team is available Monday-Friday - 9 a.m. to 5:30 p.m. EST (except holidays).

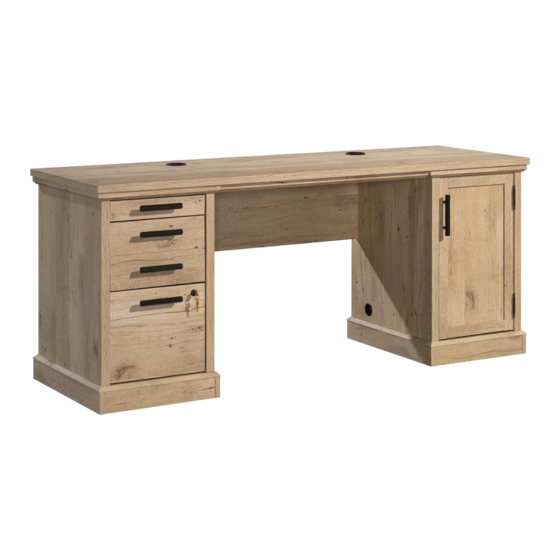

Credenza
Prime Oak finish | Model 427805
Sauder.com
Share your journey!
sauder.com/officeservice
877-996-7539
.
MASON PEAK COLLECTION
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-18
Français pg 19-21
Español pg 22-24
Lot # 560589
Purchased: __________________
to chat with a
03/11/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the worksense MASON PEAK Credenza 427805 and is the answer not in the manual?

Questions and answers

Related Manuals for Sauder worksense MASON PEAK Credenza 427805

Summary of Contents for Sauder worksense MASON PEAK Credenza 427805

  • Page 1 CONTACT US FIRST CONTACT US FIRST sauder.com sauder.com sauder.com BEFORE MAKING ANY RETURNS TO THE STORE. BEFORE MAKING ANY RETURNS TO THE RETAILER. sauder.com/officeservice How can we help you? To reach our customer service, visit to chat with a live rep or email us.

  • Page 2: Table Of Contents

    Assembly Tools Required Part Identification No. 2 Phillips Screwdriver Hardware Identification Tip Shown Actual Size Optional Accessories Hardware Usage Guide Hammer Not actual size Assembly Steps 7-18 Français 19-21 Español 22-24 Safety 25-26 Tape Measure Warranty Page 2 427805 www.sauder.com/officeservice...

  • Page 3: Part Identification

    SMALL DRAWER (1) TOP MOLDING (2) TOP BRACE (2) DRAWER (1) MODESTY PANEL (1) DOOR LARGE DRAWER (1) ADJUSTABLE SHELF (1) YY RIGHT PEDESTAL TOP (1) RIGHT PEDESTAL BOTTOM (1) ZZ LEFT PEDESTAL RIGHT PEDESTAL LEFT PEDESTAL www.sauder.com/officeservice 427805 Page 3...

  • Page 4: Hardware Identification

    191K PULL - 5 DOWEL - 4 SMALL LOCK MECHANISM GROMMET LARGE 193M GROMMET - 1 SET - 4 CAP - 2 GROMMET - 2 107P HOLE PLUG - 2 SHELF REST - 4 COVER - 4 Page 4 427805 www.sauder.com/officeservice...
  • Page 5 16S BLACK 1-7/8" PAN HEAD SCREW - 3 37S BLACK 7/8" MACHINE SCREW - 8 39S GRAY 1-3/8" MACHINE SCREW - 2 144S BLACK 15/16" SHOULDER SCREW - 4 147S BLACK 2-9/16" FLAT HEAD SCREW - 2 www.sauder.com/officeservice 427805 Page 5...

  • Page 6: Optional Accessories

    The powered grommet is designed to replace any existing grommet provided with your furniture. å To purchase the Powered Grommet, scan this QR code. (Or go to sauder.com) LED Light (Item 426494) å The LED Light is designed to be fastened to the underside of a hutch.

  • Page 7: Hardware Usage Guide

    To completely tighten: Step 1 Look for this icon. It means a video assembly tip is available at www.sauder.com/service/tips Find the numbered video or scan the QR code. Arrow å Assemble your unit on a carpeted floor or on the empty carton to avoid scratching your unit or the floor.
  • Page 8 Use two BLACK 2-9/16" FLAT HEAD SCREWS (147S). Some assembly å NOTE: You should start each SCREW a few turns before (and snacks) required. completely tightening any of them. 147S BLACK 2-9/16" FLAT HEAD SCREW (2 used in this step) Angled edge Page 8 427805 www.sauder.com/officeservice...
  • Page 9 LONG DOWELS. å NOTE: Be sure the WOOD DOWELS in the LEFT PEDESTAL insert into the MODESTY PANEL. Small end D E N H I D i t h f a c S u r LEFT PEDESTAL www.sauder.com/officeservice 427805 Page 9...
  • Page 10 NOTE: Be sure the WOOD DOWELS in the RIGHT PEDESTAL insert into the MODESTY PANEL. å Insert the SMALL GROMMET (10P) into the large hole in the RIGHT PEDESTAL. å Using your hammer, gently tap a CAM COVER (75P) onto each visible HIDDEN CAM. Small end RIGHT PEDESTAL Page 10 427805 www.sauder.com/officeservice...
  • Page 11 BLACK 9/16" LARGE HEAD SCREW should be toward the (4 used in this step) inside of your unit. RIGHT PEDESTAL LEFT PEDESTAL Both ends of the MOLDING should be the same distance from the front edges of the PEDESTALS. www.sauder.com/officeservice 427805 Page 11...
  • Page 12 (2 used for the SMALL DRAWER) 191K BLACK 7/8" MACHINE SCREW (8 used in this step) To remove the drawer, push the black lever in and pull the EXTENSION SLIDE on the drawer from the EXTENSION RAIL on the PEDESTAL. Page 12 427805 www.sauder.com/officeservice...
  • Page 13 å NOTE: The angled edge of the BRACE should face down and toward the back edge of the TOP. Angled edge SILVER 1-1/8" FLAT HEAD SCREW (8 used in this step) Back edge www.sauder.com/officeservice 427805 Page 13...
  • Page 14 NOTE: The handle should face toward the back edge of the TOP. å NOTE: The SHOULDER SCREW will allow the LOCK MECHANISM to swivel. 144S BLACK 15/16" SHOULDER SCREW (4 used in this step) Handle 193M Post Handle 193M Post Page 14 427805 www.sauder.com/officeservice...
  • Page 15 (3 used in this step) Hook the TOP BRACE into the PEDESTAL BRACE. RIGHT PEDESTAL LEFT PEDESTAL The LOCK MECHANISMS will face each other when locked in place. This edge will be snug against the front BRACE on each PEDESTAL. www.sauder.com/officeservice 427805 Page 15...
  • Page 16 Slide another FILE GLIDE (6B) onto the other end of the FILE RODS (8B), then press this FILE GLIDE over the LARGE RIGHT DRAWER SIDE. Insert the FILE RODS into the holes of your choice in the FILE GLIDES, depending on your file sizes. Page 16 427805 www.sauder.com/officeservice...
  • Page 17 å Insert the SHELF RESTS (10R) into the hole locations of your choice in the RIGHT PEDESTAL. Set the ADJUSTABLE SHELF (O) onto the SHELF RESTS. (4 used) RIGHT PEDESTAL DOOR STOP Finished surface www.sauder.com/officeservice 427805 Page 17...
  • Page 18 NOTE: Please read the back pages of the instruction booklet for important safety information. å This completes assembly. Clean with a damp cloth. Wipe dry. And to celebrate, why not share your success story at sauder.com or RIGHT PEDESTAL (2 used)

  • Page 19: Français

    REFERENCE DESCRIPTION QUANTITÉ REFERENCE DESCRIPTION QUANTITÉ conserver le livret pour future référence. Pour contacter Sauder en PETIT TIROIR ..............1 ARMATURE POUR DOSSIERS ......2 ce qui concerne cet TIROIR ...................1 TIGE POUR DOSSIERS ..........2 élément, faire référence GRAND TIROIR ..............1 EXCENTRIQUE ESCAMOTABLE .....4 au numéro de lot et...
  • Page 20 REMARQUE : S’ a ssurer de bien insérer les CHEVILLES EN BOIS du CAISSON GAUCHE dans le VOILE DE FOND. Pour acheter la prise électrique pour oeillet, scannez ce code QR. (Ou allez sur sauder.com) ÉTAPE 4 Lumière LED (article 426494) Cette lumière LED est conçue pour être fixée sur la face inférieure...
  • Page 21 Tourner les MÉCANISMES DE VEROUILLAGE sur le bord avant du Ceci complète l'assemblage. Nettoyer avec un tissu humide. Essuyer. DESSUS (G) l'un vers l'autre jusqu'à ce qu'ils arrêtent de tourner. www.sauder.com/officeservice 427805 Page 21...

  • Page 22: Español

    CAJÓN PEQUEÑO ............1 40F PASADOR LARGO .............4 su referencia futura. Si necesita ponerse en CAJÓN ..................1 PLACA DE CONEXIÓN ...........2 contacto con Sauder en CAJÓN GRANDE ............1 23J JUEGO DE LLAVES ............1 cuanto a esta unidad, PANEL SUPERIOR ............1 191K TIRADOR ................5 refiérase al número...
  • Page 23 EXCÉNTRICOS ESCONDIDOS alrededor de los extremos Para comprar el Toma Empotrado, escanee este código QR. pequeños de los PASADORES LARGOS. (O visite sauder.com) NOTA: Asegúrese de que los PASADORES DE MADERA en el Luz LED (Artículo 426494) PEDESTAL IZQUIERDO se introduzca en el VELO DE FONDO.
  • Page 24 CABEZA REDONDA de 48 mm (16S). NOTA: Debe apretar cada TORNILLO unas vueltas antes de apretar cualquier tornillo firmemente. Gire los MECANISMOS DE CERRADURA en el borde delantero del PANEL SUPERIOR (G) uno hacia el otro hasta que dejen de moverse. Page 24 427805 www.sauder.com/officeservice...

  • Page 25: Safety

    à Les téléviseurs peuvent être particulièrement un téléviseur. cet effet. lourds. De plus, le poids et l’emplacement du tube image ont tendance à rendre les téléviseurs instables et enclins à tomber vers l’ a vant. www.sauder.com/officeservice 427805 Page 25...
  • Page 26 Además, el peso y la ubicación del tubo de imagen tienden a causar la inestabilidad de televisores y propensa a volcarse hacia adelante. Page 26 427805 www.sauder.com/officeservice...

  • Page 27: Warranty

    à compter de la date d'achat la première fois et qui sont signalés à Sauder dans les limites de couverture de la contre tout défaut de matériaux ou de fabrication des composantes de mobilier Sauder.
  • Page 28 BEFORE MAKING ANY RETURNS TO THE RETAILER. Dear Valued Customer: Register your new product online Thanks so much for choosing Sauder® furniture. I hope the For immediate service, our website is available 24 purchase and set up of your Worksense office solution was...
