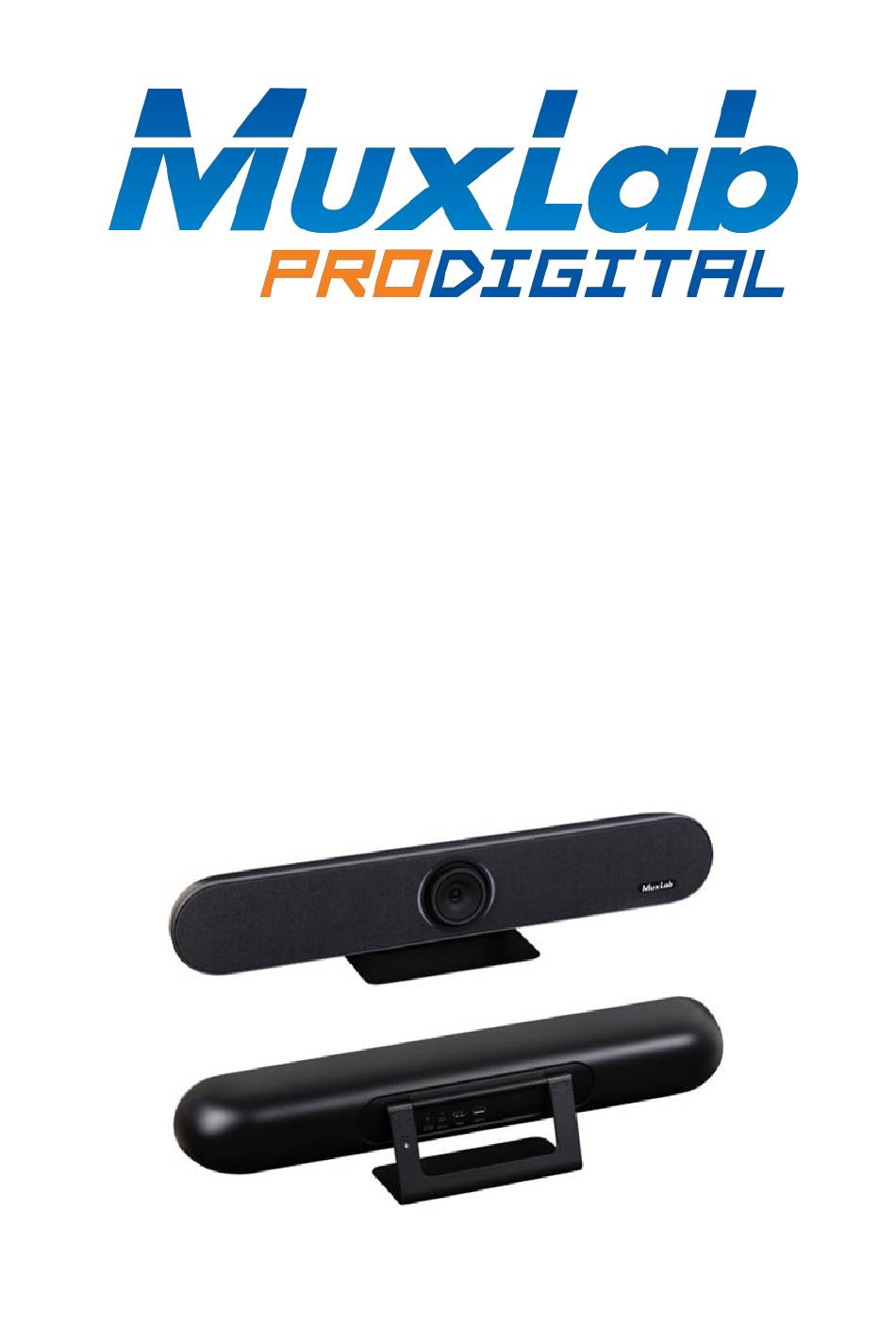

- Page 1 MuxMeet Videobar Operation Manual (500820) MuxLab © 2022 94-000974-A/SE-000974-A...
-
Page 2: Table Of Contents
GUI Settings ..................11 9.1 Menu ....................11 9.2 Setting .................... 11 9.3 Information ................... 12 9.4 Restore Default ................12 10. Typical Application ................13 11. Product Dimensions ................13 12. Maintenance ..................14 13. Troubleshooting ..................14 MuxLab © 2022 94-000974-A/SE-000974-A... -
Page 3: Safety Precautions
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice. -
Page 4: Introduction
USB connectivity, the device can be used for audio and video conferences, or as a speaker for your local devices, and thanks to Bluetooth connectivity support, the device can be used for audio calls and music playback in real time from a mobile device. MuxLab © 2022 94-000974-A/SE-000974-A... -
Page 5: Features
⚫ One (1) Wall bracket (with screw) ⚫ One (1) User manual (available via download) Notes：Confirm that the product and accessories are all included. If not, please contact the supplier from which you purchased the unit. MuxLab © 2022 94-000974-A/SE-000974-A... -
Page 6: Appearance And Interface
MuxMeet Videobar Operation Manual 5. Appearance and Interface Item Name Item Name DC 12V Interface HDMI Interface USB 3.0 Interface USB 2.0 Interface Reset Button MuxLab © 2022 94-000974-A/SE-000974-A... -
Page 7: Specifications
Real frequency range (Hz) 100Hz-10KHz Real sensitivity (dB) -38dB Real SNR (dB) 65dB Real THD (%) Max 1% @ 1KHz 100dB SPL Real impedance (Ohm) 400Ohm @ 1KHz Pickup pattern Omni directional Sample Bitrate 512Kbps Sample frequency 32KHz MuxLab © 2022 94-000974-A/SE-000974-A... - Page 8 0°C ~ 40°C Storage Temperature -40°C ~ 60°C Unit Dimensions (DxWxH) 4.52” x 23.62” x 5.31” (115mm x 600mm x 135mm) holder included Unit Weight 5.511 lbs (2.5Kg) Order Information 500820 MuxMeet Videobar, UHD 4K (UPC: 627699008201) MuxLab © 2022 94-000974-A/SE-000974-A...
-
Page 9: Remote Control
Preset 2 Key Long press to set preset 2; short press to call preset 2 Standby Key Long press to switch the camera to standby mode; short press to resume Hang Up Key Hang up the call MuxLab © 2022 94-000974-A/SE-000974-A... -
Page 10: Remote Control Pairing
Press and hold the Menu button until the remote control light turns red, and then wait for the camera LED light to turn blue and is blinking. Now your camera can be operated via the remote control. MuxLab © 2022 94-000974-A/SE-000974-A... -
Page 11: Gui Settings
Video Setting: 2D NR, 3D NR, WD R Enable, Flip-H, OSD Mirroring. Audio Setting: Setting 3A Enable, Mic Equalizer. EPTZ: Optional items: On, Off. Zoom Limit: Optional items: 1.5x, 2x, 3x, 4x, 5x. HDMI Format: Optional items: 1080P@60, 1080P@50, 1080P@30, 4K@30. MuxLab © 2022 94-000974-A/SE-000974-A... -
Page 12: Information
Move the cursor to "Restore Default" in the main menu, and press [OK] to enter the restore default page as below: Yes / No: Confirm or cancel the restore to factory settings. Note: GUI menu and parameter information are subject to change without notice MuxLab © 2022 94-000974-A/SE-000974-A... -
Page 13: Typical Application
MuxMeet Videobar Operation Manual 10. Typical Application Applications include video conferencing, audio calls, training, remote education and more. Typical Application Diagram 11. Product Dimensions MuxLab © 2022 94-000974-A/SE-000974-A... -
Page 14: Maintenance
Probable cause Possible solution • No power or wrong power No Image Check power connections supply Check the HDMI and USB-C • HDMI or USB-C cable cables • Synchronization Flickering Image Check the HDMI and USB-C Cables MuxLab © 2022 94-000974-A/SE-000974-A... - Page 15 MuxMeet Videobar Operation Manual Choppy sound • Synchronization Check USB Cable If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689- 5228 (toll-free in North America) or (+1) 514-905-0588 (International). MuxLab © 2022 94-000974-A/SE-000974-A...
- Page 16 MuxMeet Videobar Operation Manual MuxLab Inc. 2321 Rue Cohen Montreal, Quebec Canada H4R 2N7 Tel.: +1 (514) 905-0588 Fax: +1 (514) 905-0589 Toll Free (North America): 877 689-5228 URL: www.muxlab.com E-mail: info@muxlab.com MuxLab © 2022 94-000974-A/SE-000974-A...
