Two Technologies PDS Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PDS
User Guide
Document 15803(1.0.0.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PDS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Two Technologies PDS Series

Summary of Contents for Two Technologies PDS Series

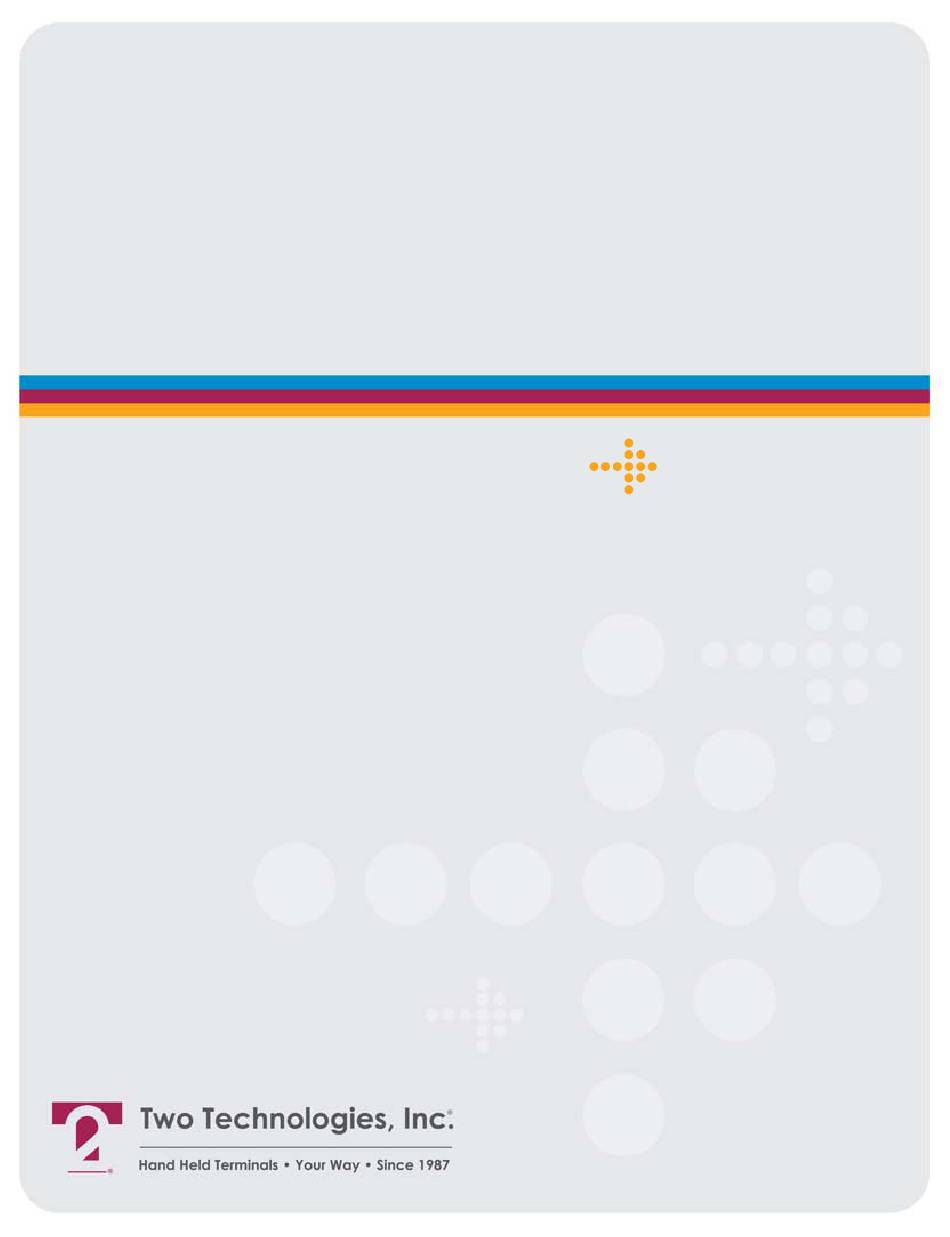

  • Page 1 User Guide Document 15803(1.0.0.0)
  • Page 2 Since Two Technologies is continuously improving the functionality and quality of its products, certain information may not be included in this manual at its time of release. As a result, Two Technologies may provide changed material as separate sheets included with this manual or separately in the form of a change package, as it deems necessary.
  • Page 3 If the exterior of the package shows obvious signs of damage, please contact the carrier who delivered the package right away. All items returned to Two Technologies Inc. require a Return Material Authorization number (RMA). To obtain a RMA number, please visit our eRMA website: http://www.frontlines247.com/twotech.htm.
  • Page 4 Regulatory Notices FCC Compliance This equipment has been tested and found to comply with the limits for Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed in accordance with the instruction manual, may cause harmful interference to radio communications.
  • Page 5 CAUTION! There is a risk of explosion if you replace the NiMH battery with an incorrect type. Only use the NiMH battery supplied with your unit or a replacement NiMH battery supplied, recommended, or approved by Two Technologies, Inc. Battery Disposal Dispose of batteries in a safe manner.
  • Page 6 Product Configuration Guide The PDS is a rugged, full featured programmable terminal that is ideally suited to a variety of applications where a level of complexity above that found in simple ASCII terminals is required. The PDS is available in a number of different configurations. You can determine the configuration of a particular unit by identifying the suffixes applied to the model number as follows: Real Time Clock Omitted = None,...
  • Page 7 Power Requirements Power Supply Options Depending on the current draw requirements, the terminal may require the use of different power supplies. Use the configuration number listed below (see previous page) to determine the correct power supply: • "-1"—requires connection to a 5-volt ± 5% regulated power source. •...
  • Page 8 Determining the Maximum Input Voltage Allowed The maximum input voltage allowed is based on a unit’s current draw. To determine the maximum input voltage allowed based on current: Calculate the maximum current draw using the table on the previous page. On the following chart, locate the Calculated Total Current on the Calculated Operating Current axis of the chart, and then move to the top of Operating Voltage range.

  • Page 9: Table Of Contents

    Contents ........................1 Chapter 1. VERVIEW About this Manual ........................... 1 About Two Technologies ........................2 About the PDS ............................2 PDS Features............................2 ..................5 Chapter 2. OMPONENTS AND NDICATORS Controls and Indicators........................... 5 Cable and Power Connections ....................... 6 Modular Interface Connector ......................6 Terminals with Optional E-Stops.......................
  • Page 10 List of Figures Figure 2-1: Controls and Indicators ......................5 Figure 2-2: Modular Interface Connector....................6 Figure 2-3: DB-25 Interface Connector ...................... 7 Figure 2-4: 1210 Series Modular Cable ...................... 7 Figure 2-5: PCAT Modular Connector ...................... 8 Figure 3-1: Cable Connections ........................9 Figure 3-2: Battery Replacement ......................

  • Page 11: Chapter 1. Overview

    Intended for authorized developers with prior knowledge of hand held PC application development, this manual describes the advanced features, operations and interface capabilities of Two Technologies’ PDS Series terminals. It is not for use by end-users. Unless otherwise stated, the operational characteristics described herein correspond to factory default configurations and settings as shipped from Two Technologies with a standard 45-key keypad.

  • Page 12: About Two Technologies

    About Two Technologies Two Technologies has been producing rugged hand held and panel mount terminals and computers for over fifteen years. By implementing state of the art design and manufacturing techniques, we revolutionized hand held terminals and computers inside and out. Today, Two Technologies offers over a dozen cost-effective solutions serving virtually every market.
  • Page 13 FCC & ETSI approved, frequency hopping spread spectrum data. Durability Like all Two Technologies' products, the PDS is remarkably rugged. The case consists of Cycolac ABS, one of the most durable, chemical-resistant materials available on the market today.

  • Page 15: Chapter 2. Components And Indicators

    PDS TERMINALS HAPTER COMPONENTS AND INDICATORS Controls and Indicators Figure 2-1 describes the possible components and indicators found on the front of a PDS terminal as shown in Table 2-1 (Optional E-Stop not shown) Figure 2-1: Controls and Indicators < >...

  • Page 16: Cable And Power Connections

    Cable and Power Connections Modular Interface Connector Figure 2-2 depicts the standard six-pin modular interface connector found on the PDS terminal. Table 2-2 describes its signal and pin assignments. Warning: Use the six-pin modular receptacle for compatible serial devices only. Despite its physical similarity to modular telephone connectors, it is not compatible with telephone lines or signals.

  • Page 17: Terminals With Optional E-Stops

    Standard Accessory Cables Standard modular cables (1210-7 and 1210-15) that mate with the terminal’s modular interface connector and Two Technologies’ PCAT wired adapter are available as optional accessories. These cables will reverse the signal output from the terminal (see illustration below).

  • Page 18: Pcat Wired Adapter

    Pin descriptions assume connection through a Two Technologies’ 1210 series modular cable to the terminal’s modular connector. Connecting the Terminal To connect the terminal to a host device using Two Technologies parts: Plug one end of a 1210 modular cable into the modular connector on the bottom of the terminal.

  • Page 19: Chapter 3. Operation

    PCAT Adapter Modular Cable Using a Two Technologies’ power supply (such as a Two Technologies 1226-1 linear power supply for units with a -2 power supply configuration), plug the power supply connector into the PCAT adapter and then plug the power supply into a 120 VAC 60 Hz power outlet.

  • Page 20: Battery-Powered Units

    90 degrees Fahrenheit during the charge cycle may experience incomplete charging and reduced operating time per charge. To recharge the Nickel Metal Hydride (NiMH) battery pack, plug the Two Technologies’ power supply/battery charger (Part # 13779) into the PCAT adapter and then plug the power supply/battery charger into a 120 VAC 60 Hz power outlet.

  • Page 21: Figure 3-2: Battery Replacement

    CAUTION! There is a risk of explosion if you replace the NiMH battery with an incorrect type. Only use the NiMH battery supplied with your unit or a replacement NiMH battery supplied, recommended, or approved by Two Technologies, Inc. To change the NiMH rechargeable battery or replace AA batteries: Turn the power off.

  • Page 22: Keypad Operation

    Keypad Operation The standard 30 position and 45 position keypads consist of uppercase letters, digits 0 through 9, punctuation marks, symbols, function keys and keys for Escape (ESC), Space (SPACE), Backspace (BACKSP/BKSP), Control (CTRL), Shift (SHIFT) and Enter (ENTER). The standard 20 position keypads consist of the digits 0 through 9, functions keys and keys for Yes (YES), No (NO), Backspace (BKSP), Space (SPACE) and Enter (ENTER).

  • Page 23: E-Stop Operation

    PDS USER GUIDE E-Stop Operation The optional E-Stop switch consists of two normally closed switches. Pressing the switch opens both sets of contacts. Lamp connections are available only on optional illuminated switches. Figure 3-4: E-Stop Operation Push switch to lock Twist right to reset Figure 3-5: E-Stop Switch Wiring Standard E-Stop Switch...

  • Page 24: The Default Program

    The Default Program In absence of a downloaded application, the terminal’s default program will automatically start when you power on the terminal. This default program simply sends and receives keystrokes. Default Settings This section describes the default program’s initial communication, keypad and display characteristics (default settings).
  • Page 25 PDS USER GUIDE Repeat By default, the terminal will repeat a keypad press approximately 18 characters per second after a short delay between the initial character and the start of the repeat. Key Click By default, the terminal will emit an audible click each time a key is pressed, and for each repeated character.

  • Page 26: Loading Default Settings

    Default Terminal Program Settings Summary Table 3-1: Default Terminal Program Settings Parameter Default Settings Baud Rate 9600 Data Bits Stop Bits Parity EVEN Display PE ENABLED Repeat ENABLED Key Click ENABLED Scroll on Position 81 ENABLED Echo DISABLED Handshaking ENABLED XON/XOFF DISABLED Echo 485...
  • Page 27 PDS USER GUIDE Press F1 to load the defaults. Press any other key to exit the menu without loading the default values. If you pressed F1, the terminal will prompt you to clear flash memory. Clearing flash will set an internal bit that prevents the currently loaded program from starting and enable you to download a new program.

  • Page 29: Chapter 4. Host Commands

    PDS TERMINALS HAPTER HOST COMMANDS Introduction By design, the PDS allows a connecting device (or “host”) to control some of its functions by transmitting a string of special characters. Referred to as “Escape commands” (because each character string begins with the ASCII escape character), , these character strings enable the host to perform a variety of task including controlling the terminal’s cursor position, erasing the display lines and sounding beeps.
  • Page 30 Cursor Left Esc D Syntax Notes This command moves the cursor one position to the right. The cursor will not move beyond the start or end of a line, nor will it scroll the display. Cursor Home & Clear Display Esc E Syntax Enable Cursor...
  • Page 31 PDS USER GUIDE Cursor Position Esc Y Pr Pc Syntax Notes This command moves the cursor to a specified location where Pr is the ASCII equivalent of the row number (1-4) and Pc is the ASCII equivalent of the column numbers (1-20) plus 1Fh.

  • Page 32: Erasure Commands

    Erasure Commands Erase Cursor to End of Line Esc K Syntax Notes Includes the character at the cursor location and does not alter the cursor position Erase Cursor to End of Display Esc J Syntax Notes Includes the character at the cursor location and does not alter the cursor position Erase Entire Line Esc M Syntax...

  • Page 33: Sound Commands

    PDS USER GUIDE Sound Commands Note: You cannot buffer sound commands. To produce properly spaced chain sounds, the host must delay a short time between issuing sound commands. Short Bell Esc T Syntax Long Bell Esc L Syntax Alert Esc Q Syntax Key Attribute Commands Enable Key Click...

  • Page 34: Return Commands

    Return Commands Return Terminal Identifier String Esc Z Syntax Notes This commands sends the following identifier string to the host: NNBPDSX nnnn.ffff.cccc For example: 45BPDS.6963.7F83.87FF Where NN is the keypad type (20, 30 or 45) B indicates battery-powered, PDS indicates the terminal type, nnnn is the firmware checksum, ffff is the application code memory checksum, and cccc is the hex number equivalent of the display attributes and the page mode.

  • Page 35: Control Codes

    PDS USER GUIDE Control Codes In addition to the escape commands, the terminal will also respond to the following control codes: Table 4-2: Control Codes Code Dec. ASCII Function Ctrl G Sounds Bell Ctrl H BKSP Back Space Cursor Ctrl J Line Feed Ctrl K Cursor Down...

  • Page 37: Appendix A Specifications

    PDS TERMINALS PPENDIX Specifications Display Standard Features: • Reflective/Transreflective LCD • 4 Rows of 20 characters of text (5 X 7) • Dark Characters on Light Background (except VFD) • U.S. ASCII Character Set Optional: • Supertwist Nematic • Backlit Supertwist Nematic •...
  • Page 38 Type: Atmel AT89C51 Speed: 11.059/22.118 MHz Options: Real Time Clock Memory and Mass Storage Flash EEPROM: 448K Battery-backed SRAM Interface Types: RS-232, RS-422, RS485 or CMOS/LSTTL level Handshake: 2 Lines (CMOS/LSTTL, RS-232) Data Rates: 300 to 115.2 Kbps Parity Selections: Even, Odd, Mark, Space, Ignore, None Control Bits: 1 Start, 1 Stop Digital I/O Lines: 3 Connectors: 6-pin female modular RJ-11 socket standard,...

  • Page 39: Figure 4-1: Case Dimensions

    PDS USER GUIDE Figure 4-1: Case Dimensions 4.10 2.96 Standard Battery 0.96 7.15 4.55 3.70 0.95 1.59 2.60 1.00 1.64 3.55 Document 15803(1.0.0.0)

  • Page 41: Appendix Bascii Character Set

    PDS TERMINALS PPENDIX ASCII Character Set Introduction Table B-1 contains the PDS ASCII character set and corresponding Decimal, Hex and Binary conversion codes as well as the keystroke entry for QWERTY style PC keyboards: Document 15803(1.0.0.0)

  • Page 42: Table B-1: Ascii Character Set And Conversion Codes

    Table B-1: ASCII Character Set and Conversion Codes ASCII Decimal Binary PC Key ASCII Decimal Binary PC Key 00000000 CTRL 1 Space 00100000 Space 00000001 CTRL A 00100001 00000010 CTRL B “ 00100010 “ 00000011 CTRL C 00100011 00000100 CTRL D 00100100 00000101 CTRL E...
  • Page 43 PDS USER GUIDE ASCII Decimal Binary PC Key ASCII Decimal Binary PC Key 01000000 01100000 01000001 01100001 01000010 01100010 01000011 01100011 01000100 01100100 01000101 01100101 01000110 01100110 01000111 01100111 01001000 01101000 01001001 01101001 01001010 01101010 01001011 01101011 01001100 01101100 01001101 01101101 01001110 01101110...

  • Page 45: Index

    DB-25 Interface Connector ............ 7 About the PDS ................2 Default Program ..............14 About this Manual ..............1 Default Settings..............14 About Two Technologies............2 Default Terminal Program Settings Summary...... 16 Alert..................23 Disable Blinking Cursor............20 ASCII Character Set .............31 Disable Cursor..............20 Disable Key Click ..............
  • Page 46 Parity Error................14 PCAT Wired Adapter............. 8 Handshake ................15 PDS Features................2 Host Command Summary.............24 Physical Specifications............28 Host Commands ..............19 Power ................2, 9, 27 Power Requirements ............vii Power Saver ..............10, 15 Power Supply Options............vii Product Configuration ............vi Interface................28 Interface Options ..............3 Recharging the Unit .............
