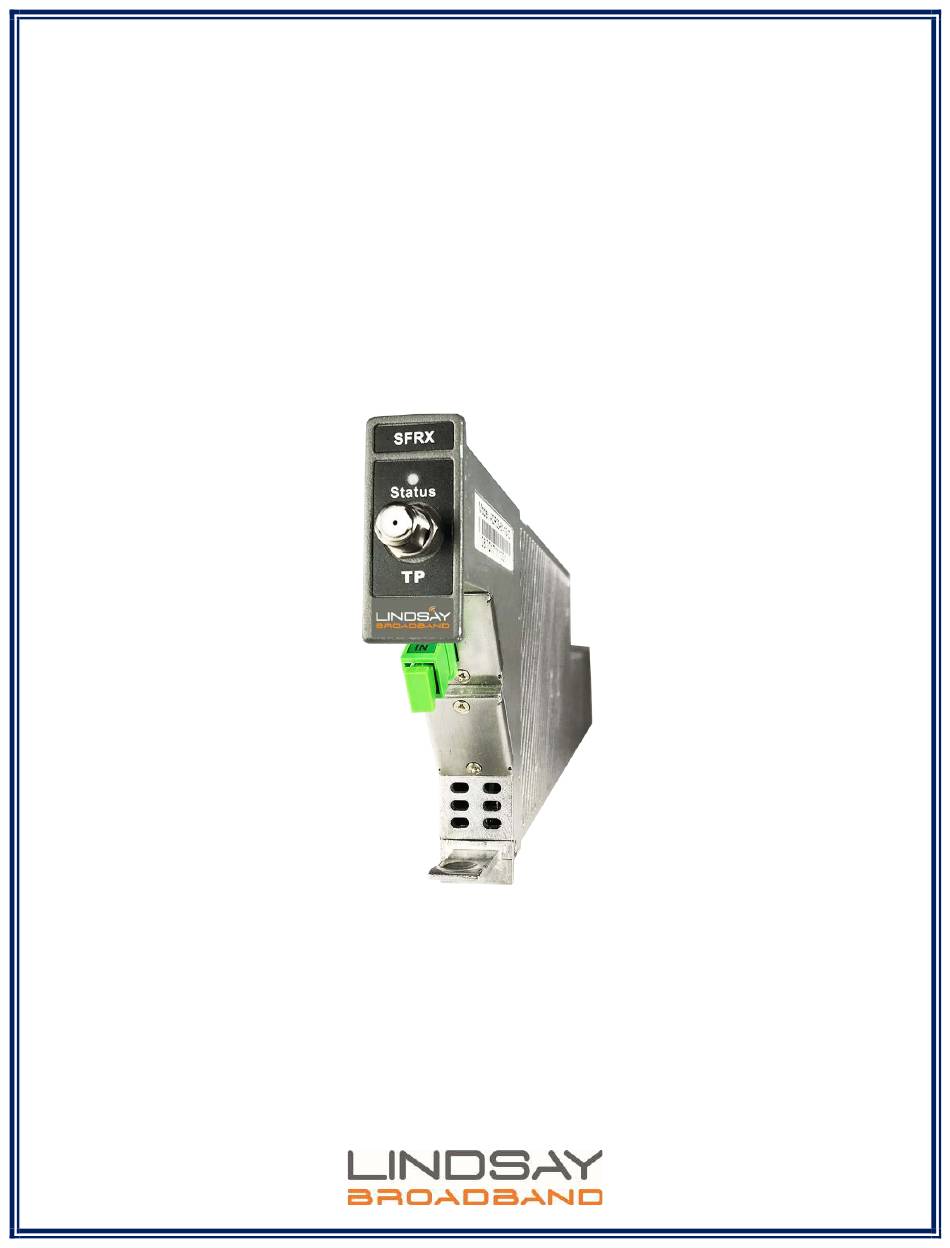

- Page 1 LB-1000-FR Headend Platform 1 GHz & 1.2 GHz Forward Optical Receiver User Manual Feb 03 2020...
-
Page 2: Table Of Contents
APPLICATION MODULE DESCRIPTION ..............5 INSTALLATION ......................... 6 LB-1000-FR SETTINGS ....................8 LB-1000-FR settings: Using touch screen ..............8 LB-1000-FR settings: Using Web interface ..............9 WARRANTY AND RMA POLICY ...................11 2-2035 Fisher Dr, Peterborough, ON K9J 6X6 Canada | Tel: +1.705.742.1350 or +1.800.465.7046 | Email: support@lindsaybb.com... -
Page 3: Product Overview And Features
PRODUCT OVERVIEW AND FEATURES Description Lindsay Broadband LB-1000-FR series is a family of CATV 1 GHz and 1.2 GHz Forward Path Receiver Module, converting downstream optical signal into RF signal. LB-1000-FR comes in a single channel and dual channel model. The dual channel forward receiver provides optical/RF backup and switching function. -
Page 4: Specifications
LB-1000-FR User Manual Specifications Parameter Specification Optical Parameters Wavelength 1290-1620 nm Optical Input Power -6 to +2 dBm Optical Return Loss > 45 dB Optical Connector SC/APC RF Parameters RF Input Bandwidth 47-1000 MHz ; 47-1218 MHz Flatness ± 0.75 dB RF Return Loss ≥... -
Page 5: Block Diagram Of The Lb-1000-Fr
LB-1000-FR User Manual Block diagram of the LB-1000-FR Figure 1: Block diagram of the LB-1000-FR Forward Receiver 2-2035 Fisher Dr, Peterborough, ON K9J 6X6 Canada | Tel: +1.705.742.1350 or +1.800.465.7046 | Email: support@lindsaybb.com P a g e... -
Page 6: Safety Notes
Failure to comply with these safety precautions and with the general or specific safety precautions described elsewhere in the LB-1000 series manual violates the safety standards of the design, manufacture, and intended use of the device. Lindsay Broadband Inc. assumes no liability for the customer’s failure to comply with these precautions. -
Page 7: Application Module Description
LB-1000-FR User Manual APPLICATION MODULE DESCRIPTION Figure 2: LB-1000-FR Front and Rear Panel Front Panel: 1. Status LED will be green when the Forward receiver module is operating normally and will be red when there is an alarm. 2. The Test Point is a -20dB TP relative to the output port. -
Page 8: Installation
LB-1000-FR User Manual INSTALLATION Application modules of LB-1000 can be installed in any of the general slots of the rack. Module is inserted into the rack from the front part. 1) Gently insert the LB-1000 application module into any general slot (labelled 01 to 18) from the front of the chassis. - Page 9 9) Using the touch screen or web interface via LB-1000-CM the operating parameters for the application module can be monitored and adjusted. Operating parameters and adjustments on the LB-1000-FR are explained in Section 5.0. 2-2035 Fisher Dr, Peterborough, ON K9J 6X6 Canada | Tel: +1.705.742.1350 or +1.800.465.7046 | Email: support@lindsaybb.com...
-
Page 10: Lb-1000-Fr Settings
On the home screen of the LB-1000-CM touch screen, tap/touch the corresponding application module slot (01-18) where the LB-1000-FR is plugged in. The selected application module will be highlighted and the screen will show settings for the LB-1000-FR return receiver. -
Page 11: Lb-1000-Fr Settings: Using Web Interface
On the home screen of the LB-1000-CM Web interface, click the corresponding application module slot (#1 - #18) where the LB-1000-FR is plugged in. The selected application module will be highlighted and the screen will show settings for the LB-1000-FR return receiver. - Page 12 LB-1000-FR User Manual Figure 6: LB-1000-FR Web Interface 2-2035 Fisher Dr, Peterborough, ON K9J 6X6 Canada | Tel: +1.705.742.1350 or +1.800.465.7046 | Email: support@lindsaybb.com P a g e...
-
Page 13: Warranty And Rma Policy
LB-1000-FR User Manual WARRANTY AND RMA POLICY 2-2035 Fisher Dr, Peterborough, ON K9J 6X6 Canada | Tel: +1.705.742.1350 or +1.800.465.7046 | Email: support@lindsaybb.com P a g e... - Page 14 Without an RMA Number will be Returned to Sender RMA number must be used when returning product for credit or repair. Use of RMA numbers will ensure efficient processing. When returning product to Lindsay Broadband, please follow the simple steps below (in the order that they appear): RETURNS Fill out the Product Return Authorization Form indicating product information.
- Page 15 LB-1000-FR User Manual Lindsay Broadband Return Material Authorization (RMA) Form Service Repair Policy Lindsay Broadband product may be Company Contact Name: returned for repair under the following condition: Address: City: Please contact Lindsay Prov/State: Postal Code/Zip: Broadband Service Dept. to obtain an RMA#.
