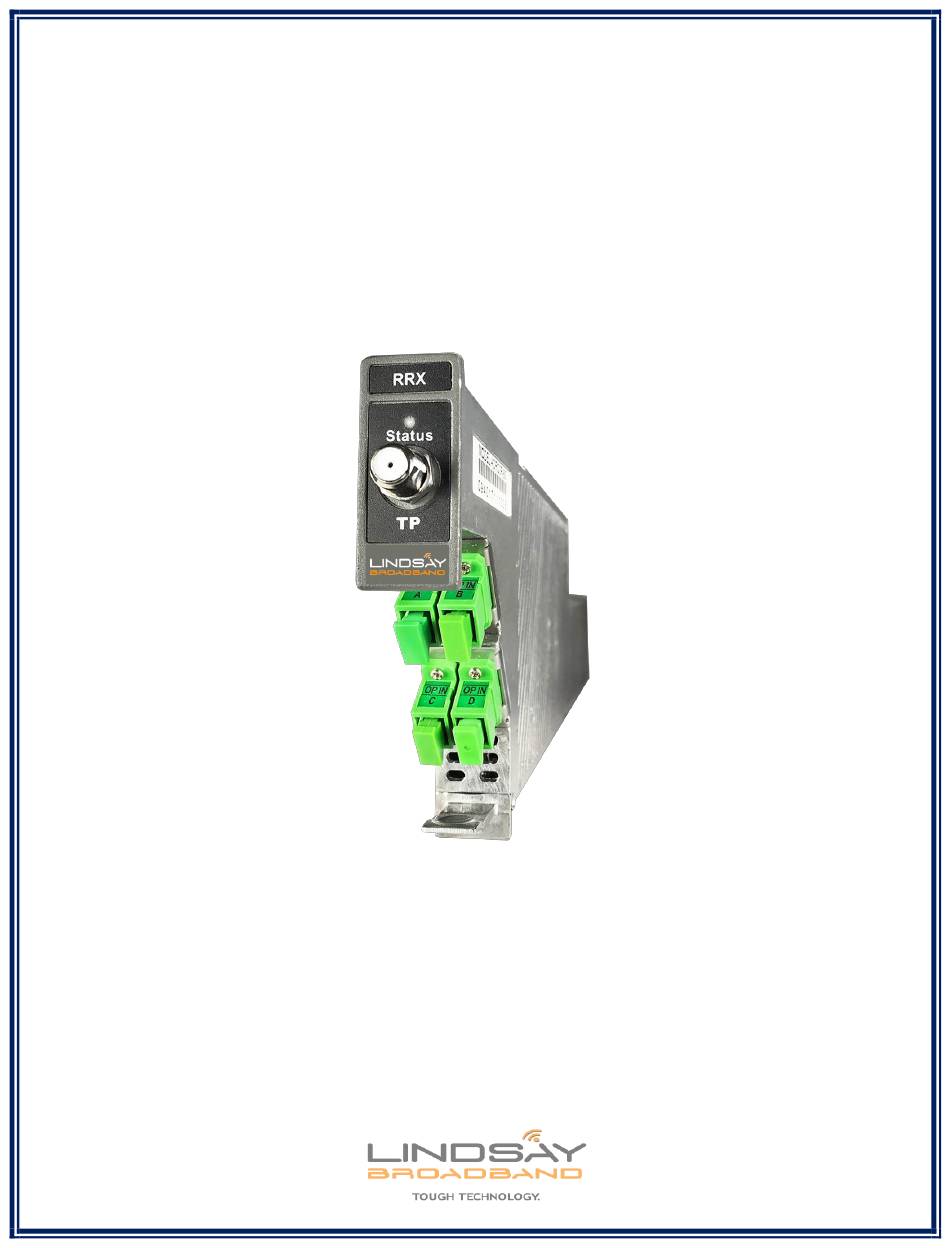

  • Page 1 LB-1000-RR Headend Platform Quad Return Receiver User Manual Aug 01 2019...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ........................ ii PRODUCT OVERVIEW AND FEATURES ............... 1 Description ........................1 Features .......................... 1 Specifications ......................... 2 Block diagram of the LB-1000-RR ................3 SAFETY NOTES ......................... 4 APPLICATION MODULE DESCRIPTION ............... 5 INSTALLATION ......................... 6 LB-1000-RR SETTINGS..................... 8 LB-1000-RR settings: Using touch screen ..............

  • Page 3: Product Overview And Features

    Lindsay Broadband LB-1000-RR series is a family of CATV Return Path Receiver Module, converting upstream optical signal into RF signal at the headend or remote hubs. LB-1000-RR return receiver incorporates a low noise PIN detector and RF amplifier chain. Internal selectable RF attenuators can be switched in or out to enable each receiver to handle a very wide range of optical input signals.

  • Page 4: Specifications

    LB-1000-RR User Manual Specifications PARAMETER SPECIFICATION UNIT NOTE Optical Performance Wavelength 1290 to 1620 Standard version -18 to +1 Input Power RFoG version -27 to -13 Standard version only; No AGC in Optical AGC -18 to +1 RFoG version Optical Return Loss >...

  • Page 5: Block Diagram Of The Lb-1000-Rr

    LB-1000-RR User Manual Block diagram of the LB-1000-RR Figure 1: Block diagram of the LB-1000-RR Quad Return Receiver 2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: (705) 742-1350 or (800) 465-7046 Email: support@lindsaybb.com P a g e...

  • Page 6: Safety Notes

    Failure to comply with these safety precautions and with the general or specific safety precautions described elsewhere in the LB-1000 series manual violates the safety standards of the design, manufacture, and intended use of the device. Lindsay Broadband Inc. assumes no liability for the customer’s failure to comply with these precautions.

  • Page 7: Application Module Description

    LB-1000-RR User Manual APPLICATION MODULE DESCRIPTION Figure 2: LB-1000-RR Front and Rear Panel Front Panel: Status LED will be green when the Return receiver module is operating normally and will be red when there is an alarm. The Test Point is a -20dB TP relative to the output port.

  • Page 8: Installation

    LB-1000-RR User Manual INSTALLATION Application modules of LB-1000 can be installed in any of the general slots of the rack. Module is inserted into the rack from the front part. 1) Gently insert the LB-1000 application module into any general slot (labelled 01 to 18) from the front of the chassis.
  • Page 9 9) Using the touch screen or web interface via LB-1000-CM the operating parameters for the application module can be monitored and adjusted. Operating parameters and adjustments on the LB-1000-RR are explained in Section 5. 2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: (705) 742-1350 or (800) 465-7046 Email: support@lindsaybb.com...

  • Page 10: Lb-1000-Rr Settings

    On the home screen of the LB-1000-CM touch screen, tap/touch the corresponding application module slot (01-18) where the LB-1000-RR is plugged in. The selected application module will be highlighted and the screen will show settings for the LB-1000-RR return receiver.
  • Page 11 Shows the current module temperature (°C) Running Time Shows the active run time of the module Figure 5: LB-1000-RR settings - Page 2 2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: (705) 742-1350 or (800) 465-7046 Email: support@lindsaybb.com P a g e...

  • Page 12: Lb-1000-Rr Settings: Using Web Interface

    On the home screen of the LB-1000-CM Web interface, click the corresponding application module slot (#1 - #18) where the LB-1000-RR is plugged in. The selected application module will be highlighted and the screen will show settings for the LB-1000-RR return receiver.
  • Page 13 LB-1000-RR User Manual Figure 7: LB-1000-RR Web Interface 2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: (705) 742-1350 or (800) 465-7046 Email: support@lindsaybb.com P a g e...

  • Page 14: Warranty And Rma Policy

    LB-1000-RR User Manual WARRANTY AND RMA POLICY 2-2035 Fisher Dr., Peterborough, ON CANADA K9J 6X6 Ph: (705) 742-1350 or (800) 465-7046 Email: support@lindsaybb.com P a g e...
  • Page 15 Without an RMA Number will be Returned to Sender RMA number must be used when returning product for credit or repair. Use of RMA numbers will ensure efficient processing. When returning product to Lindsay Broadband, please follow the simple steps below (in the order that they appear): RETURNS Fill out the Product Return Authorization Form indicating product information.
  • Page 16 LB-1000-RR User Manual Lindsay Broadband Return Material Authorization (RMA) Form Service Repair Policy Lindsay Broadband product may be Company Contact Name: returned for repair under the following Address: City: condition: Please contact Lindsay Broadband Prov/State: Postal Code/Zip: Service Dept. to obtain an RMA#.
