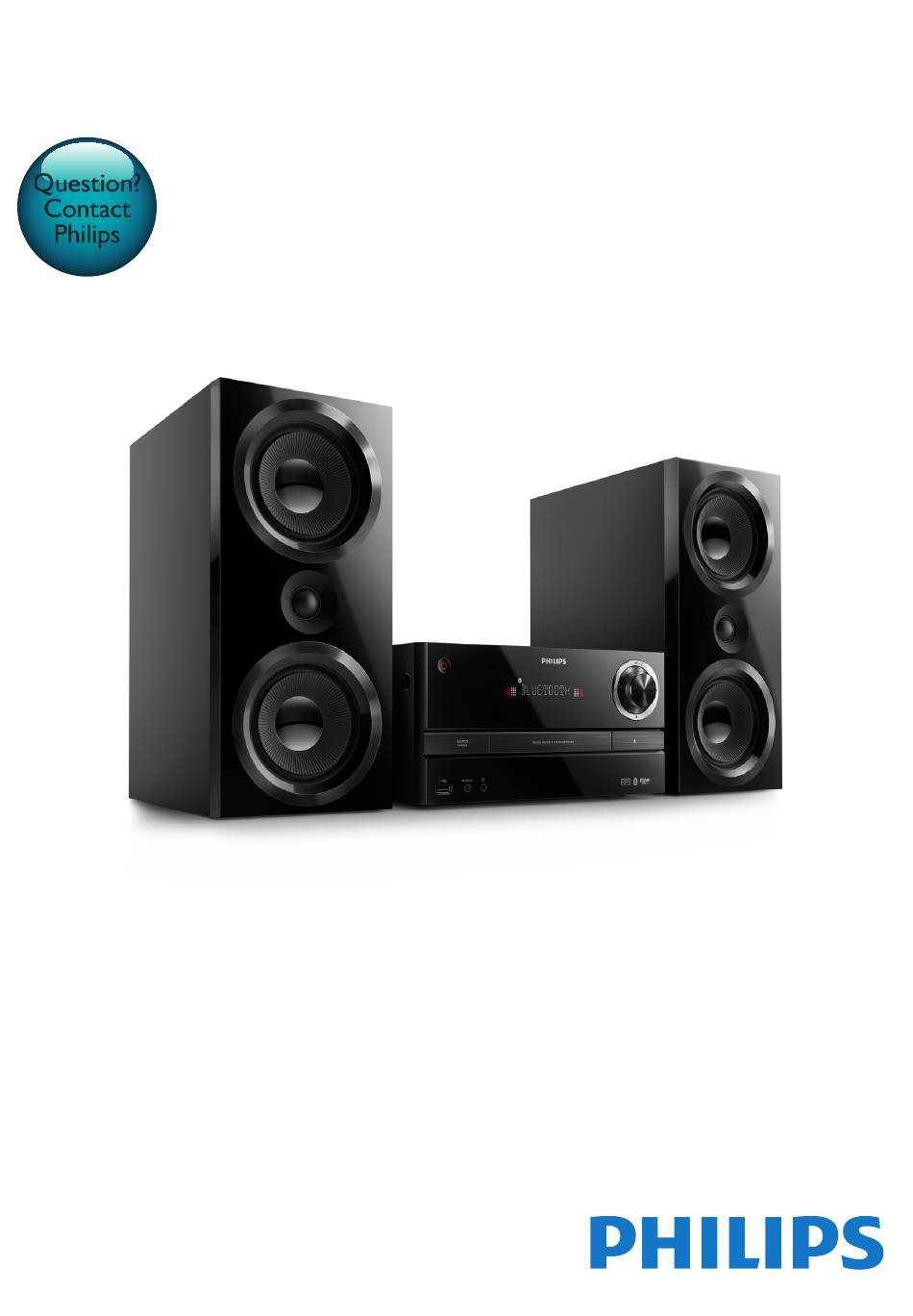

- Page 1 Always there to help you Register your product and get support at www.philips.com/support BTM3360 Question? Contact Philips User manual...
-
Page 3: Table Of Contents
Contents 1 Important 7 Other features Safety Set the alarm timer Notice Set the sleep timer Listen to an external device Charge your devices 2 Your Micro Music System Ajust the display brightness Introduction What's in the box 8 Product information Overview of the main unit Overview of the remote control Specifications... -
Page 4: Important
1 Important Warning • Never remove the casing of this apparatus. • Never lubricate any part of this apparatus. • Never look into the laser beam inside this apparatus. • Never place this apparatus on other electrical equipment. Safety • Keep this apparatus away from direct sunlight, naked flames or heat. -
Page 5: Notice
situations. Do not use headphones while Warning operating a motorized vehicle, cycling, • skateboarding, etc.; it may create a traffic To prevent possible hearing damage, do not listen at hight volume levels for long periods. hazard and is illegal in many areas. The maximum output voltage of headphone is Notice not greater than 150 mV. - Page 6 Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
-
Page 7: Your Micro Music System
Remote control (with one AAA battery) Congratulations on your purchase, and • 2 x Speakers with cables welcome to Philips! To fully benefit from the • 1 x FM wire antenna support that Philips offers, register your product • Short user manual at www.philips.com/welcome. Introduction With this unit, you can: •... -
Page 8: Overview Of The Main Unit
Overview of the main unit • Connect USB storage devices. • Turn on the product. l SOURCE/PAIRING • Switch to standby mode or ECO • Press to select a source: DISC, USB, power standby mode. TUNER, AUDIO IN, Bluetooth. b Display panel •... -
Page 9: Overview Of The Remote Control
• Tune to a radio station. Overview of the remote • Adjust time. control • Play tracks randomly. f ALBUM/PRESET • Select a preset radio station. • Skip to previous/next album. g DISPLAY/RDS • Adjust display brightness. • During playback, display the play information. - Page 10 /PAIRING • Select Bluetooth source. • Press and hold for three seconds until you hear a beep sound to enter pairing mode.
-
Page 11: Get Started
3 Get started Caution • Use of controls or adjustments or performance of procedures other than herein may result in hazardous laser exposure or other unsafe operation. Always follow the instructions in this chapter in sequence. Connect speakers Connect FM antenna Note •... -
Page 12: Connect Power
Connect power Demonstrate the features Caution In standby mode, press to demonstrate features of this device. • Risk of product damage! Ensure that the power supply » The features are displayed one by one voltage corresponds to the voltage printed on the back or the underside of the unit. -
Page 13: Set The Clock
Select a source Note • The product switches to ECO power standby mode On the main music system after 15 minutes in standby mode. Press SOURCE repeatedly to select a source. [DISC]: starts playing disc if there is disc • Switch between standby mode and ECO inserted in the CD compartment. -
Page 14: Play
4 Play Play from disc Press CD to select CD source. Press to open the disc compartment. Insert a disc with the label side up. Press to close the disc compartment. » Play starts automatically. If not, press Control play Start, pause, or resume play. -
Page 15: Play From Bluetooth-Enabled Devices
Play audio on the connected device. » Audio streams from your Bluetooth enabled device to this product. • If you fail to search for "Philips BTM3360'' or cannot pair with this product, press and hold /PAIRING for three seconds until the Bluetooth indicator flashes blue quickly to enter pairing mode. - Page 16 To disconnect the Bluetooth-enabled device: • Deactivate Bluetooth on your device; or • Move the device beyond the communication range. To pair and connect a second device You can pair and connect a maximum of two Bluetooth-enabled devices to this product actively at the same time.
-
Page 17: Listen To The Radio
5 Listen to the Program radio stations radio manually Tune to a radio station. Press PROG to activate program mode. Tune to a radio station » PRG (program) displays on the screen. Press to allocate a number from 1–20 to this radio station, and then press •... -
Page 18: Adjust Sound
6 Adjust sound The following operations are applicable to all supported media. Select a preset sound effect Press SOUND repeatedly to select a • preset sound effect. Balance(Balance), Clear(Clear), • Powerful(Powerful), Warm(Warm), and Bright(Bright). Adjust volume level On the remote control, press VOL +/- •... -
Page 19: Other Features
7 Other features • Alarm timer is not available in AUDIO IN mode. Note Set the alarm timer • If CD/USB source is selected, but no disc is placed or no USB device is connected, the FM source is selected automatically. -
Page 20: Charge Your Devices
Connect the product to power. » Once the device is recognized, the charging starts. Note • Philips does not guarantee the compatibility of this product with all devices. Ajust the display brightness Charge your devices Press and hold DISPLAY/RDS repeatedly to... -
Page 21: Product Information
8 Product Signal to Noise Ratio ≥45 dB information USB Direct Version 2.0 Full Speed Note Charging support 5V, 500mA • Product information is subject to change without prior notice. Disc Laser Type Semiconductor Disc Diameter 12 cm/8 cm Specifications Support Disc CD-DA, CD-R, CD- RW, MP3-CD Audio DAC... -
Page 22: Usb Playability Information
Weight Supported MP3 disc formats - Main Unit 2.3 kg • ISO9660, Joliet - Speaker Box 2.6 kg x 2 • Maximum title number: 128 (depending on file name length) • Maximum album number: 99 • Supported sampling frequencies: 32 kHz, USB playability information 44.1 kHz, 48 kHz •... -
Page 23: Troubleshooting
• Wait until the moisture condensation at requesting service. If the problem remains the lens has cleared. unsolved, go to the Philips Web page (www. • Replace or clean the disc. philips.com/support). When you contact Philips, •... - Page 24 • The Bluetooth function of the device is not enabled. Refer to the user manual of the device to find out how to enable the function. • This unit is not in pairing mode. • This unit is already connected with another Bluetooth-enabled device. Disconnect that device and then try again. The paired mobile device connects and disconnects constantly.
- Page 26 This product has been manufactured by, and is sold under the responsibility of Gibson Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license. BTM3360_96_UM_V2.0...
