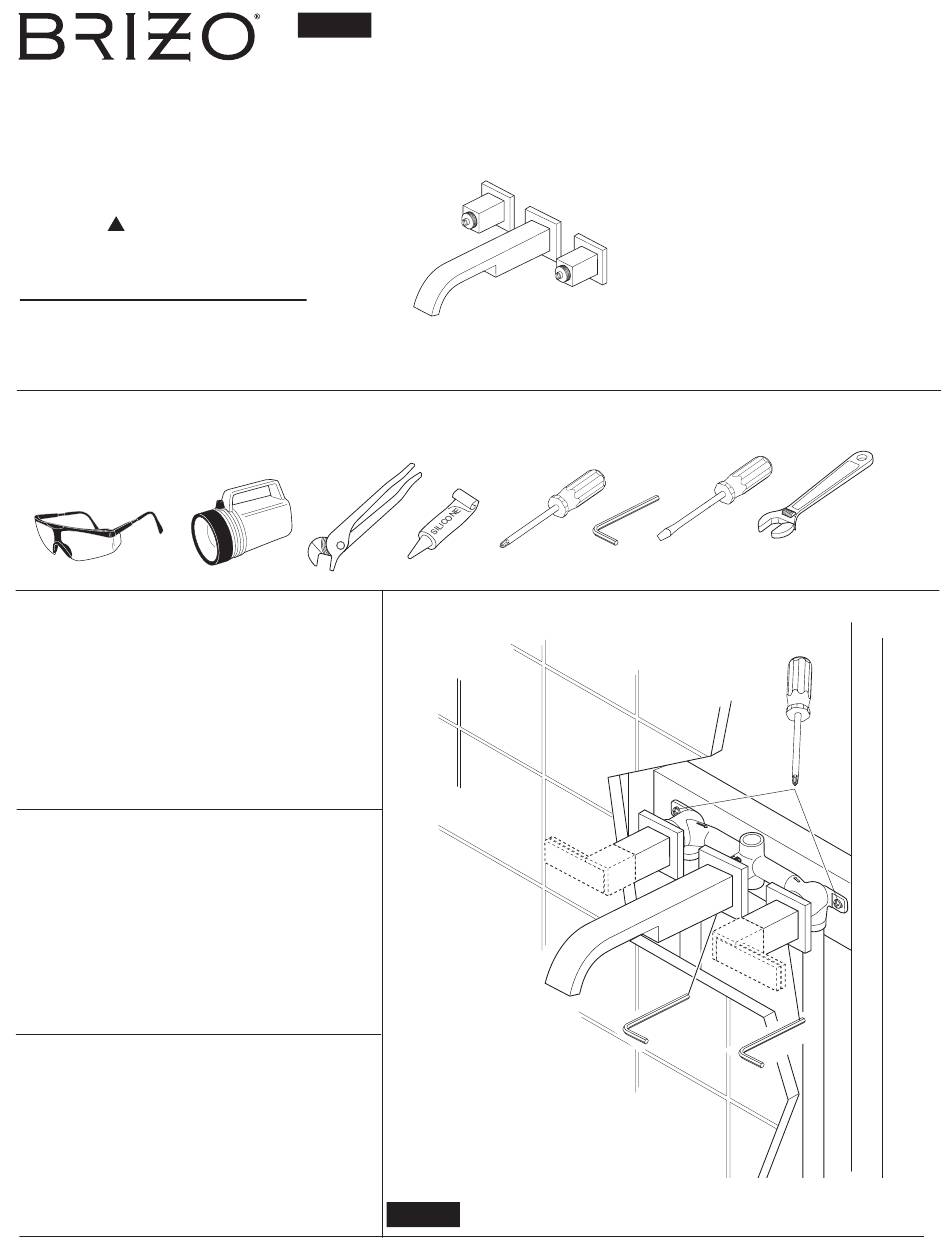

Brizo Siderna 65880LF LHP Series Manual

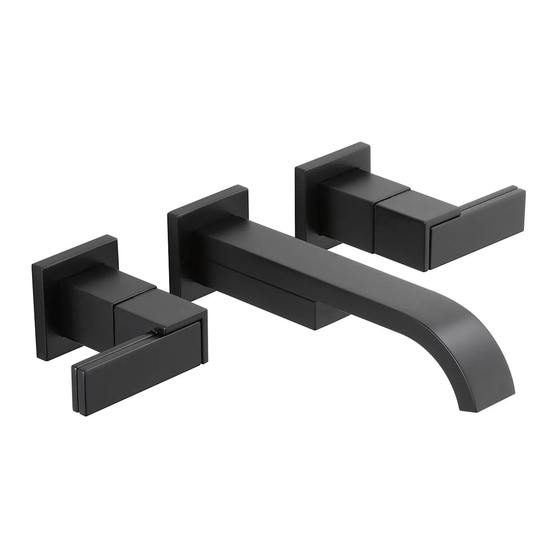

Two handle wall mounted lavatory faucet
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
ICC/ANSI A117.1
Model/Modelo/Modèle
65880LF- LHP
Series/Series/Seria
™
Siderna
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:
For easy installation of your
Brizo
®
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave
Brizo
®
usted necesitará:
• LEER TODAS las instrucciones completamen
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet
Brizo
®
facilement, vous devez:
• LIRE TOUTES les instructions avant
de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
www.brizo.com
TWO HANDLE WALL MOUNTED LAVATORY FAUCETS -
74223
LESS HANDLES
LLAVES DE AGUA PARA LAVABOS DE DOS MANIJAS
PARA INSTALACIÓN EN LA PARED – SIN MANIJAS
ROBINET MURAL À DEUX MANETTES POUR LAVABO -
SANS LES MANETTES
Note: Drain sold separately. / Nota: El desagüe se vende por separado /
Note : Renvoi vendu séparément.
74223
1
Note: Handle kits must be
ordered separately.
Nota: Los juegos de manijas
se venden por separado.
Note : Manettes en kit
vendues séparément.
04/03/2013 Rev.C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Siderna 65880LF LHP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Brizo Siderna 65880LF LHP Series

Summary of Contents for Brizo Siderna 65880LF LHP Series

  • Page 1 Note: Drain sold separately. / Nota: El desagüe se vende por separado / Note : Renvoi vendu séparément. You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin: For easy installation of your Brizo ® faucet you will need: • To READ ALL the instructions completely before beginning.

  • Page 2: Cleaning And Care

    Company para todos los reclamos a menos que el comprador haya registrado el producto con Delta Faucet Company reemplazará, SIN CARGO, durante el período de garantía aplicable, cual- Delta Faucet Company. Esta garantía le aplica sólo a las llaves de agua de Brizo ®...
  • Page 3 Plasterguard Protector de yeso Gabarit de plâtrage RP63794 Spout Flange and Gasket Reborde del Surtidor y Empaque Collerette du bec et joint RP49434 O-Rings Anillos “O” Joints Toriques RP75784 Adapter & Valve Cartridge, Cold Side Adaptador y Cartucho de la Válvula, Lado Frío Adaptateur et Cartouche de soupape, eau froide RP75798 Adapter &...
  • Page 4 MAINTENANCE – SPOUT SHUT OFF WATER SUPPLIES BEFORE SERVICING VALVE OR SPOUT ASSEMBLIES If your faucet leaks at base of spout, replace o-ring(s) (12) on spout adapter (13). A. Loosen set screw (14) on bottom side of spout and pull straight out on spout to remove it from adapter.

  • Page 5: Faucet Installation

    Min. 11 1/2" Min. 11 1/2 po Min. 3" Min. 3 po 2 3/4" ± 1/2" 2 3/4 po ± 1/2 po WATER LINE CONNECTIONS FAUCET INSTALLATION Install 1⁄2" hot and cold supply piping (1) to the valve body. Construct a suitable stud brace for mounting of the valve body. Refer to the roughing-in Temporarily pull plaster guards (2) from valve body.
  • Page 6 4" (100 mm) 1 5/8" (41.2 mm) Square 1 3/4" (47.6 mm) Diameter COMPLETE FINISH WALL Complete finish wall with 1 5/8" square holes for handles and 1 3/4" diameter hole for spout shank. Space hole centers 4" (100 mm) apart. NOTE: To ensure proper fit, do not oversize holes for handles, beyond 1 3/4"...

  • Page 7: Handle Installation

    HANDLE INSTALLATION HANDLE BASE INSTALLATION NOTE: HANDLE KITS SOLD SEPARATELY. Slide handle base (1) and gasket (2) over trim sleeve (3). Secure base against wall with set screw (4). Install button (5). Repeat for other end valve.Option: If Place glide ring (1) into the groove in the bottom of handle (2). Make mounting surface is uneven, apply suitable sealant to the back surface of sure valve cartridge is in the off position.
  • Page 8 Important : cette opération vise à évacuer les corps étrangers qui pourraient abîmer les éléments internes de votre robinet et nuire à son bon fonctionnement. www.brizo.com 74223 Rev.C...

This manual is also suitable for:

Siderna 65880lf-bllhpSiderna 65880lf-bnlhpSiderna 65880lf-pclhp
