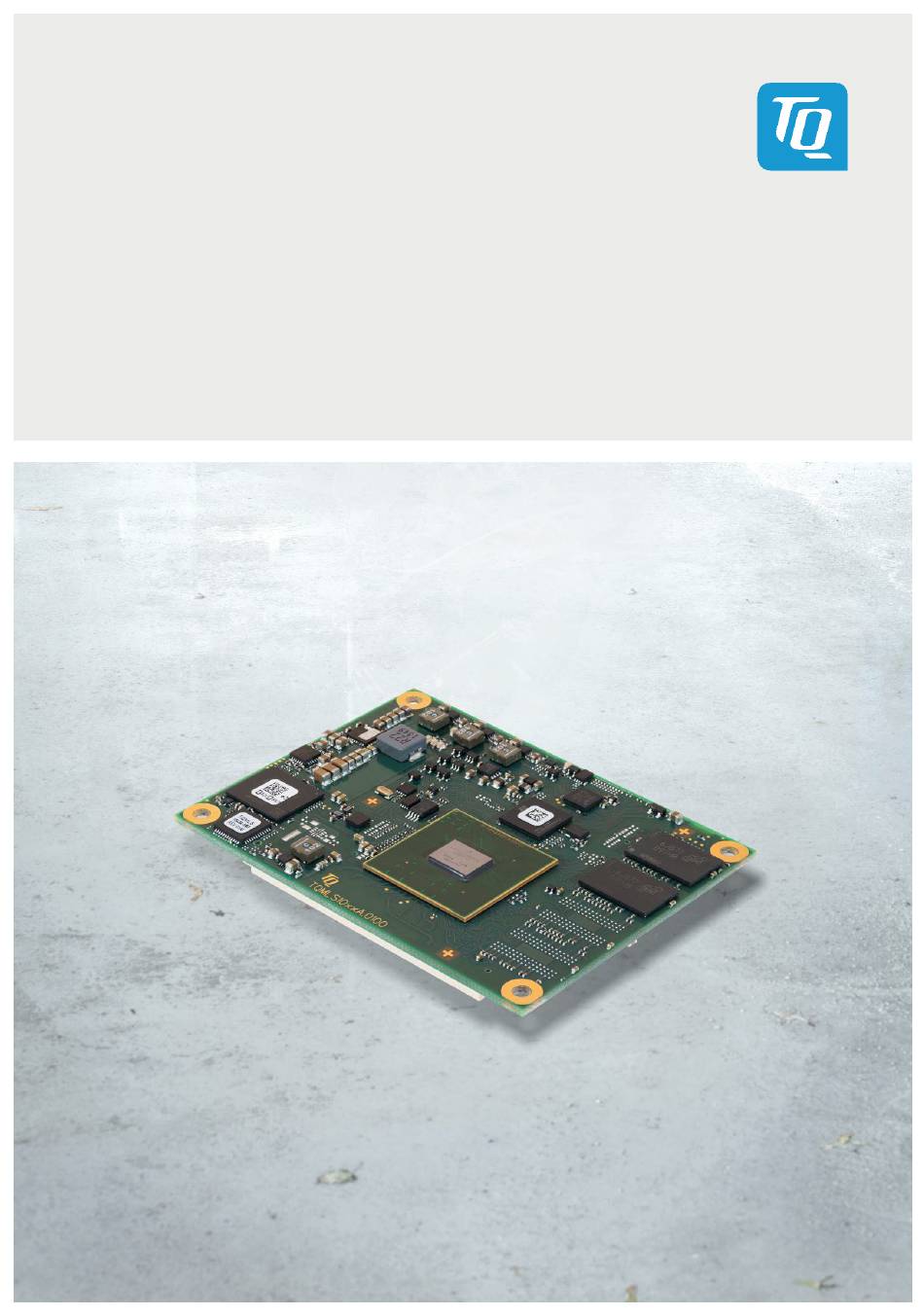

- Page 1 TQMLS10xxA User's Manual TQMLS10xxA UM 0105 21.03.2022...
-
Page 2: Table Of Contents
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page i TABLE OF CONTENTS ABOUT THIS MANUAL ....................................1 Copyright and license expenses ................................1 Registered trademarks ....................................1 Disclaimer ........................................1 Imprint ..........................................1 Tips on safety ........................................ 2 Symbols and typographic conventions ............................... - Page 3 User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page ii ENVIRONMENT PROTECTION ................................28 RoHS ..........................................28 WEEE .......................................... 28 ® REACH ........................................28 ® EuP ..........................................28 Battery.......................................... 28 Packaging ........................................28 Other entries ......................................28 APPENDIX ........................................
- Page 4 User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page iii TABLE DIRECTORY Table 1: Terms and Conventions .................................... 2 Table 2: LS10xxA variants ......................................8 Table 3: RCW source selection ....................................9 Table 4: TQMLS10xxA power consumption @ 5 V............................12 Table 5: RESET options ......................................
- Page 5 User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page iv REVISION HISTORY Rev. Date Name Pos. Modification 0100 12.08.2019 Petz First issue Hyperlinks updated, Links to TQMLS10xxA-specific BSPs added Link to PTXdist documentation removed, Link to Yocto documentation added...
-
Page 6: About This Manual
User's Manual, or due to usage of erroneous or incomplete information, are exempted, as long as there is no proven intentional or negligent fault of TQ-Systems GmbH. TQ-Systems GmbH explicitly reserves the rights to change or add to the contents of this User's Manual or parts of it without special notification. -
Page 7: Tips On Safety
Handling and ESD tips General handling of your TQ-products The TQ-product may only be used and serviced by certified personnel who have taken note of the information, the safety regulations in this document and all related rules and regulations. A general rule is: do not touch the TQ-product during operation. This is especially important when switching on, changing jumper settings or connecting other devices without ensuring beforehand that the power supply of the system has been switched off. -
Page 8: Naming Of Signals
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 3 Naming of signals A hash mark (#) at the end of the signal name indicates a low-active signal. Example: RESET# If a signal can switch between two functions and if this is noted in the name of the signal, the low-active function is marked with a hash mark and shown at the end. -
Page 9: Brief Description
NXP CPU Reference Manuals. The information provided in this User's Manual is only valid in connection with the tailored boot loader, which is preinstalled on the TQMLS10xxA, and the BSP provided by TQ-Systems GmbH. See also chapter 6. -
Page 10: Overview
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 5 OVERVIEW Block diagram TQMLS10xxA connector Power Supply TQMLS10xxA connector QSPI NOR Flash eMMC Flash Voltage Monitoring Muxing QSPI NOR Flash CPLD DDR4 Layerscape CPU DDR4 LS1043A (LS1023A) -
Page 11: Electronics
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 6 ELECTRONICS LS10xxA 4.1.1 LS10xxA variants, block diagrams The LS10xxA module family is available with three variants of the LS10xxA CPUs from NXP. The following block diagrams illustrate the differences between the CPUs:... - Page 12 User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 7 Figure 3: Block diagram LS1046A (Quad Cortex -A72) ® (Source: NXP) Figure 4: Block diagram LS1088A (Octal Cortex -A53) ® (Source: NXP)
-
Page 13: Ls10Xxa Variants, Details
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 8 4.1.2 LS10xxA variants, details The following table shows the features provided by the different variants. Fields with a red background indicate differences; fields with a green background indicate compatibility. -
Page 14: Reset Configuration Word Rcw
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 9 Reset Configuration Word RCW The Reset Configuration Word RCW can be taken from the LS1043A / LS1046A / LS1088A Reference Manuals (1). RCW source selection On the TQMLS10xxA the RCW source selection is controlled by a CPLD. An external pin strapping is not required. -
Page 15: Jtag
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 10 JTAG The JTAG interface is routed to the connectors. Signals TMS, and TRST# have 10 kΩ Pull-Ups to 1.8 V on the TQMLS10xxA. Figure 6: Block diagram JTAG interface Signal TRST_CPU# is connected with PORESET# by resistors. -
Page 16: Power Supply
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 11 Power supply 4.7.1 Input voltage The TQMLS10xxA requires a 5 V supply with a maximum tolerance of ±5 %. 4.7.2 Feedback voltages The voltages DVDD, LVDD, TVDD, and VCCGPIIN can be fed back according to customer requirements:... -
Page 17: Power Consumption
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 12 4.7.5 Power consumption The given power consumptions have to be seen as typical values. The power consumption of the TQMLS10xxA strongly depends on the application, the mode of operation, the environmental temperature, and the operating system. -
Page 18: Reset Structure
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 13 Reset structure If RESIN# is disabled, the Board Controller starts the initialization of the TQMLS10xxA. If no errors occur during initialization and when power supplies are OK, the CPU is started via PORESET#. -
Page 19: Memory
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 14 Memory 4.9.1 DDR4 SDRAM Depending on the CPU derivative, the TQMLS10xxA supports up to 8 Gbyte DDR4 SDRAM. ECC is optionally available and is assembled as an additional DDR4 SDRAM component. -
Page 20: Temperature Sensor With Eeprom, Se97B
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 15 4.10 Temperature sensor with EEPROM, SE97B 4.10.1 Temperature sensor, SE97B A temperature sensor SE97B is assembled on the TQMLS10xxA, which measures the environmental temperature. Figure 12: Block diagram SE97B temperature sensor ... -
Page 21: Rtc
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 16 4.11 An RTC type PCF85063A is assembled. RTC signal CLKOUT (32 kHz) is routed to the TQMLS10xxA connector (X2-118). RTC signal INT# can be used in several ways: •... -
Page 22: I 2 C Bus
When using the processor signals the multiple pin configurations by different processor-internal function units must be taken note of. The pin assignment listed in Table 8 to Table 11 refer to the corresponding standard BSPs of TQ-Systems GmbH in combination with the Starterkit MBLS10xxA. For standard BSPs, see 1.9. -
Page 23: Pinout Tqmls10Xxa Connectors
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 18 4.14.2 Pinout TQMLS10xxA connectors The following Table 8 describes the TQMLS10xxA connectors pinout for the CPU variant LS1046A. The partly differing pinouts with the CPU variants LS1043A and LS1088A are described in the TQMLS10xxA Design Checklist, which is available on request from the TQ-Support. - Page 24 User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 19 4.14.2 Pinout TQMLS10xxA connectors (continued) Table 9: Pinout connector X2 CPU ball Dir. Level Group Signal Signal Group Level Dir. CPU ball Ground DGND DGND Ground 1.8 V (6)
- Page 25 User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 20 4.14.2 Pinout TQMLS10xxA connectors (continued) Table 10: Pinout connector X3 CPU ball Dir. Level Group Signal Signal Group Level Dir. CPU ball Ground DGND DGND Ground 1.8 / 2.5 V (11)
- Page 26 User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 21 4.14.2 Pinout TQMLS10xxA connectors (continued) Table 11: Pinout connector X4 CPU ball Dir. Level Group Signal Signal Group Level Dir. CPU ball Ground DGND DGND Ground 1.2 / 1.8 / 2.5 V (16)
-
Page 27: Assembly
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 22 4.14.3 Assembly Figure 17: TQMLS10xxA assembly, top Figure 18: TQMLS10xxA assembly, bottom The labels on the TQMLS10xxA show the following information: Table 12: Labels on TQMLS10xxA Label... -
Page 28: Mechanics
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 23 MECHANICS Dimensions TQMLS1043A Figure 19: TQMLS1043A dimensions, side view Figure 20: TQMLS1043A dimensions, top view Figure 21: TQMLS1043A dimensions, top view through TQMLS1043A... -
Page 29: Dimensions Tqmls1046A / Tqmls1088A
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 24 Dimensions TQMLS1046A / TQMLS1088A Figure 22: TQMLS1046A / TQMLS1088A dimensions, side view Figure 23: TQMLS1046A / TQMLS1088A dimensions, top view Figure 24: TQMLS1046A / TQMLS1088A dimensions, top view through TQMLS1046A / TQMLS1088A... -
Page 30: Tqmls10Xxa Connectors
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 25 TQMLS10xxA connectors The TQMLS10xxA is connected to the carrier board with 420 pins on four connectors. The following table shows details of the connector assembled on the TQMLS10xxA. -
Page 31: Adaptation To The Environment
The TQMLS10xxA is delivered with a preinstalled boot loader and a BSP, which is configured for the Starterkit MBLS10xxA. Documentation and BSPs can be found in the respective TQ-Support Wiki, see (1.9). The boot loader provides TQMLS10xxA-specific as well as board-specific settings, e.g.: •... -
Page 32: Safety Requirements And Protective Regulations
User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 27 SAFETY REQUIREMENTS AND PROTECTIVE REGULATIONS The TQMLS10xxA was developed according to the requirements of electromagnetic compatibility (EMC). Depending on the target system, anti-interference measures may still be necessary to guarantee the adherence to the limits for the overall system. - Page 33 SVHC (Substances of very high concern, e.g., carcinogen, mutagen and/or persistent, bio accumulative and toxic). Within the scope of this juridical liability, TQ-Systems GmbH meets the information duty within the supply chain with regard to the SVHC substances, insofar as suppliers inform TQ-Systems GmbH accordingly.
- Page 34 User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 29 APPENDIX Acronyms and definitions The following acronyms and abbreviations are used in this document: Table 16: Acronyms Acronym Meaning Ball Grid Array BIOS Basic Input/Output System Board Support Package...
- Page 35 User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 30 Acronyms and definitions (continued) Table 16: Acronyms (continued) Acronym Meaning n.a. Not Applicable Not Connected Not-Or Printed Circuit Board Peripheral Component Interconnect PCMCIA People Can't Memorize Computer Industry Acronyms...
- Page 36 User's Manual l TQMLS10xxA UM 0105 l © 2022, TQ-Systems GmbH Page 31 References Table 17: Further applicable documents No.: Name Rev., Date Company Reference Manuals: LS1043A Rev. 3, 02/2017 LS1046A Rev. 1, 10/2017 LS1088A Rev. 0, 02/2018 Data Sheets: LS1043A Rev.
- Page 37 TQ-Systems GmbH Mühlstraße 2 l Gut Delling l 82229 Seefeld Info@TQ-Group TQ-Group...
