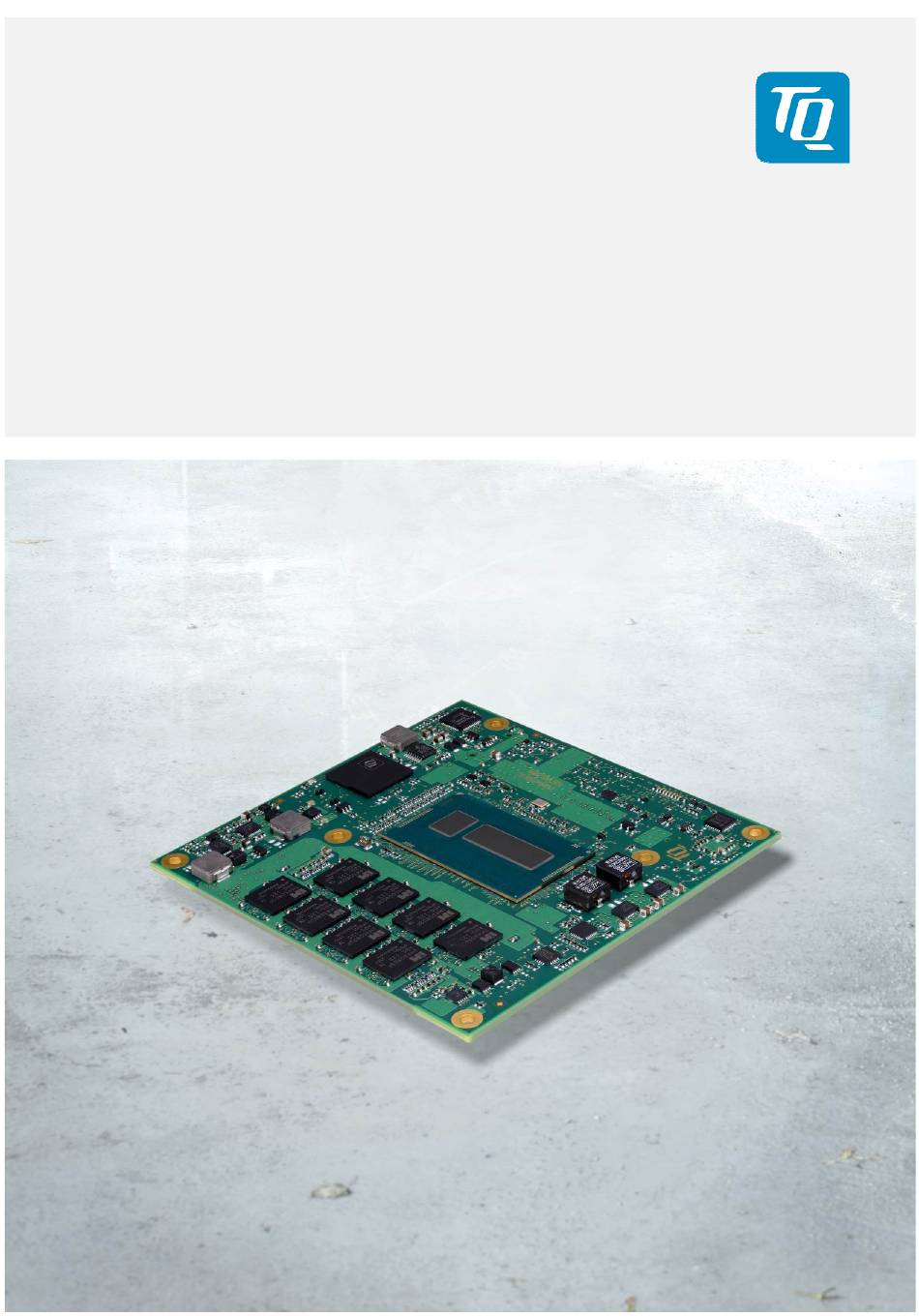

- Page 1 User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page i TQMx50UC User's Manual TQMx50UC UM 0101 2018-09-26...
-
Page 2: Table Of Contents
User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page i TABLE OF CONTENTS ABOUT THIS MANUAL....................................1 Copyright and License Expenses................................1 Registered Trademarks....................................1 Disclaimer........................................1 Imprint..........................................1 Service and Support....................................1 Tips on Safety .......................................2 Symbols and Typographic Conventions..............................2 Handling and ESD Tips ....................................2 Naming of Signals.......................................3... - Page 3 User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page ii TABLE OF CONTENTS (continued) Connectors......................................... 14 3.6.1 COM Express™ Connector ..................................14 3.6.2 Debug Header......................................14 3.6.3 Debug Module LED ....................................14 COM Express™ Connector Pinout List..............................14 3.7.1...
- Page 4 User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page iii TABLE DIRECTORY Table 1: Terms and Conventions..................................2 Table 2: TQMx50UC Power Consumption..............................7 Table 3: RTC Current Consumption................................7 Table 4: Processor Specifications..................................8 Table 5: Maximum Resolution in Dual Display Configuration .......................9 Table 6: USB 3.0 COM Express™...
-
Page 5: About This Manual
User's Manual, or due to usage of erroneous or incomplete information, are exempted, as long as there is no proven intentional or negligent fault of TQ-Systems GmbH. TQ-Systems GmbH explicitly reserves the rights to change or add to the contents of this User's Manual or parts of it without special notification. -
Page 6: Tips On Safety
Violation of this guideline may result in damage / destruction of the TQMx50UC and be dangerous to your health. -
Page 7: Naming Of Signals
User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 3 Naming of Signals A hash mark (#) at the end of the signal name indicates a low-active signal. Example: RESET# If a signal can switch between two functions and if this is noted in the name of the signal, the low-active function is marked with a hash mark and shown at the end. -
Page 8: Introduction
User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 4 INTRODUCTION ® Based on the internationally established PICMG standard COM Express™ (COM.0 R2.1), Compact, the TQMx50UC enables the design of not only powerful but also economical x86 based systems. The user has access to all essential interfaces of the CPU at ®... -
Page 9: Specification Compliance
User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 5 Specification Compliance ® The TQMx50UC is compliant to the PICMG COM Express™ Module Base Specification (COM.0 R2.1) Compact, Type 6, 95 × 95 mm . Versions The TQMx50UC is available in several standard configurations. -
Page 10: Functional Specification
Block Diagram TQMx50UC Electrical Specification 3.2.1 Supply Voltage Characteristics The TQMx50UC supports a wide-range voltage input from 8.5 V to 20 V. The following supply voltages are specified at the COM Express™ connector: Wide input: 8.5 V to 20 V maximum input ripple: ±100 mV... -
Page 11: Power Consumption Specification
Power Consumption Specification The power consumption values below show the voltage and power specifications of the TQMx50UC. The values were measured with two power supplies; one for the TQMx50UC and the other one for the MB-COME6-1 COM Express™ carrier board. -
Page 12: Environmental Specification
• Relative humidity (operating / storage): 10 % to 90 % (not condensing) Attention: Maximum operating temperature Do not operate the TQMx50UC if it is not attached properly to a heat spreader and a heat sink! System Components 3.4.1 Processor ®... -
Page 13: Intel ® Turbo Boost Technology
DirectX* 11.1, DirectX* 11.1+, DirectX* 11, DirectX* 10.1, DirectX* 10, DirectX* 9 support • OpenGL* 4.0, OpenGL* 4.2 support The TQMx50UC supports two Digital Display Interfaces (DDI0 and DDI1) and one dual LVDS interface at the COM Express™ connector. Table 5:... -
Page 14: Memory
Winbond W25Q128FV • Macronix MX25L12835F 3.4.4.3 EEPROM The TQMx50UC provides an EEPROM. The 32 kbit (24AA32) EEPROM is connected to the general purpose I C interface (COM Express™ pins I2C_DAT and I2C_CK). 3.4.5 Real Time Clock ® The TQMx50UC provides a standard RTC (Motorola MC146818B) integrated in the 5 Generation Intel Core™... -
Page 15: Ultra Deep Power State Green Eco-Off
3.5.1 PCI Express The TQMx50UC supports up to four PCI Express Gen2 ports (4 PCIe (×1) or 1 PCIe (×4)) at COM Express™ connector (Port 0 – 3). The default configuration for the PCI Express lanes is 4 (×1). PCI Express lane configurations 1 (×1), 1 (×2), or 1 (×4), can be configured with a customized BIOS. -
Page 16: Usb 3.0 Interfaces
I C Bus The TQMx50UC supports a general purpose I C port via a dedicated LPC to I C controller integrated in the TQ-flexiCFG block. The I C host controller supports a transfer rate of up to 400 kHz and can be configured independently. -
Page 17: Serial Ports
The 16 byte transmit and receive FIFOs reduce CPU overhead and minimize the risk of buffer overflow and data loss. With the TQ-flexiCFG feature the serial ports can be configured to route the handshake signals to free pins at the COM Express™... -
Page 18: Connectors
3.6.2 Debug Header The TQMx50UC provides a 14-pin flat cable connector to connect an external debug module (TQ specific) providing BIOS post code information, debug LEDs and a JTAG interface for on-board FPGA. This header is for TQ internal use only. -
Page 19: Com Express™ Connector Pin Assignment
User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 15 3.7.2 COM Express™ Connector Pin Assignment Table 10: COM Express™ Connector Pin Assignment Pin-Signal Description Type Remark GND(FIXED) Ground GBE0_MDI3– Gigabit Ethernet Controller 0: Media Dependent Interface GBE0_MDI3+... - Page 20 User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 16 Table 10: COM Express™ Connector Pin Assignment (continued) Pin-Signal Description Type Remark PCIE_TX4– PCI Express differential transmit pairs Ground PCIE_TX3+ PCI Express differential transmit pairs PCIE_TX3– PCI Express differential transmit pairs...
- Page 21 User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 17 Table 10: COM Express™ Connector Pin Assignment (continued) Pin-Signal Description Type Remark GND(FIXED) Ground GBE0_ACT# Gigabit Ethernet Controller 0 active indicator LPC_FRAME# LPC frame indicates the start of an LPC cycle...
- Page 22 User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 18 Table 10: COM Express™ Connector Pin Assignment (continued) Pin-Signal Description Type Remark PCIE_RX4– PCI Express differential receive pairs GPO2 / SD_WP GPO2 / SDIO Write Protect O PD...
- Page 23 User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 19 Table 10: COM Express™ Connector Pin Assignment (continued) Pin-Signal Description Type Remark GND(FIXED) Ground Ground USB_SSRX0– SuperSpeed USB3.0 differential receive pairs USB_SSRX0+ SuperSpeed USB3.0 differentia receive pairs Ground USB_SSRX1–...
- Page 24 User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 20 Table 10: COM Express™ Connector Pin Assignment (continued) Pin-Signal Description Type Remark PEG_RX1– PCI Express differential receive pairs N/A PCIe on request TYPE1# Type 1 Module indication (NC)
- Page 25 User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 21 Table 10: COM Express™ Connector Pin Assignment (continued) Pin-Signal Description Type Remark GND(FIXED) Ground Ground USB_SSTX0– SuperSpeed USB3.0 differential transmit pairs USB_SSTX0+ SuperSpeed USB3.0 differential transmit pairs Ground USB_SSTX1–...
- Page 26 User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 22 Table 10: COM Express™ Connector Pin Assignment (continued) Pin-Signal Description Type Remark PEG_TX1– PCI Express differential transmit pairs N/A PCIe on request TYPE2# Type 2 Module indication (GND)
-
Page 27: Mechanics
User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 23 MECHANICS TQMx50UC Dimensions The dimensions of the TQMx50UC are 95 × 95 mm (±0.2 mm). The following illustration shows the Three View Drawing of the TQMx50UC. Illustration 2: Three view drawing TQMx50UC The following illustration shows the bottom view of the TQMx50UC. -
Page 28: Heat Spreader Dimensions
An important factor for each system integration is the thermal design. The heat spreader acts as a thermal coupling device to the TQMx50UC. The heat spreader is thermally coupled to the processor and provides optimal heat transfer from the TQMx50UC to the heat spreader. -
Page 29: Software
I C Bus The TQMx50UC provides a general purpose I C port via a dedicated LPC to I C controller in the TQ-flexiCFG block. The following table shows the I C address mapping for the COM Express™ I C port. -
Page 30: Operating Systems
Operating Systems. 5.2.2 Driver Download The TQMx50UC is well supported by the Standard Operating Systems, which already include most of the required drivers. The ® use of the latest Intel drivers to optimize performance and the full feature set of the TQMx50UC is recommended. -
Page 31: Safety Requirements And Protective Regulations
Page 27 SAFETY REQUIREMENTS AND PROTECTIVE REGULATIONS The TQMx50UC was developed according to the requirements of electromagnetic compatibility (EMC). Depending on the target system, anti-interference measures may still be necessary to guarantee the adherence to the limits for the overall system. -
Page 32: Environment Protection
By environmentally friendly processes, production equipment and products, we contribute to the protection of our environment. To be able to reuse the TQMx50UC, it is produced in such a way (a modular construction) that it can be easily repaired and disassembled. The energy consumption of this subassembly is minimised by suitable measures. The TQMx50UC is delivered in reusable packaging. -
Page 33: Appendix
User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 29 APPENDIX Acronyms and Definitions The following acronyms and abbreviations are used in this document. Table 13: Acronyms Acronym Meaning AT Attachment BIOS Basic Input/Output System Controller Area Network... - Page 34 User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 30 Table 13: Acronyms (continued) Acronym Meaning Multimedia Card mSATA Mini-SATA MTBF Mean operating Time Between Failures Not Available Not Connected Output Open drain output OpROM Option ROM Operating System...
-
Page 35: References
User's Manual l TQMx50UC UM 0101 l © 2018 TQ-Group Page 31 References Table 14: Further Applicable Documents and Links Name Rev., Date Company ® Generation Intel Core™ 5000U series (“Broadwell-U”):: Overview ® Intel http://www.intel.com/content/www/us/en/embedded/products/broadwell-u/5th-gen-core-mobile-u- processor-platform-brief.html ® Generation Intel Core™ 5000U series (“Broadwell-U”):: Software and Drivers download http://www.intel.com/content/www/us/en/embedded/products/broadwell-... - Page 36 TQ-Systems GmbH Mühlstraße 2 l Gut Delling l 82229 Seefeld info@tq-group.com TQ-Group...
