PCB Piezotronics IMI Sensors 603C91 Installation And Operating Manual page 19

PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
B
A
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN INCHES
DECIMALS XX ±.03
XXX ±.010

ANGLES 2 DEGREES
FILLETS AND RADII
.003 - .005
2
GROUND
1.73 [43.9]
.97 [24.6]
.030 [.76]
.687 [17.45] HEX
DIMENSIONS IN MILLIMETERS
JDM
[ IN BRACKETS ]
TITLE
DECIMALS X ± 0.8
XX ± 0.25

ANGLES 2 DEGREES
FILLETS AND RADII
0.07 - 0.13
2
REV
A
SIGNAL/POWER
A
B
C
D

2X .672 [17.07]
1/4-28 UNF - 2B
DRAWN CHECKED
2/12/16 AF 2/12/16

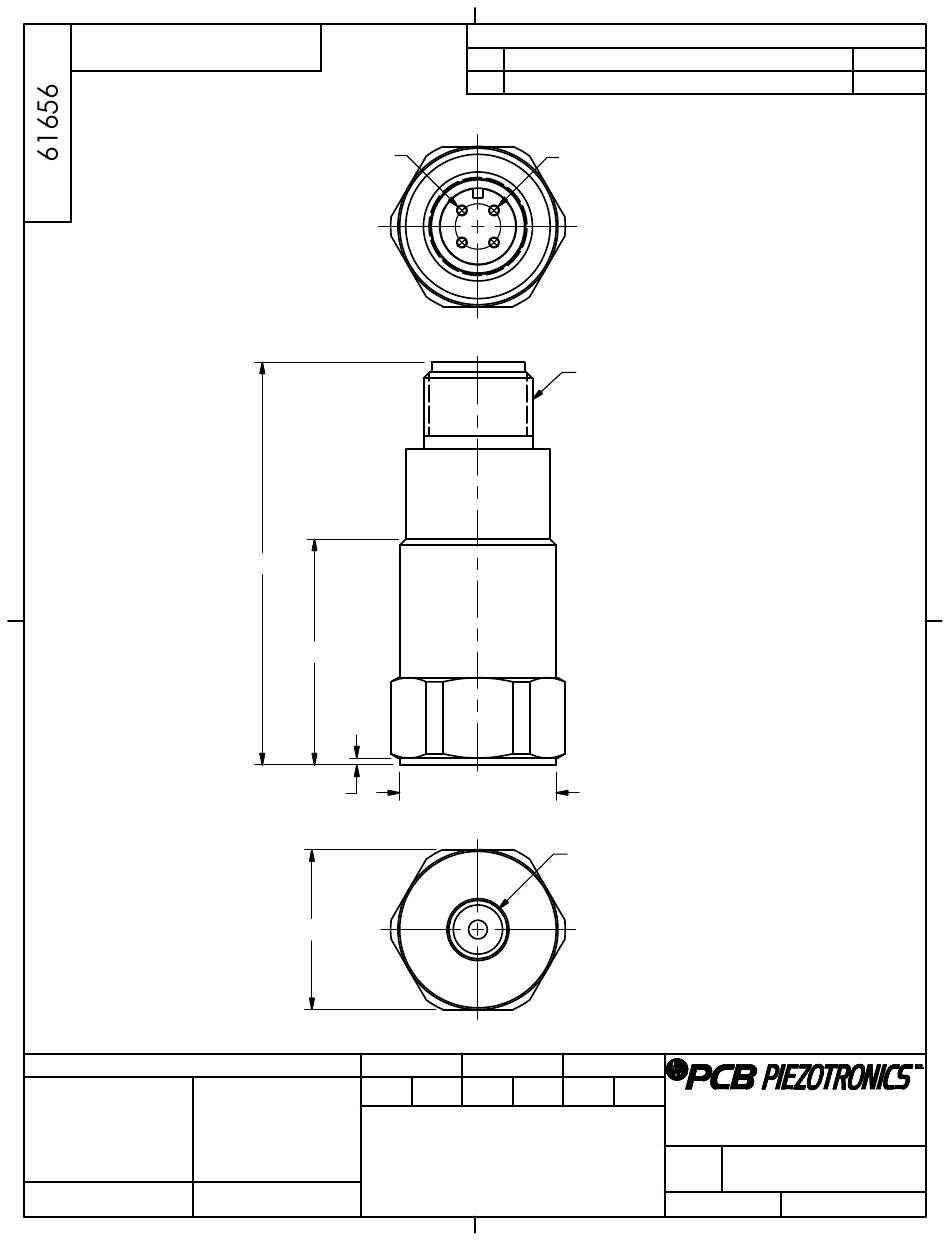

OUTLINE DRAWING
ACCELEROMETER
WITH 4-PIN M12 CONNECTOR
1
REVISIONS
DESCRIPTION
REVISED TITLE
M12x1 - 6g

.21[5.3]
ENGINEER
GCD 2/12/16
3425 WALDEN AVE. DEPEW, NY 14043
(716) 684-0001 E-MAIL: sales@pcb.com
DWG. NO.
CODE
IDENT. NO.
52681
SCALE: 2X
1
DIN
45109
B
A
61656
SHEET 1 OF 1
