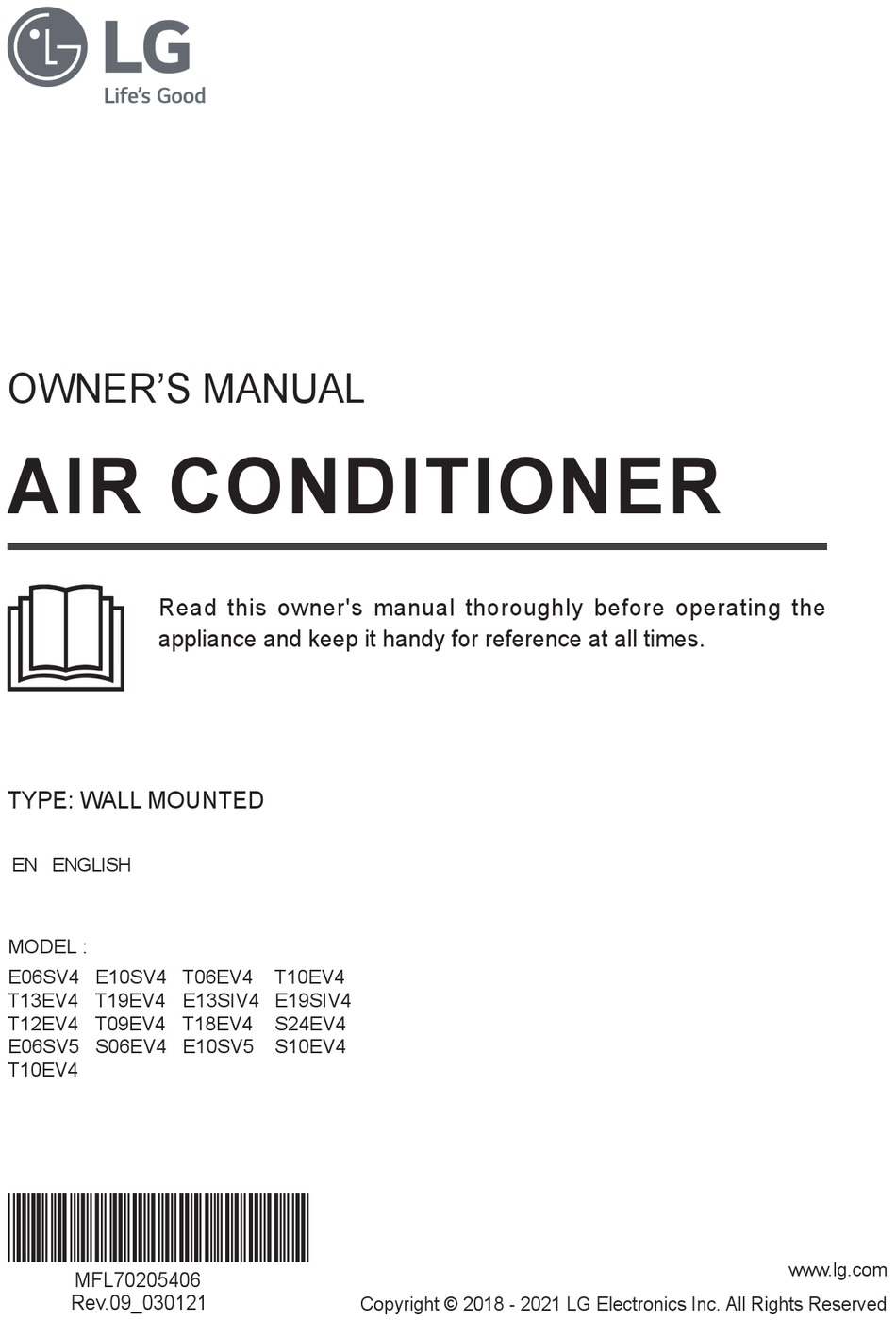

OWNER'S MANUAL
AIR CONDITIONER
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
TYPE: WALL MOUNTED
EN ENGLISH
MODEL :
E06SV4 E10SV4 T06EV4
T13EV4
T19EV4 E13SIV4 E19SIV4
T12EV4 T09EV4 T18EV4
E06SV5
S06EV4 E10SV5
T10EV4
*MFL70205406*
MFL70205406
Rev.09_030121
T10EV4
S24EV4
S10EV4
Copyright © 2018 - 2021 LG Electronics Inc. All Rights Reserved
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG T09EV4

Summary of Contents for LG T09EV4

  • Page 1 TYPE: WALL MOUNTED EN ENGLISH MODEL : E06SV4 E10SV4 T06EV4 T10EV4 T13EV4 T19EV4 E13SIV4 E19SIV4 T12EV4 T09EV4 T18EV4 S24EV4 E06SV5 S06EV4 E10SV5 S10EV4 T10EV4 *MFL70205406* www.lg.com MFL70205406 Rev.09_030121 Copyright © 2018 - 2021 LG Electronics Inc. All Rights Reserved...

  • Page 2: Table Of Contents

    Using the Energy Saving Function (Optional) ........24 Using the Watt Control Function (Optional) ..........24 Using Special Functions ...............25 SMART FUNCTIONS ............28 LG ThinQ Application ................28 Smart Diagnosis ...................30 MAINTENANCE ..............31 Clean the Air Filter ................33 Clean the Micro Dust, Triple and Allergy Filter (Optional) .....34...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. This symbol is displayed to indicate matters and operations that can cause risk.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of explosion, fire, death, electric shock, injury or scalding to persons when using this product, follow basic precautions, including the following: Children in the Household This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a...
  • Page 5 xDo not install the air conditioner in a place where flammable liquids or gases such as gasoline, propane, paint thinner, etc., are stored. xMake sure that the pipe and the power cable connecting the indoor and outdoor units are not pulled too tight when installing the air conditioner.
  • Page 6 xCut off the power supply if there is any noise, smell, or smoke coming from the air conditioner. xDo not leave flammable substances such as gasoline, benzene, or thinner near the air conditioner. xContact an authorized service center when the air conditioner is submerged by flood waters.
  • Page 7 xTake care to ensure that power cable could not be pulled out or damaged during operation. xDo not touch refrigerant pipe, water pipe and any internal parts while the unit is operating or immediately after operation. Maintenance xDo not clean the appliance by spraying water directly onto the product.
  • Page 8 xThe appliance shall be installed in accordance with national wiring regulations. xWhen the power cord is to be replaced, the replacement work shall be performed by authorized personnel using only genuine replacement parts. xThis appliance must be properly grounded to minimize risk of electric shock.
  • Page 9 CAUTION To reduce the risk of minor injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: Installation xDo not install the air conditioner in an area where it is directly exposed to sea wind (salt spray).
  • Page 10 xMake sure that the filter is installed before operating the air conditioner. xBe sure to check if there is a refrigerant leak after installing or repairing the air conditioner. xDo not place any object on the air conditioner. xNever mix different types of batteries, or old and new batteries for the remote control.

  • Page 11: Operation

    OPERATION Notes for Operation Suggestion for Energy Saving x Do not over-cool the space. This may be harmful for your health and may consume more electricity. x Block sunlight with blinds or curtains while you are operating the air conditioner. x Keep doors or windows closed tightly while you are operating the air conditioner.

  • Page 12: Wireless Remote Control

    Wireless Remote Control Operating Method Point the remote control towards the signal Inserting Batteries receiver at the right side of the air conditioner to operate it. If the display screen of the remote control begins to fade, replace the batteries. Insert AAA (1.5 V) batteries before using the remote control.
  • Page 13 Setting the Current Time Operating the Air Conditioner without the Remote Control Insert batteries. You can use the On/Off button of the indoor x The icon below blinks at the bottom of the unit to operate the air conditioner when the display screen.
  • Page 14 Using Wireless Remote Control You can operate the air conditioner more conveniently with the remote control. Display Description Button Screen To turn on/off the air conditioner. To adjust the desired room temperature in cooling, heating or auto changeover mode. To select the cooling mode. To select the heating mode.
  • Page 15 Display Description Button Screen To turn on/off air conditioner automatically at desired time. Set/ To set/cancel the special functions and Cancel timer. To cancel the timer settings. To adjust time. *Light To set the brightness of the display on the indoor unit. Room To display the room temperature.
  • Page 16 Display Description Button Screen The Ion generator uses millions of ions to help improve indoor air quality. To reduce noise from outdoor units. To keep your skin moisturized by generating ion clusters. To lower indoor humidity quickly. To maintain a minimum room temperature and prevent objects in the room from freezing.

  • Page 17: Restarting The Air Conditioner Automatically

    Restarting the Air Conditioner Using the Mode Function Automatically This function allows you to select the desired function. When the air conditioner is turned on again after a power failure, this function restores the Cooling Only Model previous settings. Cooling Mode Disabling Auto Restart Open the front cover (Type2) or horizontal vane (Type1).
  • Page 18 Auto Operation (Artificial Auto Changeover Mode Intelligence) Cooling & Heating Model Cooling Only Model This mode changes the mode automatically to maintain the set temperature at ±2 °C This mode automatically sets the fan speed and temperature depending on the room Turn the appliance on.

  • Page 19: Using The Jet Mode Function

    Heating Mode Using the Jet Mode Function Changing Room Temperature Turn the appliance on. Quickly Press Mode button repeatedly to select the This function allows you to cool indoor air Heating Mode. quickly during the summer or warm it quickly during winter.

  • Page 20: Using The Fan Speed Function

    Using the Fan Speed Using the Air Flow Direction Function Function This function adjusts the direction of the air flow Adjusting the Fan Speed vertically (horizontally). x Press Fan Speed button repeatedly to adjust x Press ) button repeatedly and select the fan speed.

  • Page 21: Setting The On/Off Timer

    Setting the On/Off Timer Setting the Off Timer This function sets the air conditioner to turn on/ Press button repeatedly. off automatically at desired time. x The icon below blinks at the bottom of the On/Off Timer can be set together. display screen.

  • Page 22: Using The Sleep Function (Optional)

    Using the Sleep Function Using the Simple Timer (Optional) Function (Optional) This function turns off the air conditioner This function turns off the air conditioner automatically when you go to sleep. automatically when you go to sleep. Turn the appliance on. Turn the appliance on.

  • Page 23: Using The Energy Display Function (Optional)

    Using the Energy Display Using the Light Off Function Function (Optional) (Optional) This function displays the amount of electricity Display Screen Brightness generated on the indoor display as the product You can set the brightness of the indoor unit operates. display screen.

  • Page 24: Using The Energy Saving Function (Optional)

    Using the Energy Saving Using the Watt Control Function (Optional) Function (Optional) This function minimizes power consumption Turn the appliance on. during Cooling and increases the set temperature to the optimal level for a more comfortable environment. The temperature Press Watt Ctrl button. automatically settles at 22 °C if desired x Press Watt Ctrl button repeatedly to temperature is below 22 °C The temperature...

  • Page 25: Using Special Functions

    Using Special Functions Display Description Screen Turn the appliance on. The Ion generator uses millions of ions to help improve indoor Press Func button repeatedly to select the air quality. desired function. To reduce noise from outdoor units. To keep your skin moisturized Press Set/Cancel button to finish.
  • Page 26 Canceling Special Functions Using the Silent Function This function prevents potential claims by Press Func button repeatedly to select the neighbors, reducing noise from outdoor units. desired function. is displayed on the display screen. Press Set/Cancel button to cancel the NOTE function.
  • Page 27 Using the Low Heating Function Using the Auto Clean Function This function operates the heating system to In the Cooling and Dehumidification Mode, maintain a minimum room temperature and moisture is generated inside the indoor unit. prevent objects in the room from freezing where This function removes such moisture.

  • Page 28: Smart Functions

    Functions may vary by model. x LG ThinQ is not responsible for any network connection problems or any faults, malfunctions, or errors caused by network Before Using LG ThinQ connection.
  • Page 29 Installing the LG ThinQ Application Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone. Follow instructions to download and install the application.

  • Page 30: Smart Diagnosis

    Follow the instructions below to use the audible diagnosis method. Use this feature to help you diagnose and solve problems with your appliance. x Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. NOTE Follow the instructions for audible diagnosis provided in the LG ThinQ application.

  • Page 31: Maintenance

    MAINTENANCE WARNING x Before cleaning or performing maintenance, disconnect the power supply and wait until the fan stops. If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain it in best condition. Clean the product regularly to maintain optimal performance and to prevent possible breakdown.
  • Page 32 Type Description Interval Air filter Clean with a vacuum or hand wash. 2 weeks Triple filter Clean with a vacuum or brush. Every 3 months Micro dust filter Clean with a vacuum or brush. Every 6 months Allergy filter Clean with a vacuum or brush. Every 6 months Ionizer (Optional) Use dry cotton bud to remove any dust.

  • Page 33: Clean The Air Filter

    Clean the Air Filter Push down hooks to assemble the air filter. Clean the air filters once every 2 weeks, or more, if necessary. NOTE x The air filter can be broken when it is bent. x When the air filter is not assembled correctly, Check the side of the front cover for correct dust and other substances can enter into the assembly of the air filter.

  • Page 34: Clean The Micro Dust, Triple And Allergy Filter (Optional)

    Clean the Micro Dust, Triple Insert the Micro dust, Triple and Allergy filter. and Allergy Filter (Optional) Turn off the power to the unit. Type1 Remove the air filters from the indoor unit. Remove the Micro dust, Triple and Allergy filter from the indoor unit.

  • Page 35: Troubleshooting

    TROUBLESHOOTING Self-diagnosis Function This product has a built-in self-diagnosis function. If an error occurs, the lamp of the indoor unit will blink in 2 second intervals. If this occurs, contact your local dealer or service center. Before Calling for Service Please check the following before you contact the service center.
  • Page 36 Symptoms Possible Causes & Solution Air is not circulating properly. x Make sure that there are no curtains, blinds, or pieces of furniture blocking the front of the air conditioner. The air filter is dirty. x Clean the air filter once every 2 weeks. x See “Clean the Air Filter”...
  • Page 37 Symptoms Possible Causes & Solution The Auto Clean function is being operated. The indoor unit is still operating even x Allow the Auto Clean function to continue since it removes any remaining when the unit has moisture inside the indoor unit. If you do not want this feature, you can been turned off.
  • Page 38 Find the Wi-Fi network connected to your smartphone and remove it, then register your appliance on LG ThinQ. Mobile data for your smartphone is turned on. x Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
  • Page 39 8.7 kg 837 × 308 × 189 mm 6.1 A 220-240V~50Hz T12EV4 UJAT 22.1 kg 717 × 495 × 230 mm T09EV4 NWAT 7.7 kg 756 × 256 × 184 mm 5.0 A 220-240V~50Hz T09EV4 UWAT 21.7 kg 717 × 495 × 230 mm T18EV4 NJAT 8.7 kg...
