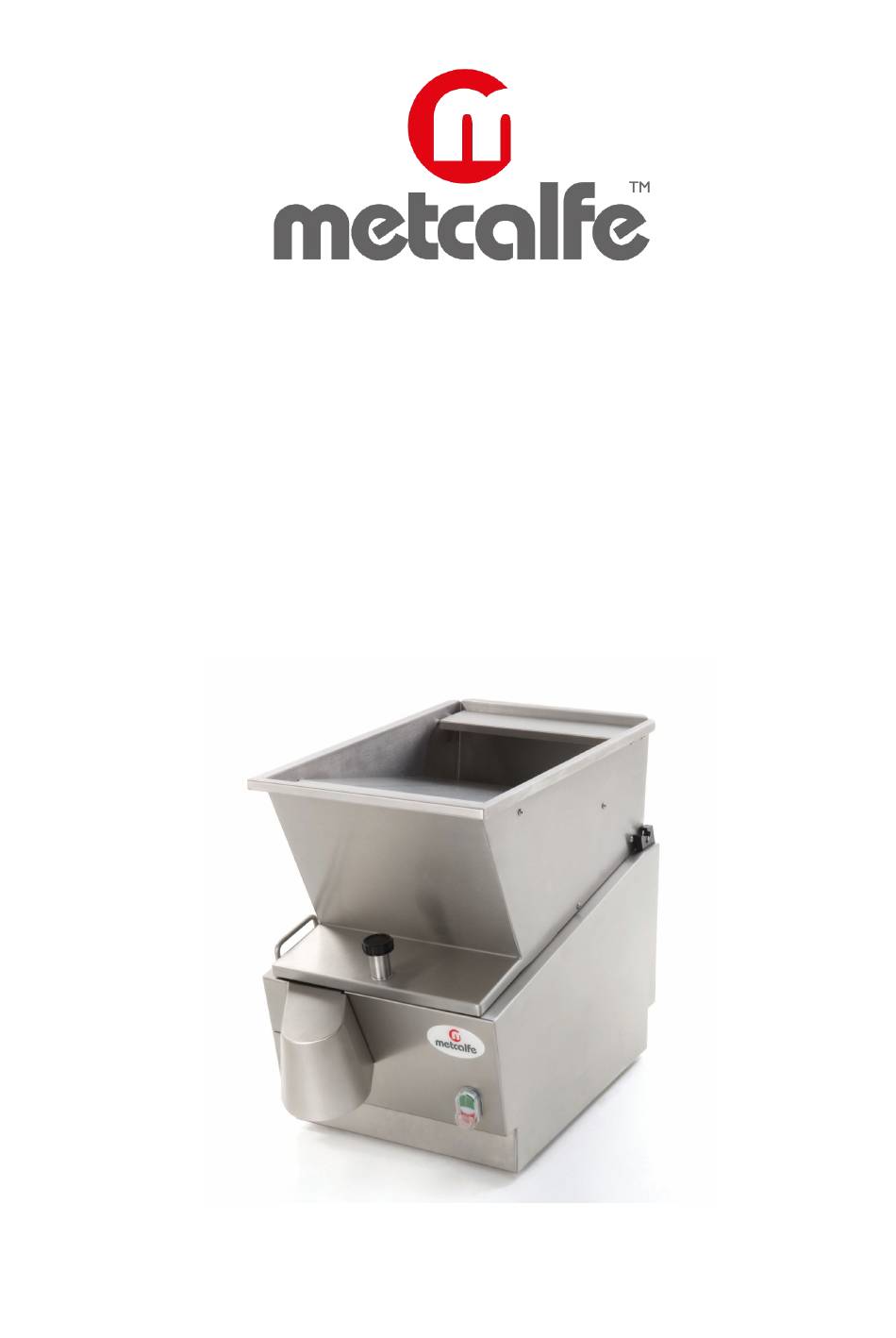

- Page 1 Metcalfe EC12 Electrically Operated Potato Chipping Machine Instruction Manual...
-
Page 3: Table Of Contents
INDEX Delivery Introduction Chipper Dimensions Installation Electricity Supply Connection Commissioning Operation Knife Block Fitting Change Chip Size Cleaning Changing Knife Blades Wiring Diagram for Chipper Exploded View Electrical Control Parts Parts List 11-12 Spare Parts & Service Metcalfe Warranty... -
Page 4: Delivery
DELIVERY The packaged machine consists of one chipper unit and one instruction booklet. Please notify both the carrier and the supplier within three days of receipt if anything is missing or damaged. Check that the correct machine has been supplied and that the voltage, marked on the rating plate, is suitable for the supply available. -
Page 5: Installation
The EC12 Chipper has a top loading hopper into which potatoes can be tipped from either side or from the front. It is not handed, and no consideration need be given to its loading direction. -
Page 6: Commissioning
(green button). To stop the machine, press the red button. One of the safety features provided on the Metcalfe Chipper are the interlock devices that ensures that the machine cannot run unless both the knife block and the hopper are properly and fully in position. -
Page 7: Knife Block Fitting
To change to a different size of chip, change the knife block assembly. Spare knife block assemblies are available from Metcalfe. Open the hopper, lift out the knife block and replace with the alternative selected. Knife blocks are available in the following sizes from the standard... -
Page 8: Cleaning
Dispose of the old blades carefully and screw the new knife blade pack in place. See diagram below. For optimum performance Metcalfe recommend changing the blade pack every 6 months, or sooner depending on usage. -
Page 9: Wiring Diagram For Chipper
EC12 WIRING DIAGRAM... -
Page 10: Exploded View
EXPLODED VIEW... -
Page 11: Electrical Control Parts
ELECTRICAL CONTROL PARTS... -
Page 12: Parts List
PARTS LIST ITEM PART NO DESCRIPTION S61/150 HOPPER ASSEMBLY, INCORPORATING: M81A INTERLOCK BODY & MAGNET A12/011 INTERLOCK SPRING L61/024 HOPPER KNOB D26/017 INTERLOCK PIN S61/184 21x17mm KNIFE BLOCK S61/145 12mm KNIFE BLOCK S61/151 14mm KNIFE BLOCK S61/144 14x17mm KNIFE BLOCK S61/183 21x17mm KNIFE PACK ASSY S61/134... - Page 13 ITEM PART NO DESCRIPTION 11o D25/004 WASHER M5 SHAKEPROOF 11p D20/038 NUT M5 FULL S.S. 11q D25/062 LOCK WASHER M8 S.S. D20/014 M8 FULL S.S. NUT K08/043 GASKET STRIP S61/177 MOTOR ASSY, INCORPORATING: 13a E61/014 MOTOR MOUNTING BRACKET 13b D19/032 SCREW M5 X 12MM HEX S.S.
-
Page 14: Spare Parts & Service
SPARE PARTS AND SERVICE For more information on Metcalfe spare parts, accessories and service support, please contact us on the details below. Please always quote the Serial Number of the machine. This can be found on the serial number plate which is located on the rear of the machine. -
Page 15: Metcalfe Warranty
2 year parts only) and full after sales service. All Metcalfe MP mixers are covered by a 3-year warranty (1st year parts and labour, 2nd & 3rd year parts only) and full after sales service. There is a limited 6-month warranty on the following: •... - Page 16 Other products in the Metcalfe portfolio: NS Slicer Range Peeler Range Ceado Roband 5/2022 Metcalfe Catering Equipment Ltd Haygarth Park Blaenau Ffestiniog Gwynedd, LL41 3PF 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
