INDOOR UNIT
INDOOR UNIT
SERVICE MANUAL
Models
NTXWPH06B112AA
NTXWPH09B112AA
NTXWPH12B112AA
NTXWPH15B112AA
NTXWPH18B112AA
Outdoor unit service manual
NTXSPB/SPH∙B112AA Series (OBHT873)
NTXMMX/MPH∙A122AA Series (OBHT702)
CONTENTS
1. TECHNICAL CHANGES ······························3
2. PART NAMES AND FUNCTIONS ··················4
3. SPECIFICATION ·········································5
4. OUTLINES AND DIMENSIONS ·····················6
5. WIRING DIAGRAM ·····································7
6. REFRIGERANT SYSTEM DIAGRAM ·············8
7. SERVICE FUNCTIONS ································9
8. MICROPROCESSOR CONTROL ················· 11
9. TROUBLESHOOTING ······························· 20
10. DISASSEMBLY INSTRUCTIONS ················· 33
PARTS CATALOG (OBBT872)
No. OBHT872
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mitsubishi Electric Trane NTXWPH06B112AA
Summary of Contents for Mitsubishi Electric Trane NTXWPH06B112AA
-
Page 1: Table Of Contents
INDOOR UNIT INDOOR UNIT No. OBHT872 SERVICE MANUAL Models NTXWPH06B112AA NTXWPH09B112AA NTXWPH12B112AA NTXWPH15B112AA NTXWPH18B112AA Outdoor unit service manual NTXSPB/SPH∙B112AA Series (OBHT873) NTXMMX/MPH∙A122AA Series (OBHT702) CONTENTS 1. TECHNICAL CHANGES ······························3 2. PART NAMES AND FUNCTIONS ··················4 3. SPECIFICATION ·········································5 4. OUTLINES AND DIMENSIONS ·····················6 5. - Page 2 Use the specified refrigerant only Never use any refrigerant other than that specified. Doing so may cause a burst, an explosion, or fire when the unit is being used, serviced, or disposed of. Correct refrigerant is specified in the manuals and on the spec labels provided with our products. We will not be held responsible for mechanical failure, system malfunction, unit breakdown or accidents caused by failure to follow the instructions.
-
Page 3: Technical Changes
TECHNICAL CHANGES NTXWPH06B112AA NTXWPH09B112AA NTXWPH12B112AA NTXWPH15B112AA NTXWPH18B112AA 1. New model OBHT872... -

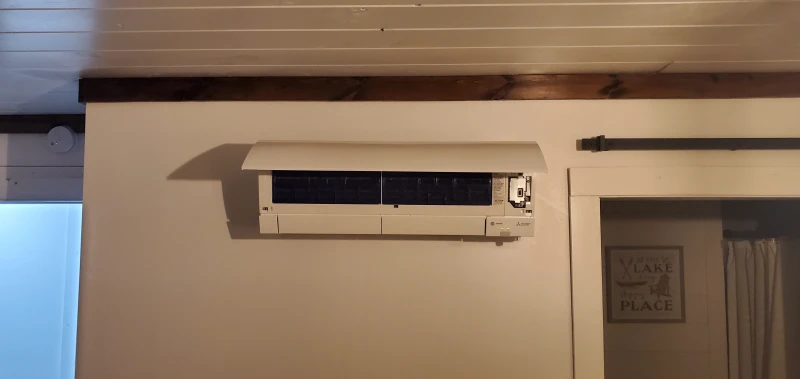

Page 4: Part Names And Functions
PART NAMES AND FUNCTIONS NTXWPH06B112AA NTXWPH09B112AA NTXWPH12B112AA NTXWPH15B112AA NTXWPH18B112AA Front panel Air inlet Emergency operation switch Air filter (Nano platinum filter) Air cleaning filter (Electrostatic anti-allergy enzyme filter and deodorizing fiter) Horizontal i-see sensor vane Air outlet Remote controller Remote control receiving Operation indicator lamp section ACCESSORIES... -
Page 5: Specification
SPECIFICATION NTXWPH06B112AA NTXWPH09B112AA NTXWPH12B112AA NTXWPH15B112AA NTXWPH18B112AA Indoor unit model Power supply V, phase, Hz 208/230 , 1 , 60 Disconnect switch Min. circuit ampacity Fan motor F.L.A 0.65 Airflow COOL Dry 381- 304 - 221 - 167 - 137 381- 304 - 221 - 167 - 137 424 - 304 - 221 - 167 - 137 437 - 355 - 304 - 262 - 225 437 - 355 - 304 - 262 - 225... -
Page 6: Outlines And Dimensions
OUTLINES AND DIMENSIONS NTXWPH06B112AA NTXWPH09B112AA NTXWPH12B112AA NTXWPH15B112AA NTXWPH18B112AA Unit: inch (NTXWPH06/09/12B112AA) (NTXWPH15/18B112AA) OBHT872... -
Page 7: Wiring Diagram
WIRING DIAGRAM NTXWPH06B112AA NTXWPH09B112AA NTXWPH12B112AA NTXWPH15B112AA NTXWPH18B112AA OBHT872... -
Page 8: Refrigerant System Diagram
REFRIGERANT SYSTEM DIAGRAM NTXWPH06B112AA NTXWPH09B112AA NTXWPH12B112AA Unit: inch (mm) Refrigerant pipe ø3/8 (ø9.52) (with heat insulator) Indoor coil Indoor thermistor heat RT12 (main) exchanger Flared connection Indoor coil thermistor RT13 (sub) Room temperature thermistor RT11 Flared connection Refrigerant pipe ø1/4 (ø6.35) (with heat insulator) Refrigerant flow in cooling Refrigerant flow in heating... -
Page 9: Service Functions
SERVICE FUNCTIONS NTXWPH06B112AA NTXWPH09B112AA NTXWPH12B112AA NTXWPH15B112AA NTXWPH18B112AA 7-1. TIMER SHORT MODE For service, the following set time can be shortened by bridging JPG and JPS on the electronic control P.C. board. (Refer to 9-7.) Set time: 3 minutes → 3 seconds (It takes 3 minutes for the compressor to start operation. However, the starting time is shortened by bridging JPG and JPS.) 7-2. - Page 10 7-4. AUTO RESTART FUNCTION When the indoor unit is controlled with the remote controller, the operation mode, the set temperature, and the fan speed are memorized by the indoor electronic control P.C. board. “AUTO RESTART FUNCTION” automatically starts operation in the same mode just before the shutoff of the main power.
-
Page 11: Microprocessor Control
MICROPROCESSOR CONTROL NTXWPH06B112AA NTXWPH09B112AA NTXWPH12B112AA NTXWPH15B112AA NTXWPH18B112AA WIRELESS REMOTE CONTROLLER Signal transmitting section Distance of signal : About 20 ft. (6 m) Beep(s) is (are) heard from the indoor unit when the signal is received. FAN speed control button Operation select button WIDE VANE button ECONO COOL button VANE control button... - Page 12 8-1. COOL ( ) OPERATION (1) Press OFF/ON (stop/operate) button. OPERATION INDICATOR lamp of the indoor unit turns on with a beep tone. (2) Select COOL mode with Operation select button. (3) Press Temperature buttons TEMP button to select the desired temperature. The setting range is 61 - 88°F (16 - 31°C).
- Page 13 8-6. AUTO VANE OPERATION 1. Horizontal vane (1) Vane motor drive These models are equipped with a stepping motors for the horizontal vanes. The rotating direction, speed, and angle of the motor are controlled by pulse signals (approximately 12 V) transmitted from indoor microprocessor. (2) The horizontal vane angle and mode change as follows by pressing VANE CONTROL ( ) button.
- Page 14 (10) POWERFUL ( ) operation The air conditioner automatically adjusts the fan speed and the set temperature, and operates the POWERFUL mode. The POWERFUL mode is cancelled automatically 15 minutes after operation starts, or when POWERFUL button is pressed once again within 15 minutes after operation starts. The operation mode returns to the mode prior to POWERFUL operation.
- Page 15 PROGRAM TIMER • OFF timer and ON timer can be used in combination. The set time that is reached first will operate first. ” and “ ” display shows the order of OFF timer and ON timer operation. • “ (Example 1) The current time is 8:00 PM.
- Page 16 1. How to set the weekly timer * Make sure that the current time and day are set correctly. (1) Press button to enter the weekly timer setting mode. blinks. (2) Press buttons to select setting day and number E.g. : [Mon Tue ... Sun] and [1] are selected.
- Page 17 (5) Press button to turn the weekly timer ON. ( lights.) •When the weekly timer is ON, the day of the week whose timer setting is complete, will light. Press button again to turn the weekly timer OFF. ( goes out.) NOTE: The saved settings will not be cleared when the weekly timer is turned OFF.
- Page 18 8-10. INDIRECT/DIRECT MODE The INDIRECT/DIRECT mode offers finely-tuned operation by locating where an occupant is in the room. (1) Press INDIRECT/DIRECT button during COOL, DRY, HEAT or AUTO mode to activate INDIRECT/DIRECT mode. This mode is only available when the i-see control mode is effective. (2) Each press of INDIRECT/DIRECT button changes INDIRECT/DIRECT in the following order: (INDIRECT) (DIRECT)
- Page 19 8-13. EMERGENCY/TEST OPERATION In the case of test run operation or the emergency operation, use the emergency operation switch on the right side of the indoor unit. The emergency operation is available when the remote controller is missing or has failed, or when the batteries in the remote controller are running down.
-
Page 20: Troubleshooting
TROUBLESHOOTING NTXWPH06B112AA NTXWPH09B112AA NTXWPH12B112AA NTXWPH15B112AA NTXWPH18B112AA 9-1. CAUTIONS ON TROUBLESHOOTING 1. Before troubleshooting, check the following 1) Check the power supply voltage. 2) Check the indoor/outdoor connecting wire for miswiring. 2. Take care of the following during servicing 1) Before servicing the air conditioner, be sure to turn OFF the main unit first with the remote controller, and then after confirming the horizontal vane is closed, turn OFF the breaker and/or disconnect the power plug. - Page 21 9-2. FAILURE MODE RECALL FUNCTION Outline of the function This air conditioner can memorize the abnormal condition which has occurred once. Even though LED indication listed on the troubleshooting check table (9-4.) disappears, the memorized failure details can be recalled. 1.
- Page 22 2. Indoor unit failure mode table The left lamp of Abnormal point the OPERATION Condition Remedy (Failure mode) INDICATOR lamp Not lighted Normal — — The room temperature thermistor short or 1-time blink every Room temperature Refer to the characteristics of the room temperature open circuit is detected every 8 seconds dur- 0.5-second thermistor...
- Page 23 9-3. INSTRUCTION OF TROUBLESHOOTING 1. Check of the unit. *2 There is possibility that diesel explosion may occur due to the air *1 "Test Run operation" means the mixied in the refrigerant circuit. operation within 30 minutes after First, ensure that there are no leakage points on the valves, flare the emergency operation switch connections, etc.
- Page 24 9-4. TROUBLESHOOTING CHECK TABLE Before taking measures, make sure that the symptom reappears for accurate troubleshooting. When the indoor unit has started operation and detected an abnormality of the following condition (the first detection after the power ON), the indoor fan motor turns OFF and OPERATION INDICATOR lamp blinks. •...
- Page 25 9-5. TROUBLE CRITERION OF MAIN PARTS NTXWPH06B112AA NTXWPH09B112AA NTXWPH12B112AA NTXWPH15B112AA NTXWPH18B112AA Part name Check method and criterion Figure Room temperature Measure the resistance with a tester. thermistor (RT11) Refer to 9-7. "Test point diagram and voltage", "Indoor electronic control Indoor coil thermistor (RT12, RT13) P.C.
- Page 26 9-6. TROUBLESHOOTING FLOW A Check of indoor fan motor The indoor fan motor error has occurred, and the indoor fan does not operate. Turn OFF the power supply. Pay enough attention to the high voltage on the fan motor connector CN211. Turn ON the power supply, wait 5 seconds or more, and then press the emergency operation switch.
- Page 27 B Check of remote controller and indoor electronic control P.C. board Check if the remote controller is exclusive for this air conditioner. Press OFF/ON (stop/operate) 1 Look at the image of the signal transmitting section of button on the remote controller. the remote controller through the monitor of a digital camera or a camera phone.
- Page 28 C Check of indoor P.C. board and indoor fan motor Turn OFF the power supply. Remove indoor fan motor connector CN211 from indoor power P.C. board and vane Measure the resistance of indoor fan Short circuit: motor connector CN151 from the indoor motor.
- Page 29 D How to check miswiring and serial signal error Turn OFF the power supply. NTXSPB/SPH∙B112AA type Is there rated voltage in the power supply? Check the power supply. Turn ON the power supply. Is there rated voltage between the outdoor terminal block S1 and S2? Check the wiring.
- Page 30 NTXMMX/MPH∙A122AA type Turn OFF the power supply. LED indication for communication status Communication status is indicated Is there rated voltage in by the LED. Check the power the power supply? supply. Unit status Blinking: normal communication Lit: abnormal communication or not connected Turn ON the power supply.
- Page 31 E Electromagnetic noise enters into TV sets or radios Is the unit grounded? Ground the unit. Is the distance between the antennas Extend the distance between the antennas and and the indoor unit within 9.91 ft. (3m), the indoor unit, and/or the antennas and the or is the distance between the antennas outdoor unit.
- Page 32 9-7. TEST POINT DIAGRAM AND VOLTAGE Indoor power P.C. board, Indoor electronic control P.C. board, Receiver board, Display board, Switch board NTXWPH06B112AA NTXWPH09B112AA NTXWPH12B112AA NTXWPH15B112AA NTXWPH18B112AA Indoor power P.C. board Fuse (F11) Varistor (NR11) Connector Indoor fan motor Terminal Block (CN211) (CN201) (+)0 or 15 VDC...
-
Page 33: Disassembly Instructions
DISASSEMBLY INSTRUCTIONS <"Terminal with locking mechanism" Detaching points> The terminal which has the locking mechanism can be detached as shown below. There are 2 types (Refer to (1) and (2)) of the terminal with locking mechanism. The terminal without locking mechanism can be detached by pulling it out. Check the shape of the terminal before detaching. - Page 34 OPERATING PROCEDURE PHOTOS 2. Removing the indoor electrical box Photo 3 Ground wire Electrical box (1) Remove the panels (Refer to section 1.) and the right corner box. (2) Remove the screw of the V.A. clamp and V.A. clamp. (3) Remove the screw of the electrical cover and the electrical cover.
- Page 35 OPERATING PROCEDURE PHOTOS 3. Removing the indoor power P.C. board, the Photo 6 switch board, the display board, the receiver Catch of the DISPLAY AND board and the indoor electronic control P.C. i-see SENSOR ASSEMBLY board (1) Remove the panels (Refer to section 1.) and the right corner box.
- Page 36 OPERATING PROCEDURE PHOTOS 4. Removing the nozzle assembly Photo 8 (1) Remove the panels (Refer to section 1.) and the right Screw of the vertical corner box. vane motor unit (2) Remove the indoor/outdoor connecting wire (Refer to section 2.). (3) Remove the electrical cover (Refer to section 2.).
- Page 37 OPERATING PROCEDURE PHOTOS 7. Removing the indoor fan motor, the indoor coil Photo 10 thermistor and the line flow fan Lead wire of the indoor coil thermistor (1) Remove the panels (Refer to section 1.) and the right Water cut corner box.
- Page 38 Mount the clip-shape part on the marked position. Do not pull the lead wire when removing the indoor coil thermistor. MITSUBISHI ELECTRIC TRANE HVAC US LLC HEAD OFFICE: 1340 SATELLITE BOULEVARD, SUWANEE, GA 30024, USA © Copyright 2020 MITSUBISHI ELECTRIC CORPORATION Published: Nov.
