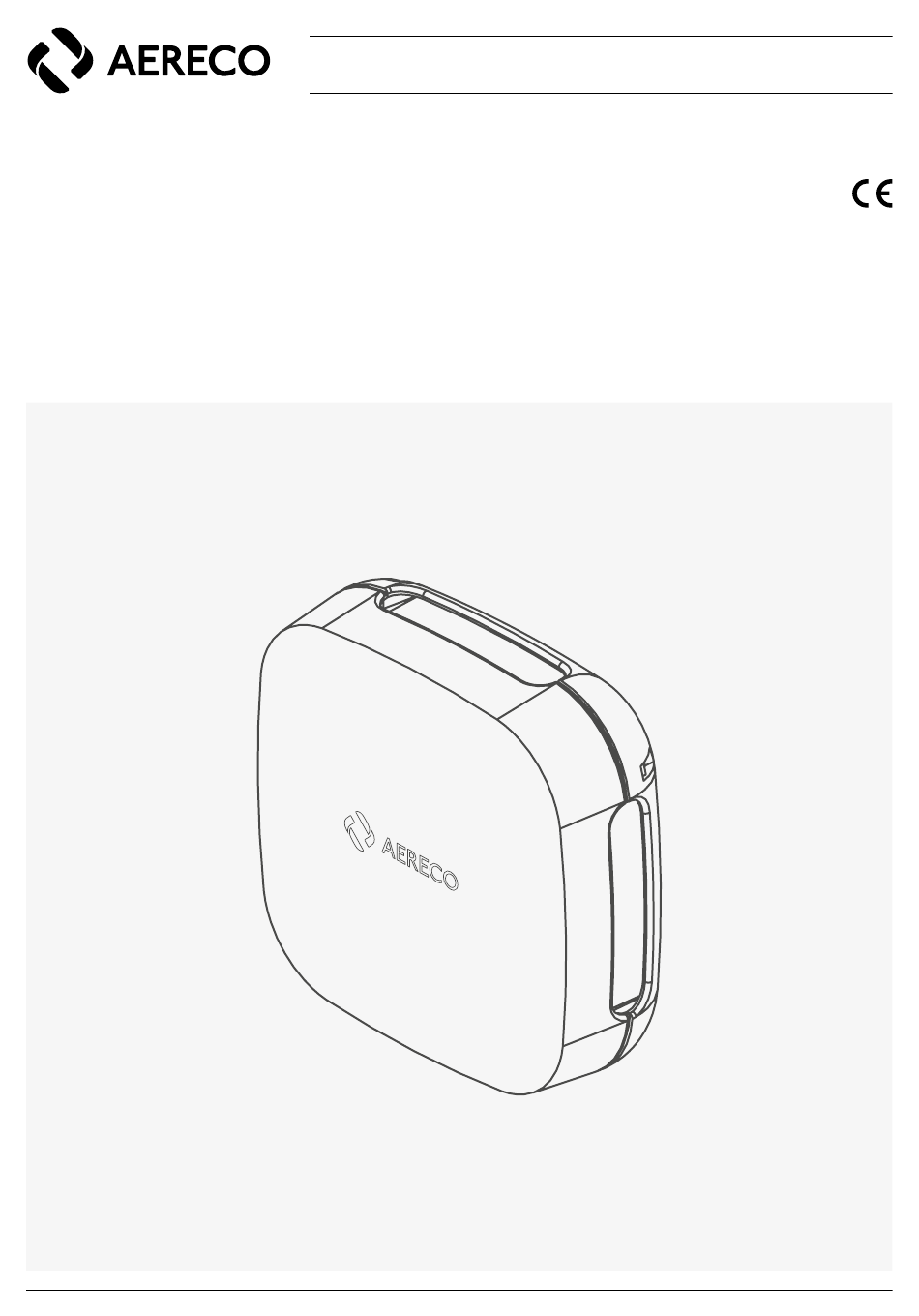

- Page 1 INSTALLATION AND MAINTENANCE INSTRUCTION (ENGLISH VERSION) S-C02/T MODBUS SENSOR HUB 8 SE - ACCESSORIES & THIRD PARTY MODBUS SYSTEM TF6581_C_NOT_INST_C02_SENSOR_MODBUS Aereco S.A.
- Page 2 · Power cable modification or replacement must only be carried out by qualified personnel or by After-sales Service in order to avoid any accident. · Children being supervised not to play with appliance. TF6581_C_NOT_INST_C02_SENSOR_MODBUS Aereco S.A.
- Page 3 · Occupancy sensor bedroom B = 2 / because Hub SE outlet n°2 is connected to bedroom B. · Occupancy sensor bedroom C = 3 / because Hub SE outlet n°3 is connected to bedroom C. Note: the sensors are delivered in position 0. They must be manipulated with extreme care. TF6581_C_NOT_INST_C02_SENSOR_MODBUS Aereco S.A.
- Page 4 All the components are linked other via a daisy-chain. At the beginning and at the end of the daisy- chain, a termination is needed. 230 VAC ModBus connection to the CO sensor Hub SE Sensors Compensation valve at exhaust ModBus Termination RJ 45 Supply (230 V): 1.5 mm². TF6581_C_NOT_INST_C02_SENSOR_MODBUS Aereco S.A.
- Page 5 An electrical control board that contains a converter USB -> RS485 and a BUS polarization is necessary for the Modbus connection schemes. Aereco offers an optimal solution of electrical control board (ref: ADX1785EX) that is adapted to its S-CO2/T Modbus sensors.
- Page 6 - Second possibility is to use an adaptor RJ45 (RJ45 to terminal block) 6.4. APPLICATION DEVELOPMENT FOR MODBUS SENSOR: Note: Aereco developed a customised kit for connecting PC and sensors. you can easily order with the reference code below (ref: ADX1785EX) TF6581_C_NOT_INST_C02_SENSOR_MODBUS...
- Page 7 This guarantee is valid for two years from the original date of purchase of your appliance, for faults of the appliance, which have been caused by faulty construction. On these conditions, Aereco guarantee the replacement or the supply of the equipment found to be defective after inspection by its after sales service.
- Page 8 Aereco S.A. 62 rue de Lamirault Collégien 77615 MARNE LA VALLEE CEDEX 3 FRANCE www.aereco.com...
