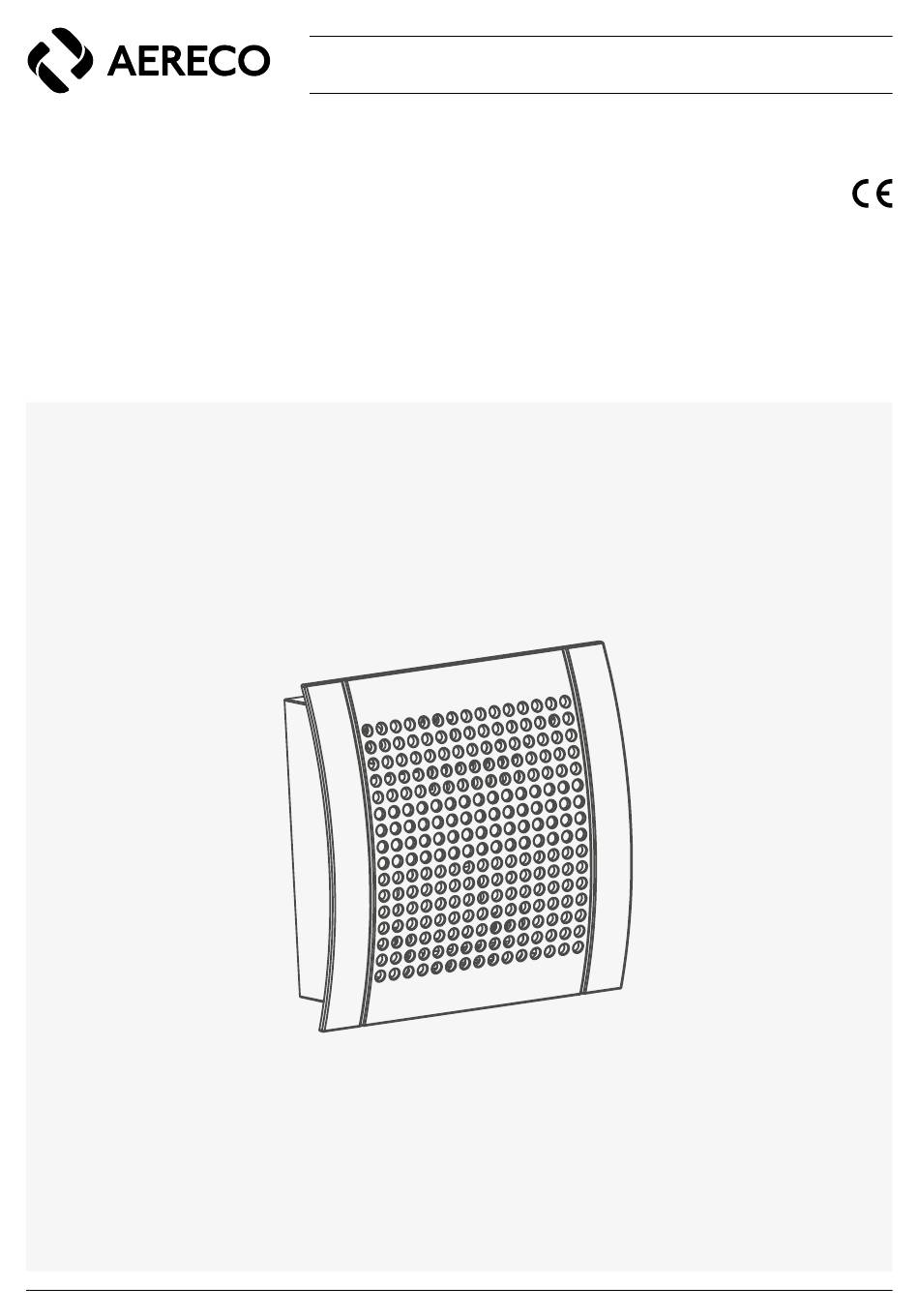

- Page 1 INSTALLATION AND MAINTENANCE INSTRUCTION (ENGLISH VERSION) S-C02/T MODBUS SENSOR HUB 8 SE - ACCESSORIES & THIRD PARTY MODBUS SYSTEM TF6581_A_NOT_INST_C02_SENSOR_MODBUS Aereco S.A.
- Page 2 The use of gloves to carry on the installation is recommended. The S-C02/T sensor can be installed both on the wall (at least 1.5 meter from the floor) or at the ceiling. After unpacking the appliance, make sure it is not damaged. Any functional default must be reported to your reseller.
- Page 3 3 / 8 4. DIMENSIONS 5. THE S-C02/T MODBUS SENSOR'S CONNECTIONS WITH HUB 8 5.1. SETTING OF THE S-C02/T SENSORS FOR HUB 8 SE 8 indexation positions are allowed for every sensor (C0 or Occupancy ): position 1 to position 8 included.
- Page 4 4 / 8 5.2. THE S-C02/T ELECTRICAL CONNECTIONS WITH HUB 8 SE Disconnect the electrical power supply before any operations and ensure that the Hub SE cannot be started accidentally. The Hub SE communicates to the other components through Modbus connection.
- Page 5 An electrical control board that contains a converter USB -> RS485 and a BUS polarization is necessary for the Modbus connection schemes. Aereco offers an optimal solution of electrical control board (ref: ADX1785EX) that is adapted to its S-CO2/T Modbus sensors.
- Page 6 - Second possibility is to use an adaptor RJ45 (RJ45 to terminal block) 6.4. APPLICATION DEVELOPMENT FOR MODBUS SENSOR: Note: Aereco developed a customised kit for connecting PC and sensors. you can easily order with the reference code below (ref: ADX1785EX) TF6581_A_NOT_INST_C02_SENSOR_MODBUS...
- Page 7 This guarantee is valid for two years from the original date of purchase of your appliance, for faults of the appliance, which have been caused by faulty construction. On these conditions, Aereco guarantee the replacement or the supply of the equipment found to be defective after inspection by its after sales service.
- Page 8 Aereco S.A. 62 rue de Lamirault Collégien 77615 MARNE LA VALLEE CEDEX 3 FRANCE www.aereco.com...
