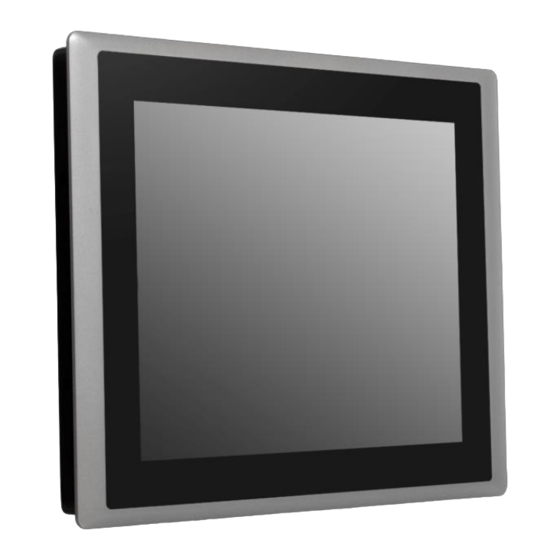

Sunlight readable industrial touch monitor

Advertisement

Quick Links

CS-100/M1000 Series
User Manual
Version: V1.24
Industrial Touch Monitor
Sunlight Readable Series
CS-100/M1000 Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS-100/M1000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cincoze CS-100/M1000 Series

  • Page 1 CS-100/M1000 Series User Manual Industrial Touch Monitor Sunlight Readable Series CS-100/M1000 Series Version: V1.24...
  • Page 2: Table Of Contents

    Contents Preface Revision……………………………………………..……………….……………...……………...04 Copyright Notice.…………………………………………………………………………………...04 Acknowledgement.………………………………………………………………......04 Disclaimer.………………………………………………………………….………………...04 Declaration of Conformity.………………………………………………….……………………04 Product Warranty Statement …………………………………………………………….....05 Technical Support and Assistance.…………………………………………….…………………06 Conventions Used in this Manual …………………………………………….…………....07 Safety Precaution …...……………………………………………….………….………....07 Package Contents ………………………………………………………….…….………...……08 Ordering Information …………………………………...…………………….…….……...……...09 Chapter 1 Product Introductions 1.1 Overview …………………………………………………….……..……………....11 1.2 Highlights……………...……………………………………….……………………....11 1.3 Product Pictures……...……………………………………….……………………....12 1.4 Key Features …………………....………………….…………………….…..12...
  • Page 3 Chapter 3 System Setup 3.1 Connecting with CS Display Module………………………..…...….……………………..37 3.2 VESA Mount Bracket.…………..……...…….……….……..………………….…....40 3.3 Panel Mount ……….…………..……...…….……….………………………….…....41 1000 Series | User Manual CS-100/M...
  • Page 4: Revision

    2022/02/25 Copyright Notice © 2018 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.
  • Page 5: Product Warranty Statement

    Product Warranty Statement Warranty Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and workmanship for 2 years (2 Years for PC Module, 1 Year for Display Module) from the date of purchase by the original purchaser. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation.
  • Page 6: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.
  • Page 7: Conventions Used In This Manual

    Conventions Used in this Manual Safety Precautions Before installing and using this device, please note the following precautions. Read these safety instructions carefully. Keep this User’s Manual for future reference. Disconnected this equipment from any AC outlet before cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  • Page 8: Package Contents

    damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. If one of the following situations arises, get the equipment checked by service personnel: ⚫...
  • Page 9: Ordering Information

    Ordering Information Model No. Product Description 8.4" TFT-LCD 1600 nits Sunlight Readable Touch CS-108C-R10/M1001-R12 Monitor with P-Cap. Touch 10.4" TFT-LCD 1500 nits Sunlight Readable Touch CS-110HC-R10/M1001-R12 Monitor with P-Cap. Touch 12.1" TFT-LCD 1500 nits Sunlight Readable Touch CS-112HC-R10/M1001-R12 Monitor with P-Cap. Touch 15"...
  • Page 10: Chapter 1 Product Introductions

    Chapter 1 Product Introductions 1000 Series | User Manual CS-100/M...
  • Page 11: Overview

    1.1 Overview The CS-100/M1001 Series is a sunlight readable touch monitor offering ultra-high brightness and high resolution. It supports both digital and analog signal input via three types of display interface, including VGA, DVI-D and DisplayPort. CS-100/M1001 Series supports Convertible Display System (CDS) technology which allows you to configure, upgrade and maintain your display system according to your need.
  • Page 12: Product Pictures

    1.3 Product pictures 1.4 Key Features Key Feature • 8.4”~24” TFT-LCD with Ultra High Brightness and High Resolution • Signal Input: VGA, DVI-D and DisplayPort • Wide Range Operating Temperature -5°C to 60°C • Designed with Rugged Aluminum Die-casting Front Bezel and Heavy Duty Metal Chassis •...
  • Page 13: Hardware Specification

    1.5 Hardware Specification 1.5.1 CS-108C-R10/M1001 Display Power • LCD Size: 8.4" (4:3) • 1x 3-pin Terminal Block Connector with Power Input • Max. Resolution: 800 x 600 9~48VDC • Brightness (cd/m2): 1600 • 1x Optional Power Adapter AC/DC 12V/5A, 60W •...
  • Page 14 Dimension CS-108C/M1001 Unit: mm 1000 Series | User Manual CS-100/M...
  • Page 15: Cs-110Hc-R10/M1001

    1.5.2 CS-110HC-R10/M1001 Display Power • LCD Size: 10.4" (4:3) • 1x 3-pin Terminal Block Connector with Power Input • Max. Resolution: 1024 x 768 9~48VDC • Brightness (cd/m2): 1500 • 1x Optional Power Adapter AC/DC 12V/5A, 60W • Contrast Ratio: 1400 : 1 •...
  • Page 16 Dimension CS-110HC/M1001 Unit: mm 1000 Series | User Manual CS-100/M...
  • Page 17: Cs-112Hc-R10/M1001

    1.5.3 CS-112HC-R10/M1001 Display Power • LCD Size: 12.1" (4:3) • 1x 3-pin Terminal Block Connector with Power Input • Max. Resolution: 1024x 768 9~48VDC • Brightness (cd/m2): 1500 • 1x Optional Power Adapter AC/DC 12V/5A, 60W • Contrast Ratio: 700 : 1 •...
  • Page 18 Dimension CS-112HC/M1001 Unit: mm 1000 Series | User Manual CS-100/M...
  • Page 19: Cs-115C-R10/M1001

    1.5.4 CS-115C-R10/M1001 Display Power • LCD Size: 15" (4:3) • 1x 3-pin Terminal Block Connector with Power Input • Max. Resolution: 1024 x 768 9~48VDC • Brightness (cd/m2): 1600 • 1x Optional Power Adapter AC/DC 12V/5A, 60W • Contrast Ratio: 800 : 1 •...
  • Page 20 Dimension CS-115C/M1001 Unit: mm 1000 Series | User Manual CS-100/M...
  • Page 21: Cs-W115Fhc-R10/M1001

    1.5.5 CS-W115FHC-R10/M1001 Display Power • LCD Size: 15.6" (16:9) • 1x 3-pin Terminal Block Connector with Power Input • Max. Resolution: 1920 x 1080 (Full HD) 9~48VDC • Brightness (cd/m2): 1500 • 1x Optional Power Adapter AC/DC 12V/5A, 60W • Contrast Ratio: 700 : 1 •...
  • Page 22 Dimension CS-W115FHC/M1001 Unit: mm 1000 Series | User Manual CS-100/M...
  • Page 23: Cs-117C-R10/M1001

    1.5.6 CS-117C-R10/M1001 Display Power • LCD Size: 17" (5:4) • 1x 3-pin Terminal Block Connector with Power Input • Max. Resolution: 1280 x 1024 9~48VDC • Brightness (cd/m2): 1500 • 1x Optional Power Adapter AC/DC 12V/5A, 60W • Contrast Ratio: 800 : 1 •...
  • Page 24 Dimension CS-117C/M1001 Unit: mm 1000 Series | User Manual CS-100/M...
  • Page 25: Cs-119C-R10/M1001

    1.5.7 CS-119C-R10/M1001 Display Power • LCD Size: 19" (5:4) • 1x 3-pin Terminal Block Connector with Power Input • Max. Resolution: 1280 x 1024 9~48VDC • Brightness (cd/m2): 1600 • 1x Optional Power Adapter AC/DC 12V/5A, 60W • Contrast Ratio: 1000 : 1 •...
  • Page 26 Dimension CS-119C/M1001 Unit: mm 1000 Series | User Manual CS-100/M...
  • Page 27: Cs-W121C-R10/M1001

    1.5.8 CS-W121C-R10/M1001 Display Power • LCD Size: 21.5" (16:9) • 1x 3-pin Terminal Block Connector with Power Input • Max. Resolution: 1920 x 1080 (Full HD) 9~48VDC • Brightness (cd/m2): 1000 • 1x Optional Power Adapter AC/DC 12V/5A, 60W • Contrast Ratio: 5000 : 1 •...
  • Page 28 Dimension CS-W121C/M1001 Unit: mm 1000 Series | User Manual CS-100/M...
  • Page 29: Cs-W124C-R10/M1001

    1.5.9 CS-W124C-R10/M1001 Display Power • LCD Size: 24" (16:9) • 1x 3-pin Terminal Block Connector with Power Input • Max. Resolution: 1920 x 1080 (Full HD) 9~48VDC • Brightness (cd/m2): 1500 • 1x Optional Power Adapter AC/DC 12V/5A, 60W • Contrast Ratio: 5000 : 1 •...
  • Page 30 Dimension CS-W124C/M1001 Unit: mm 1000 Series | User Manual CS-100/M...
  • Page 31: System I/O

    1.6 System I/O 1.6.1 Front 1.6.2 Rear DC IN Audio-in Used to plug a DC power input with terminal This port connects PC audio source by the block. bundled audio cable. USB for Touch Panel Connector Use the rear panel standard 15-pin female Use the rear panel standard USB touch panel VGA connector to connect the monitor to the connector to connect the monitor to the system...
  • Page 32: Side (Left)

    1.6.3 Side (Left) OSD (On Screen Display) Function: Down LCD On/Off To decrease the value of selected item. Press to turn-on or turn-off the display. Power LED Auto Indicates the power status of the monitor. Press to auto adjust the optimal frequency of Stand by LED horizontal and vertical.
  • Page 33: Top

    1.6.5 Top VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) 1000 Series | User Manual CS-100/M...
  • Page 34: Chapter 2 Osd Operation

    Chapter 2 OSD Operation 1000 Series | User Manual CS-100/M...
  • Page 35: Osd Function Description

    2.1 OSD Function Description 1000 Series | User Manual CS-100/M...
  • Page 36 Chapter 3 System Setup 1000 Series | User Manual CS-100/M...
  • Page 37 3.1 Connecting with CS Display Module 1. Locate the module connector slot and loosen the 1 screw. 2. Turn over the module and loosen 2 screws at the back of the connector cover. 1000 Series | User Manual CS-100/M...
  • Page 38 The photos show the male connector (on display module) and female connector (on PC module) 3. Connect the modules. 1000 Series | User Manual CS-100/M...
  • Page 39 4. Have the studs screwed to the display module through the holes of the PC module. 1000 Series | User Manual CS-100/M...
  • Page 40 3.2 VESA Mount The following picture indicates VESA mounting hole pattern on M1000, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (M1000+CS display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand.
  • Page 41 3.3 Panel Mount 1. Accessories provided by Cincoze are as follows. 1000 Series | User Manual CS-100/M...
  • Page 42 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. 1000 Series | User Manual CS-100/M...
  • Page 43 1000 Series | User Manual CS-100/M...
  • Page 44 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. 1000 Series | User Manual CS-100/M...
  • Page 45 © 2020 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
