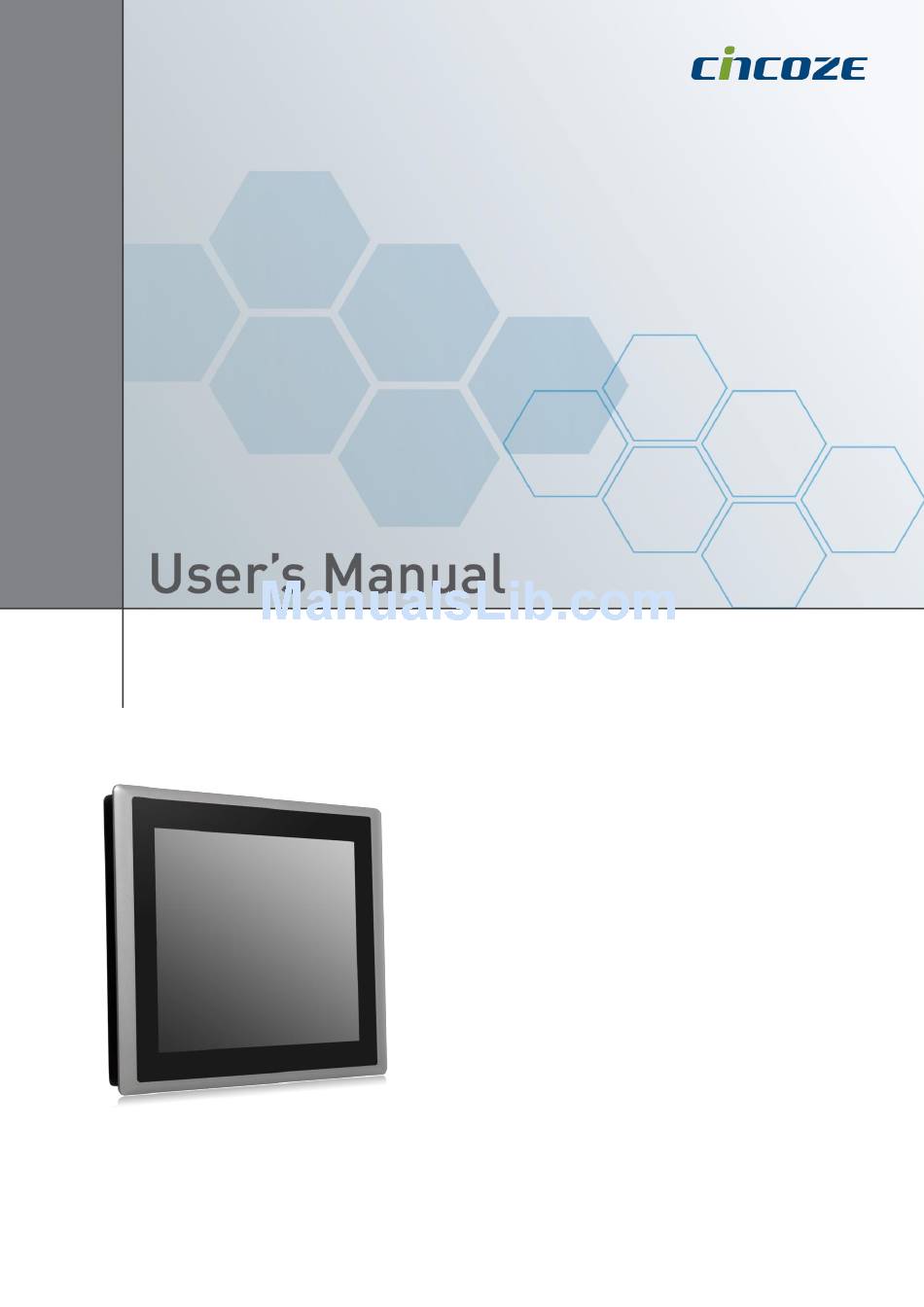

- Page 1 Sunlight Readable Touch Monitor Industrial Touch Monitor Sunlight Readable Series CS-100/M1000 Series...
-
Page 2: Table Of Contents
Chapter 1 Product Introductions 1.1 Overview ………………………………..………………..………..10 1.2 Highlights………………………………..………………..………..11 1.3 Hardware Specification ...……………..………………..………..12 1.3.1 CS-110HC/M1001 & CS-110HC-OB/M1001 …..…………..12 1.3.2 CS-112HC/M1001 & CS-112HC-OB/M1001 ..……………..14 1.3.3 CS-115C/M1001 & CS-115C-OB/M1001 ……..……………..16 1.3.4 CS-117C/M1001 & CS-117C-OB/M1001 ……..……………..18 1.3.5 CS-119C/M1001 &... -
Page 3: Revision
2018/01/24 Copyright Notice © 2018 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. -
Page 4: Product Warranty Statement
1 Year Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service. -
Page 5: Technical Support And Assistance
| User’s Manual Convertible Touch Monitor Prefaces Technical Support and Assistance 1. Visit the Cincoze website at www.cincoze.com/support.php where you can find the latest information about the product. 2. Contact your distributor or our technical support team or sales representative for technical support if you need additional assistance. -
Page 6: Safety Precaution
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Prefaces Safety Precautions Before installing and using this device, please note the following precautions: 1. Read these safety instructions carefully. 2. Keep this User’s Manual for future reference. 3. Disconnected this equipment from any AC outlet before cleaning. 4. -
Page 7: Package Contents
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Prefaces Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Q’ty Item Description Touch Monitor Panel Mounting Kit Utility DVD Driver Power Terminal Block Connector USB Cable VGA Cable Screw Pack... -
Page 8: Ordering Information
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Prefaces Ordering Information Model No. Product Description 10.4" TFT-LCD 1500 nits Sunlight Readable Touch Monitor with P-Cap. CS-110HC-R10/M1001-R12 Touch CS-110HC-OB-R10/M1001- 10.4" TFT-LCD 1500 nits Sunlight Readable Touch Monitor with P-Cap. Touch and Optical Bonding 12.1"... -
Page 9: Chapter 1 Product Introductions
Chapter 1 Product Introductions... -
Page 10: Overview
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions 1.1 Overview The CS-100/M1001 Series is a sunlight readable touch monitor offering ultra-high brightness and high resolution. It supports both digital and analog signal input via three types of display interface, including VGA, DVI-D and DisplayPort. -
Page 11: Highlights
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions 1.2 Highlights Sunlight Readable Providing ultra high brightness and high resolution, CS-100/M1001 Series is suitable for all lighting conditions including direct sunlight. Wide Temperature CS-100/M1001 Series supports wide range operating temperature from -5°C to 60°C and is suitable for deploying in extreme and harsh environments. -
Page 12: Hardware Specification
| User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions 1.3 Hardware Specification 1.3.1 CS-110HC/M1001 & CS-110HC-OB/M1001 Key Features • 10.4" TFT LCD with Ultra High Brightness up to 1,500nits and 1024 x 768 (XGA) Resolution • Signal Input: VGA, DVI-D and DisplayPort •... - Page 13 CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions Dimension Unit: mm CS-110HC/M1001 & CS-110HC-OB/M1001...
-
Page 14: Cs-112Hc/M1001 & Cs-112Hc-Ob/M1001
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions 1.3.2 CS-112HC/M1001 & CS-112HC-OB/M1001 Key Features • 12.1" TFT LCD with Ultra High Brightness up to 1,500nits and 1024 x 768 (XGA) Resolution • Signal Input: VGA, DVI-D and DisplayPort •... - Page 15 CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions Dimension Unit: mm CS-112HC/M1001 & CS-112HC-OB/M1001...
-
Page 16: Cs-115C/M1001 & Cs-115C-Ob/M1001
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions 1.3.3 CS-115C/M1001 & CS-115C-OB/M1001 Key Features • 15" TFT LCD with Ultra High Brightness up to 1,600nits and 1024 x 768 (XGA) Resolution • Signal Input: VGA, DVI-D and DisplayPort •... - Page 17 CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions Dimension Unit: mm CS-115C/M1001 & CS-115C-OB/M1001...
-
Page 18: Cs-117C/M1001 & Cs-117C-Ob/M1001
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions 1.3.4 CS-117C/M1001 & CS-117C-OB/M1001 Key Features • 17" TFT LCD with Ultra High Brightness up to 1,500nits and 1280 x 1024 (SXGA) Resolution • Signal Input: VGA, DVI-D and DisplayPort •... - Page 19 CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions Dimension Unit: mm CS-117C/M1001 & CS-117C-OB/M1001...
-
Page 20: Cs-119C/M1001 & Cs-119C-Ob/M1001
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions 1.3.5 CS-119C/M1001 & CS-119C-OB/M1001 Key Features • 19" TFT LCD with Ultra High Brightness up to 1,600nits and 1280 x 1024 (SXGA) Resolution • Signal Input: VGA, DVI-D and DisplayPort •... - Page 21 CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions Dimension Unit: mm CS-119C/M1001 & CS-119C-OB/M1001...
-
Page 22: System I/O
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions 1.4 System I/O 1.4.1 Front 1.4.2 Rear DC IN Audio-in Used to plug a DC power input with terminal block. This port connects PC audio source by the bundled audio cable. -
Page 23: Side (Left)
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions 1.4.3 Side (Left) 1.4.4 Side (Right) Down OSD (On Screen Display) Function: To decrease the value of selected item. LCD On/Off Press to turn-on or turn-off the display. Power LED Auto Indicates the power status of the monitor. -
Page 24: Top
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 1: Product Introductions 1.4.5 Top VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) - Page 25 Chapter 2 OSD Operation...
-
Page 26: Chapter 2 Osd Operation
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 2: OSD Operation 2.1 OSD Function Description OSD Menu Description Brightness Contrast Gamma SuperResolution Luminance Phase Clock H. Position V. Position Picture Color Temperature ... -
Page 27: Chapter 3 System Setup
Chapter 3 System Setup... -
Page 28: Connecting With Cs Display Module
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 3: System Setup 3.1 Connecting with CS Display Module In order to prevent electric shock or system damage, before removing the chassis cover, please turn off power and disconnect the unit from the power source. - Page 29 CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 3: System Setup 3. Connect the modules. 4. Have the studs screwed to the display module through the holes of the PC module.
-
Page 30: Vesa Mount
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 3: System Setup 3.2 VESA Mount The following picture indicates VESA mounting hole pattern on M1000, which is compliant with VESA mounting standard. 1. The following picture uses a panel PC (M1000+CS display module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand. -
Page 31: Wall Mount
CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 3: System Setup 3.3 Wall Mount 1. Prepare wall mount kit (two wall brackets and one screw pack) that came with the M1000. De-attach six rubber holes from the mounting brackets as indicated. 2. - Page 32 CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 3: System Setup 3. Attach the M1000 to wall by fastening six screws through mounting holes at each side as illustrated. M1000 Wall...
-
Page 33: Panel Mount
| User’s Manual Convertible Touch Monitor Chapter 3: System Setup 3.4 Panel Mount 1. Accessories provided by Cincoze are as follows. Mounting Kits Panel Mount PPC Before assembly, please prepare panel mount PPC and customer’sfixture. Panel Mount with customer’s fixture... - Page 34 CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 3: System Setup 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. LVDS connector Panel mount side view with LVDS connector Before Mounting Kits are installed of CS series...
- Page 35 CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 3: System Setup STEP 1 Position panel mount kits STEP 2 Insert the panel mounting kit into bottom hole STEP 3 Slide the kit toward back...
- Page 36 CS-100/M1000 Series | User’s Manual Convertible Touch Monitor Chapter 3: System Setup STEP 4 Tighten the screw forward until the front screw just touches the surface 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below.
- Page 37 © 2014 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
