MFJ-1886TR
Receive Loop Antenna
INSTRUCTION MANUAL
CAUTION: Read All Instructions
Before Operating Equipment
300 Industrial Park Road
Starkville, MS 39759 USA
Tel: 662-323-5869 Fax: 662-323-6551
COPYRIGHT
2015 MFJ Enterprises Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MFJ-1886TR and is the answer not in the manual?

Questions and answers

Summary of Contents for MFJ Enterprises MFJ-1886TR

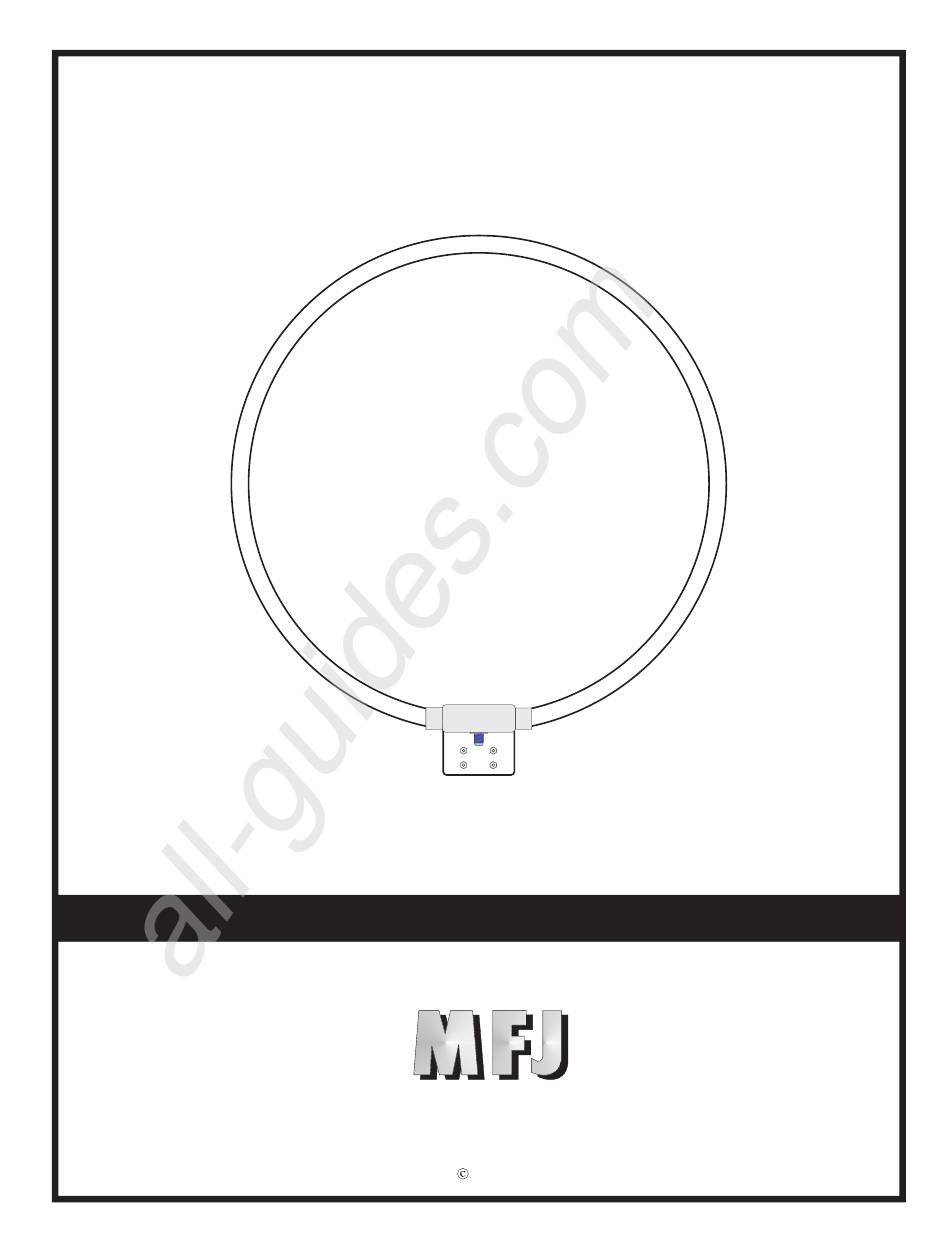

  • Page 1 All manuals and user guides at all-guides.com MFJ-1886TR Receive Loop Antenna INSTRUCTION MANUAL CAUTION: Read All Instructions Before Operating Equipment 300 Industrial Park Road Starkville, MS 39759 USA Tel: 662-323-5869 Fax: 662-323-6551 COPYRIGHT 2015 MFJ Enterprises Inc.
  • Page 2 This antenna is fully assembled and ready to mount. Pick a mounting location well away from any other transmitting antennas. Transmitting signals close to the MFJ-1886TR will damage the internal amplifier. This antenna can be used indoors if desired. Rotating the antenna by hand is a good way to null noise or other broadcast stations in the area.
  • Page 3 All manuals and user guides at all-guides.com Wiring Transmit Antenna Connect a coax jumper between the transceiver and the TRANSCEIVER jack. Connect the Transmit Antenna to the XMIT ANTENNA jack. Connect the coax betweel the MFJ-1886 Loop and the LOOP ANTENNA DC-PASS jack Connect and RCA cable between the KEY jack and the KEY output on the transceiver.
  • Page 4 All manuals and user guides at all-guides.com Connections 12VDC Connect your linear supply included with the MFJ-1886TR to this port. The power requirements are 12-14VDC at 500mA. TRANSCEIVER RF input from your transceiver. XMIT ANTENNA The terminal for the transmit antenna. When off or power is removed the transceiver is connected to the transmit antenna.
  • Page 5 All manuals and user guides at all-guides.com Operation NULL NULL View from top side of loop Inside or outside the operation of the antenna is basically the same. Rotation of the antenna is important so turning it by hand or with a rotator will increase the effectiveness of receiving distant stations.
  • Page 6 All manuals and user guides at all-guides.com...
  • Page 7 All manuals and user guides at all-guides.com...
  • Page 8 6. Wired and tested PC board products are covered by this warranty provided only the wired and tested PC board product is returned. Wired and tested PC boards installed in the owner’s cabinet or connected to switches, jacks, or cables, etc. sent to MFJ Enterprises, Inc. will be returned at the owner’s expense unrepaired.
