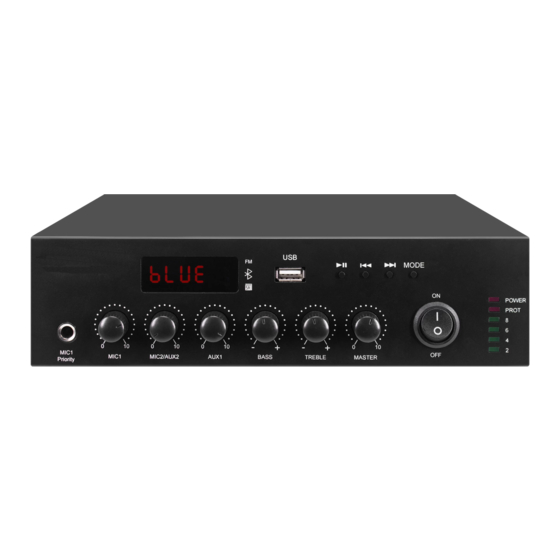

- Page 1 Public Address System Mini Mixer Amplifier MS60D Operating Instructions Please read this instruction carefully prior to use.
- Page 2 About this User Manual This User Manual is available and effective upon completion of development of the mixer amplifier MS60D. The User Manual includes system description, matters needing attentions in use, instructions on system connection, instructions on use of product and technical specifications of the network address center. Please read this User Manual carefully before connection, installation and use and operate in accordance with corresponding instructions in the Manual.
-
Page 3: Product Description
1. Product Description 1.1 Features Built-in radio function; 2 MIC inputs, 1 EMC input, 2 line inputs, 1 line output; Speaker output of 100V or 70V & 4 -16 Ω; Bluetooth and USB function; ... - Page 4 In FM/Bluetooth/USB mode, long press this key to turn down the volume. Next song/（Next radio when in FM mode） In U-disk and Bluetooth mode, press this key to switch to the “next song”; In FM mode, press this key to switch to the “next radio”; In FM/Bluetooth/USB mode, long press this key to turn up the volume.
-
Page 5: Rear Panel
2.2 Rear panel AC~110-240V 50/60Hz Power input The interface is to supply the working power. Insert the plug onto the machine, and then connect the power grid. Radio antenna interface Radio antenna connects to this interface. DC 24V power input DC 24V stand-by power input interface. - Page 6 2.3 Side Panel Heat dissipation vent 3. W orking mode 3.1 MIC mode When the Microphone is broadcasting in any mode, the system will detect the MIC and mute the others sources. It will return to the original play status when the MIC has no signal. 3.2 Bluetooth mode Press MODE to display “BLUE”...
-
Page 7: Remote Control Instructions
4. Remote control instructions As shown in the following figure: Function key description： Mode main function key，working mode switch. Power switch (only control Bluetooth/USB/FM) Play & Pause/（Search the audio automatically when in FM) EQ sound effect 0-9 song selection key, can be composed of digital channel selection when in FM Mute key Last song/（Last audio when in FM）... -
Page 8: Safety Precautions
Safety Precautions Safety Precautions Please do NOT connect this device to the power source, before the system is correctly wired. It is important to ensure that input voltage to the device is the same as required voltage of the device; otherwise the device may be damaged. -
Page 9: Packing List
Packing list List Quantity MS60D Manual Warranty Card Certificate Power line Remote control FM antenna 4P green wiring terminal with locks/ 2ERJKM-5.08-4P 2P green wiring terminal... - Page 10 Performance Power ~110-240V 50/60Hz Mic 1/2 Sensitivity 10mv Aux 1/2 Sensitivity 360mV EMC Sensitivity 360mV Mic frequency response 100Hz - 10Kz ±3dB Aux frequency response 80Hz - 16KHz ±3dB <1% @ 1KHz Treble ±10dB Bass ±10dB Power Output 60Watts Gross weight 3.25Kg Technical specifications are subject to changes without prior notice.
- Page 11 Caution ● The device is not completely disconnected from power source when it is switched "OFF". For sake of safety, please disconnect the device from the socket if it is not in use. ● Please keep this device off water drops or splash or vase filled with water or any other articles of similar nature.
