USER GUIDE

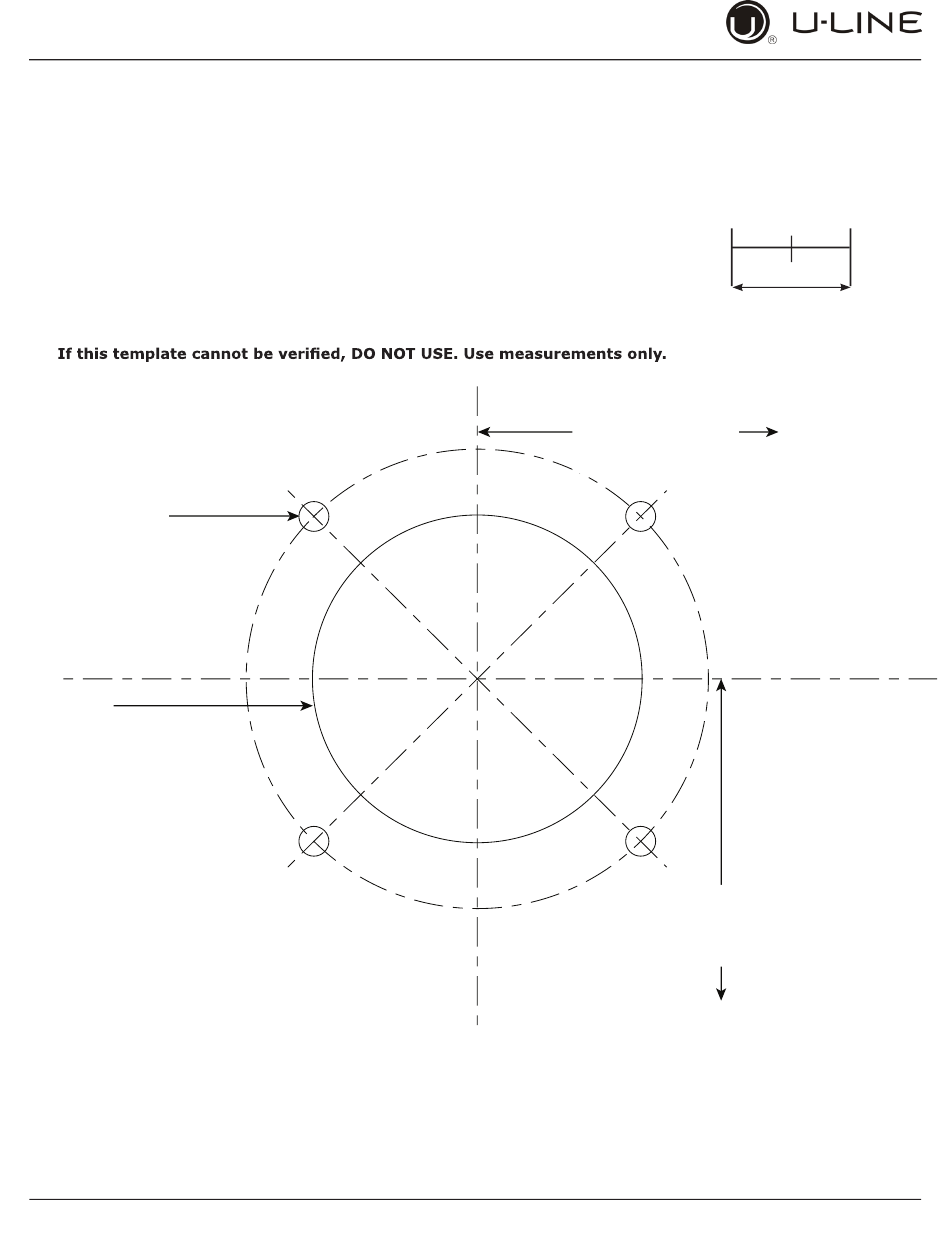

Template for Countertop Installation
Note: Verify template has printed true to scale - double check hole dimensions and placement.
WARNING
YOU MUST FIRST VERIFY THIS TEMPLATE HAS PRINTED TRUE TO SCALE.
DO THE FOLLOWING:
1.
Measure the inch scale
2.
Line up the tower and/or gasket to template
3.
1/4" HOLE
2-3/4" HOLE
WARNING
YOU MUST FIRST VERIFY THIS TEMPLATE HAS PRINTED TRUE TO SCALE.
General Installation
: TO PREVENT IRREPARABLE DAMAGE TO YOUR COUNTERTOP,
: TO PREVENT IRREPARABLE DAMAGE TO YOUR COUNTERTOP,
11-13/16 "
TO SIDE OF
REFRIGERATOR
12-1/2 "
TO FRONT OF
REFRIGERATOR
13
u-line.com
1 Inch
