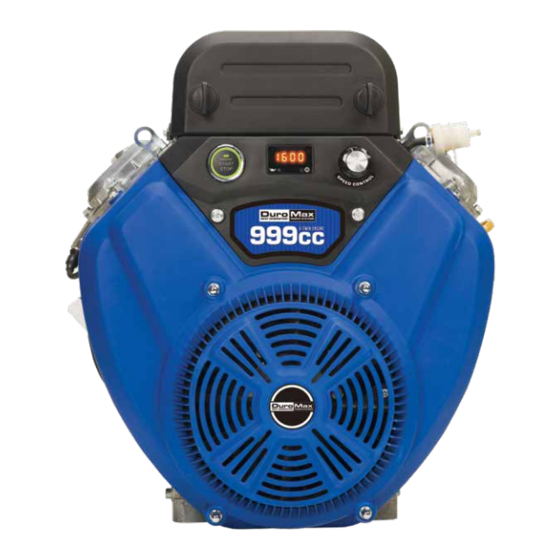

XP35HPE HORIZONTAL SHAFT ENGINE
User Manual
REV: XP35HPE_rev06212021
5800 Ontario Mills Pkwy
Ontario, CA 91764 USA
This manual provides information regarding the operation
www.DuroMaxPower.com
and maintenance of these products. We have made every
effort to ensure the accuracy of the information in this
Call our Customer Care Team Toll Free 8-5pm PST Mon-Fri
manual. We reserve the right to change this product at
844-DUROMAX
any time without prior notice.
Advertisement
Table of Contents
Related Manuals for DUROMAX XP35HPE
Summary of Contents for DUROMAX XP35HPE
- Page 1 XP35HPE HORIZONTAL SHAFT ENGINE User Manual REV: XP35HPE_rev06212021 5800 Ontario Mills Pkwy Ontario, CA 91764 USA This manual provides information regarding the operation www.DuroMaxPower.com and maintenance of these products. We have made every effort to ensure the accuracy of the information in this Call our Customer Care Team Toll Free 8-5pm PST Mon-Fri manual.
-
Page 3: Table Of Contents
CONTENTS Introduction Introduction ........................4 General Safety Procedures ................... 6 Package Contents ......................7 Engine Setup Adding Oil ........................10 High Altitude ........................11 Maintenance and Care Maintenance Schedule ....................14 Maintenance Log ......................15 Checking the Oil ......................16 Changing the Oil ...................... -
Page 4: Introduction
INTRODUCTION DuroMax has cemented its reputation as one of the markets leading power equipment companies who are headquartered in the US. All of our products are manufactured to the strictest guidelines and go through countless testing in all phases of production. - Page 5 GENERAL SAFETY PROCEDURES SAFETY ALERT SYMBOL The safety alert symbol is used with one of the safety words (DANGER, CAUTION, or WARNING) to alert you of hazards. Please pay attention to these hazard notices both in this manual and on the Engine. Please familiarize yourself with the following safety symbols and words: DANGER: Indicates a hazard that will result in serious injury or death if instructions are not ●...
-
Page 6: General Safety Procedures
GENERAL SAFETY PROCEDURES WARNING: This Engine may emit highly flammable and explosive gasoline vapors, which can cause severe burns or even death. A nearby open flame can lead to an explosion even if not directly in contact with gas. Do not operate near an open flame. ●... -
Page 7: Package Contents
PACKAGE CONTENTS Your Engine comes with the items listed below. Please check to see that all of the following items are included with your Engine. Spark Plug Wrench Oil Funnel Used in spark plug Used to add oil to the Engine maintenance, inspection, and without messy spills. - Page 9 ENGINE SETUP Proper setup of your Engine will get you going as soon as possible while making sure you and your equipment are safe and cared for.
-
Page 10: Engine Setup Adding Oil
. You must add the proper amount of oil before operating the Engine for the first time. This amount is equal to the oil capacity of the engine crankcase: Model Number XP35HPE Engine Oil Capacity 2.54 qt. (2.4L) WARNING: Do not apply engine oils with additives or 2-stroke gasoline engine oils. They don’t have enough lubrication, and may shorten the engine’s service life. -
Page 11: High Altitude
High Altitude Use At high altitude, the standard carburetor air-fuel mixture will be too rich. Performance will decrease and fuel consumption will increase. A very rich mixture will also foul the spark plug and cause hard starting. Operation at an altitude that differs from that at which this engine was certified, for extended periods of time, may increase emissions. -
Page 13: Maintenance And Care
MAINTENANCE AND CARE Proper maintenance and storage of your Engine is essential to ensure trouble free use of your Engine when you need it. By following the maintenance and care requirements, you can keep your Engine running smooth and efficient for years to come. -
Page 14: Maintenance Schedule
MAINTENANCE AND CARE Proper routine maintenance of your Engine is essential for safe, economical, and trouble-free operation. It will also help reduce air pollution. WARNING: Improper maintenance, or failure to correct a problem before operation, can cause a malfunction in which you can be seriously injured or killed. Always follow the inspection and maintenance recommendations and schedules in this instruction manual. -
Page 15: Maintenance Log
MAINTENANCE LOG Date Engine Hours Maintenance Performed... -
Page 16: Checking The Oil
MAINTENANCE AND CARE (CONTINUED) Checking the oil Check the oil The Engine is equipped with an automatic shutoff to protect it from damage due to low oil. Nonetheless, you should check the oil level of the engine before each use to ensure that the engine crankcase has a sufficient amount. -
Page 17: Changing The Oil
Changing the oil Worn out or dirty oil does not cool the Engine properly and can lead to catastrophic engine damage. In addition to regular oil changes, it is necessary to drain the oil from the crankcase if it has become contaminated with water or dirt. -
Page 18: Cleaning The Air Filter
Remove the plastic air filter cover by sliding it out underneath the Engine’s frame. Remove filter Remove the filter from on top of the engine. This filter is paper and is not reusable. Please call 1-844-DUROMAX to order a replacement filter for your Engine. - Page 19 Replace new filter Insert the filter, paper side down into the air filter compartment on top of the engine. Replace filter cover Slide the filter cover back in place between the frame and the engine. Secure filter cover Fasten the filter cover to the engine with the clips found on each side of the cover.
-
Page 20: Spark Plug Maintenance
MAINTENANCE AND CARE (CONTINUED) Spark Plug Maintenance The spark plug is important for proper engine operation. A good spark plug should be intact, free of deposits, and properly gapped. The V-Twin engine in this Engine has two spark plugs, one on each side. Both plugs are located just underneath the OHV covers. Improper maintenance may cause reduced fuel economy, misfires, trouble starting, or damage to the spark plug threads. - Page 21 Measure plug gap Measure the plug gap with a gauge. The gap should be 0.7-0.8 mm (0.028-0.031 in). Clean and re-gap If you are re-using the spark plug, use a wire brush to clean any dirt from around the spark plug base and then re-gap the spark plug.
-
Page 22: Storage And Transportation
MAINTENANCE AND CARE (CONTINUED) Storage and Transportation CAUTION: Never place any type of storage cover on the Engine while it is still hot. When transporting your Engine: Empty the gas tank ● Disconnect the spark plug. ● Do not obstruct any ventilation openings & keep the Engine in a cool dry area. ●... -
Page 23: Specifications
SPECIFICATIONS Ø166 Ø146- 0.065 SAE 5/8-1... - Page 24 SPECIFICATIONS (CONTINUED) 500.2 Ø166 Ø146- 0.065...
- Page 25 Ø146- 0.065 SAE 5/8-18 UNF-2B Shaft Dimensions 31 +0.115 -0.139...
- Page 26 Specifications Displacement 999cc Dimensions 19.7”x20.3”x22” (500x515x560mm) Dry Weight 110.23 lbs (50kg) Maximum Torque 58 ft-lbs (78 N.m.)@ 2500RPM Maximum RPM 4000 RPM Compression Ratio 8.6:1 Bore X Stroke 90mm x 78.5mm Fuel Type 87+ Octane Gasoline Engine Oil Capacity 2.6 qt (2.4 L) Bearing Type Stainless Steel Needle Bearing PTO Shaft Diameter...
-
Page 27: Warranty
WARRANTY This section of the manual is to help you understand your warranty. - Page 28 OEM parts. Warranty Limitations DuroMax Power Equipment does not claim or hold any obligation to loss of time, freight charges, use of product, or any incidental damages from the use of this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED.
- Page 29 MANUFACTURER’S WARRANTY COVERAGE: This emissions control system is warranted for two years. If any emission-related part on your small off-road engine is defective, the part will be repaired or replaced by DuroMax Power Equipment. OWNER’S WARRANTY RESPONSIBILITIES: As the small off-road engine owner, you are responsible for the performance of the required maintenance listed in your owner’s manual.
- Page 30 (1)Exhaust Gas Recirculation (EGR) System (2) After treatment devices. (3) Crankcase ventilation valves. (4) Sensors. (5) Electronic control units. DuroMax Power Equipment will furnish with each new engine written instructions for the maintenance and use of the engine by the owner.
-
Page 32: Contact Information
CUSTOMER SERVICE Duromax Power Equipment is committed to ensuring that our products perform when they need to. Our Engines are your lifeline in the event of an emergency. Should you have any problems, please contact our customer service department: DUROMAX POWER EQUIPMENT... - Page 34 5800 Ontario Mills Parkway Ontario, CA 91764 United States 844-DUROMAX...
