Meraki MX65W-HW Installation Guide
This document describes how to install and set up the MX65W-HW security appliance.
Additional reference documents are available online at: www.meraki.com/library/products.
MX65W-HW Overview

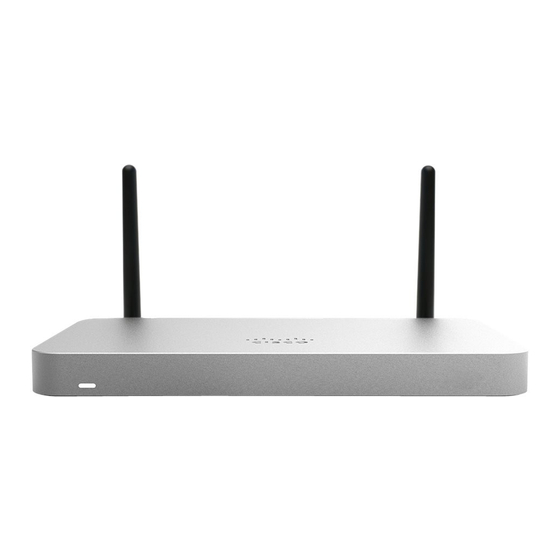

The Meraki MX65W-HW (model: MX65W-HW) is an enterprise security appliance designed
for distributed deployments that require remote administration. It is ideal for network
administrators who demand both ease of deployment and a state-of-the-art feature set.
This appliance provides the following new features:
2.4-Ghz (2 spatial streams) and 5-GHz (2 spatial streams) radios for
•
802.11abgn/ac support.
USB port, to support approved 3G/4G cards for failover to cellular networks.
•
Support for 10 LAN connections (2 of 10 offer 802.3at support)
•
Wall screws and anchors for mounting drywall surface, either vertically or
•
horizontally
MX65W-HW Operational Temperature: 32

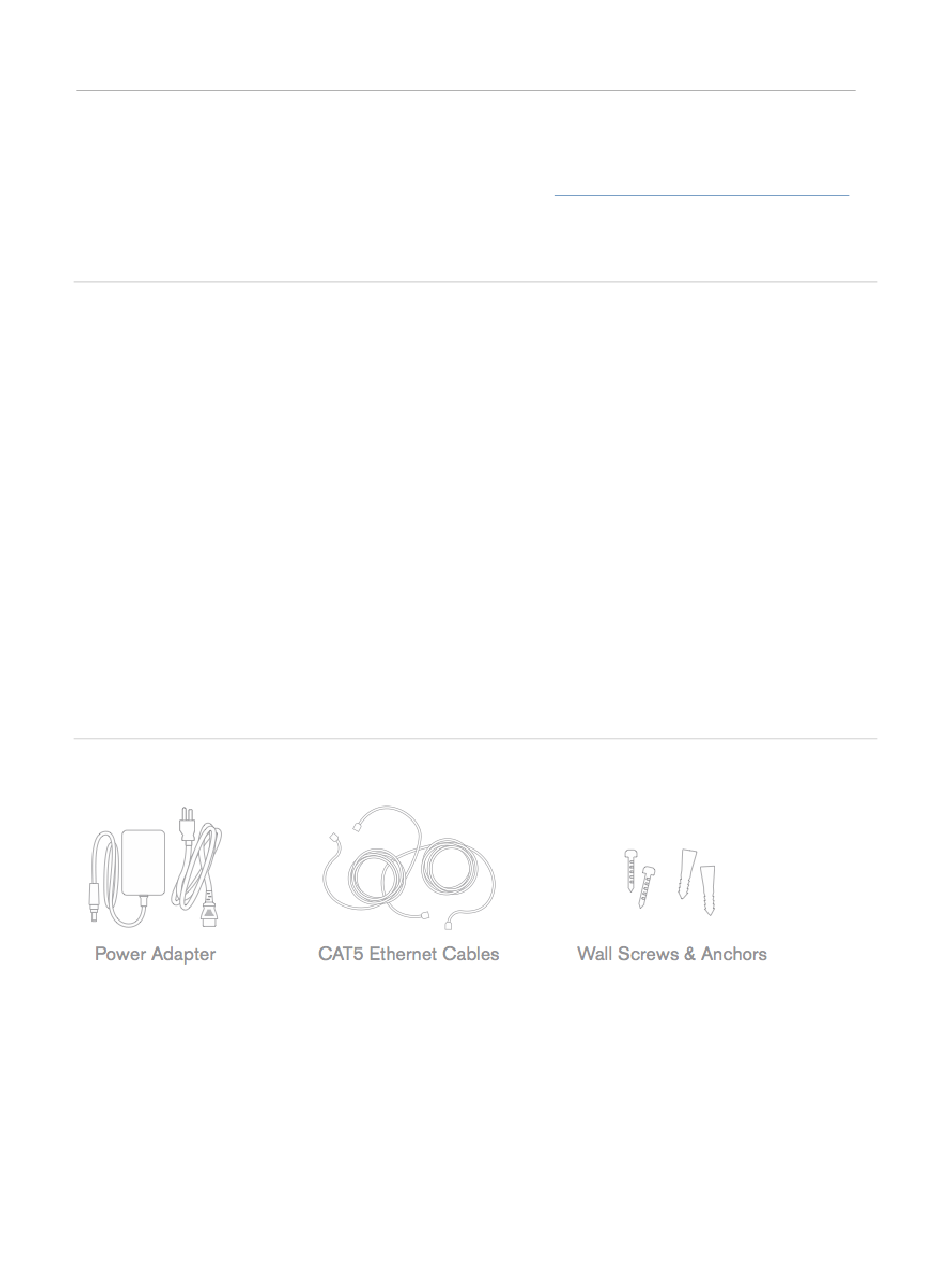

Package Contents
In addition to the MX65W-HW, the following are provided.
o
F to 104
o
F (0
o
C to 40
o
C)
Advertisement
Table of Contents
Related Manuals for Meraki MX65W-HW
Summary of Contents for Meraki MX65W-HW
- Page 1 Meraki MX65W-HW Installation Guide This document describes how to install and set up the MX65W-HW security appliance. Additional reference documents are available online at: www.meraki.com/library/products. MX65W-HW Overview The Meraki MX65W-HW (model: MX65W-HW) is an enterprise security appliance designed for distributed deployments that require remote administration. It is ideal for network administrators who demand both ease of deployment and a state-of-the-art feature set.
- Page 2 The MX65W-HW front panel Ports and Status Indicators The MX65W-HW uses a single LED to inform the user of the device's status. Function LED Status Meaning Power Up/Boot Solid Power is applied Orange Connecting Rainbow Device in process of connecting to the Meraki Dashboard...
- Page 3 The MX65W-HW side panel Restore button Insert a paper clip if a reset is required. A brief, momentary press: To delete a downloaded configuration and reboot. • Press and hold for more than 10 sec: To force the unit into a full factory reset.
- Page 4 The MX65W-HW bottom panel Please note that the serial number is located on the product label, which is located on the bottom of the MX65W-HW. The blank region in the center of the label will be populated with regulatory marks on commercial units.
- Page 5 1. Using a client machine such as a laptop, connect to one of the ten LAN ports of the MX. 2. Using a browser on the client machine, access the appliance's built-in web service by browsing to http://setup.meraki.com. (You do not have to be connected to the Internet to reach this address) 3.
- Page 6 Web proxy settings These settings take effect if the MX device has to fall back to using HTTP to contact the Cloud Controller. By default, web proxy is disabled. To enable web proxy, do the following: Choose Web proxy > Yes. •...
- Page 7 • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution Any changes or modifications no expressly approved by Cisco could void the user’s authority to operate this equipment.
- Page 8 (ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250- 5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Avertissement: (i) les dispositifs fonctionnant dans la bande 5 150-5 250 MHz sont réservés uniquement pour une utilisation à...
