Meraki MX84
This document describes how to install and set up the MX84
MX84
Overview

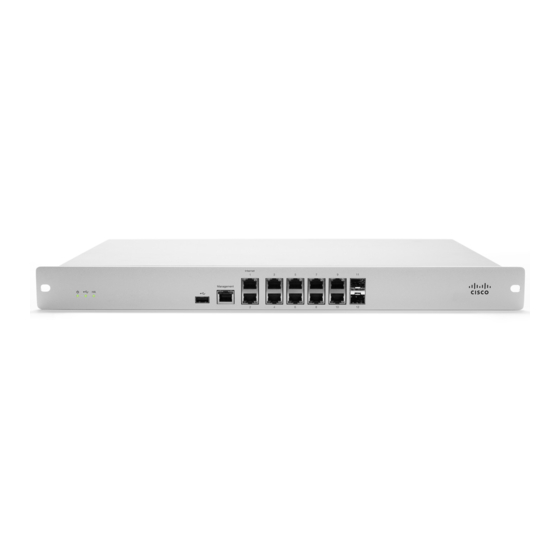

The Meraki MX84
require remote administration. It is ideal for network administrators who demand both ease of
deployment and a state-of-the-art feature set. This security appliance provides the following new
features:
•
USB port, to support approved 3G/4G cards for failover to cellular networks.
•
1TByte cache storage for WAN acceleration.
•
Support for four configurable GbE (RJ45) connections.
•
Dedicated management port.
•
Front-panel rack mounts.

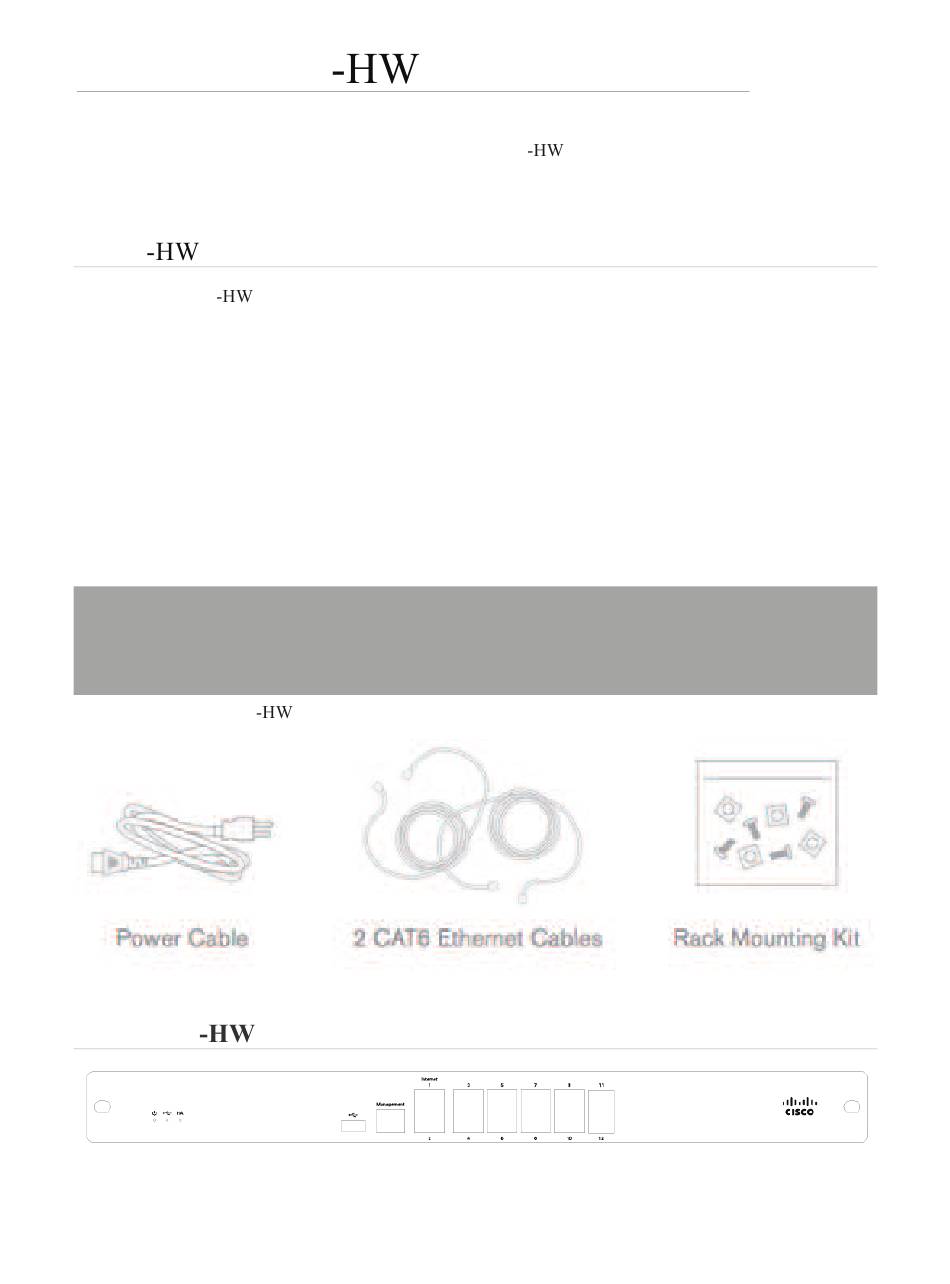

Package contents
In addition to the MX84
provided.
The MX84
Ports and Status Indicators
Installation Guide
is an enterprise security appliance designed for distributed deployments that
, the following are
front panel
Advertisement
Related Manuals for Meraki MX84-HW
Summary of Contents for Meraki MX84-HW
- Page 1 This document describes how to install and set up the MX84 MX84 Overview The Meraki MX84 is an enterprise security appliance designed for distributed deployments that require remote administration. It is ideal for network administrators who demand both ease of deployment and a state-of-the-art feature set.
- Page 2 The MX84 uses LEDs to inform the user of the device's status. Functions are described below. Item Function LED Status Meaning Solid orange Power is applied Power Shifting colors Unit is attempting to contact the Cloud Flashing white Operation in progress Solid white Fully operational During boot or no USB link...
- Page 3 UPC device), always ensure that the power cord can be readily disconnected from the hardware unit. Connecting to WAN All Meraki MX devices must have an IP address. This section describes how to configure your local area network before you deploy it. A local management web service, running on the appliance, is accessed through a browser running on a client PC.
- Page 4 Setting VLANs If your WAN uplink is on a trunk port, choose VLAN tagging > Use VLAN tagging and enter the appropriate value for VLAN ID for your network. Setting up secondary WAN interface (dual WAN) You can toggle the LAN2 port between LAN and Internet, through Uplink configuration under the Local status tab.
