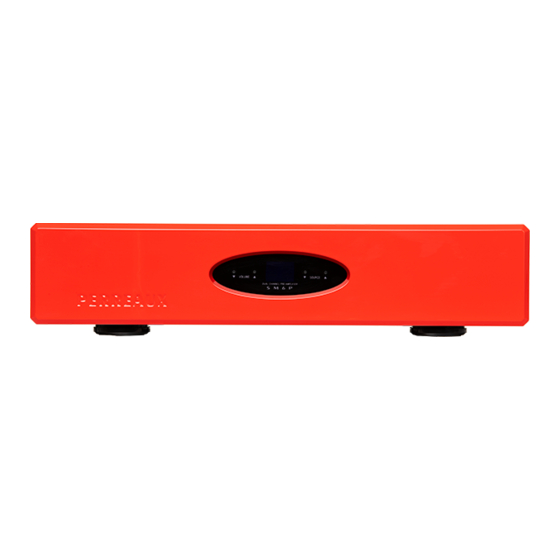

Prisma SM6 MkII
Balanced Preamplifier
Owners Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prisma SM6 MkII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perreaux Prisma SM6 MkII

Summary of Contents for Perreaux Prisma SM6 MkII

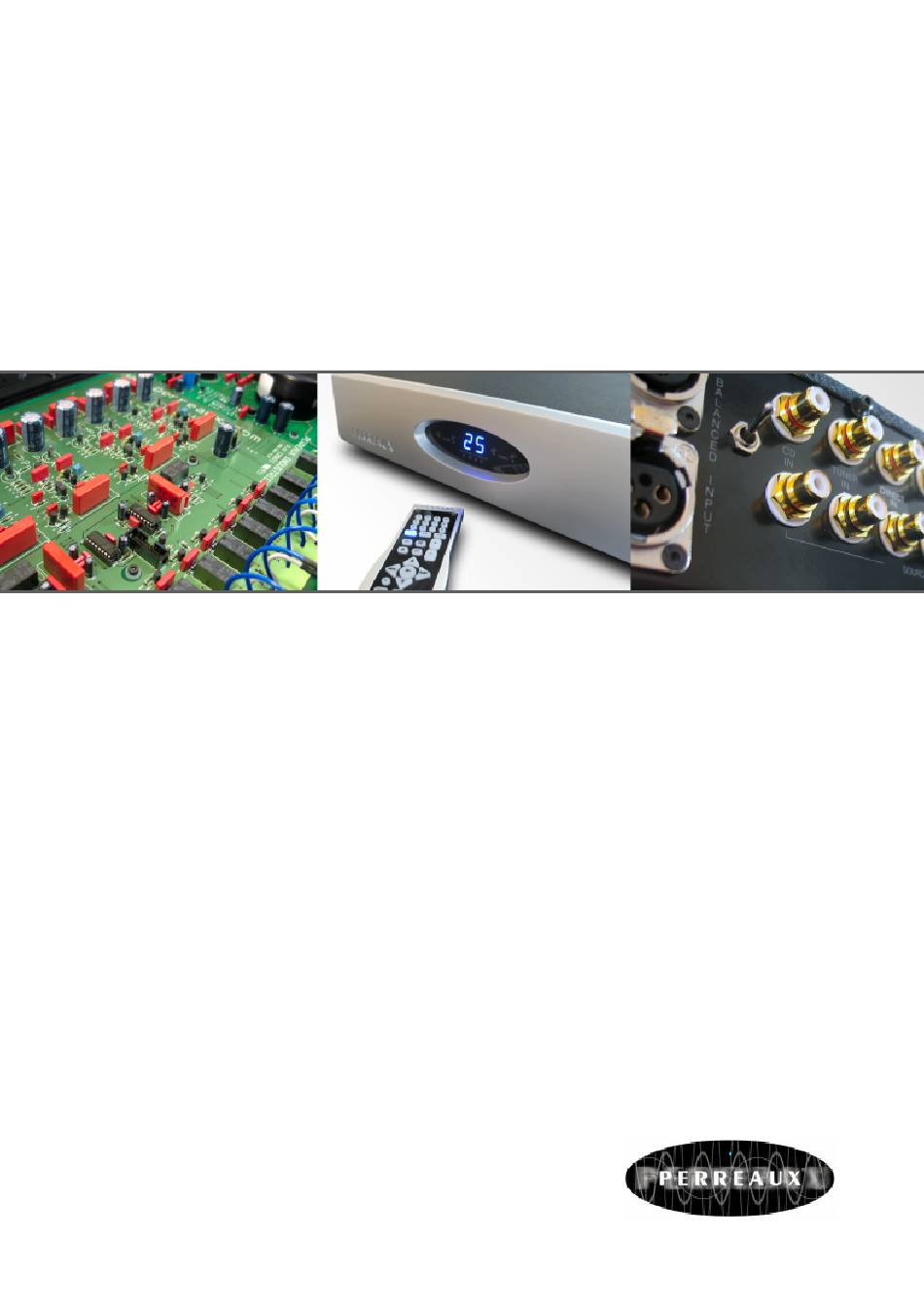

  • Page 1 Prisma SM6 MkII Balanced Preamplifier Owners Manual...
  • Page 2 No licenses to patents or other intellectual property of Perreaux are granted by the Company in connection with the sale of Perreaux products, expressly or by implication.

  • Page 3: Introducing The Perreaux Sm6 Preamplifier

    We maintain the human-link throughout, from design and construction, through to the ultimate test, your music, your system, your ears. Because we too listen to our products, we know that with your Perreaux you will discover many more of the musical secrets we strive to reveal.

  • Page 4: Important Safety Instructions

    Avoid operating the SM 6 with the cover removed. DO NOT bypass any fuse. DO NOT attempt to repair the SM 6. In the event of a problem, please contact your Perreaux dealer. DO NOT operate this product in an explosive atmosphere.

  • Page 5: Table Of Contents

    Table of Contents i i i i Introducing the Perreaux SM6 Preamplifier...............3 ii ii ii ii Important Safety Instructions ..................4 iii iii iii iii Table of Contents ......................5 1 1 1 1 Unpacking and Placement....................6 2 2 2 2 Instant Install........................7...

  • Page 6: Unpacking And Placement

    1 x SM 6 M kII Preamplifier 1 x Screwdriver Contents 1 x SM 6 M kII Product manual 2 x Remote trigger leads 1 x Perreaux remote control 1 x Detachable AC power cord 2 x AAA batteries 3 x Performance analysis charts Placing...

  • Page 7: Instant Install

    2 2 2 2 Instant Install If you are like us, the first thing you will want to do is to play your favourite piece of music through your new SM 6. The following instructions are written to enable you to achieve this as quickly as possible. These are not comprehensive instructions, but are designed to enable you to play music now! Note: Please take the time to read the SM6 manual thoroughly as it...
  • Page 8 Test for undesirable noises Without any program source material, slowly increase the SM 6 volume listening for any undesirable noises. After establishing that there are no problems, return the SM 6 volume level back to zero. Play your source material Start your source material playing.

  • Page 9: Front Panel Functions

    3 3 3 3 Front Panel Functions Volume Control and Standby Volume Control When either button is depressed, they will alter the volume setting. The volume adjustment range is 00 – 59 (-95dB to +18dB), with 47 indicating 0dB. Standby Pressing simultaneously will put the SM 6 into standby, disconnecting all power supplies except the digital power supply for the microcontroller and turning off the remote trigger outputs.
  • Page 10 Caution! Input D (HT Loop) fixes the output to 0dB, as it is a home theatre bypass. Please ensure the level is suitably attenuated by the upstream processor or receiver before selecting this input. Note: The source selector has six positions and supplies the chosen source to the Pre/Balanced outputs and Tape outputs.

  • Page 11: Rear Panel Functions

    4 4 4 4 Rear Panel Functions Caution! Observe precautions regarding volume control settings. Please make all changes at minimum volume setting. Only increase the volume after the connections have been made. Balanced Inputs Accepts a signal from a source component with balanced outputs via high quality XLR connectors.
  • Page 12 Note: The position of the Balanced Input switch has no bearing on the balanced output, it only selects which input to use for input A. Set the Balanced Input switch to ON only when using the balanc ed input..Refer to Chapter 13 “Specifications”, for detail on input sensitivity and impedance.
  • Page 13 If you require the voltage setting to be altered, e.g. relocation to another area, city or country, or extraordinarily high or low voltages, please contact your Perreaux dealer. Qualified service personnel can only perform this modification. Caution! Never attempt to connect the unit to the incorrect voltage.
  • Page 14 Remember, fuses do not usually blow without a reason. Any doubts about fuse failure should be conveyed directly to your Perreaux dealer. For more information on fuse ratings, please refer to Chapter 13 “Specifications”.

  • Page 15: Remote Control Functions

    5 5 5 5 Remote Control Functions The SM 6 comes supplied with a 36 button Perreaux Universal infrared remote control. The remote control uses 2 x AAA batteries and may be changed by removing the black perspex insert. Note:...
  • Page 16 Note: Balance settings are stored when the unit is put into standby. Input A Source Select Depressing selects source input A and the relevant code-set to control the compact disc player. Pressing selects source input A only. Source input A is indicated by “IA”...
  • Page 17 Scroll Source Up Pressing this button scrolls the source input up, selecting in the order: Scroll Source Down Pressing this button scrolls the source input down, selecting in the order:...

  • Page 18: Special Design Philosophies

    Today’s Perreaux range comes closer to fulfilling our shared vision than at any other time in the past.
  • Page 19 “Form and function” are both tough masters. That is why our amplifier heat sinks are not hidden, but instead feature prominently in all our designs. We make no excuses for producing some of the most distinctive high-end audio products on the planet. We let “form and function” blend together in perfect harmony.

  • Page 20: Special Design Features

    7 7 7 7 Special Design Features Rugged Build M echanical strength has been a hallmark of Perreaux products since the Quality company first started production back in 1974. The concept behind the physical design and construction is that each structural member should contribute to both rigidity and performance.

  • Page 21: Maximising System Potential

    8 8 8 8 Maximising System Potential Interconnects An often-ignored area in high fidelity systems is the cabling connecting the and Speaker various components. Interconnect leads should be high quality cable with Cables substantial terminations. Gold plate is inherently resistant to corrosion, and an excellent conductor.
  • Page 22 8 amplifier. Note: 100 Watts is twice as loud as 10 Watts, not ten times as loud. Perreaux equipment is designed with substantial headroom built in – that is, the reserve necessary to reproduce musical peaks without clipping. Final...

  • Page 23: Care And Maintainance

    9 9 9 9 Care and Maintenance The SM 6 has been designed to provide many years of trouble free enjoyment. It is important to keep the exterior of the unit clean. Note: Please switch the unit off and remove the cord-set from the rear of the amplifier before attempting to clean your SM6 in the manner described below.

  • Page 24: Warranty Information And Obtaining Service

    (365) days from the date of purchase from an authorised dealer or distributor. 5 Year To extend the warranty on your Perreaux SM 6 to five (5) years from date of Extended purchase, please return a fully completed warranty registration form along with a...

  • Page 25: Extended Warranty Registration Form

    Extended Warranty Registration Form Please complete this form and either fax, mail or scan and e-mail it to Perreaux Industries Ltd. Fax: +64 3 489 2976 M ail: Perreaux Industries Ltd PO Box 305 M osgiel Dunedin 9053 New Zealand E-mail: info@perreaux.com...

  • Page 26: Faultfinding Your System

    Perreaux products used with equipment manufactured by other manufacturers may cause an earth loop situation, but Perreaux products used with other Perreaux products will not cause an earth loop situation provided the following precautions are observed: The entire hi-fi system must be connected to the same mains/line power outlet.
  • Page 27 When a piece of equipment is supplied with a three pin mains/line supply lead all three pins must be connected in the correct fashion - see your dealer if in doubt. Check all interconnecting signal leads for good connections, both internal connections and firm contact with the sockets.
  • Page 28 Step 1 – Loudspeakers PREAMPLIFIER AMPLIFIER Change the loudspeaker leads from one loudspeaker to the other. If the fault remains in loudspeaker ‘A’, then loudspeaker ‘A’ is at fault, go no further. If the fault now appears in loudspeaker ‘B’ then the problem lies further up the line.
  • Page 29 This information will assist your Perreaux dealer or service person when or if any service is required. If the apparent fault is noise in one or both channels and has been localised to the amplifier, it will be necessary to determine whether or not the noise increases with the volume control;...
  • Page 30 Faultfinding Fault in Flowchart loudspeaker A Swap loudspeaker connections Fault in Loudspeaker A loudspeaker at fault Swap amplifier outputs Fault in Loudspeaker loudspeaker cable at fault Restore speaker cables to original connections Swap amplifier source input channels Fault in Loudspeaker loudspeaker cable at fault Swap source...

  • Page 31: Specifications

    Specifications The SM 6 specifications are detailed in brief and then subsequently in more detail. In the detailed version, we attempt to explain the significance of each specification. The correlation between published specifications and sonic quality can be unreliable. A list of numbers reveals virtually nothing. All technical measurements must be subject to qualitative as well as quantitative interpretation.
  • Page 32 Audio Connections Audio Inputs Unbalanced:..............6 pairs RCA connectors Balanced: ................. 1 pair XLR connectors Audio Outputs Unbalanced:..............2 pairs RCA preamp level ..................2 pairs RCA line level Balanced:..............1 pair XLR preamp level Other Connections 1 x IEC AC mains input receptacle 2 x 3.5mm mono jacks Mains Input Voltage 100V, 110V, 120V, 220V, 230V or 240V AC at 50Hz or 60Hz...
  • Page 33 By using a truly balanced circuit topology throughout the SM 6 and maintaining Class A operation at all stages, Perreaux engineers have kept this figure to a minimum.
  • Page 34 Input Sensitivity..................200mV Indicates the amount of input voltage required to drive the unit to its rated output. Due to the gain setup of the SM 6, it is able to achieve its rated output even from the lowest of input levels. Input Overload ..................

  • Page 35: Physical Dimensions

    Physical Dimensions...

  • Page 36: Contact Details

    Contact Details For more information please contact your Perreaux dealer, or contact: Perreaux Industries Ltd PO Box 305 M osgiel Dunedin 9053 New Zealand Ph: +64 3 489 2975 Fax: +64 3 489 2976 E-mail: info@perreaux.com Internet: www.perreaux.com...
  • Page 37 Installation Notes...
