Summary of Contents for Perreaux SX25i

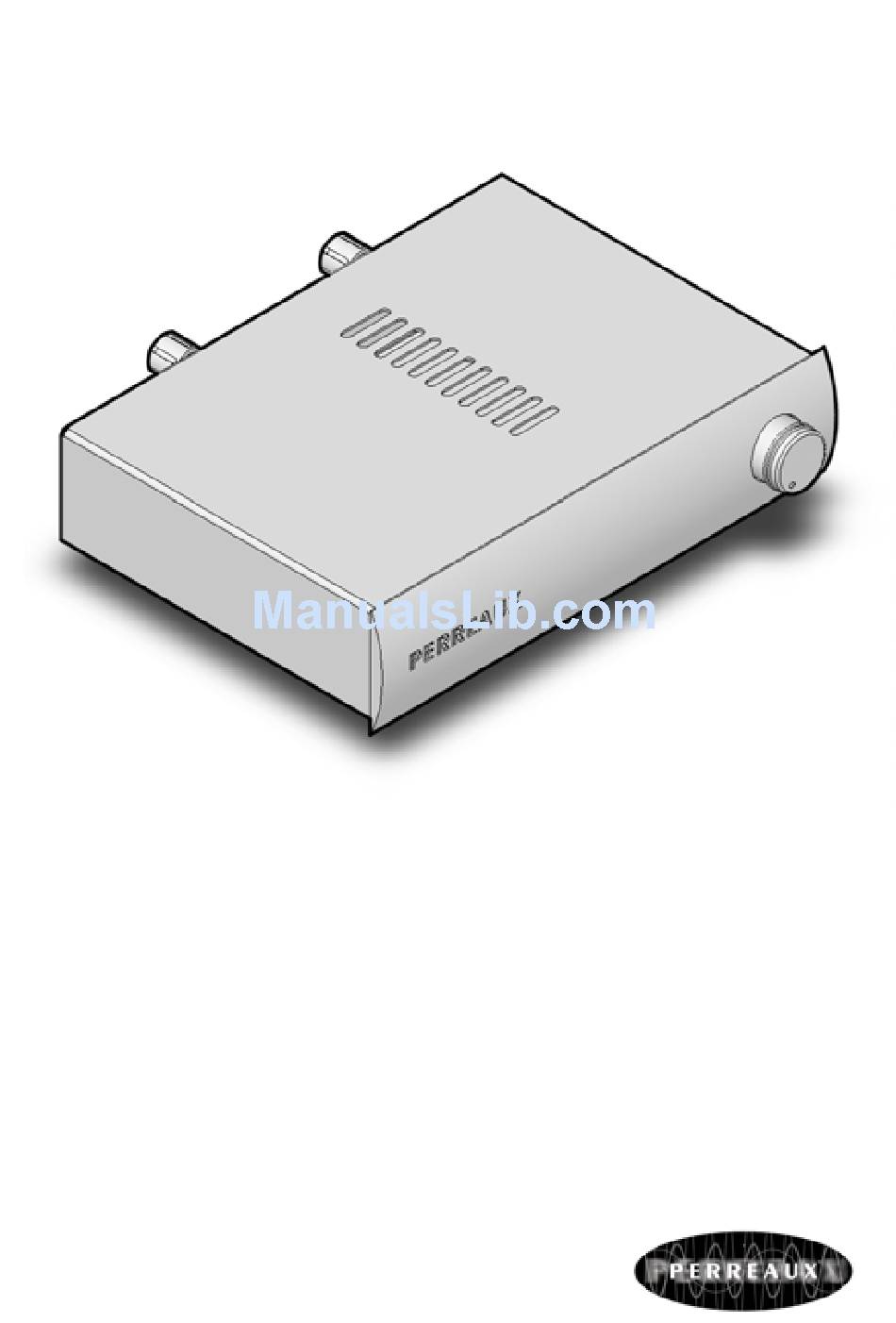

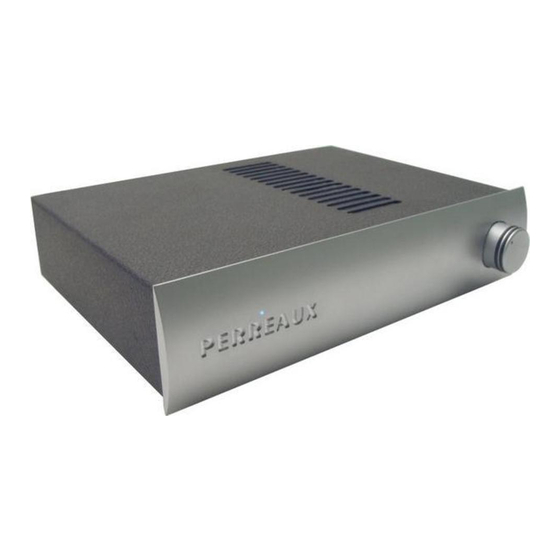

- Page 1 SX25i SX25i SX25i SX25i 25W Integrated Amplifier Owners Manual...
- Page 2 Perreaux Industries Limited makes no warranty for the use of its products, other than those expressly contained in the warranty detailed herein. The Company assumes no responsibility for any errors which may appear in this document, reserves the right to change products or specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein.
- Page 3 This page has intentionally been left blank.
-
Page 4: Introducing The Perreaux Silhouette Series
Stylish The Perreaux “Silhouette” series takes you even closer to the elusive goal of “The Perfect Re-Creation of a Musical From all of us at Perreaux Industries Limited, thank you for choosing the Perreaux Silhouette Series SX25i Integrated Amplifier. Introducing the... -
Page 5: Important Safety Instructions
NEVER operate the SX25i with the cover removed. NEVER use any liquid inside the SX25i. NEVER bypass any fuse. NEVER attempt to repair the SX25i. In the event of a problem, please contact your Perreaux dealer. NEVER expose the SX25i to extremely high or low temperatures. -
Page 6: Table Of Contents
Introducing the Perreaux Silhouette Series ... 3 ii ii ii ii Important Safety Instructions ... 4 iii iii iii iii Table of Contents ... 5 1 1 1 1 Unpacking and Placement ... 6 2 2 2 2 Instant Install ... -
Page 7: Unpacking And Placement
The SX25i is a convection cooled amplifier. Requirements performance, the unit MUST receive adequate ventilation. In the event that the SX25i is to be incorporated into custom cabinetry, please refer to the dimensional information provided in the Physical Dimensions section of the manual (Chapter 12). -
Page 8: Instant Install
SX25i into the system. Connect source to SX25i Connect the audio output from the source component to the inputs at the rear of the SX25i. Refer to Chapter 4 for Rear Panel information. Connect loud speaker cables to SX25i Connect your left and right channel loudspeaker leads to the bindng posts at the rear of the amplifier. - Page 9 Never attempt to connect the unit to the incorrect voltage. Insert the power cord supplied into the rear of the SX25i and into the wall. Switch on the socket at the wall and turn on the power of the SX25i by setting the power switch down.
-
Page 10: Front Panel Functions
3 3 3 3 Front Panel Functions Power LED This blue LED indicates the power status of your SX25i integrated amplifier. Volume Control The high-quality, machined aluminium knob is the sole user interface, reminding the user at every touch of the superior build quality designed into the SX25i. -
Page 11: Rear Panel Functions
Binding posts are clearly marked and colour coded RED Positive (+) and BLACK Negative (-). This polarity must be observed when connecting loudspeakers, i.e. positive terminal of the SX25i to the positive terminal of the loudspeaker and negative terminal of the SX25i to the negative terminal of the loudspeaker. - Page 12 Serial Number/Voltage Label The serial number is unique to your SX25i. Please record this number and store it in a safe place. For any service related enquiry, please be prepared to quote the product serial number to Perreaux personnel or their service representative.
-
Page 13: Minimalist Design
Perreaux has historically embraced the minimalist ethic from an audio design perspective only. The concept of “less equating to more” has been at the heart of all Perreaux audio designs for more than a quarter of a century. Our current product offering takes the minimalist ethic to new levels by totally embracing the concept. - Page 14 Minimalist Aesthetics Our products appeal to those who seek the ultimate in audio exclusivity, namely the perfect blend of “form and function”. “Form and function” are both tough masters. excuses for producing some of the most distinctive high-end audio products on the planet. We let “form and function” blend together in perfect harmony.
-
Page 15: Circuit Topology
Capable of continuously delivering 25w per channel into an 8 Performance load and 35W into 4 , the SX25i is powerful. When correctly matched to loudspeakers, the SX25i will deliver unsurpassed performance in its class and will effortlessly drive a vast array of smaller loudspeakers with the control and authority that people have come to expect from Perreaux products. - Page 16 Input Stage Utilising a stable current source, along with accurate current mirroring circuitry, the input stage of the SX25i, in combination with the overall circuit topology, provides precise detail resolution and definitive sonic transparency.
-
Page 17: Care And Maintenance
7 7 7 7 Note: Please switch the unit off and remove the cord set from the rear of the Amplifier before attempting to clean your SX25i in the manner described below. Never apply liquid directly to the SX25i. Never use abrasives. -
Page 18: Warranty Information
Warranty days) from the date of purchase. To extend the warranty of the Perreaux SX25i to three (3) years from date of purchase, please return a fully completed warranty registration form along with a copy of the original receipt of... -
Page 19: Extended Warranty Registration Form
9 9 9 9 Please complete this form and either fax, mail or e-mail it, along with a copy of the original receipt, to Perreaux Industries Ltd. Fax: Mail: E-mail: Alternatively, complete the online Warranty Registration Form on our website – www.perreaux.com. -
Page 20: Troubleshooting Guide
Ensure that your source component is playing the recording you would like to listen to, and that pause is not pressed. No volume setting Make sure that the volume on your SX25i is set to a suitable level. SX25i set to incorrect input Confirm that the input on your SX25i is connected to the appropriate source output. - Page 21 Make sure that the integrity of your interconnect cables is sound and they are firmly connected to your source and the SX25i. SX25i is close to external interference Check the proximity of your SX25i to any possible source of EMI and/or RF interference, for example computers, televisions, amplifiers, speakers, etc.
-
Page 22: Specifications
A list of numbers reveals virtually nothing. qualitative as well as quantitative interpretation. Measurements of the SX25i reveal excellent results by any standards. Tested at 115V and 230V after a 10 minute warm up period. Specifications... - Page 23 The Rated Output does not indicate the full capability of the SX25i. Voltage Swing ... 55.2V Loud transients call for a sudden burst of power from the amplifier to drive the speakers.
- Page 24 The ratio of desired signal to noise signals in the output. Integrated reproduction is susceptible to noise because of the nature of the environment to reveal every detail. This is why Perreaux engineers have designed the SX25i to maintain a low noise floor. Dynamic Headroom ... >2.0dB This indicates the SX25i can provide more than enough extra power to cope with the sharpest musical transients.
-
Page 25: Physical Dimensions
Physical Dimensions... -
Page 26: Contact Details
For more information please contact your Perreaux dealer, or contact: Perreaux Industries Ltd PO Box 47 413 Ponsonby Auckland New Zealand Fax: E-mail: Internet: www.perreaux.com Contact Details +64 9 815 5452 +64 9 815 5981 info@perreaux.com... -
Page 27: Installation Notes
Installation Notes...
