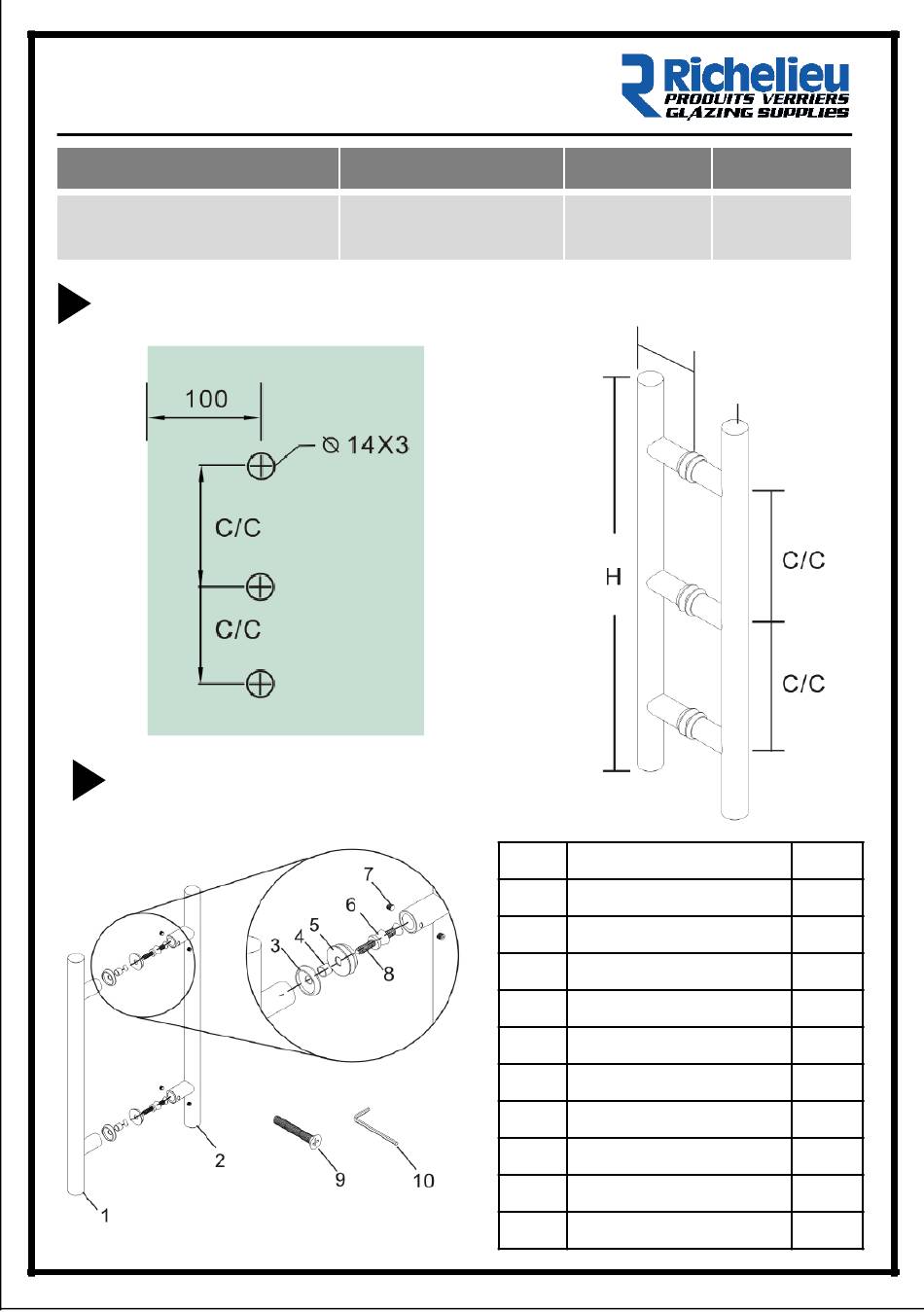

Round Ladder Handle
Code
705842438xxx
Measurements
*
*mm
Components
Material
SS316
*
H
(84'')
2130 mm
(3-5/32'')
80 mm
#
Name
1
Exterior Handle
2
Interior Handle
3
Metal Washer dia32mm
4
Plastic Washer
5
Gasket
6
Collar
7
Set Screw M6x6mm
8
Screw M8x45mm
9
Screw M8x80mm
10
Allen Key 3mm
C/C
(24'')
610 mm
Ø (1-1/2'')
38 mm
Qty
1
1
6
3
6
3
6
3
3
1
Advertisement
Table of Contents
Related Manuals for Richelieu 705842438 Series
Summary of Contents for Richelieu 705842438 Series
- Page 1 Round Ladder Handle Code Material (84’’) (24’’) 705842438xxx SS316 2130 mm 610 mm (3-5/32’’) Measurements 80 mm Ø (1-1/2’’) 38 mm Components Name Exterior Handle Interior Handle Metal Washer dia32mm Plastic Washer Gasket Collar Set Screw M6x6mm Screw M8x45mm Screw M8x80mm Allen Key 3mm...
- Page 2 Round Ladder Handle Installation Install the exterior handle as shown with one gasket and metal washer on each side of the glass. *Philips screwdriver not included *Use the 45mm screw for glass doors 8-12mm thick *Use the 80mm screw fo wood doors 35-50mm thick Install the interior handle onto the collars.
- Page 3 Poignée échelle ronde Code Matériel (84’’) (24’’) 705842438xxx SS316 2130 mm 610 mm (3-5/32’’) Dimensions 80 mm Ø (1-1/2’’) 38 mm Composantes Qté Poignée extérieure Poignée intérieure Rondelles en métal 32mm Rondelles en plastique Joints Collier Vis M6x6mm Vis M8x45mm Vis M8x80mm Clé...
- Page 4 Poignée échelle ronde Installation Installez la poignée extérieure comme illustré avec un joint et une rondelle métallique de chaque côté du verre. *Tournevis Philips non inclus *Utilisez la vis de 45 mm pour les portes en verre de 8-12 mm *Utilisez la vis de 80 mm pour les portes en bois de 35-50 mm Installez la poignée intérieure sur les colliers.
