Ciara-tech Horizon D11170 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
Horizon D11170 / T11170

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Horizon D11170 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ciara-tech Horizon D11170

Summary of Contents for Ciara-tech Horizon D11170

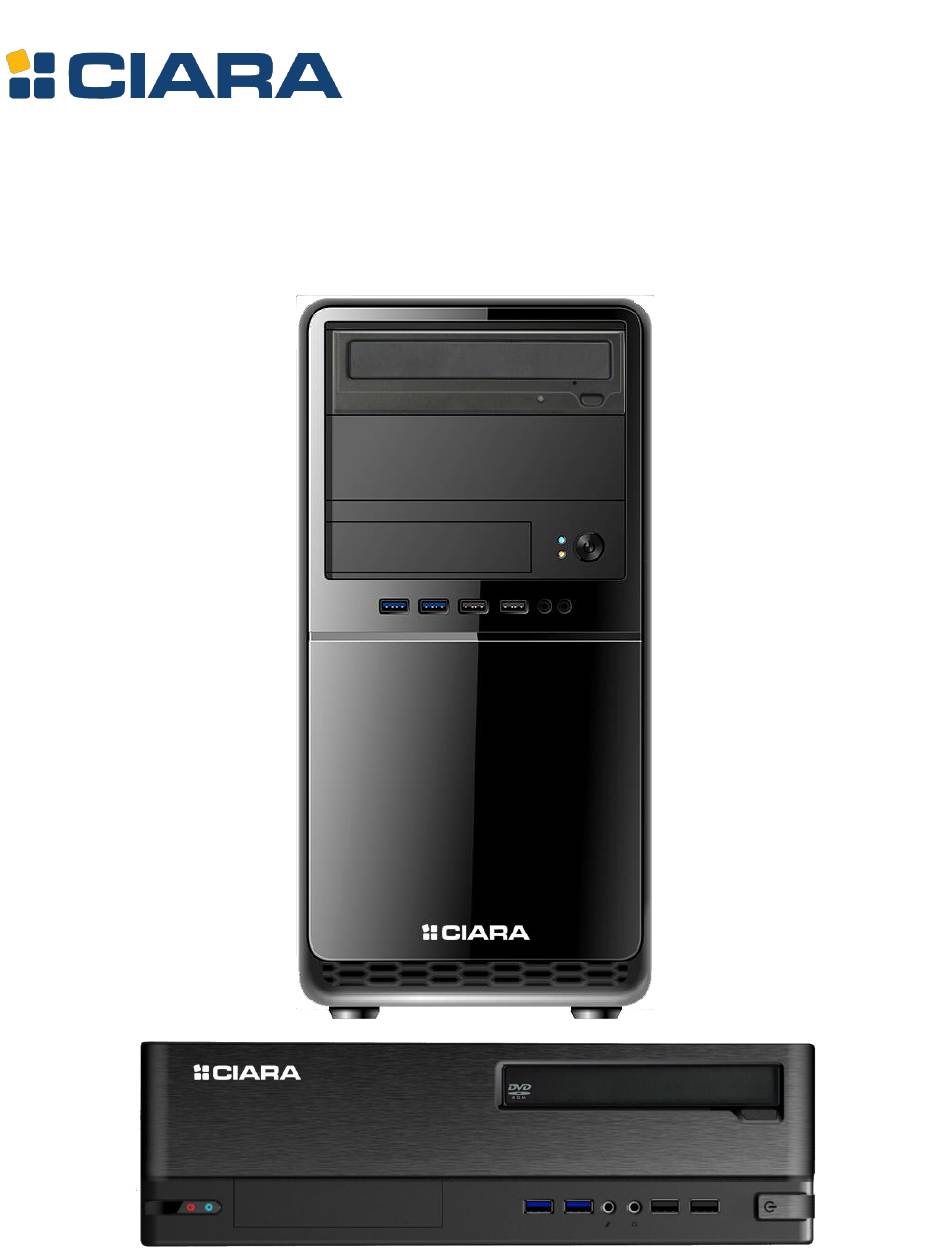

  • Page 1 User Guide Horizon D11170 / T11170...
  • Page 2 CIARA Horizon D11170 / T11170 9300 Trans-Canada Highway Montreal, Quebec H4S 1K5 Tel : (514) 798-8880 Fax : (514) 798-8889 Microsoft, Windows 10, Windows Server 2019 and Windows Server 2016 are registered trademarks of Microsoft Corporation Intel and Core are trademarks or registered trademarks of Intel Corporation Asus is a trademark of ASUSTeK COMPUTER INC.

  • Page 3: Table Of Contents

    1.3.2 Windows 10 Recovery from Startup Settings ................. 10 1.3.3 Corrupted BIOS recovery ......................12 1.3.4 System maintenance ......................12 1.3.5 Using the CIARA Horizon D11170 / T11170 ................13 1.4 Troubleshooting your system after first install ................14 1.4.1 Helpful hints ........................... 14 1.5 Solving general problems ......................
  • Page 4 CIARA Horizon D11170 / T11170 4.0 TECHNICAL PRODUCT SPECIFICATION CIARA HORIZON D11170 / T11170 ..... 49 4.1 Upgrading ............................. 51 4.2 Networking ........................... 51 4.3 The CIARA Horizon D11170 / T11170 BIOS ..................52 4.3.1 BIOS configuration and installation ..................52 4.3.2 BIOS set-up program menu bar ....................

  • Page 5: About This Guide

    With proper care and operating procedures your CIARA Horizon D11170 / T11170 will give you many years of service and high performance computing. NOTE This User's guide uses Horizon D11170 / T11170 designation where T11170 refers to the tower model and D11170 refers to the compact desktop model. - 5 -...

  • Page 6: Installing And Upgrading Your System

    CIARA Horizon D11170 / T11170 1.0 Installing and upgrading your system 1.1 Unpacking your computer Your PC is packed with ecologic moulded boxboard on four sides to keep it in place during transit. The keyboard is on the top of the box, the other accessories are completely underneath.

  • Page 7: Choosing A Site For The System

    NOTE The Horizon D11170 and T11170 models come either with or without a power supply On/OFF switch. For those systems that do not have a switch, make sure to shut down the system through Windows before proceeding to any repair or replacement work inside the system.

  • Page 8: Peripheric Installation

    CIARA Horizon D11170 / T11170 1.3 Peripheric installation USB 3.2 gen 1 devices Mouse Serial port Audio out Network RJ-45 Audio in Keyboard DisplayPort USB 2.0 Microphone HDMI devices - 8 -...

  • Page 9: Recovery From Ciara Recovery Dvd

    CIARA Horizon D11170 / T11170 1.3.1 Recovery from CIARA recovery DVD Before you start this procedure please back up all your important information, the recovery media will erase all data on HDD before installation. Insert the Recovery DVD and restart the system.

  • Page 10: Windows 10 Recovery From Startup Settings

    CIARA Horizon D11170 / T11170 1.3.2 Windows 10 Recovery from Startup Settings With the Windows Startup Settings screen (formerly advanced boot options) you can start Windows in different advanced troubleshooting modes so you can find and fix problems on your PC. In previous versions of Windows, you could get to this screen by pressing F8 before Windows started up.
  • Page 11 CIARA Horizon D11170 / T11170 Choose Reset your PC Choose Remove everything Press next Then follow the regular Windows 10 Installation process. - 11 -...

  • Page 12: Corrupted Bios Recovery

    CIARA Horizon D11170 / T11170 1.3.3 Corrupted BIOS recovery The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS file using the motherboard support DVD or a USB flash drive that contains the updated BIOS file.

  • Page 13: Using The Ciara Horizon D11170 / T11170

    1.3.5.1 Introduction The CIARA Horizon D11170 / T11170 is a powerful personal computer that has the ability to run a variety of operating systems. Unless you have specified something different, your system comes configured with a Windows operating system pre-loaded onto the hard drive.

  • Page 14: Troubleshooting Your System After First Install

    CIARA Horizon D11170 / T11170 1.4 Troubleshooting your system after first install 1.4.1 Helpful hints If you encounter some minor problems with the computer, monitor, or software, see the following list of general suggestions before taking further action: • Check that the computer and monitor are plugged into a working electrical outlet.

  • Page 15: Solving General Problems

    CIARA Horizon D11170 / T11170 1.5 Solving general problems You should be able to easily resolve the general problems described in this section. If a problem persists and you are unable to resolve it, or if you feel uncomfortable about performing the operation, contact CIARA at 1-877-242-7272 and ask for the Customer Service department.

  • Page 16: Solving Power Supply Problems

    CIARA Horizon D11170 / T11170 1.5.1 Solving power supply problems Solving power supply problems Problem Cause Solution Power supply shuts down Power supply will not turn Contact CIARA for the replacement of the power supply. intermittently. on because of internal power supply fault.

  • Page 17: Solving Hard Drive Problems

    CIARA Horizon D11170 / T11170 1.5.2 Solving hard drive problems Solving hard drive problems Problem Cause Solution Hard drive error occurs. Hard disk has bad sectors or has Use a utility to locate and block usage of bad failed. sectors. If necessary, reformat the hard disk.

  • Page 18: Solving Display Problems

    CIARA Horizon D11170 / T11170 1.5.3 Solving display problems Solving display problems Problem Cause Solution Blank screen (no video). Monitor is not turned on and the Turn on the monitor and check that the monitor light is not on. monitor light is on.

  • Page 19: Solving Audio Problems

    CIARA Horizon D11170 / T11170 1.5.4 Solving audio problems Solving audio problems Problem Cause Solution Sound does not come out of the Software volume control is Double-click the Speaker icon on the taskbar, speaker or headphones. turned down. and then make sure that Mute is not selected and use the volume slider to adjust the volume.

  • Page 20: Solving Keyboard And Mouse Problems

    CIARA Horizon D11170 / T11170 1.5.6 Solving keyboard and mouse problems Solving keyboard and mouse problems Problem Cause Solution The computer does not recognize Keyboard connector is not Connect keyboard correctly keyboard commands and typing. properly connected. Keyboard needs repairs.

  • Page 21: Solving Hardware Installation Problems

    CIARA Horizon D11170 / T11170 1.5.7 Solving hardware installation problems Solving hardware installation problems Problem Cause Solution A new device is not recognized as Device is not seated or connected Ensure that the device is properly and securely part of the system.

  • Page 22: Solving Memory Problems

    CIARA Horizon D11170 / T11170 1.5.8 Solving memory problems Solving memory problems Problem Cause Solution System will not boot or does not Memory module is not the Replace memory module with a module approved function properly after installing correct type or speed grade for your system.

  • Page 23: Solving Optical Drive Problems

    CIARA Horizon D11170 / T11170 1.5.10 Solving optical drive problems In this User Guide, an optical drive is defined as a DVD-ROM or a DVD-R/RW. Solving optical drive problems Problem Cause Solution System will not boot from an Non-bootable CD or DVD in drive.

  • Page 24: Component Installation Guide

    CIARA Horizon D11170 / T11170 1.6 Component installation guide 1.6.1 Precautions against static electricity ATTENTION: Components such as processors and memory may be permanently damaged by shocks arising from static electricity. It is hence important to wear antistatic, smock, gloves, shoes and ankle during the installation process.

  • Page 25: Opening And Accessing The Chassis

    CIARA Horizon D11170 / T11170 1.6.2 Opening and accessing the chassis 1.6.2.1 Opening and accessing the Horizon T11170 chassis This picture shows the back of the casing, the back panel connectors for peripheral installation, the back plate area for which connectors related to the motherboard will be accessed, and the power supply area.
  • Page 26 CIARA Horizon D11170 / T11170 1.6.2.2 Opening and accessing the Horizon D11170 chassis To remove the cover, simply press the release button and slide the panel back and then remove The cover is then removed from the chassis allowing for modular installation and chassis preparations.

  • Page 27: Insertion Of The Processor

    CIARA Horizon D11170 / T11170 1.6.3 Insertion of the processor ATTENTION : Components such as the processor may be permanently damaged by shocks arising from static electricity. It is hence important to wear an antistatic bracelet during the installation process.
  • Page 28 CIARA Horizon D11170 / T11170 Insert fan and heat sink module, aligning the four pins with the holes. Fasten the fan module by turning the four thumbs. Then plug the fan unit into proper header. Attach properly the fan power cable.

  • Page 29: Installation Of The Memory Modules

    Random Access Memory (DDR4 SDRAM) is packaged only in 288-pin Dual In-Line Memory Modules (DIMMs). Your CIARA Horizon D11170 / T11170 uses only DIMM memory modules. Each DIMM module can have a capacity of 8 GB, 16 GB or 32 GB. The minimum system capacity is 8 GB and the maximum system capacity is 64 GB. Your system supports only DDR4 2933 and 2666 MHz memory speeds.
  • Page 30 CIARA Horizon D11170 / T11170 Install a DIMM module into a memory socket on the system main board, as follows : First, make sure the power is turned Off and the power cord is unplugged. Then remove the case cover.
  • Page 31 CIARA Horizon D11170 / T11170 You can install one or two DIMMM of DDR4 memory. 1. To install a DIMM, first release the locking tab. 2. Slide the module into the socket at a 90-degree angle to the main board. Align the module so that the pin 1 marking on the module corresponds to the DIMM socket pin 1 marking.

  • Page 32: Installation Of The Optical Drive Module

    CIARA Horizon D11170 / T11170 1.6.5 Installation of the optical drive module 1.6.5.1 Installation of the optical drive module – Horizon T11170 The optical drive is removed or inserted into the front end of the chassis. To remove the drive, lift the locking tab. To secure the drive, clip down the locking tab.
  • Page 33 CIARA Horizon D11170 / T11170 1.6.5.2 Installation of the optical drive module – Horizon D11170 Push the latch and lift the bays that can accommodate the drives and the optical drive. Install the slide on the right side of the optical drive.
  • Page 34 CIARA Horizon D11170 / T11170 Connect the power cable and the SATA cable. Lower the array. - 34 -...

  • Page 35: Installation Of The Hard Drive

    CIARA Horizon D11170 / T11170 1.6.6 Installation of the hard drive 1.6.6.1 Installation of the hard drive – Horizon T11170 The hard drive must be removed or inserted from inside of the casing. First remove the side panel. To remove the drive, lift the locking tab. To secure the drive, clip down the locking tab.
  • Page 36 CIARA Horizon D11170 / T11170 1.6.6.2 Installation of the hard drive – Horizon D11170 Push the latch and lift the bays that can accommodate the drives and the optical drive. The hard disk or SSD is inserted without tools into its plastic disk holder.
  • Page 37 CIARA Horizon D11170 / T11170 Slide the tool less disk holder in the 2.5” bay for the SSD or 3.5” bay fir the hard drive. To release the disc, squeeze the latch and pull the handle. Connect the drive to the power supply and to the SATA controller.

  • Page 38: Installation Of A Wi-Fi Module (Optional)

    CIARA Horizon D11170 / T11170 1.6.7 Installation of a Wi-Fi module (optional) The Wi-Fi module must be inserted into the M.2 slot, key E. First, locate the M.2 E key slot located under the inscription: PRO H510M-CT. Insert the module into the slot by pushing until it is well inserted.

  • Page 39: Chassis Characteristics

    CIARA Horizon D11170 / T11170 1.6.8 Chassis Characteristics 1.6.8.1 Horizon T11170 Chassis Characteristics Mid-Tower Specifications Motherboard Type : Micro ATX (226.2 x 185.5 mm) (8.9"x 7.3") Drive Bay Space : 2 external 5.25", 1 external 3.5" and 2 internal 3.5"...
  • Page 40 CIARA Horizon D11170 / T11170 1.6.8.2 Horizon D11170 Chassis Characteristics Small Form Factor Specifications Type of Motherboard : Micro ATX (244 x 244 mm) (9.6"x 9.6") Drive bay space : Ext. 1 x 5.25", Int. 1 x 3.5" and 1 x 2.5"...

  • Page 41: Certification And Declaration

    Windows software and a manual is included with the CIARA Horizon D11170 / T11170. If you have purchased a Windows license with your CIARA Horizon D11170 / T11170 system, please abide by the Copyright and License terms and conditions that are enclosed with this software package.

  • Page 42: Declaration Of Conformity

    CIARA Horizon D11170 / T11170 2.2 Declaration of conformity We, Manufacturer/Importer CIARA 9300 Trans-Canada Highway Montreal, Quebec H4S 1K5 Tel : (514) 798-8880 Fax : (514) 798-8889 Declare that the product Personal Computer System CIARA Horizon D11750 / T11750 is in conformity with ICES-003 and Part 15 subpart B of the FCC Rules.

  • Page 43: Fcc Information To User

    CIARA Horizon D11170 / T11170 2.3 FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction guide, may cause harmful interference to radio communications.

  • Page 44: Energy Star

    CIARA Horizon D11170 / T11170 ® 2.4 ENERGY STAR ® CIARA Horizon D11750 / T11750 computers are ENERGY STAR 8.0 qualified. ® ENERGY STAR is the trusted, government-backed symbol for energy efficiency helping us all save money and protect the environment through energy-efficient products and practices. Get more information at : http://www.energystar.gov/...

  • Page 45: One Year Limited Warranty

    "Date of Delivery". The warranty covers any optional product(s) manufactured and sold by CIARA and installed by CIARA in a Horizon D11170 / T11170 series system unit. This one-year limited warranty, however, does not apply to any other item not internally installed in the System Unit by CIARA, or to any subsequent owners.

  • Page 46: Procedures To Be Followed For Service During The Warranty Period

    CIARA Horizon D11170 / T11170 3.1 Procedures to be followed for service during the warranty period: Refer to the back of the casing and record the model number and serial number from the Machine Identification Label. Make sure that you know the name and version number of the operating system that you are using, what accessory expansion cards you have installed in your system, and that you have the system Owner’s and User’s Guides ready at hand.

  • Page 47: Limited Warranty

    CIARA Horizon D11170 / T11170 3.2 Limited Warranty CIARA warrants the product (“Product”) you have purchased from CIARA or from an authorized CIARA reseller to be free from defects in materials and/or workmanship under normal use during the warranty period applicable to the product as defined by the standard warranty purchased with the Product, or any additional warranties and/or warranty extensions purchased through CIARA or an authorized CIARA reseller.

  • Page 48: Documenting Your Computer

    CIARA Horizon D11170 / T11170 3.3 Documenting your computer CIARA recommends that you record the information about your computer and keep a copy of this in a safe but readily accessible location. Please keep your equipment log up to date and include a copy of it whenever your equipment is returned to CIARA for servicing.

  • Page 49: Technical Product Specification Ciara Horizon D11170 / T11170

    Gen Intel® processors support 2933/2800/2666/2400/2133 natively. While supplied as standard in a mini tower case, CIARA can supply the CIARA Horizon D11170 / T11170 in a full range of cases that include smaller desktop models as well as larger tower models that are suitable for applications that require a greater expansion capacity.
  • Page 50 5 ¼” bay, one internal 3 ½” bay and two 3 ½” bays. Horizon D11170 : Desktop, 300 W power supply (80 PLUS® Bronze), one external 5 ¼” bay and one external 3 ½” bay in the front, two internal 3 ½” bays.

  • Page 51: Upgrading

    4.1 Upgrading As the purchaser of a powerful state of the art CIARA Horizon D11170 / T11170 computer you have no doubt decided on the features and upgrade capabilities that you might wish to add to your computer. There are many exciting possibilities for upgrading your CIARA Horizon D11170 / T11170.

  • Page 52: The Ciara Horizon D11170 / T11170 Bios

    The Asus BIOS is made up of code that provides the device-level control for the major I/O devices in the CIARA Horizon D11170 / T11170 computer system. It contains a set of routines (called POST, for Power-On Self-Test) that tests your CIARA Horizon D11170 / T11170 system when you turn it on.

  • Page 53: Bios Set-Up Program Function Keys

    CIARA Horizon D11170 / T11170 4.3.3 BIOS set-up program function keys BIOS Set-up Program Function Key Description 4.3.4 PCI auto configuration The BIOS can automatically configure PCI devices. PCI devices may be onboard or add-in cards. Autoconfiguration lets a user insert or remove PCI cards without having to configure the system.

  • Page 54: Legacy Usb Support

    CIARA Horizon D11170 / T11170 4.3.5 Legacy USB support Legacy USB support enables USB devices to be used even when the operating system’s USB drivers are not yet available. Legacy USB support is used to access the BIOS Setup program, and to install an operating system that supports USB. By default, Legacy USB support is set to Enabled.

  • Page 55: Bios Recovery

    CIARA Horizon D11170 / T11170 4.3.8 BIOS recovery It is unlikely that anything will interrupt a BIOS update; however, if an interruption occurs, the BIOS could be damaged. The following table lists the drives and media types that can and cannot be used for BIOS recovery. The BIOS recovery media does not need to be made bootable.

  • Page 56: Adjusting Boot Speed

    CIARA Horizon D11170 / T11170 4.3.9.4 Changing the default boot device during POST Pressing the <F8> key during POST causes a boot device menu to be displayed. This menu displays the list of available boot devices (as set in the BIOS setup program’s Boot Device Priority Submenu). The following table lists the boot device menu options.

  • Page 57: Bios Security Features

    CIARA Horizon D11170 / T11170 4.3.11 BIOS security features The BIOS includes security features that restrict access to the BIOS Setup program and who can boot the computer. A supervisor password and a user password can be set for the BIOS Setup program and for booting the computer, with the following restrictions : •...

  • Page 58: Motherboard Configuration & Layout - Pro H510M-Ct/Csm Main Board

    CIARA Horizon D11170 / T11170 4.4 Motherboard configuration & layout – PRO H510M-CT/CSM main board Figure 4.4 Major board components - 58 -...
  • Page 59 CIARA Horizon D11170 / T11170 Board components shown in Figure 4.4 Item/callout from Figure Description Intel® LGA1200 CPU socket DDR4 DIMM slots Expansion slots Fan headers Power connectors M.2 slot (Key M) SATA 6 Gb/s ports USB 3.2 Gen 1 header USB 2.0 headers...

  • Page 60: Back Panel Connectors

    CIARA Horizon D11170 / T11170 4.4.1 Back panel connectors Description PS/2 Mouse port Serial (COM) port USB 3.2 Gen 1 (up to 5 Gbps) ports Ethernet port Line In port (light blue) Line Out port (lime) PS/2 Keyboard port (purple) HDMI™...

  • Page 61: The Pci Express And Pci Bus

    4.6.2 Optical drives The CIARA Horizon D11170 / T11170 model may be supplied with a SATA DVD drive. The DVD drive is a half-height 5-¼ inch wide storage device, capable of holding 4.7 to 8.5 Gbytes of data. The system may be equipped with either a DVD-ROM drive, a DVD writer, a Blu-ray drive or Blu-ray writer.

  • Page 62: Keyboard

    CIARA Horizon D11170 / T11170 4.7 Keyboard Your keyboard has a set of function keys, cursor keys and a numeric keypad. The figure below shows a typical keyboard. Under the rear of the keyboard are two small legs that can be pulled out or pushed in to change the keyboard angles.

  • Page 63: Graphics Subsystem

    CIARA Horizon D11170 / T11170 4.8 Graphics subsystem ® The board supports system graphics through Intel Graphics Technology and a PCI Express x16 add-in graphics card. 4.8.1 Integrated graphics ® ® The computer supports integrated graphics through the Intel Flexible Display Interface (Intel FDI) since processors integrate Intel Graphics Technology.

  • Page 64: Audio Subsystem

    CIARA Horizon D11170 / T11170 4.9 Audio subsystem The CIARA Horizon D11170 / T11170 computer supports Intel High Definition Audio through a Realtek® ALC897 audio codec. The Realtek® ALC897-based audio subsystem provides the following features : • 8-channel (6 + 2) audio with independent multi-streaming stereo •...

  • Page 65: Lan Subsystem

    CIARA Horizon D11170 / T11170 4.11 LAN subsystem The LAN subsystem consists of the following : • Intel® I219-V 1 Gigabit Ethernet Controller (10/100/1000 Mbits/s) • One RJ-45 LAN connector with integrated status LEDs 4.11.1 Intel® I219-V 1 Gigabit Ethernet controller The Intel®...

  • Page 66: Replacing The System Battery

    4.12 Replacing the system battery In all CIARA Horizon D11170 / T11170 models the battery is a standard 3.3 V Lithium battery model CR-2032. This type of battery should last at least 3 years, if the system is not in use. When the computer is plugged in, the standby current from the power supply extends the life of the battery.

  • Page 67: Configuration Jumper Block

    CIARA Horizon D11170 / T11170 4.15 Configuration jumper block NOTE Always turn off the power and unplug the power cord from the computer before shorting the two pins. Shorting the pins with the power on may result in unreliable computer operation.

  • Page 68: Installing An Upgrade Flash Bios

    You may obtain the latest BIOS revision for your CIARA Horizon D11170 / T11170 system on Asus web site at https://www.asus.com/Motherboards-Components/Motherboards/Business/Pro-H510M-CT-CSM/HelpDesk_BIOS/ Several methods exist to update the BIOS of your CIARA Horizon D11170 / T11170 system, and they are as follows : •...

  • Page 69: Glossary

    CIARA Horizon D11170 / T11170 GLOSSARY 32-Bit -- In computer architecture, 32-bit integers, memory addresses, or other data units are those that are at most 32 bits (4 octets) wide. Also, 32-bit CPU and ALU architectures are those that are based on registers, address buses, or data buses of that size. 32-bit is also a term given to a generation of computers in which 32-bit processors were the norm.
  • Page 70 CIARA Horizon D11170 / T11170 Clock -- A circuit that sends a consistent, periodic signal that is used to step logic information through a computer circuit. CMOS RAM -- Complementary Metal Oxide Semiconductor. CMOS RAM stores basic configuration information about your computer.
  • Page 71 CIARA Horizon D11170 / T11170 Jumper -- On a printed circuit board, a patch connector, wire, or cable used to establish a circuit. LCD -- A liquid crystal display (LCD) is a thin, flat electronic visual display that uses the light modulating properties of liquid crystals (LCs).
  • Page 72 CIARA Horizon D11170 / T11170 ROM -- An acronym for "read-only memory." The type of computer memory that is used to permanently store the information vital to computer operation, including some parts of the operating system. ROM is permanent and the contents will not be lost when the computer is turned off.
  • Page 73 CIARA Horizon D11170 / T11170 NOTES : - 73 -...

This manual is also suitable for:

Horizon t11170

Table of Contents
