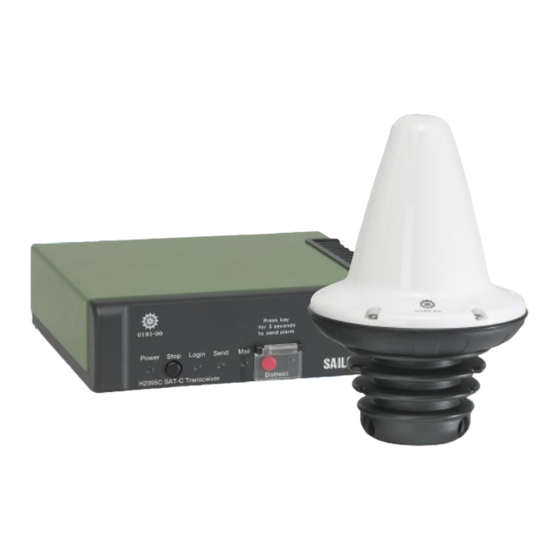

Sailor H2095C (TT-3020C) Inmarsat-C Terminal
Installation Manual
Document Nr: I-MA-3010.68-5510-762-IVT-312
Page 388 of 1234

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H2095C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sailor H2095C

  • Page 1 Sailor H2095C (TT-3020C) Inmarsat-C Terminal Installation Manual Document Nr: I-MA-3010.68-5510-762-IVT-312 Page 388 of 1234...

  • Page 2: Table Of Contents

    Table of Tables Table of Tables Table of Tables Table of Tables Table of Tables Table 1 TT-3020C technical specifications........... 2-2 Table 2 Inmarsat-C Protocol support............2-3 Table 3 TT-3020C power requirements ............2-4 Table 4 TT-3020C Capsat Transceiver ON/OFF overview ......2-5 Table 5 TT-3020C Capsat Transceiver DC Power Connector pin assignment ....................
  • Page 3 Table of Tables Table of Tables Table of Tables Table of Tables Table 29 TT-3042D DIP switch settings............3-51 Table 30 TT-3042D Power Connector ............3-52 Table 31 TT-3042D I/O Connector..............3-53 Table 32 TT-3042D Technical Specifications ..........3-55 Table 33 Antenna voltage configuration............4-4 Page Page Page...

  • Page 4: Introduction

    Initial Inspection Initial Inspection Initial Inspection Initial Inspection Introduction Introduction Introduction Introduction Introduction This manual provides instructions for installing, configuring and testing of a TT-3000C Integrated Capsat System that includes a TT-3020C Capsat Transceiver. A wide variety of options and accessories may be linked together with the Capsat Transceiver, the specific installation and config- uring of these are to be found in their respective Reference Manuals.

  • Page 5: Storage

    Introduction Introduction Introduction Introduction Storage Storage Storage Storage Inspect the shipping carton immediately upon receipt for evi- dence of mishandling during the transit. If the shipping carton is severely damaged or water stained, request that the carrier's agent be present when opening the carton. Save the carton packing material for future use.
  • Page 6 Repackaging for shipment Repackaging for shipment Repackaging for shipment Repackaging for shipment Introduction Introduction Introduction Introduction If the original shipping carton is not available, the following gen- eral instructions should be used for repackaging with commer- cially available material. 1. Wrap the TT-3020C in heavy paper or plastic. Attach a tag in- dicating the type of service required, return address, model number and full serial number.
  • Page 7 Introduction Introduction Introduction Introduction Repackaging for shipment Repackaging for shipment Repackaging for shipment Repackaging for shipment This page is intentionally left blank Page Page Page Page 1-4 25-Jul-00 25-Jul-00 25-Jul-00 25-Jul-00 Document Nr: I-MA-3010.68-5510-762-IVT-312 Page 402 of 1234...

  • Page 8: Installation - Tt-3020C

    Technical specifications Technical specifications Technical specifications Technical specifications Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C This chapter provides specific information enabling you to install the TT-3020C Capsat Transceiver into your own system, with a minimal effort.

  • Page 9: Table 1 Tt-3020C Technical Specifications

    Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Technical specifications Technical specifications Technical specifications Technical specifications Antenna Interface Standard 50 Ohm female TNC-connector. Max 70m cable with TT-3005A antenna or max 100m cable with TT-3001B or TT- 3005M antenna.

  • Page 10: Table 2 Inmarsat-C Protocol Support

    Compass Safe Distance Compass Safe Distance Compass Safe Distance Compass Safe Distance Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Inmarsat-C Protocol support Message transmission and reception with IA-5, ITA-2 and binary transfer to/from the following destinations: Telex PSTN (telephone modems and fax modems)

  • Page 11: Table 3 Tt-3020C Power Requirements

    Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Power requirements Power requirements Power requirements Power requirements Power requirements The TT-3020C Maritime Capsat transceiver is designed to operate on floating DC in the range 10 - 32 V, which makes an AC/DC converter needed, in case the system is to work in an AC envi- ronment.
  • Page 12 Thrane & Thrane Thrane & Thrane Thrane & Thrane Thrane & Thrane ® Maritime Capsat Transceiver TT-3020C Installation Manual Copyright © Thrane & Thrane A/S ALL RIGHTS RESERVED Document Nr: I-MA-3010.68-5510-762-IVT-312 Page 389 of 1234...

  • Page 13: Table 4 Tt-3020C Capsat Transceiver On/Off Overview

    Functional description Functional description Functional description Functional description Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C on the rear panel of the TT-3020C Transceiver, and the remote on/off wire (white) in the DC input cable. Please see Table 5 for more information about remote on/off.
  • Page 14 Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Functional description Functional description Functional description Functional description The Login indicator will be on when the Transceiver is logged into an ocean area. If the Transceiver is in synchronisation but hasn't been logged into an ocean area the indicator will flash.

  • Page 15: Connectors

    Connectors Connectors Connectors Connectors Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Connectors This section defines the functions and pin assignments of the TT- 3020C connectors. Figure 2TT-3020C Capsat Transceiver rear panel 2.5.1 Power connector The battery connector is a standard DB-15 male, located on the rear panel of the TT-3020C at X1.

  • Page 16: Table 5 Tt-3020C Capsat Transceiver Dc Power Connector Pin Assignment

    Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Connectors Connectors Connectors Connectors X1 Pins Name Signal Description DC Cable 37- 107881-A Red 2.5mm 2 1,2,9,10 SUP+ 10-32 VDC (Battery Positive input) Black 2.5mm 2 4,5,12,13 SUP- DC RN (Battery Negative input) Remote ON/OFF 1...

  • Page 17: Table 6 Automatic Baudrate Settings

    Connectors Connectors Connectors Connectors Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C The battery connection input is floating, i.e. there is no galvanic connection from any of the battery poles to the cabinet frame. 2.5.2 DTE Communication port The TT-3020C Capsat Transceiver communicates with a controller device via the standard EIA/TIA-232E ports on a female 9 pole Sub-D connector, located on the rear panel at X3.

  • Page 18: Table 7 Tt-3020C X3 Pin Assignment

    Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Connectors Connectors Connectors Connectors 2.5.2.2 DTE Connector interface The TT-3020C which is a DCE uses the signals listed in Table 7 (marked with a in the Used column).Please notice that DTE pin naming is used.

  • Page 19: I/O Connector

    Connectors Connectors Connectors Connectors Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C An extended serial communication cable should not exceed 100 meters as the TT-3606E works on 4800 Baud using the EIA-423 standard. The TT-3020C optionally uses either hardware or software flow control.

  • Page 20: Table 8 Tt-3020C X4 Pin Assignment

    Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Connectors Connectors Connectors Connectors Signal X4 pin Specification general purpose I/O I/O0 (IO) Digital open collector output with pull- up/input with pull-up (RS-410N). I/O1 (IO) Digital open collector output with pull- up/input with pull-up (RS-410N).
  • Page 21 Information in this document is subject to change without notice and does not represent a commitment on the part of Thrane & Thrane A/S. © 2000 Thrane & Thrane A/S. All right reserved. Printed in Den- mark. Document Number TT98-107880-C. Release Date: 25.
  • Page 22 Safety Summary Safety Summary Safety Summary Safety Summary The following general safety precautions must be observed during all phases of operation, service and repair of this equipment. Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture and intended use of the equipment.
  • Page 23 This page is intentionally left blank Document Nr: I-MA-3010.68-5510-762-IVT-312 Page 392 of 1234...
  • Page 24 Table of Contents Table of Contents Table of Contents Table of Contents Table of Contents Introduction ..................1-1 Initial Inspection ............... 1-1 Storage ..................1-2 Repackaging for shipment............1-2 Installation - TT-3020C............... 2-1 Technical specifications............2-1 Compass Safe Distance............. 2-3 Power requirements ..............
  • Page 25 Table of Contents Table of Contents Table of Contents Table of Contents TT-3680B Power Supply............3-29 3.5.1 Mounting ..............3-29 TT-3608A Hard Copy Printer ...........3-31 3.6.1 Mounting plate............3-32 3.6.2 Roll Paper Stand............3-32 3.6.3 Mounting ..............3-34 TT-3608G Printer Unit..............3-35 3.7.1 Configuration.............3-36 3.7.2 Installation ..............3-38 3.7.3 Connectors ..............3-38 3.7.4...
  • Page 26 Table of Figures Table of Figures Table of Figures Table of Figures Table of Figures Figure 1 TT-3020C Maritime Capsat Transceiver ........1-1 Figure 2TT-3020C Capsat Transceiver rear panel ........2-7 Figure 3 TT-3020C Capsat Transceiver mounting plate......2-19 Figure 4 Front panel of the TT-3020C Capsat Transceiver with mounting bracket ..................
  • Page 27 Table of Figures Table of Figures Table of Figures Table of Figures This page is intentionally left blank Page Page Page Page iv iv iv iv 25-Jul-00 25-Jul-00 25-Jul-00 25-Jul-00 Document Nr: I-MA-3010.68-5510-762-IVT-312 Page 396 of 1234...
  • Page 28 Connectors Connectors Connectors Connectors Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Heading and speed information Transducer measurements Wind speed and angle Water temperature The following is a list of the NMEA codes that the Transceiver will recognise, if you do not have a built-in GPS or the built-in GPS is in acquisition mode.
  • Page 29 Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Connectors Connectors Connectors Connectors 2.5.3.3 NMEA 0183 Transmission When your Transceiver has a built-in GPS, it sends out NMEA 0183 navigational data to the device connected to the Trans- ceiver, via the I/O NMEA connector X4.

  • Page 30: Printer Port

    Connectors Connectors Connectors Connectors Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C stored position is more than 24 hours old. The time field is empty. The course and speed are 8 second mean values. An example is: $GPVTG,139.,T,139.,M,02.0,N,00.0,K $GPGLL,5544.45,N,01228.68,E,, $GPGGA,,5544.45,N,01228.68,E,0,00,1,0,M,,M,,...

  • Page 31: Table 9 Printer Port (X5) Pin Assignment

    Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Connectors Connectors Connectors Connectors Name Signal Description STRB Strobe DAT0 Data Bit 0 DAT1 Data Bit 1 DAT2 Data Bit 2 DAT3 Data Bit 3 DAT4 Data Bit 4 DAT5 Data Bit 5 DAT6...

  • Page 32: Grounding

    Built-in GPS (optional) Built-in GPS (optional) Built-in GPS (optional) Built-in GPS (optional) Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C 2.5.5 Grounding RF-grounding of an Integrated Capsat System requires special attention. Each unit shall have its own individual low-inductance earth connection.

  • Page 33: Table 10 Gps Specifications

    Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Mounting bracket Mounting bracket Mounting bracket Mounting bracket 2.6.1 GPS specifications The GPS receiver module tracks 12 GPS satellites . The following power-up time estimates are available, from field test. Start state GPS 25 All data known...

  • Page 34: Figure 3 Tt-3020C Capsat Transceiver Mounting Plate

    Mounting bracket Mounting bracket Mounting bracket Mounting bracket Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Figure 3 TT-3020C Capsat Transceiver mounting plate. All dimensions are in mm Figure 4 Front panel of the TT-3020C Capsat Transceiver with mounting bracket All dimensions are in mm 25-Jul-00...
  • Page 35 Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Installation - TT-3020C Mounting bracket Mounting bracket Mounting bracket Mounting bracket It is recommended that the Transceiver is mounted in an open air location. Page Page Page Page 2-20 2-20 2-20 2-20 25-Jul-00 25-Jul-00...

  • Page 36: System Installation

    Power requirements Power requirements Power requirements Power requirements System Installation System Installation System Installation System Installation System Installation This chapter provides specific information enabling you to install the TT-3020C Maritime Capsat system with a minimal effort. The default, or factory configuration is described, together with pro- cedures for altering this configuration.

  • Page 37: Table 11 Capsat System Component Power Requirements

    System Installation System Installation System Installation System Installation Power requirements Power requirements Power requirements Power requirements Power requirements Receive Transmit mode mode TT-3020C Capsat Transceiver incl. TT-3005M 3.8W antenna. Max. Floating DC (10-32V). TT-3020C Capsat Transceiver Incl. TT-3005M 4.4W Antenna & GPS. Floating DC (10-32V). Max.

  • Page 38: Table 12 Capsat System Fuses

    Compass Safe Distance Compass Safe Distance Compass Safe Distance Compass Safe Distance System Installation System Installation System Installation System Installation As a guide-line, please note the equipment fuse location given in Table 12. Equipment Location Fuse size TT-3020C Capsat Externally accessed, 12A T.

  • Page 39: Table 13 Compass Safe Distance

    System Installation System Installation System Installation System Installation Compass Safe Distance Compass Safe Distance Compass Safe Distance Compass Safe Distance Model Compass Safe Distance TT-3020C, Transceiver 0.5 m TT-3606E Message Terminal 0.5 m TT-3601E Keyboard 0.3 m TT-3042C, Remote Alarm Distress 0.5 m TT-3601A, Keyboard 0.5 m...

  • Page 40: Antennas

    Antennas Antennas Antennas Antennas System Installation System Installation System Installation System Installation Antennas This section describes the different antennas types, which can be delivered with the TT-3000C Maritime Capsat system. The mounting consideration regarding the antennas and the choice of antenna cable are also described.
  • Page 41 System Installation System Installation System Installation System Installation Antennas Antennas Antennas Antennas The antenna is very compact and is designed to operate in a cor- rosive environment and in extreme weather conditions without any service. It has a modular construction that allows easy ex- change of antenna elements.

  • Page 42: Table 14 Tt-3005M Technical Specifications

    Antennas Antennas Antennas Antennas System Installation System Installation System Installation System Installation TT-3005M Inmarsat-C/GPS omnidirectional Maritime Antenna antenna, RHC polarised. G/T: -23 dB/K at 5° elevation EIRP: 14 dBW ± 2dB at 5° elevation. Temperature: -35°C to 55°C operating, -40°C to 80°C storage. Dimensions (H x D): 178 mm x 122 mm.

  • Page 43: Table 15 Tt-3020C Capsat Transceiver Antenna Cable Types (Tnc - Tnc) For Tt-3005M

    System Installation System Installation System Installation System Installation Antennas Antennas Antennas Antennas 3.3.1.2 Antenna cable The TT-3005M Antenna specifications requires that the total maximal attenuation at 1.65 GHz must be less than 17 dB, and the maximal total (short-circuited in one end) DC resistance must not exceed 0.7 Ohms.

  • Page 44: Figure 6 Tt-3005M 1'' Tube Mounting

    Antennas Antennas Antennas Antennas System Installation System Installation System Installation System Installation with the enclosed self-bonding tape, disabling water from pene- trating the connection. 3.3.1.3 Mounting The TT-3005M maritime antenna is constructed for 1” tube mounting. Figure 6 TT-3005M 1’’ Tube Mounting It is important to notice that the pole mount device has to be dis- connected from the antenna body when the antenna cable should be mounted.

  • Page 45: Tt-3005A Maritime Antenna

    System Installation System Installation System Installation System Installation Antennas Antennas Antennas Antennas 3.3.1.4 Transceiver Configuration This new antenna is designed to use a very low amount of power. To ensure that the transceiver detects the antenna as connected the voltage output of the transceiver has to be reduced. Issuing the following command in the transceiver shell does this: “Se —f 0”...
  • Page 46 Antennas Antennas Antennas Antennas System Installation System Installation System Installation System Installation The antenna is very compact and is designed to operate in a cor- rosive environment and in extreme weather conditions without any service. It has a modular construction that allows easy ex- change of antenna elements.

  • Page 47: Table 16 Tt-3005A Technical Specifications

    System Installation System Installation System Installation System Installation Antennas Antennas Antennas Antennas TT-3005A Inmarsat-C/GPS omnidirectional Maritime Antenna antenna, RHC polarised. G/T: -23 dB/K at 5° elevation EIRP: 14 dBW ± 2dB at 5° elevation. Temperature: -35°C to 55°C operating, -40°C to 80°C storage. Dimensions (H x G): 120 mm x 146 mm conical excl.

  • Page 48: Table 17 Tt-3020C Capsat Transceiver Antenna Cable Types

    Antennas Antennas Antennas Antennas System Installation System Installation System Installation System Installation 3.3.2.2 Antenna cable The TT-3005A Antenna specifications requires that the total maximal attenuation at 1.65 GHz must be less than 10 dB, and the maximal total (short-circuited in one end) DC resistance must not exceed 0.7 Ohms.

  • Page 49: Figure 8 Tt-3005A 1.5'' Tube Mounting

    System Installation System Installation System Installation System Installation Antennas Antennas Antennas Antennas 3.3.2.3 Mounting The TT-3005A maritime antenna is constructed for 1.5” tube mounting. Figure 8 TT-3005A 1.5’’ tube mounting 3.3.2.4 Low antenna power in Rx mode The TT-3005A Antenna Rx power can be reduced from 1.1W with (14V) to 0.7W with (9V).

  • Page 50: Tt-3001B Maritime Antenna

    Antennas Antennas Antennas Antennas System Installation System Installation System Installation System Installation 3.3.3 TT-3001B Maritime Antenna Figure 9 TT-3001B opt. 001 Maritime Antenna This is an omni-directional antenna with built-in LNA/HPA elec- tronics designed to operate on vessels. The antenna housing is sealed and contains no user serviceable parts.

  • Page 51: Table 18 Tt-3001B Opt. 001 Technical Specifications

    System Installation System Installation System Installation System Installation Antennas Antennas Antennas Antennas TT-3001B Opt. 001 Inmarsat-C/GPS omnidirectional Maritime Antenna antenna, RHC polarised. G/T: -23 dB/K EIRP: 14 dBW ± 2dB at 5° elevation. Temperature: -35°C to 55°C operating, -40°C to 80°C storage. Dimensions (H x G): 237 mm x 150 mm conical ex.

  • Page 52: Table 19 Tt-3020C Capsat Transceiver Antenna Cable Types (N - Tnc)

    Antennas Antennas Antennas Antennas System Installation System Installation System Installation System Installation 3.3.3.2 Antenna cable If you are using the TT-3020C Transceiver with a TT-3001B opt. 001 antenna with N connector, use cable with N and TNC con- nectors. The specification of this antenna requires that the total maximum attenuation at 1.65 GHz must be less than 16 dB, and the maximal total (short-circuited in one end) DC resistance must not exceed 0.7 Ohms.

  • Page 53: Antenna Mounting Considerations

    System Installation System Installation System Installation System Installation Antennas Antennas Antennas Antennas If you install your system in a permanent location, we recommend that you, after the installation of the antenna, wrap the connector with the enclosed self-bonding tape, disabling water from pene- trating the connection.
  • Page 54 Antennas Antennas Antennas Antennas System Installation System Installation System Installation System Installation Distance to HF antennas > 5 m Distance to VHF antennas > 4 m Distance to magnetic compass > 3 m The antenna is designed to provide satellite coverage even when the vessel has pitch and roll movements up to 15°.

  • Page 55: Figure 11 Inmarsat-C Antenna Mounting

    System Installation System Installation System Installation System Installation Antennas Antennas Antennas Antennas Zenith Horizon Horizon Obstructions should be below these Figure 11 Inmarsat-C Antenna Mounting If an obstruction such as a pole or a funnel is unavoidable, the following guidelines apply: According to IMO resolution 807 the distance to the obstruction should be so large, that the obstruction only covers 2 degrees.

  • Page 56: Safety Distance For Antenna Units

    Antennas Antennas Antennas Antennas System Installation System Installation System Installation System Installation Max obstruction angle 2 degree Figure 12 Inmarsat-C Antenna mounting near pole or funnel 3.3.5 Safety Distance for Antenna Units The safety levels for the Thrane & Thrane INMARSAT-C Antenna Units are based on the ANSI standard C95.1-1982 "American Na- tional Standard Safety Levels With Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 300 kHz to 100 GHz"...

  • Page 57: Table 20 Radiated Intensity

    System Installation System Installation System Installation System Installation Antennas Antennas Antennas Antennas tighter recommendation correspond to a minimum safety dis- tance of 60 cm at 16 dBW. To be sure that this distance is respected the Thrane & Thrane INMARSAT-C Antenna Units are provided with a label declaring a minimum safety distance on 2 feet (61 cm).

  • Page 58: Tt-3606E Message Terminal

    TT-3606E Message Terminal TT-3606E Message Terminal TT-3606E Message Terminal TT-3606E Message Terminal System Installation System Installation System Installation System Installation TT-3606E Message Terminal The TT-3606E is a GMDSS approved Message Terminal for the TT- 3020C Transceiver. Figure 13 TT-3606E Message Terminal In the following sections the interface to the 3606E Message Ter- minal are described.

  • Page 59: Table 21 Tt-3606E Power Connector

    System Installation System Installation System Installation System Installation TT-3606E Message Terminal TT-3606E Message Terminal TT-3606E Message Terminal TT-3606E Message Terminal Figure 14 TT-3606E Rear Connectors 3.4.1.1 Power connector The power input connector is a standard 15 pin SubD male con- nector, located on the rear panel of the TT-3606E and the pin as- signments are as indicated below.

  • Page 60: Tt-3601E Keyboard

    TT-3606E Message Terminal TT-3606E Message Terminal TT-3606E Message Terminal TT-3606E Message Terminal System Installation System Installation System Installation System Installation The CTS and DTR hardware handshake signals are used as de- fault. The pin assignment for the two communication ports are identi- cal.

  • Page 61: Table 22 Tt-3606E Message Terminal Specifications

    System Installation System Installation System Installation System Installation TT-3606E Message Terminal TT-3606E Message Terminal TT-3606E Message Terminal TT-3606E Message Terminal 3.4.3 Specifications Processor 386SX-40MHz 4 MB Flash DISK 2 MB Display 10.4” Color TFT flatpanel, 640x480 Floppy drive 3.5” Keyboard i/f 5-pin mini-DIN Parallel printer port 25 pin SubD female connector...

  • Page 62: Mounting

    TT-3606E Message Terminal TT-3606E Message Terminal TT-3606E Message Terminal TT-3606E Message Terminal System Installation System Installation System Installation System Installation 3.4.4 Mounting Figure 15 llustrates the dimension of the panel cut-out and posi- tion of mounting holes when mounting the TT-3606E Message Terminal in a console.

  • Page 63: Figure 16 Tt-3606E Mounting Bracket

    System Installation System Installation System Installation System Installation TT-3606E Message Terminal TT-3606E Message Terminal TT-3606E Message Terminal TT-3606E Message Terminal Figure 16 TT-3606E Mounting Bracket Page Page Page Page 3-28 3-28 3-28 3-28 25-Jul-00 25-Jul-00 25-Jul-00 25-Jul-00 Document Nr: I-MA-3010.68-5510-762-IVT-312 Page 450 of 1234...

  • Page 64: Tt-3680B Power Supply

    TT-3680B Power Supply TT-3680B Power Supply TT-3680B Power Supply TT-3680B Power Supply System Installation System Installation System Installation System Installation TT-3680B Power Supply The TT-3680B Power Supply operates on either 115 VAC or 230 VAC internally selectable. The maximum power supplied is 200 The TT-3680B Power Supply has a connection for emergency batteries and offers automatic switch-over in case of a drop-out of the mains.

  • Page 65: Figure 18 Mounting Holes For Tt-3680B

    System Installation System Installation System Installation System Installation TT-3680B Power Supply TT-3680B Power Supply TT-3680B Power Supply TT-3680B Power Supply Figure 18 Mounting holes for TT-3680B Page Page Page Page 3-30 3-30 3-30 3-30 25-Jul-00 25-Jul-00 25-Jul-00 25-Jul-00 Document Nr: I-MA-3010.68-5510-762-IVT-312 Page 452 of 1234...

  • Page 66: Tt-3608A Hard Copy Printer

    TT-3608A Hard Copy Printer TT-3608A Hard Copy Printer TT-3608A Hard Copy Printer TT-3608A Hard Copy Printer System Installation System Installation System Installation System Installation TT-3608A Hard Copy Printer Figure 19 TT-3608A Hard copy printer Connecting the TT-3608A Hard Copy Printer to the Transceiver offers the highest security for hard copies of incoming messages even if the TT-3606E is turned off.

  • Page 67: Mounting Plate

    System Installation System Installation System Installation System Installation TT-3608A Hard Copy Printer TT-3608A Hard Copy Printer TT-3608A Hard Copy Printer TT-3608A Hard Copy Printer The printer connector is located on the rear panel. The interface conforms to a standard Centronics type interface found on most personal computers today.
  • Page 68 TT-3608A Hard Copy Printer TT-3608A Hard Copy Printer TT-3608A Hard Copy Printer TT-3608A Hard Copy Printer System Installation System Installation System Installation System Installation be turned on. When the printer is set off-line or powered off the audio alarm and the FAULT LED in any Remote Alarm/Distress Box will be turned off.

  • Page 69: Mounting

    System Installation System Installation System Installation System Installation TT-3608A Hard Copy Printer TT-3608A Hard Copy Printer TT-3608A Hard Copy Printer TT-3608A Hard Copy Printer 3.6.3 Mounting Figure 21 Mounting holes for TT-3608A Page Page Page Page 3-34 3-34 3-34 3-34 25-Jul-00 25-Jul-00 25-Jul-00...

  • Page 70: Tt-3608G Printer Unit

    TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit System Installation System Installation System Installation System Installation TT-3608G Printer Unit The TT-3608G printer unit is an optional remote printer unit. Please be advised that a dedicated Reference Manual for the TT- 3608G Printer Unit is available Figure 22 TT-3608G Remote Printer Unit The TT-3608G printer unit is printing on 112 mm (4.4") width...

  • Page 71: Configuration

    System Installation System Installation System Installation System Installation TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit 3.7.1 Configuration. Before installation of the TT-3608G, configuration of Arcnet ad- dress should take place. It is important to observe that all devices connected to the same transceiver must have different address settings.

  • Page 72: Table 23 Tt-3608G Dip Switch Settings

    TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit System Installation System Installation System Installation System Installation Position Setting Fact. Address off,off,off: off,off,on: off,on,off: off,on,on: on,off,off: on,off,on: on,on,off: on,on,on: Printing Direction Reverse off: Normal Not Used NMEA/Aux.Port NMEA 0183 1 NMEA Serial data 2...

  • Page 73: Table 24 Tt-3608G Power Connector

    System Installation System Installation System Installation System Installation TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit 3.7.2 Installation To following brief outline may be used to get the TT-3608G up and running as a printer together with a Thrane & Thrane trans- ceiver which supports Arcnet - hardware as well as software wise.

  • Page 74: Table 25 Tt-3608G I/O Connector

    TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit System Installation System Installation System Installation System Installation 3.7.3.2 X2 I/O The pinout of the I/O connector (15 pole SubD) is listed in Table Function Distress/Urgent, 100 Ohm, Open Collector Safety, 100 Ohm, Open Collector Routine, 100 Ohm, Open Collector Not Connected...
  • Page 75 System Installation System Installation System Installation System Installation TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit • The Arcnet bus will have two ends and both of these should be terminated with a 100 Ohm resistor (± 1%). The TT-3608G does NOT contain any termination-resistor.

  • Page 76: Table 26 Tt-3608G Technical Specifications

    TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit TT-3608G Printer Unit System Installation System Installation System Installation System Installation 3.7.5 Specifications Indication Visual: LED indicators with dim function. Text back-light with dim function. Call reset OK button Arcnet/serial DB 15M Arcnet: Twisted pair/bus topology, port conn:...

  • Page 77: Tt-3042C Remote Alarm/Distress Box (Optional)

    System Installation System Installation System Installation System Installation TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) The TT-3042C Remote Alarm/Distress Box is connected to the TT- 3020C by means of the Transceivers X4 I/O connector, through which it is also powered.

  • Page 78: Table 27 Tt-3042C And Satellite Communication Unit Inter-Connection

    TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) System Installation System Installation System Installation System Installation The light intensity of the Power indicator can be adjusted by a knob below it.

  • Page 79: Table 28 Tt-3042C Technical Specifications

    System Installation System Installation System Installation System Installation TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) Model Model TT-3042C, Remote Alarm/Distress Box -3042C, Remote Alarm/Distress Box Model Model -3042C, Remote Alarm/Distress Box -3042C, Remote Alarm/Distress Box General Specifications...

  • Page 80: Mounting

    TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) System Installation System Installation System Installation System Installation 3.8.1 Mounting Figure 24 TT-3042C Outline drawing 25-Jul-00 25-Jul-00 25-Jul-00 25-Jul-00 Page Page Page Page 3-45...

  • Page 81: Figure 25 Tt-3042C Outline Drawing With Console Bracket

    System Installation System Installation System Installation System Installation TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) Figure 25 TT-3042C Outline drawing with console bracket Page Page Page Page 3-46 3-46 3-46 3-46...
  • Page 82 Initialise System Parameters Initialise System Parameters Initialise System Parameters Initialise System Parameters System Generation System Generation System Generation System Generation If the TT-3005M antenna is used and the antenna voltage is set to high run the transceiver will probably set-up a warning box stat- ing that the antenna is not connected.
  • Page 83 System Generation System Generation System Generation System Generation Initialise System Parameters Initialise System Parameters Initialise System Parameters Initialise System Parameters This page is intentionally left blank Page Page Page Page 4-6 25-Jul-00 25-Jul-00 25-Jul-00 25-Jul-00 Document Nr: I-MA-3010.68-5510-762-IVT-312 Page 488 of 1234...
  • Page 84 Introduction Introduction Introduction Introduction Commissioning Commissioning Commissioning Commissioning Commissioning Introduction Before attempting to use the equipment, the commissioning pa- pers should be send to the relevant authority. It is recommended that a Link Test (or Performance Verification Test in Inmarsat terminology) is run before using the equipment. The Link Test automatically verifies that the TT-3020C Capsat Transceiver is capable of both receiving and transmitting infor- mation according to Inmarsat-C specifications.
  • Page 85 Commissioning Commissioning Commissioning Commissioning Link Test Link Test Link Test Link Test The TT-3020C Capsat Transceiver is now logged in and ready to work. Link Test The Link Test consist of three parts: Message Reception Test Message Transmission Test and Distress Test.
  • Page 86 Details of a Link Test Details of a Link Test Details of a Link Test Details of a Link Test Commissioning Commissioning Commissioning Commissioning The SEND indicator starts flashing and after a while it will light continuously (the data is being transmitted) and then starts flash- ing again.
  • Page 87 Commissioning Commissioning Commissioning Commissioning Details of a Link Test Details of a Link Test Details of a Link Test Details of a Link Test This page is intentionally left blank Page Page Page Page 5-4 25-Jul-00 25-Jul-00 25-Jul-00 25-Jul-00 Document Nr: I-MA-3010.68-5510-762-IVT-312 Page 492 of 1234...
  • Page 88 Index Index Index Index Index Antenna not connected................4-5 Distress button .................... 2-6 Antenna cable ..................3-8, 3-13 Antenna safe distance................3-18, 3-21 ArcNet ....................2-2, 2-11 Baudrate....................2-9, 4-3 Cable loss .................. 3-8, 3-13, 3-17 Compass safe Distance................2-3, 3-3 Distress alert ..................... 3-42 Distress button ..................
  • Page 89 Index Index Index Index LES.......................2-6 Link test ....................5-1, 5-2 Login indicator.....................2-6 Mail indicator....................2-6 Mobile number ..................4-2, 5-1 NCS......................5-1 NMEA 0183 communication ...............2-11 On/off features .....................2-4 Operating temperature ............... 2-2, 3-26 Power connector ..................2-7 Power indicator....................2-5 Printer port ....................2-15 Radar or navigator cables ............3-8, 3-13, 3-17 Remote Alarm/Distress Box................3-42 Remote power control................2-5, 2-8 RF grounding .....................2-17...
  • Page 90 Index Index Index Index Technical specifications, TT-3020C .............2-1, 3-26 25-Jul-00 25-Jul-00 25-Jul-00 25-Jul-00 Page Page 6-3 Page Page Document Nr: I-MA-3010.68-5510-762-IVT-312 Page 495 of 1234...

  • Page 91: Figure 26 Tt-3042C Mounting Stencil

    TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) TT-3042C Remote Alarm/Distress Box (optional) System Installation System Installation System Installation System Installation Figure 26 TT-3042C Mounting stencil Fasten the TT-3042C Remote Alarm/Distress Box from the inside or by using the mounting bracket, which makes console mounting possible.

  • Page 92: Tt-3042D Remote Alarm / Printer Unit

    System Installation System Installation System Installation System Installation TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit The TT-3042D Remote Alarm Distress Box with additional printer unit is an optional unit unless it is used as main printer in a GMDSS system.

  • Page 93: Configuration

    TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation System Installation System Installation The TT-3042D additional printer unit is printing on 112 mm (4.4") width thermal paper rolls.
  • Page 94 System Installation System Installation System Installation System Installation TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit printer connected locally on it’s printer port the transceiver printer is considered as the only Local Printer and the TT-3042D will be treated as Remote Alarm with additional printer unit.

  • Page 95: Table 29 Tt-3042D Dip Switch Settings

    TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation System Installation System Installation Position Setting Fact. Address off,off,off: off,off,on: off,on,off: off,on,on: on,off,off: on,off,on: on,on,off:...

  • Page 96: Table 30 Tt-3042D Power Connector

    System Installation System Installation System Installation System Installation TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit 3.9.2 Installation To following brief outline may be used to get the TT-3042D up and running as a printer together with a Thrane &...

  • Page 97: Table 31 Tt-3042D I/O Connector

    TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation System Installation System Installation 3.9.3.2 X2 I/O The pinout of the I/O connector (15 pole SubD) is listed in Table Function Distress/Urgent, 100 Ohm, Open Collector Safety, 100 Ohm, Open Collector...
  • Page 98 System Installation System Installation System Installation System Installation TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit • The Arcnet bus will have two ends and both of these should be terminated with a 100 Ohm resistor (±...

  • Page 99: Table 32 Tt-3042D Technical Specifications

    TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit TT-3042D Remote Alarm / Printer Unit System Installation System Installation System Installation System Installation 3.9.5 Specifications Indication Visual: LED indicators with dim function. Text back-light with dim function.

  • Page 100: Distress Button Test

    System Installation System Installation System Installation System Installation Distress Button Test Distress Button Test Distress Button Test Distress Button Test 3.10 Distress Button Test When the TT-3000C Maritime system is fully installed, it is rec- ommended to do a distress button test. The Distress Test Mode facility in the TT-3606E Message terminal (Alt, O, E) allows test of the Distress Buttons, Distress LED's and wiring.

  • Page 101: 3.10.2 Tt-3042C Remote Alarm/Distress Box

    Distress Button Test Distress Button Test Distress Button Test Distress Button Test System Installation System Installation System Installation System Installation Pressing the Distress button will make the Distress LED flash and will activate an intermediate acoustic signal. If the Distress button is held for at least 5 seconds the acoustic signal will stop and the Distress LED will light constantly to indicate that a Distress Alert is send.
  • Page 102 System Installation System Installation System Installation System Installation General interconnect information General interconnect information General interconnect information General interconnect information Test of the Distress Button on the Remote Alarm Box: Please note that the transceiver has to be in Distress Test Mode Please note that the transceiver has to be in Distress Test Mode Please note that the transceiver has to be in Distress Test Mode Please note that the transceiver has to be in Distress Test Mode...

  • Page 103: Figure 28 Interconnection Diagram

    General interconnect information General interconnect information General interconnect information General interconnect information System Installation System Installation System Installation System Installation TT-3005M Antenna Unit Capsat Alarm I/O ArcNet TT-3042C NMEA in/out Remote Alarm Box NMEA TT-3608A TT-3608G ArcNet TT-3020C OKI Printer Printer Unit with DC option Solas GMDSS...
  • Page 104 System Installation System Installation System Installation System Installation General interconnect information General interconnect information General interconnect information General interconnect information This page is intentionally left blank Page Page Page Page 3-60 3-60 3-60 3-60 25-Jul-00 25-Jul-00 25-Jul-00 25-Jul-00 Document Nr: I-MA-3010.68-5510-762-IVT-312 Page 482 of 1234...
  • Page 105 Terminal Mode Terminal Mode Terminal Mode Terminal Mode System Generation System Generation System Generation System Generation System Generation Terminal Mode The TT-3020C Capsat Transceiver parameters may be accom- plished by means of: TT-3606E Message Terminal. Computerised equipment. Handheld terminals, etc. Please follow the below listed guide lines to set up the connected equipment in a direct terminal emulating manner.
  • Page 106 System Generation System Generation System Generation System Generation Initialise System Parameters Initialise System Parameters Initialise System Parameters Initialise System Parameters Initialise System Parameters The System Parameters are initialised using the 'set -b' command. After issuing this command a menu appears with a number of ini- tialisation options.
  • Page 107 Initialise System Parameters Initialise System Parameters Initialise System Parameters Initialise System Parameters System Generation System Generation System Generation System Generation that you have been registered in the database for the Inmarsat-C Network. The Transceiver only uses the mobile number when sending Message Position Reports (see the Message Handling Software Operators Guide ), to indicate which Transceiver originated the position message.

  • Page 108: Table 33 Antenna Voltage Configuration

    System Generation System Generation System Generation System Generation Initialise System Parameters Initialise System Parameters Initialise System Parameters Initialise System Parameters 4.2.3 Antenna voltage settings The available antenna voltage shall be configured depending on which antenna that is used together with the transceiver. It Table 33 the configuration based on selected antenna is listed.

This manual is also suitable for:

Tt-3020c

Table of Contents

Save PDF
