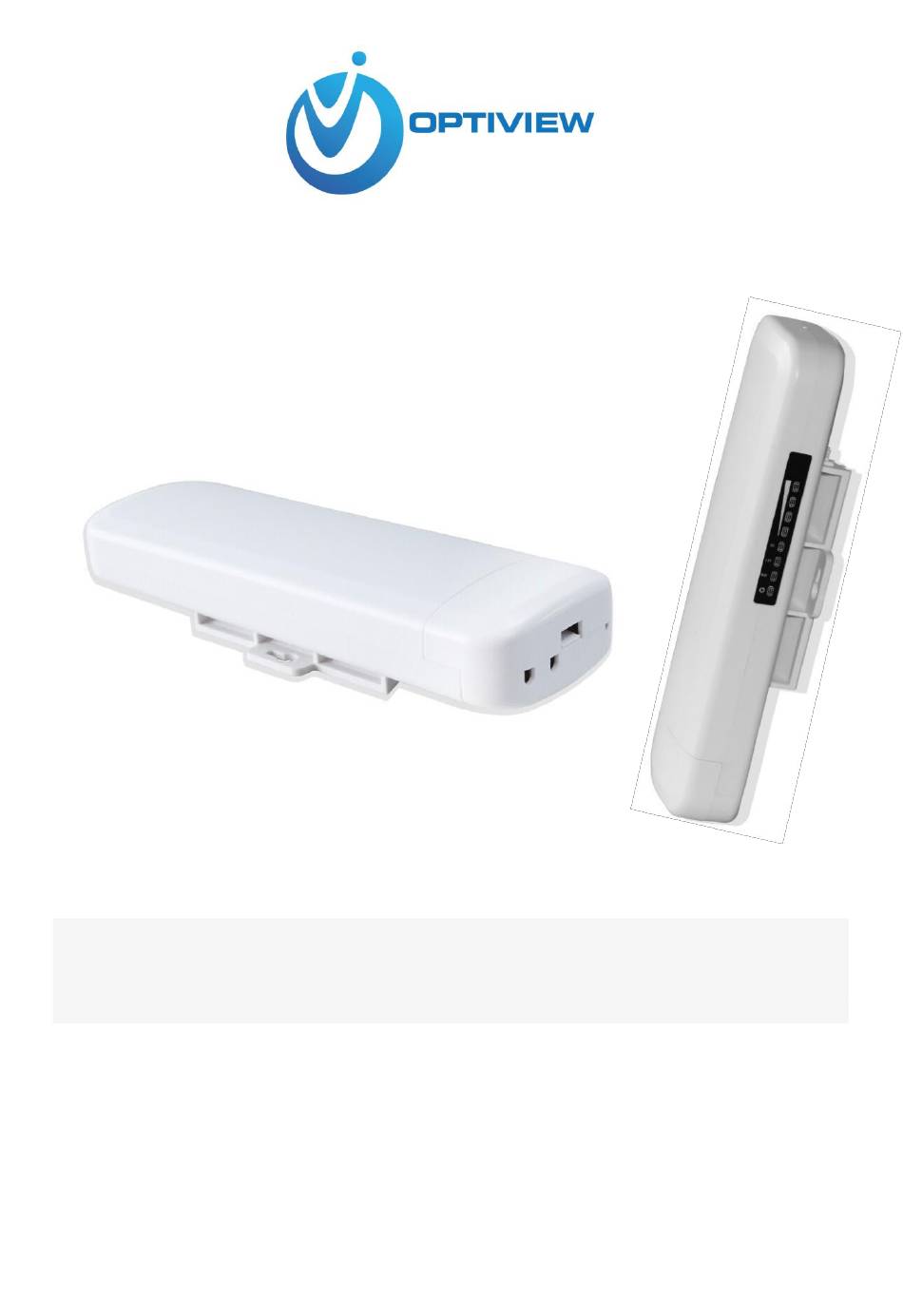

AP58V2 User Manual
This is the manual of outdoor CPE, which will approximate guide you how to set and apply the outdoor CPE, it provide
a convenient graphical interface for network construction and maintenance person, as well as a user through a simple
and accurate operation, and configuration management of the CPE.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Optiview AP58V2
Summary of Contents for Optiview AP58V2
- Page 1 AP58V2 User Manual This is the manual of outdoor CPE, which will approximate guide you how to set and apply the outdoor CPE, it provide a convenient graphical interface for network construction and maintenance person, as well as a user through a simple...
- Page 2 Connection and Po wer Sup pl y 1 s t ： P o r t C o n n e c t i o n a n d p o w e r s u p p l y I n s t r u c t i o n o f d i f f e r e n t p o r t ： CPE Port Connection Please use a power supply of 12V DC adapter or 24V POE adapter, WAN / LAN port is the PoE Port.
- Page 3 Connection diagram of CPE and PoE adapter Incorrect Connection or the use power adapter and PoE adapter not from our factory, the CPE will be damaged Pay Attention Steps ： Logi n 1）Connect the CPE with computer as P2 picture 2 ）...
- Page 4 P 4 Setting of computer’s IP address 3) Input http://192.168.188.253 into IE browser, then pop up the login page, the default login user name: admin, Passwords: admin, pls do following P5 P5 Login...
- Page 5 After login, then P6 will be showed: P6: Device Status 3rd ： Quickly Configure CPE 1 ) G a t e w a y M o d e c o n f i g u r a t i o n A.
- Page 6 ②. Wireless Basic Settings SSID:Wireless LAN status authentication name ,User can access the wireless networking through status authentication name only. Channel:Choose a channel which few users use, it is clear and better. Can use Intelligent Analysis to choose the best channel.
- Page 7 P9: Scan AP and Select AP If your computer can’t pop up the window of P9, pls check your IE explorer and find out whether it was blocked . And if this CPE can’t scan any SSID, pls check if there are 5G wireless signal. Instruction C.
- Page 8 Set the SSID user required, then set it in right Authentication and input Key for outdoor CPE, then Apply Changes. P11AP Operation Mode SSID:Wireless LAN status authentication name ,User can access the wireless networking through status authentication name only. Channel:Choose a channel which few users use, it is clear and better. Can use Intelligent Analysis to choose the best channel.
- Page 9 Then “Scan AP”, choose the AP which do you want to link and select it Take WirelessAP 2 as example, choose wirelessAP 2 and click “Select AP” after “Refresh” P13 Scan AP Key: Input WirelessAP 2’s password b).PPPOE(ADSL) If your access type is PPPoE, with ADSL virtual dialing, you need to fill in following details: User Name: Fill in ADSL access user name which supply by ISP, if you not sure can check with ISP.
- Page 10 IP address: it is CPE’s management address. = DHCP Sever, “ Enaled”, the default DHCP sever is Enabled, no need to change. P 15 LAN Setting After finish the LAN setting, user can check the LAN status from P16: P16: LAN Status Management Time Zone Settings: User can choose the right time zone, then Apply P17 Time Zone Setting...
- Page 11 Upgrade Firmware: Select the right firmware, then upgrade, after upgrade it, pls reset outdoor CPE and waiting for reboot. Save/Reload Settings: User can save or upload outdoor CPE’s settings, then can reset or reboot outdoor CPE. Password: Set Administrator’s Password, then Apply changes Advanced Setting: User can use more functions if required.
- Page 12 PC setting Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address automatically as following picture showed. the computer will abtain the IP address from router or base station. 8 ) Tr o u b l es h o o t i n g : F 1 The Failure phenomenon and solution Failure phenomenon Solution...
