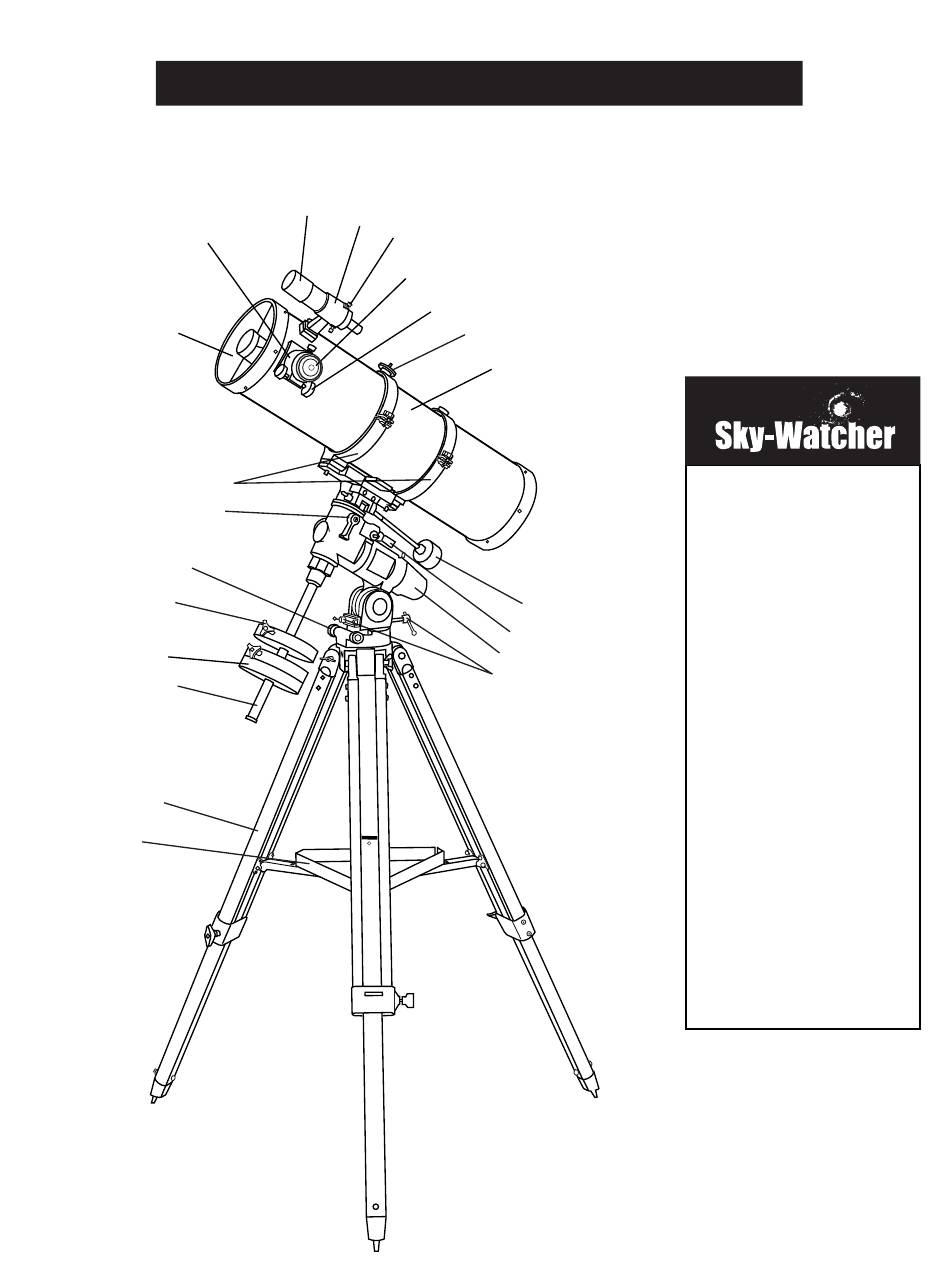

INSTRUCTION MANUAL
Optical Tube: 150mm/1000mm Equatorial Mount: EQ3-2
B
A
10
9
8
7
6
5
a
b
FOR 1501EQ3-2
C
D
E
F
G
H
1
I
1
2
3
4
A.
Dust Cap (not shown)
Remove before Viewing
Focus Tube
B.
C.
Finderscope
D.
Finderscope Bracket
E.
Finderscope Adjustment
Screws
F.
Eyepiece
Focus Knob
G.
Piggyback Bracket
H.
I.
Telescope Main Body
1.
Dec. Control Cable
2.
R.A. Lock Level
3.
Polarscope Holder
(not shown)
4.
Altitude Adjustment T-bolts
5.
Counterweight Rod
6.
Counterweight
7.
Counterweight Thumb
Screw
8.
Azimuth Adjustment Knob
9.
Dec. Lock Level
10.
Tube Rings
a.
Accessory Tray
b.
Tripod Leg

Advertisement

loading

Related Manuals for SKY-WATCHER 1501EQ3-2

Summary of Contents for SKY-WATCHER 1501EQ3-2

  • Page 1 INSTRUCTION MANUAL FOR 1501EQ3-2 Optical Tube: 150mm/1000mm Equatorial Mount: EQ3-2 Dust Cap (not shown) Remove before Viewing Focus Tube Finderscope Finderscope Bracket Finderscope Adjustment Screws Eyepiece Focus Knob Piggyback Bracket Telescope Main Body Dec. Control Cable R.A. Lock Level Polarscope Holder...
  • Page 2 Highest Practical 300x Power If you are interested in submitting telephotographs taken with Fainest Steller 13.6 Sky-Watcher telescopes, or articles concerning any Sky-Watcher Magnitude Resolving Power products, please call us at 604-241-7027. (arc sec.) Finderscope 6x30 1.25" Focuser Diameters...
  • Page 3 SETTING UP TRIPOD RIPOD (1), (2) SET UP 1) Locate equatorial mount/tripod head. 2) Locate and loosen the knurled knob at bottom of the mount to seperate the tripod head. 3) Lie tripod head on its side. Fasten the tripod legs to tripod head using the machine screws.
  • Page 4 ATTACHING THE TUBE RINGS TO MOUNT(8) 1) Remove the telescope tube assembly ELESCOPE from its plastic packaging. 2) Remove the tube rings from telescope by ASSEMBLY releasing their thumb nuts and opening their hinges. 3) Using the bolts provided, fasten the tube rings to the mount with the 10mm wench provided.
  • Page 5 OPERATING YOUR TELESCOPE 1) Focus the telescope eyepiece on a distant object. 2) Once the object has been centered in the tele- scope view, ensure all the lock knobs on the mount are tightened. Fig.a 3) Use the alignment screws to center the finder- scope crosshairs on the object seen in the telescope view (Fig.a).
  • Page 6 OPERATING YOUR TELESCOPE Fig.d The equatorial mount has controls for both conventional altitude (up-down) and azimuthal (left-right) directions of motion. Use the Altitude Azimuth altitude adjustment T-bolts for altitude adjustments. These allow adjustment adjustment fine-adjustment for setting the mount to your local latitude. The azimuthal axis is changed by the two azimuth adjustment knobs located near the tripod head.
  • Page 7 SUGGESTED READING Beginner's Guide to Amateur Astronomy: Astrophotography for the Amateur by Michael Covington (Cambridge University Press, An Owner's Manual for the Night Sky by David J. Cambridge, UK, 2nd edition,1999). Eicher and, Michael Emmerich (Kalmbach Publishing Co., Books Division, Waukesha, WI, 1993). Splendors of the Universe: A Practical Guide to Photographing the Night Sky by Terence Dickinson NightWatch: A Practical Guide to Viewing the...
