Summary of Contents for Smeg FTU171X7

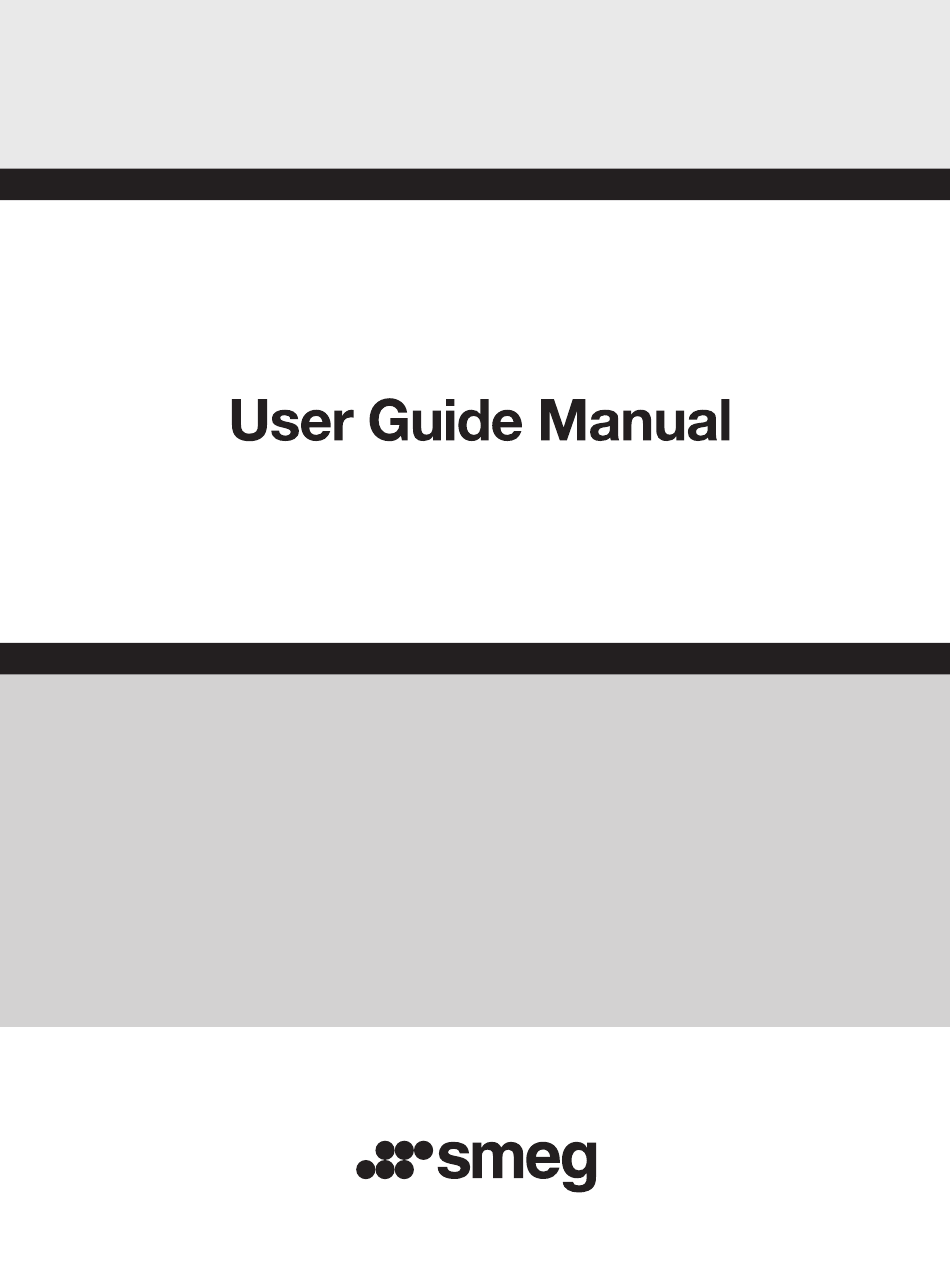

- Page 1 FTU171X7 Code : ADF702-11b...
-
Page 2: Table Of Contents
Contents Be sure to keep for safety ····································· 1~2 Installation Guide ······················································· 3 Control Panel ···························································· 4 Temperature Control ················································· 5 How to use Interior Parts ·········································· 6 How to use the Dispenser ······································· 7 How to use the Automatic Icemaker ··························· 8 Care &... -
Page 3: Be Sure To Keep For Safety
Never use a damaged power cord or plug, Be sure to keep for safety! or loose main socket. ●There is a risk of fire, electric shock or Read these safety instructions thoroughly and carefully serious injury. before using. Please keep this user guide on hand for future reference. - Page 4 Do not move or remove compartment CAUTION shelves/pockets while foods and containers are on them. Be sure to unplug the refrigerator when it is not going to be used for a long time. ●Hard containers (of glass, metal etc.) can fall to hurt you and can break glass shelf and interior parts.
-
Page 5: Installation Guide
Installation Guide ✽ Read these safety instructions carefully before use and follow precautions for your safety. Precautions in installation and power connection ■ To prevent fire, electric shock or leakage ❶Never install the refrigerator on a wet, watery floor or where water can gather easily. -
Page 6: Control Panel
7. Symbols on the display panel Control Panel Quick ice appears when the “quick ice” function is on. Light appears when the water dispenser light is on. WATER / ICE MUTE / LOCK Water filter : Filter exchange display After 6 months of first power input, the icon will WATER / ICE MUTE / LOCK flicker. -
Page 7: Temperature Control
Temperature Control ✽When this refrigerator is first plugged in, the temperature mode is set to [Middle]. WATER / ICE MUTE / LOCK Freezer Compartment Push the FRZ.SET button and the setting temperature changes as the figure shows. >>> Sequential Temperature Change <<< Faster Freezing... -
Page 8: How To Use Interior Parts
How to use the interior parts ❻ ❶ ❶ ❺ ❽ ❹ ❼ ⓭ ❷ ❾ ❾ ❸ ❸ ❿ ⓫ ⓬ * This instruction manual refers to several models. The real features are model dependent. 1. Door storage compartment 12. -
Page 9: How To Use The Dispenser
Food Storage Tips How to use the Dispenser Wash food before storing. Press the WATER/ICE button to select ‘ (WATER)’, ‘ (CRUSHED ICE)’ or ‘ (ICE CUBE)’, and smoothly push the lever with your cup. WATER / ICE MUTE / WATER / ICE WATER / ICE MUTE / LOCK... -
Page 10: How To Use The Automatic Icemaker
How to use the Automatic Icemaker (Dispenser models only) ●The ice maker can make approx, 100 ice cubes within 24 hours. If the ice storage case is full, ice making stops. ●It is normal for the icemaker to make banging sounds when the ice cubes are falling into the ice storage case. -
Page 11: Care & Cleaning
Care & Cleaning ❷ ❹ ❸ ❶ ❺ Be sure to unplug first ❻ ❼ * This instruction manual refers to several models. The real features are model dependent. ❶ Water Dispenser ❸ Freezer & Refrigerator Bins ●Remove the strainer and clean the water collecting ●Hold both ends and pull up. - Page 12 ❺ Vegetable case & Wide case How to Clean ●Pull out the cases as far as possible. Lift up the front of the cases and pull them out. Interior Parts ●Insert the cases into the rail and ●Use cloth with water and mild(neutral) push toward the back.
-
Page 13: Before You Call For Service
Before You Call for Service... Problem Please check the following troubleshooting tips before you Strange sounds from call for service! the refrigerator. Problem Checkup Point It never gets cold inside. ❶ Is the floor beneath the refrigerator uneven? Freezing & refrigerating is ❷... -
Page 14: Something Strange
Something strange ? Don’t worry. Here is the answer. Case Explanation Front and side of refrigerator • Pipes (refrigerant vessel) are placed beneath Heat feels the surface to prevent moisture forming on it. warm or hot. • When you close the door and then open again immediately, the door is not easy Door to open because warm air rushes in... -
Page 15: Installation Preparation
Installation Preparation If the refrigerator can not pass through a door Check if the refrigerator can pass a during installation, follow doorway or enter a door first. these steps. Dimensions (including Door Handles) ※This instruction manual refers to several models. The real 36inches x 36.3inches x 69.8inches (Width*Depth*Height) features are model dependent. -
Page 16: Refrigerator Leveling
Removing right refrigerator door Push and assemble another gear rail on opposite side of the rail 1. Turn top hinge fastener counterclockwise and remove the top hinge.(After the hinge is removed the door can fall down forward. Be careful!) 2. Lift up the door and remove it.( The same as step4, step5 in the removing the left refrigerator door) Removing freezer door Open freezer door as far as possible, pull up freezer... - Page 17 Aligning the refrigerator doors Caution ●The front of refrigerator needs to be just a little Caution higher than the back for easy door closing, but if the wheel is raised too much for door balance, i.e. the front of refrigerator is much higher than ※...
-
Page 18: How To Install Water Line
※ A New filter can be obtained from aftersales service. 5. If the water pressure exceeds 8.8kgf/㎠(8.62Bar) a Contact : for new water filters, contact your nearest Smeg pressure reducing valve must be installed. service agent. 6. The filter life depends on the amount of use. We... - Page 19 WATER SUPPLY KIT ※ Check the parts below for installing water supply. Necessary parts are available at local service agents. Installation Procedure 1. Connecting the appliance 2. Connecting the tap water line Figure A Figure B Place the rubber washer inside the tap connector and screw onto the water tap.
