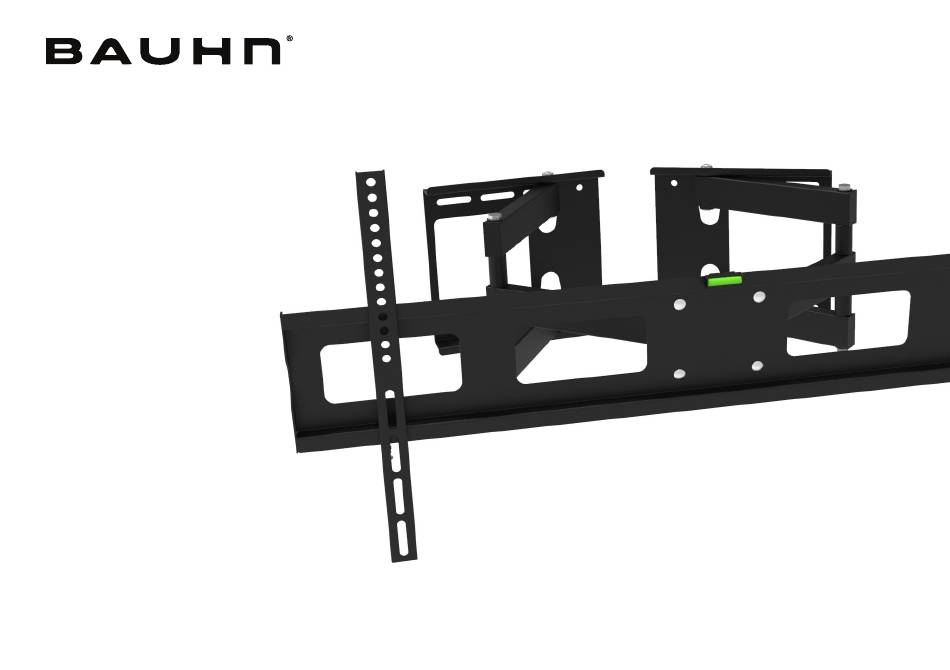

- Page 1 Corner TV Wall Mount MODEL: ACTVB-1120 Installation Guide...
-
Page 2: Welcome
Welcome Congratulations on your purchase! This installation guide tells you all you need to know about using your new BAUHN product. ® Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN are manufactured to the highest standards of performance and safety and, ®... -
Page 3: Table Of Contents
Contents Welcome Specifications Unpack and Prepare Compliance and Responsible Disposal What's in the box Warranty Information Parts List Repair and Refurbished Product Overview Goods or Parts Notice Installation Pack (Assembly Hardware) Installation Corner Installation for a Brick or Concrete Wall Corner Installation for a Wood Stud Wall Flat Wall Installation for a Brick or Concrete Wall Flat Wall Installation for a Wood Stud Wall... -
Page 4: Unpack And Prepare
Unpack and Prepare What's in the box Before setting up your new product, check you have everything: A. Corner TV Wall Mount B. Installation Pack (see page 6 for information) C. Installation Guide D. Warranty Certificate E. General Safety Warnings 4 | UNPACK AND PREPARE... -
Page 5: Parts List
Parts List Product Overview Wall Base Plates TV Mounting Plate Spirit Level Right Monitor Bracket Left Monitor Bracket Lock Nuts PARTS LIST| 5... -
Page 6: Installation Pack (Assembly Hardware)
Installation Pack (Assembly Hardware) The illustration below shows the contents of the installation pack. These are the parts that you will need to assemble this wall mount. Some parts are not shown at the same scale. Bolt Bolt Bolt Bolt Bolt Bolt M5 x 16mm... -
Page 7: Installation
Installation Make sure you read and understand all instructions. Handle and use all materials strictly according to the instructions. If you do not understand these directions, or have any questions in relation to the safety of the installation, we recommend you contact a qualified professional. Note: This wall mount is for indoor home use only. Installation steps: Preparation Drilling the holes... -
Page 8: Corner Installation For A Brick Or Concrete Wall
Corner Installation for Brick or Concrete Wall Preparation Using the wall base plates as a template, mark eight holes in the locations as shown above. The distance (d) from the corner to each wall base plate can be freely adjusted if required. NOTE: Ensure that you align the wall mount so that the spirit level is flat and even. - Page 9 Attaching to the Wall Hold the wall plates against the wall and align the holes in the plate to the holes drilled into the wall. Screw the wall plates to the wall with the self-tapping screws (G): insert them through the washers (J) into each masonry plug (H) in the wall and then tighten the screws.
-
Page 10: Corner Installation For A Wood Stud Wall
Corner Installation for a Wood Stud Wall Preparation Use a stud detector to locate the centre of the framing studs. Mark eight holes in the locations as shown above. Use the wall base plates as a template. WARNING: You must spread the NOTE: If you are installing the wall mount to a wood stud wall, wall plate across two studs. - Page 11 Attaching to the Wall Hold the wall plates to the wall and align the holes in the plate to the holes drilled into the wall. Screw the wall plates to the wall with the self-tapping screws (G), inserting them through the washers (J). Drilling the Holes On the marked holes, drill holes of 5mm diameter and 60mm depth into the wood stud wall.
-
Page 12: Flat Wall Installation For A Brick Or Concrete Wall
Flat Wall Installation for Brick or Concrete Wall Preparation Using the wall base plates as a template, mark eight holes in the locations as shown above. NOTE: Ensure that you align the wall mount so that the spirit level is flat and even. 12 | INSTALLATION... - Page 13 Attaching to the Wall Hold the wall plates against the wall and align the holes in the plate to the holes drilled into the wall. Screw the wall plates to the wall with the self-tapping screws (G): insert them through the washers (J) into each masonry plug (H) in the wall and then tighten the screws.
-
Page 14: Flat Wall Installation For A Wood Stud Wall
Flat Wall Installation for a Wood Stud Wall Preparation Use a stud detector to locate the centre of the framing studs. Mark eight holes in the locations as shown above. Use the wall base plates as a template. WARNING: You must spread the NOTE: If you are installing the wall mount to a wood stud wall, wall plate across two studs. - Page 15 Attaching to the Wall Hold the wall plates to the wall and align the holes in the plate to the holes drilled into the wall. Screw the wall plate to the wall with the self-tapping screws (G), inserting them through the washers (J). Drilling the Holes On the marked holes, drill holes of 5mm diameter and 60mm depth into the wood stud wall.
-
Page 16: Attaching The Wall Mount To The Tv
Attaching the Wall Mount to the TV 1. Lay the TV face down. Check the back of the TV to find the appropriate mounting pattern. 2. Select the appropriate bolts (A-F) that fit the thread holes at the back of the TV (refer to the TVs manual to determine the correct bolt sizes). Due to the many varieties of TVs, you may need to visit your local hardware supplier to find the correct bolt and washer sizes. -
Page 17: Securing The Tv
Securing the TV 1. Carefully lift the TV and hook the mounting arms over the front plate. Do not let go of the TV until it is securely in place on the brackets. 2. Tighten the bolt under each bracket with a Phillips head screwdriver to secure the TV in place. -
Page 18: Adjusting The Viewing Angle
Adjusting the Viewing Angle Before adjusting the direction and viewing angle for the Lock nut TV, loosen the lock nuts at the rear of the TV mounting plate (as shown on the right) with an adjustable wrench (make sure that they are only loose enough just to tilt the TV, and not too loose that the TV is not secured and can fall). -
Page 19: Specifications
Specifications VESA Support Max. 800 x 400mm Maximum Load 50kg Adjustment Angle -3° to 10° up/down, ±60° left/right Product Weight (including 6.8kg accessories) SPECIFICATIONS | 19... -
Page 20: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of. -
Page 21: Warranty Information
Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 22: Repair And Refurbished
Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. - Page 23 Notes...
- Page 24 Please read the guide Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, please contact our After Sales Support Centre on 1300 886 649.
