Delta 2555-DST Series Manual

Delta 2555-DST Series Manual

Two handle lavatory centerset faucets
Hide thumbs Also See for 2555-DST Series:

Advertisement

Quick Links

Download this manual
ASME A112.18.1 / CSA B125.1
Models/Modelos/Modèles
2538-DST, 2551-DST, 2555-DST,
2592-DST & 2594-DST
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your
Delta faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and
maintenance information.
Para instalación fácil de su llave
Delta usted necesitará:
• LEER TODAS las instrucciones
completamente antes de empezar.
• LEER TODOS los avisos, cuidados,
e información de mantenimiento.
Pour installer votre robinet
Delta facilement, vous devez:
• LIRE TOUTES les instructions avant
de débuter;
• LIRE TOUS les avertissements ainsi que
toutes les instructions de nettoyage et
d'entretien;
www.deltafaucet.com
72241

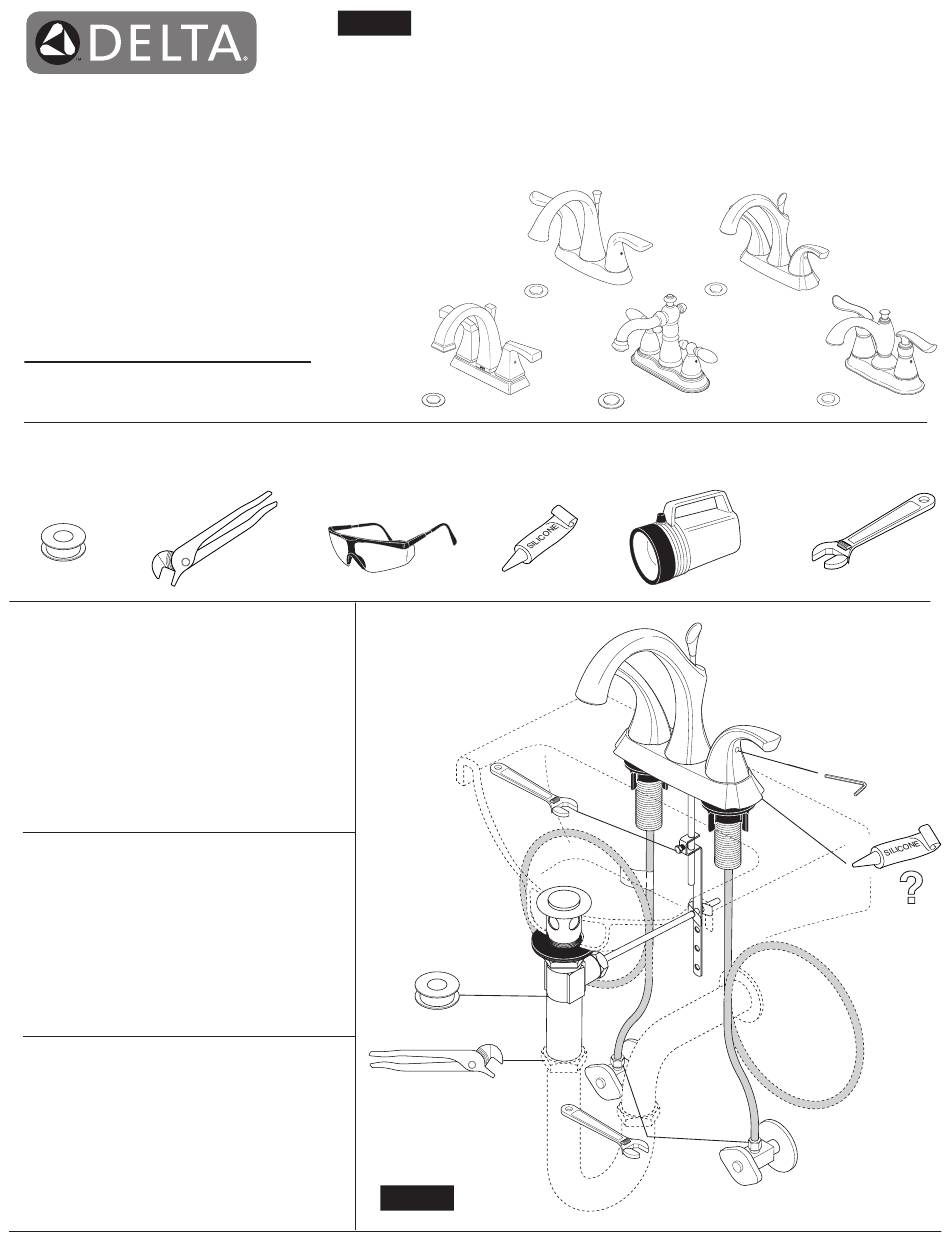

You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
72241
TWO HANDLE LAVATORY
CENTERSET FAUCETS
LLAVES DE DOS MANIJAS DE MONTURA
DE CENTRO PARA LAVAMANOS
ROBINETS À ENTRAXE COURT À
DEUX POIGNÉES
1
T E FLO N
?
3/21/12 Rev. A

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2555-DST Series and is the answer not in the manual?

Questions and answers

Related Manuals for Delta 2555-DST Series

Summary of Contents for Delta 2555-DST Series

  • Page 1 You may need/Usted puede necesitar/ T E FLO N Articles dont vous pouvez avoir besoin: For easy installation of your Delta faucet you will need: • To READ ALL the instructions completely before beginning. • To READ ALL warnings, care, and maintenance information.
  • Page 2 & repair. OF MERCHANTABILITY. Delta will replace, FREE OF CHARGE, during the warranty period, any part or finish that proves This warranty excludes all industrial, commercial & business usage, whose purchasers are defective in material and/or workmanship under normal installation, use & service. Replacement hereby extended a five year limited warranty from the date of purchase, with all other terms of parts may be obtained by calling 1-800-345-DELTA (in the U.S.
  • Page 3 Slide gasket (1) up over tubes and mounting shanks. Install under faucet body (2). Place Remove tube end from slot (1) and fully tubes through mounting holes and slide Be sure glide ring (1) is properly seated in bottom faucet down until it rests on mounting unwind tube.
  • Page 4 Tubing is cut too short: buy a coupling union and a diameter is 8". Secure metal nut (3) that allows a leak-free joint to be created. Delta is not replacement supply line that mate together from a store. on faucet tube to supply valve...
  • Page 5 Custom Fit Connections - Plastic Sleeve Installation Instructions Conexiones Especiales - Instructions d’installations de le manchon en plastique Spéciaux Branchement - Instrucciones para la Instalación del la Manga Plástica Correct method Incorrect Installation Método Correcto Instalación Incorrecta Installation Incorrecte Bonne méthode Do not install sleeve Ensure cut is straight.
  • Page 6 Step 3b Step 3e Step 3c Metal Pop-up Apply silicone to underside of flange (1). Remove pivot nut (1). Install horizontal rod (2) and stopper (3) as removable (4) or non-removable (5). Insert body (2) into sink. Screw flange (1) Remove stopper (1) and flange (2).
  • Page 7 Pop-Up with Metal Flange and Plastic Tail Piece With pivot (1) facing toward faucet, pull pop- Remove stopper (1), brass nut & washer (2), black Remove pivot nut (1). Install horizontal rod (2) up straight down into drain hole and secure gasket (3) and tail piece (4).
  • Page 8 Plastic Pop-Up down firmly and hold in place. DO NOT TWIST. Attach horizontal rod (1) to strap (2) using Remove stopper (1) and flange (2). Screw nut Tighten nut (4), remove excess sealant. clip (3).Thread finial (4) (included with (3) all the way down. Push gasket (4) down. handles) onto lift rod (5), then, insert into Remove pivot nut (1).
  • Page 9 Remove aerator (1) using supplied wrench (2) and turn faucet handles Check all connections at arrows for leaks. Re-tighten if necessary, but do (3) to the full on mixed position. Turn on hot and cold water supplies (4) not overtighten. and flush water lines for one minute.

  • Page 10: Maintenance

    To Change the Position of Handle Stop (5). Para cambiar la posición de el tope (5). Pour changer la position de la butée (5). Cold Fría Caliente Froide Chaude La flecha va hacia el surtidor en lados Arrow faces calientes y fríos. spout on both hot &...

  • Page 11: All Models

    All Models 2555-DST 2538-DST RP41588▲ Lift Rod Barra de Alzar Tige de Manoeuvre RP60352 Bonnet Nuts RP64261▲ Bonetes/Capuchones RP64265▲ Chapeaux Filetés RP60400 Valve Assembly Ensamble de la Válvula Soupape RP60400 Valve Assembly Ensamble de la Válvula Soupape 2551-DST 2592-DST RP54977 Aerator &...
  • Page 12 RP26533▲ RP34953 Metal Pop-Up Assembly Less Lift Rod Plastic Pop-Up Assembly Ensamble de Metal del Desagüe Automático Sin la Barra de Alzar Ensamble del Desagüe Automático Plástico Renvoi Mécanique en Métal Sans la Tige de Manoeuvre Renvoi Mécanique en Plastique RP5648▲...
