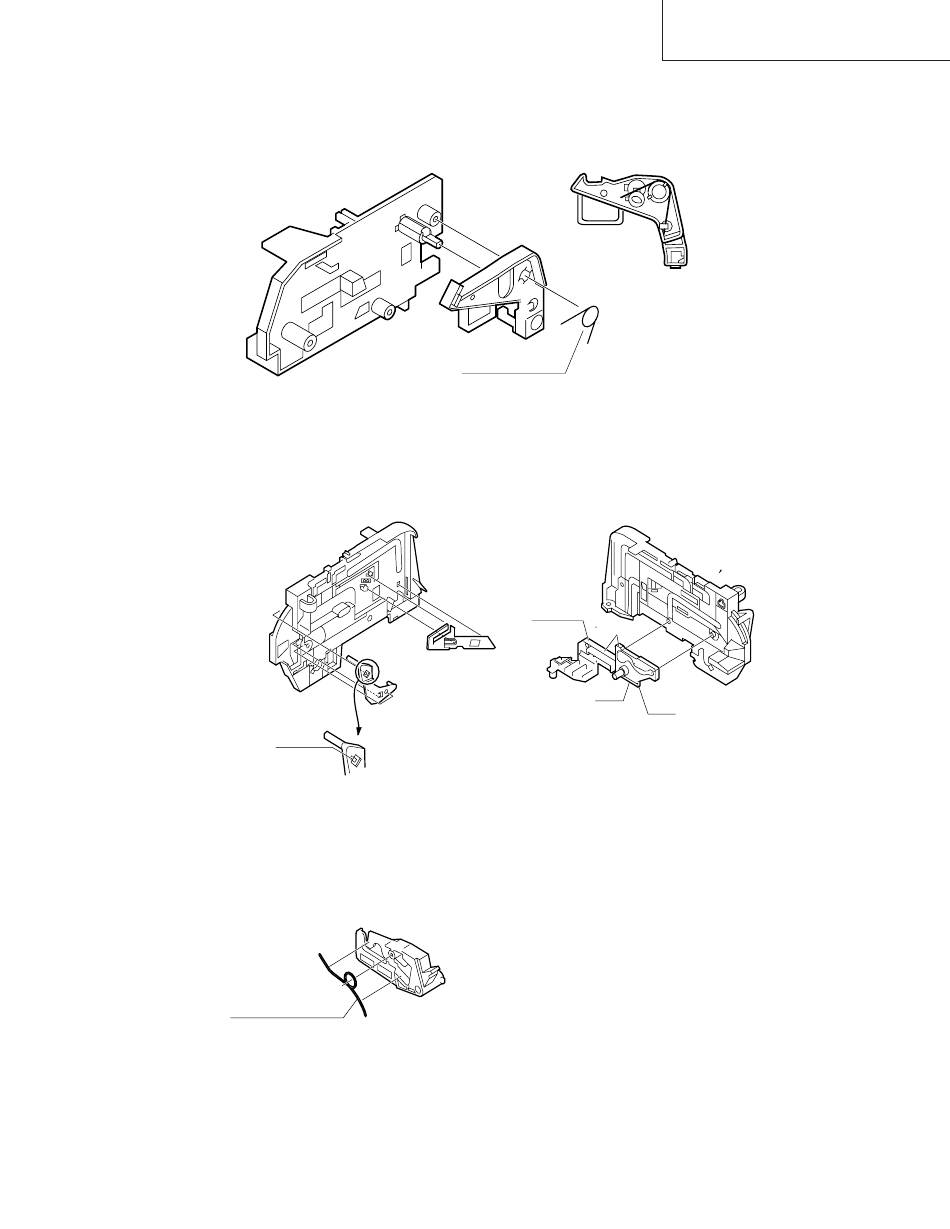

4-25 ASSEMBLY OF CASSETTE HOUSING
1. Proof lever Proof lever spring and Holder R
2. 0pen lever, Sensor Plate and Frame R
T a k e c a r e t h a t
n o t t o d a m a g e
t h i s p a r t s .
3. Spring to Drive Arm R
MSPRD0212AJFJ
MSPRD0215AJFJ
*Proof lever spring fixing direction designated.
Figure 4-41.
out side
out side
Figure 4-42.
Figure 4-43.
