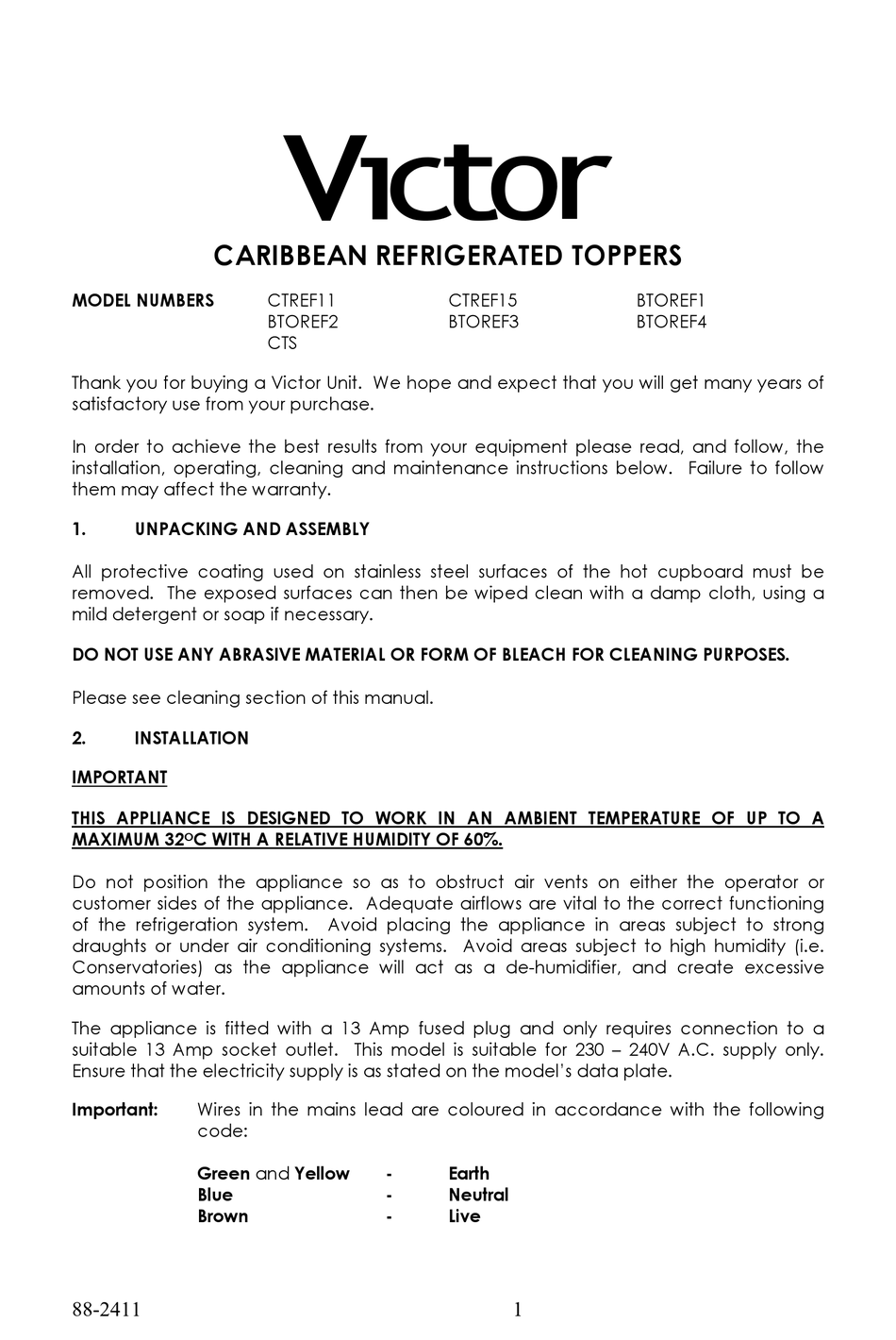

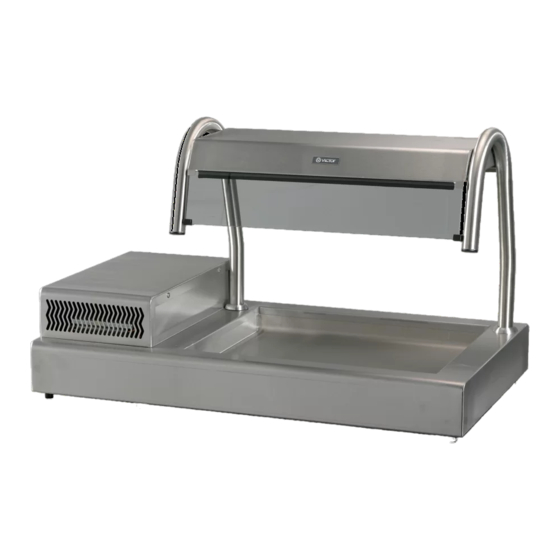

CARIBBEAN REFRIGERATED TOPPERS
MODEL NUMBERS
Thank you for buying a Victor Unit. We hope and expect that you will get many years of
satisfactory use from your purchase.
In order to achieve the best results from your equipment please read, and follow, the
installation, operating, cleaning and maintenance instructions below. Failure to follow
them may affect the warranty.
1.
UNPACKING AND ASSEMBLY
All protective coating used on stainless steel surfaces of the hot cupboard must be
removed. The exposed surfaces can then be wiped clean with a damp cloth, using a
mild detergent or soap if necessary.
DO NOT USE ANY ABRASIVE MATERIAL OR FORM OF BLEACH FOR CLEANING PURPOSES.
Please see cleaning section of this manual.
2.
INSTALLATION
IMPORTANT
THIS APPLIANCE IS DESIGNED TO WORK IN AN AMBIENT TEMPERATURE OF UP TO A
MAXIMUM 32
C WITH A RELATIVE HUMIDITY OF 60%.
O
Do not position the appliance so as to obstruct air vents on either the operator or
customer sides of the appliance. Adequate airflows are vital to the correct functioning
of the refrigeration system.
draughts or under air conditioning systems. Avoid areas subject to high humidity (i.e.
Conservatories) as the appliance will act as a de-humidifier, and create excessive
amounts of water.
The appliance is fitted with a 13 Amp fused plug and only requires connection to a
suitable 13 Amp socket outlet. This model is suitable for 230 – 240V A.C. supply only.
Ensure that the electricity supply is as stated on the model's data plate.
Important:
Wires in the mains lead are coloured in accordance with the following
code:
Green and Yellow
Blue
Brown
88-2411
V
CTREF11
BTOREF2
CTS
Avoid placing the appliance in areas subject to strong
-
-
-
CTREF15
BTOREF3
Earth
Neutral
Live
1
BTOREF1
BTOREF4
Advertisement
Table of Contents
Related Manuals for Victor CTREF11
Summary of Contents for Victor CTREF11
- Page 1 BTOREF3 BTOREF4 Thank you for buying a Victor Unit. We hope and expect that you will get many years of satisfactory use from your purchase. In order to achieve the best results from your equipment please read, and follow, the installation, operating, cleaning and maintenance instructions below.
- Page 2 Warning: This appliance must be earthed, do not touch internal wiring. As the colours of the wires in the mains lead on this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured green and yellow must be connected to the terminal in the plug, which is marked with letter E or the sign .
- Page 3 Place the ice/eutectic plates into the bottom of the well approximately 15 minutes before loading. All produce placed into the well should be chilled prior to loading. After service, drain the well via the drain assembly/remove and clean the eutectic plates and refreeze. Warning: Do not use eutectic plates that show signs of damage or leakage.
- Page 4 Do not use bleach for cleaning purposes (remember dishwasher powders, sterilising agents and similar products all contain chlorides). If used, black pit marks or other such effects may appear and permanent damage may be caused. If used inadvertently rinse immediately with clean water. Do not splash the unit with bleach when cleaning around the counter.
- Page 5 The Victor Manufacturing Ltd warranty does not affect any legal rights you have against the person who supplied your Victor Manufacturing Ltd goods or any other legal right against Victor Manufacturing Ltd under the laws of the United Kingdom – it is an addition to those rights.
- Page 6 No fault found warranty calls and installation errors are not covered under Victor Manufacturing Ltd warranty and will result in a charge being made for the callout and on-site labour for our appointed engineer. The Victor Manufacturing Ltd warranty does not cover the replacement of used consumables, or parts that require period adjustment or lubrication, unless the part is faulty.
