DEMO MANUAL DC1947A

QUICK START PROCEDURE

IMPORTANT NOTE TO CUSTOMERS
HIGH VOLTAGES ARE PRESENTED ON THE DEMO CIRCUIT,
AND CAN LEAD TO LETHAL INJURIES TO HUMAN BODY.
ONLY QUALIFIED PERSONNEL SHOULD OPERATE IT. IT IS
STRONGLY RECOMMENDED TO USE SAFETY GLASSES
AND AN ISOLATION TRANSFORMER.
NOTE. IMPROPER COMPONENTS REPLACEMENT ON THE
DEMO CIRCUIT CAN CAUSE PERFORMANCE DETERIORA-
TIONS, CIRCUIT MALFUNCTION, PROPERTY DAMAGE,
AND EVEN LIFE-THREATENING INJURIES. CONTACT
LINEAR TECHNOLOGY APPLICATIONS ENGINEERS FOR
PROPER COMPONENT REPLACEMENT.
Demonstration circuit 1947A is easy to set up to evalu-
ate the performance of the LT3799-1. Refer to Figure 1
2
Arrow.com. Arrow.com.
Downloaded from Downloaded from
for proper measurement equipment setup and follow the
procedure below:
1. Connect a 1A LED string with forward voltage less than
50V, but greater than 30V, between LED
minals.
2. With power off, connect the input power supply to line
(L) input and neutral (N) input.
3. Turn on the power at the input.
NOTE. Make sure that the input voltage does not exceed
the maximum input voltage (277VAC).
4. Check for the proper output current.
Once the proper output currents are established, adjust the
input voltage and/or the load and observe the output current
regulation, efficiency, power factor and other parameters.

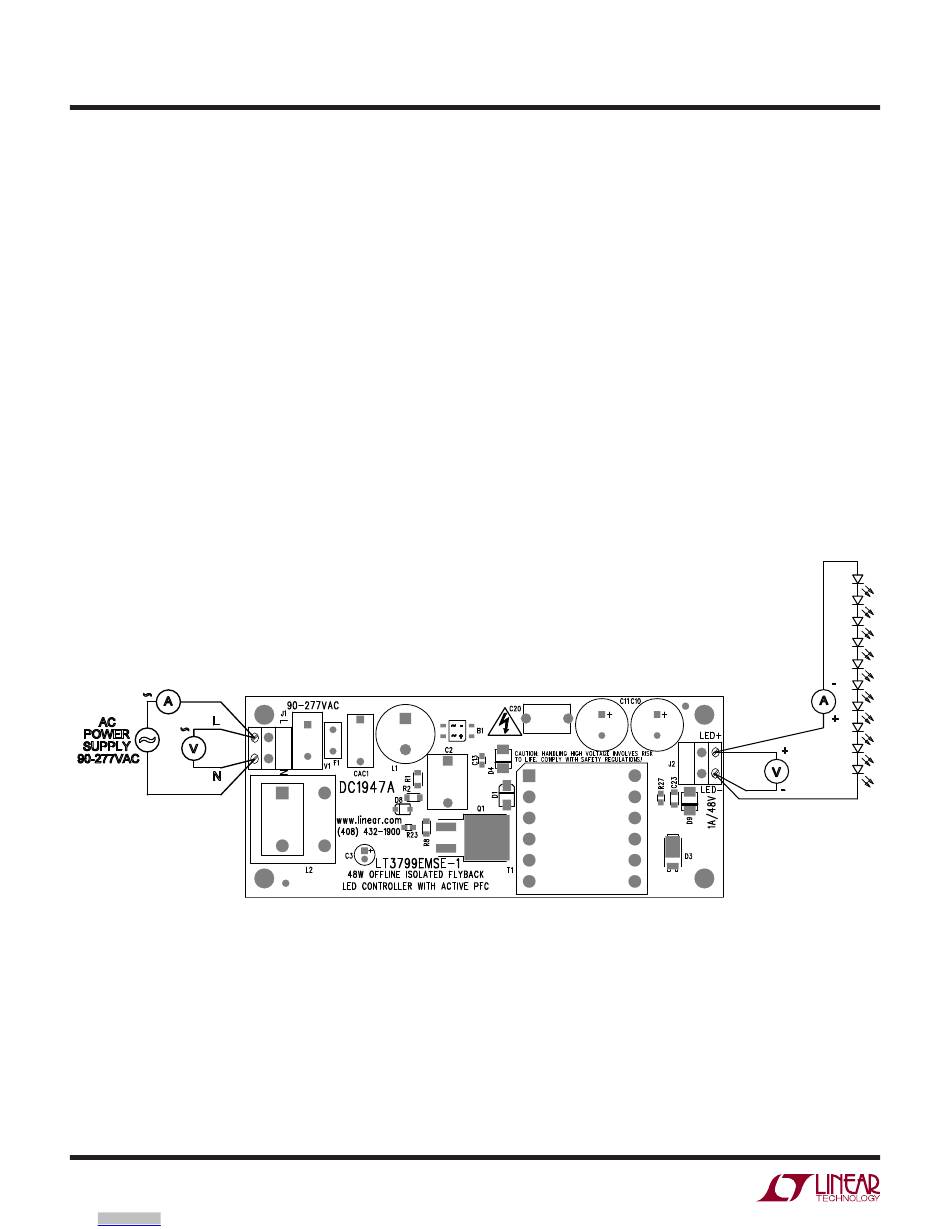

Figure 1. Proper Measurement Equipment Setup
+ –
and LED ter-
