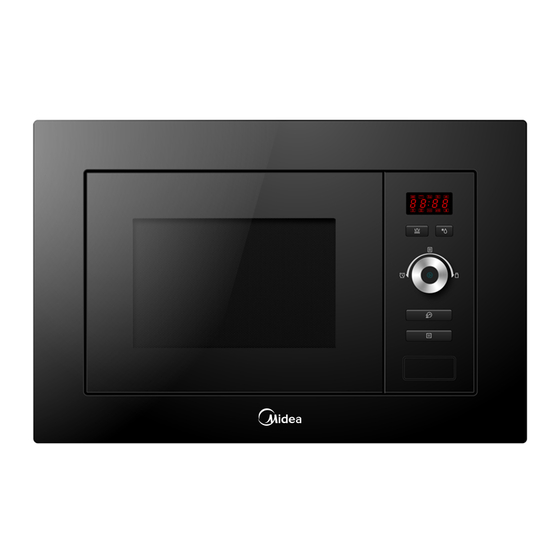

Midea AG820BS9 Instruction Manual
  1. Manuals
  2. Brands
  3. Midea Manuals
  4. Microwave Oven
  5. AG820BS9
  6. Instruction manual

Midea AG820BS9 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

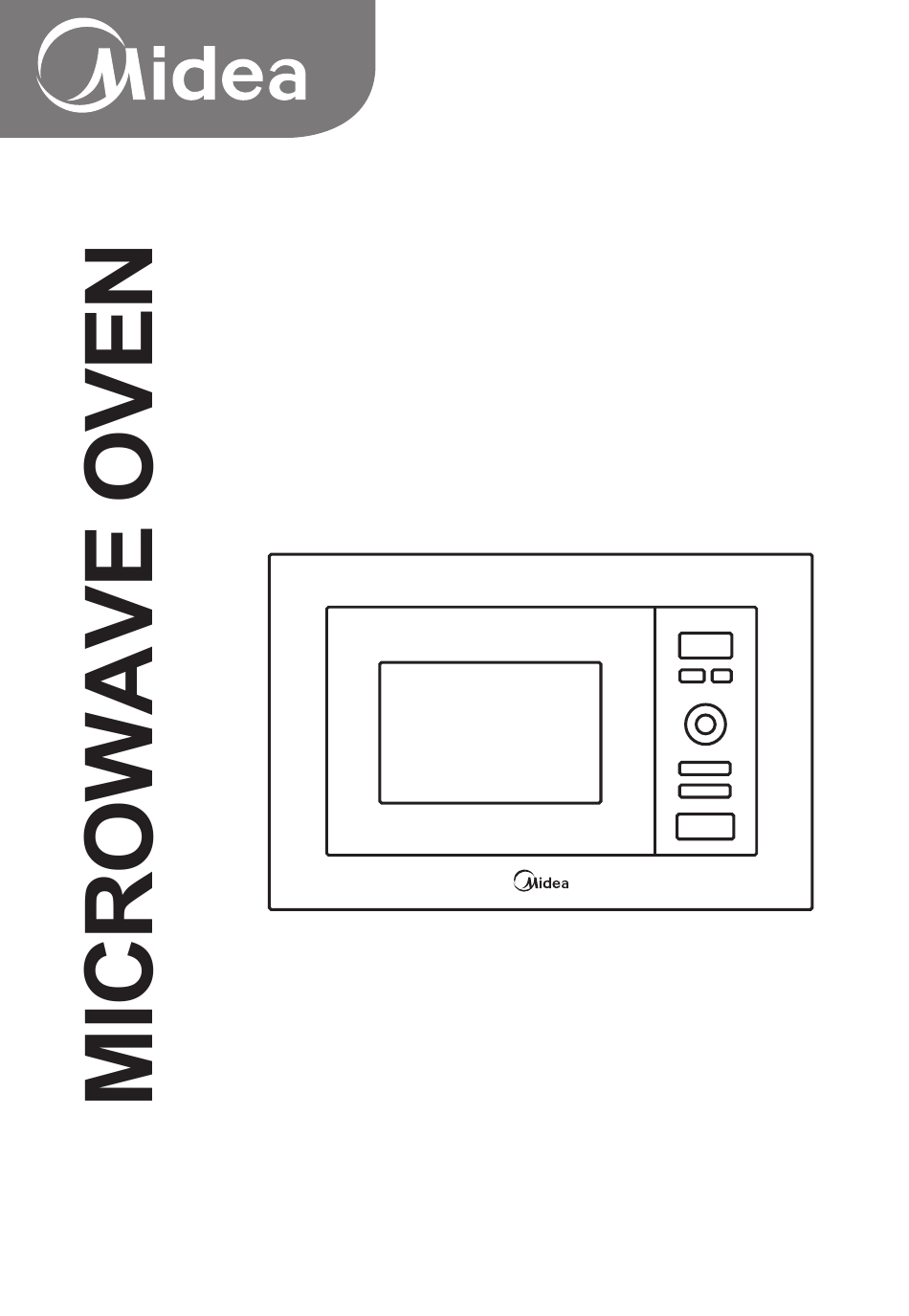

Instruction Manual
AG820BS9
MODEL:
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG820BS9 and is the answer not in the manual?

Questions and answers

Related Manuals for Midea AG820BS9

Summary of Contents for Midea AG820BS9

  • Page 1 Instruction Manual AG820BS9 MODEL: Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY...

  • Page 2: Precautions To Avoid Possible Exposure To Excessive Microwave Energy

    If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. Specifications Model: AG820BS9 Rated Voltage: 230V~50Hz 1250W Rated Input Power(Microwave):...

  • Page 3: Important Safety Instructions Warning

    IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: 1. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
  • Page 4 6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. 7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
  • Page 5 16.Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.) 17.The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.) 18.This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments;...

  • Page 6: Read Carefully And Keep For Future Reference

    23. The microwave oven is intended to be used built-in. 24. Steam cleaner is not to be used. 25. Surface of a storage drawer can get hot. 26. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

  • Page 7: To Reduce The Risk Of Injury To Persons

    To Reduce the Risk of Injury to Persons Grounding Installation DANGER Consult a qualified electrician or serviceman Electric Shock Hazard if the grounding instructions Touching some of the are not completely internal components can understood or if doubt exists cause serious personal as to whether the appliance injury or death.

  • Page 8: Utensils Caution

    CLEANING Be sure to unplug the appliance from the power supply. 1. Clean the cavity of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

  • Page 9: Materials You Can Use In Microwave Oven

    Materials you can use in microwave oven Utensils Remarks Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.

  • Page 10: Setting Up Your Oven

    SETTING UP YOUR OVEN Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: Glass tray Turntable ring assembly Instruction Manual A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window...

  • Page 11: Installation And Connection

    Installation and connection 1.This appliance is only intended for domestic use. 2.This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard. 3. Please observe the special installation instructions. 4.The appliance can be installed in a 60cm wide wall- mounted cupboard.

  • Page 12: Installation Instructions

    Installation Instructions Please Read the Manual Carefully Before Installation Please note Electrical connection The oven is fitted with a plug and must only be connected to a properly installed earthed socket. The socket must only be installed and the connecting cable must only be replaced by a qualified electrician, and in accordance with the appropriate regulations.
  • Page 13 380+2...
  • Page 14 380+2 Note: The bracket and bottom ca net template are needed when installating both installation .
  • Page 15 B.Prep are the cab i inet 1. Read the instruction on the BOTTOM CABINET TEMPLATE , put the template on the bottom plane of cabinet. " " " a PN:261800316967 2. Make the marks on the bottom plane of cabinet according to marks"a" of the template.
  • Page 16 C .Install the oven 4. Install the oven to the cabinet - Make sure the back of the oven is locked by mounting plate . - Do not trap or kink the power cord. Mounting Plate 5. Open the door, fix the oven to the cabinet with Screw B, at the installation hole. Then fix the Trim-kit plastic cover to the installation hole.
  • Page 17 Control Panel Instruction:...
  • Page 18 Operation Instructions 1. Clock Setting When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once. 1) Press " " twice to select clock function, the hour figures will flash. Kitchen Timer/Clock 2) Turn " " to adjust the hour figures, the input time should be within 0--23. 3) Press "...
  • Page 19 Note: the step quantities for the adjustment time of the coding switch are as follow: 0---1 : 5 seconds 1---5 : 10 seconds 5---10 min : 30 seconds 10---30 min : 1 minute 30---95 min : 5 minutes "Micro./Grill/Combi." Pad instructions Grill Microwave Order...
  • Page 20 Note:If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press" " to continue cooking. Start/+30Sec./Confirm If no operation, the oven will continue working.
  • Page 21 7. Kitchen Timer (1) Press " " once, the screen will display 00:00. Kitchen Timer/Clock (2) Turn " " to enter the correct time. (The maximum cooking time is 95 minutes.) (3) Press " " to confirm setting. Start/+30Sec./Confirm (4) When the kitchen time is reached, the buzzer will ring 5 times. If the clock has been set (24-hour system), the screen will display the current time.
  • Page 22 The menu chart: Menu Display Weight 200 g Pizza 400 g 250 g 350 g Meat 450 g 200 g 300 g Vegetable 400 g 50g(with 450 g cold water) Pasta 100g(with 800 g cold water) 200 g 400 g Potato 600 g 250 g...
  • Page 23 9. Multi-section cooking At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section automatically. Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following: 1) Press "...

  • Page 24: Troubleshooting

    Trouble shooting It is forbidden to run the unit without any food inside. It is very dangerous. According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste.
