LG GR-B459BLCA Owner's Manual

Refrigerator-freezer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ïéãéÑàãúçàä ë
åéêéáàãúçõå éíÑÖãÖçàÖå
àçëíêìäñàü èé
ùäëèãìÄíÄñàà
èÖêÖÑ ÇäãûóÖçàÖå ïéãéÑàãúçàäÄ
ÇçàåÄíÖãúçé èêéóàíÄâíÖ ÑÄççìû
àçëíêìäñàû à ÇëÖÉÑÄ ÑÖêÜàíÖ ÖÖ èéÑ
êìäéâ.

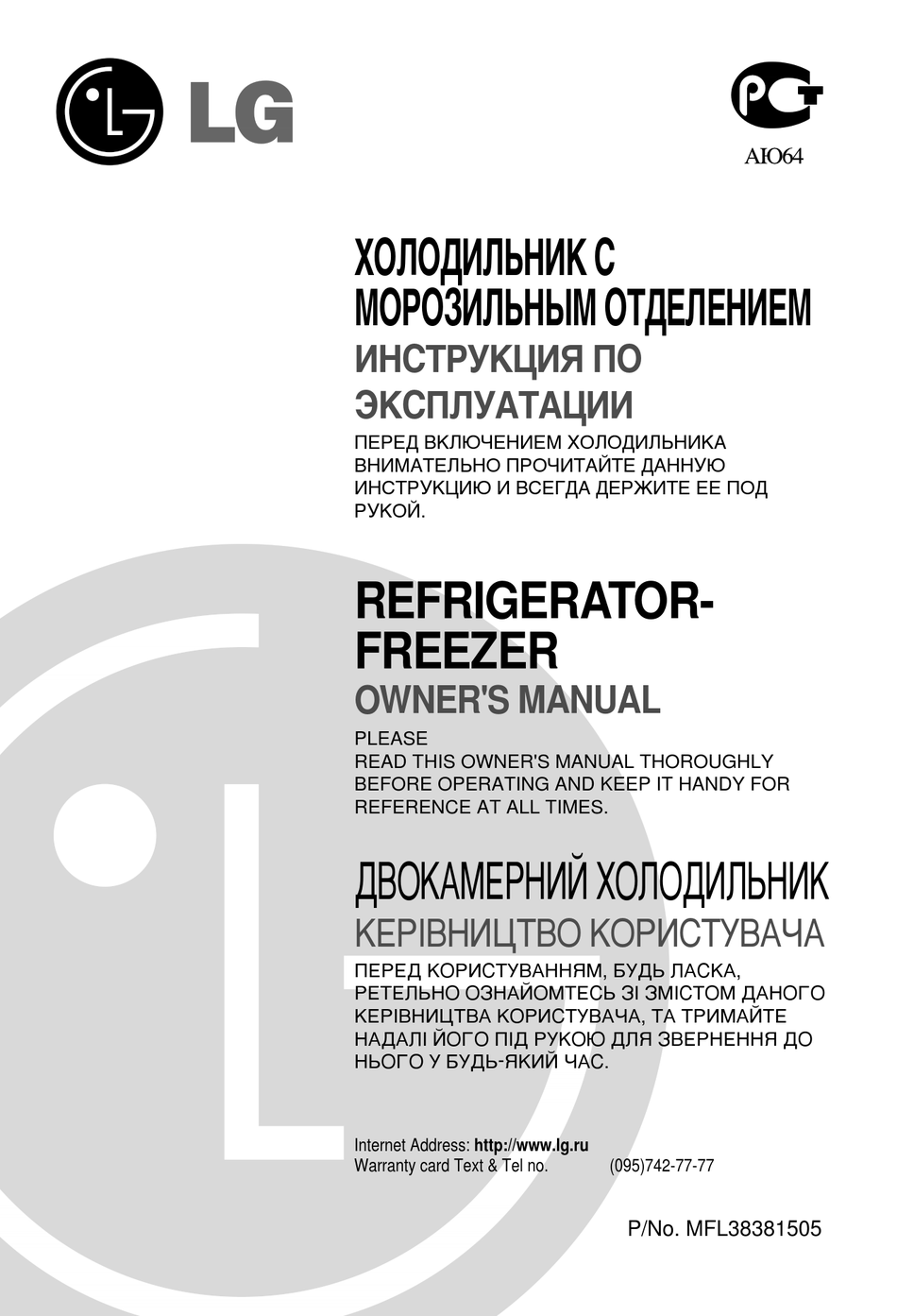

REFRIGERATOR-
FREEZER
OWNER'S MANUAL
PLEASE
READ THIS OWNER'S MANUAL THOROUGHLY
BEFORE OPERATING AND KEEP IT HANDY FOR
REFERENCE AT ALL TIMES.
ÑÇéäÄåÖêçàâ ïéãéÑàãúçàä
äÖêßÇçàñíÇé äéêàëíìÇÄóÄ
èÖêÖÑ äéêàëíìÇÄççüå, ÅìÑú ãÄëäÄ,
êÖíÖãúçé éáçÄâéåíÖëú áß áåßëíéå ÑÄçéÉé
äÖêßÇçàñíÇÄ äéêàëíìÇÄóÄ, íÄ íêàåÄâíÖ
çÄÑÄãß âéÉé èßÑ êìäéû Ñãü áÇÖêçÖççü Ñé
çúéÉé ì ÅìÑú-üäàâ óÄë.
Internet Address: http://www.lg.ru
Warranty card Text & Tel no.
(095)742-77-77
P/No. MFL38381505

Advertisement

Table of Contents
loading

Related Manuals for LG GR-B459BLCA

Summary of Contents for LG GR-B459BLCA

  • Page 1 ÑÇéäÄåÖêçàâ ïéãéÑàãúçàä äÖêßÇçàñíÇé äéêàëíìÇÄóÄ èÖêÖÑ äéêàëíìÇÄççüå, ÅìÑú ãÄëäÄ, êÖíÖãúçé éáçÄâéåíÖëú áß áåßëíéå ÑÄçéÉé äÖêßÇçàñíÇÄ äéêàëíìÇÄóÄ, íÄ íêàåÄâíÖ çÄÑÄãß âéÉé èßÑ êìäéû Ñãü áÇÖêçÖççü Ñé çúéÉé ì ÅìÑú-üäàâ óÄë. Internet Address: http://www.lg.ru Warranty card Text & Tel no. (095)742-77-77 P/No. MFL38381505...

  • Page 2: Table Of Contents

    Table of Contents Registration Introduction Important Safety Instruction Identification of Parts Installation Installation Starting Operation Temperature Control Vacation Express Freezer Moving Basket Self Test Door Alarm Ice Making Defrosting Water Dispenser Suggestion On Storing Food Food storage General Information Care and Maintenance Lamp Replacement To Reverse the Doors...

  • Page 3: Introduction

    Introduction Registration The model and serial number are found on the rear of Introduction this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.
  • Page 4 Introduction Important Safety Instruction w w WARNING To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following. Read all instructions before using this appliance. 1. When connecting the power The dedicated outlet should be used.
  • Page 5 Introduction Important Safety Instruction Do not pull out the cord or touch the power plug with wet hands. • It may cause electric shock or injury. Remove water or dust from the power plug and insert it with the ends of the pins securely connected.
  • Page 6 Introduction Important Safety Instruction Do not install the fridge-freezer in the wet place or the place which water or rain splashes. Deterioration of insulation of electric parts may cause electric leakage. Do not use or store inflammable materials ether, benzene, alcohol, medicine, LP gas, spray or cosmetics near or in the fridge-freezer.
  • Page 7 Introduction Important Safety Instruction Avoid the heating devices. It may cause fire. Do not place flower vase, cup, cosmetics, medicine or any container with water on the fridge-freezer. It may cause fire, electric shock or injury by dropping down. Use the submerged fridge-freezer after checking it. It may cause electric shock or fire.
  • Page 8 Introduction Important Safety Instruction When any strange smell or smoke is detected from the fridge-freezer, disconnect the power plug immediately and contact to the service center. It may cause fire. Do not allow any person except the qualified engineer to disassemble, repair or alter the fridge- freezer.
  • Page 9 Introduction Important Safety Instruction Do not insert the hands or the metal stick into the exit of cool air, the cover, the bottom of the fridge- freezer, the heatproof grill (exhaust hole) at the backside. It may cause electric shock or injury. When you want to dispose the fridge-freezer, contact to the down-block office.
  • Page 10 Introduction Important Safety Instruction Do not install the fridge-freezer in the wet place or the place which water or rain splashes. Deterioration of insulation of electric parts may cause electric leakage. Do not insert the hands into the bottom of the fridge-freezer.
  • Page 11 Introduction Important Safety Instruction w w Warning Precaution • This fridge-freezer must be properly installed and located in accordance with the Installation Instruction before it is used. • Never unplug your fridge-freezer by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.
  • Page 12 Introduction Important Safety Instruction The supply plug of the refrigerator-freezer should be Accessibility of Supply Plug placed in easy accessible position for quick disconnection in emergency. If the supply cord is damaged, it must be replaced by the Supply Cord Replacement manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  • Page 13 Introduction Important Safety Instruction w w Warning w w Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. w w Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  • Page 14 Introduction Important Safety Instruction • If the wall socket is loose, do not insert the power w w Caution plug. It may cause electric shock or fire. • Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull it straight out from the outlet.

  • Page 15: Identification Of Parts

    Introduction Identification of Parts Display Egg Tray Removable Glass Shelf Basket Door Water Tank Multi-air Flow Duct (Optional) 2 Bottle Basket Door Vegetable Drawer (Optional) Used to keep fruits and vegetables, etc. fresh and crisp. Ice Tray Handle Freezer Compartment Utility Corner Removable Plinth...

  • Page 16: Installation

    Installation Installation Select a good location. Place your fridge-freezer where it is easy to use. Avoid placing the unit near heat sources, direct sunlight or moisture. To ensure proper air circulation around the fridge - freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.

  • Page 17: Operation

    Operation Temperature Control • Your -freezer has controls that let you regulate the temperature in the and freezer compartments. These controls are on the top of the -freezer. • The initial Temperature of the Freezer and Refrigerator Compartment is -20°C and 3°C respectively. You can now adjust the temperature of the compartments as you want.

  • Page 18: Vacation

    Operation • This function makes the fridge-freezer work Vacation in a power saving mode which is useful when you are away on holiday, by reducing energy consumption as much as possible. Pressing ‘VACATION’ starts operation with lamp ON and pressing it again stops the operation.

  • Page 19: Self Test

    Operation This function allows you to check for operational Self Test problems. If you think you have a problem with your fridge-freezer, then press the temperature control button: - If the indicate lights move up or down, then there is no problem with your fridge-freezer.

  • Page 20: Water Dispenser

    Operation Water Dispenser (Optional) Features DISPENSER PAD GRILLE HANDLE TANK CAP TANK COVER BUCKET WATER TANK DÉCOR PANEL VALVE ASSEMBLY Install • Please assemble the VALVE ASSEMBLY after correctly adjusting it with a DOOR HOLE.
  • Page 21 Operation Filling of After turning the HANDLE Tank backward with the WATER TANK WATER TANK installed at the DOOR, Open the COVER BUCKET and then fill water using a kettle etc. * Fill water while watching a sight glass on the front of the WATER TANK.

  • Page 22: Storing Food

    Suggestions on food storage Storing Food • Do not store food which goes bad easily at low w w Caution temperature, such as banana, and melon. • Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and lead to higher electric bills.
  • Page 23 Suggestions on food storage • If you want to quick freeze new food, you put it middle drawer of freezer compartment, and then press the Express Freezer button. • Do not put in front of the air hole of the upper drawer of freezer compartment.

  • Page 24: Care And

    Care and Maintenance General Information • 1~2 hour power failure does no harm to the foods Power Failure stores. Try to avoid opening and closing the door too frequently. • Take out foods from the fridge-freezer and firmly fix the If You Move loose items with tape.

  • Page 25: Lamp Replacement

    Care and Maintenance Lamp Replacement Unplug the power cord from the outlet. Remove the room lamp lid by taking down while pulling its back projection. Remove the lamp by turning it counterclockwise and replace new one. Assemble in reverse order of disassembly. Replacement bulb must be the same specification as original.

  • Page 26: Cleaning

    Care and Maintenance Cleaning Be sure to unplug the power. Before Cleaning Clean the outside of the fridge-freezer with a soft cloth Exterior soaked with hot water or liquid detergent. If you use a detergent, be sure to wipe it with a clean wet cloth. As above.
  • Page 27 Care and Maintenance GRILLE and DRIP Remove the HOLE part of the GRILLE with the finger. TRAY Wipe moisture out around the DOOR part and the DRIP TRAY using a clean cloth. Wipe moisture etc out outside of Dispenser and on the Exterior Dispenser Dispenser Pad using a cloth.

  • Page 28: Trouble Shooting

    Trouble Shooting Before calling for service, check this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Problem Possible Causes • Power plug may be unplugged from the electric Fridge-Freezer outlet.
  • Page 29 Trouble Shooting Problem Possible Causes Moisture collects • Too frequent or too long door openings. inside • In humid weather, air carries moisture into fridge when doors are opened. Fridge has odor • Foods with strong odors should be tightly covered or wrapped.
