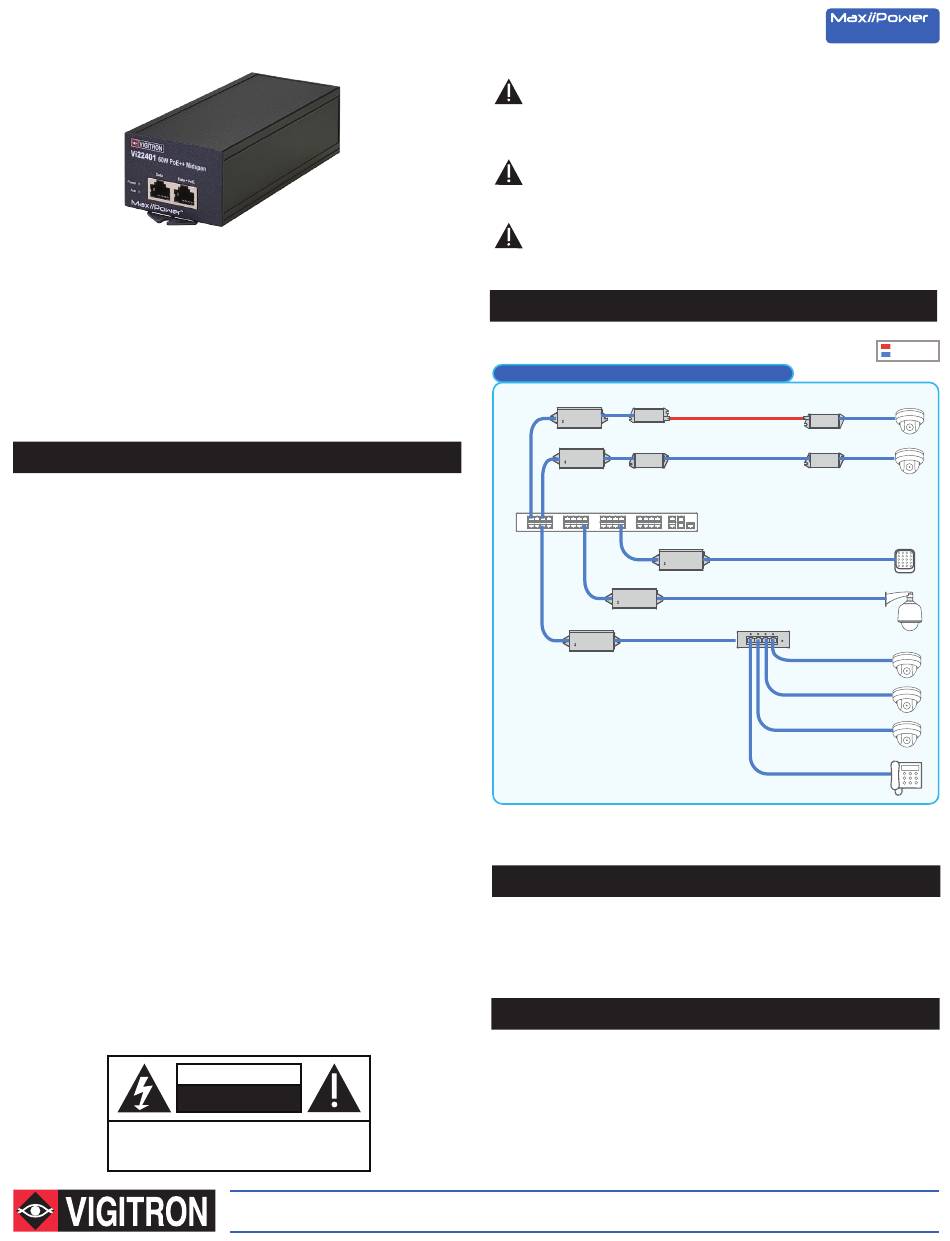

Vigitron MaxiiPower Vi2201 Installation Manual

Vi22401 Single Port 60W PoE++ Midspan Installation Manual
The MaxiiPower Model Vi22401 is a unique Single port PoE Midspan
designed for the most demanding power applications of 10/100/1000
Base-T networks. With the ability to provide up to 60W PoE power, it is the
most cost effective method for powering PTZ domes cameras with heaters
and blowers. The Midspan is compliant IEEE 802.3af, IEEE 802.3at
standards and 60W PoE application. Its unique control system enables it to
handle both single PD and dual PD PoE devices.
This Midspan is equipped with LEDs to provide power status. No IP setting
or configurations are required and it can completely transparent to the
Ethernet network and higher layer protocols.
Important Safety Warning
- Read these instructions.
- Keep these instructions.
- Heed all warnings.
- Follow all instructions.
- Do not use this apparatus near water.
- Clean only with a dry cloth.
- Install in accordance with the manufacturer's instructions.
- This installation should be made by a qualified service person and should
conform to all local codes.
- DO NOT bundle UTP signal wires in the same conduit as high-voltage
wiring.
- To reduce the risk of fire or electrical shock, do not expose these products
to rain, moisture, dripping or splashing.
- No objects filled with liquids, such as vases, shall be placed on Vigitron
equipment.
- DO NOT install the unit in a place where the operating ambient
temperature exceeds 75°C.
- Make sure that the external power supply output voltage is in the recom
mended range.
- Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus that produce heat.
- Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Unplug this apparatus during lightning storms or when unused for long
periods of time.
- Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as a power
supply cord or plug is damaged, liquid has been spilled, or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
- The mains plug is used as the disconnect device and shall remain readily
operable.
RISK OF ELECTRIC SHOCK
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK,
DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
CAUTION
DO NOT OPEN
The Smart Choice for Transmission Solutions
WARNING! - To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. This apparatus shall not be exposed to
dripping or splashing and no objects filled with liquids, such as vases shall
be placed on the apparatus.
WARNING! - This apparatus is a Class I product. This product must
be connected to a mains socket outlet through an AC to DC Power supply
when using DC input.
WARNING! - The mains plug is used as the disconnect device and
shall remain readily operable.
Application Drawing
Powering PoE devices at standard and extended distances
Vi22401
Vi2401A
Data
Vi22401
Vi2301A
Data
Network Switch
Data Data Data
Vi22401
Vi22401
Vi22401
Data +
328 ft. (100m)
The Vi22401 can power a wide range of PoE devices at standard and extended
distances up to 60W.
IP Camera-end Installation
- Connect the UTP Cables (cat5/6) from the IP camera or other PoE
powered device to the Data + PoE RJ45 connector of Vi22401. The cable
must be a cat5/6 with a maximum length of 100m (328 feet).
Ethernet Switch/NVR-end Installation
- Connect the UTP Cable (cat5/6) from the Ethernet switch to the Data RJ45
connector of Vi22401. The total length of UTP cable from network switch to
the powered PoE device should not exceed 100m (328 feet).
- Plug the AC power cord provided with the unit to the mains.
Ethernet Extenders
Vi2401A
Data + 60W PoE
Data +
Extended Coax 328 ft. (100m)
Vi2301A
Data + 60W PoE
Extended UTP
Data + 60W PoE
328 ft. (100m)
Data + 60W PoE
328 ft. (100m)
Vi30005
60W PoE
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
Data + PoE
328 ft. (100m)
www.vigitron.com
TM
Coax
Cat 5/6
IP Cameras
PoE
LED Light
60W PTZ Dome
IP Cameras
IP Phone
