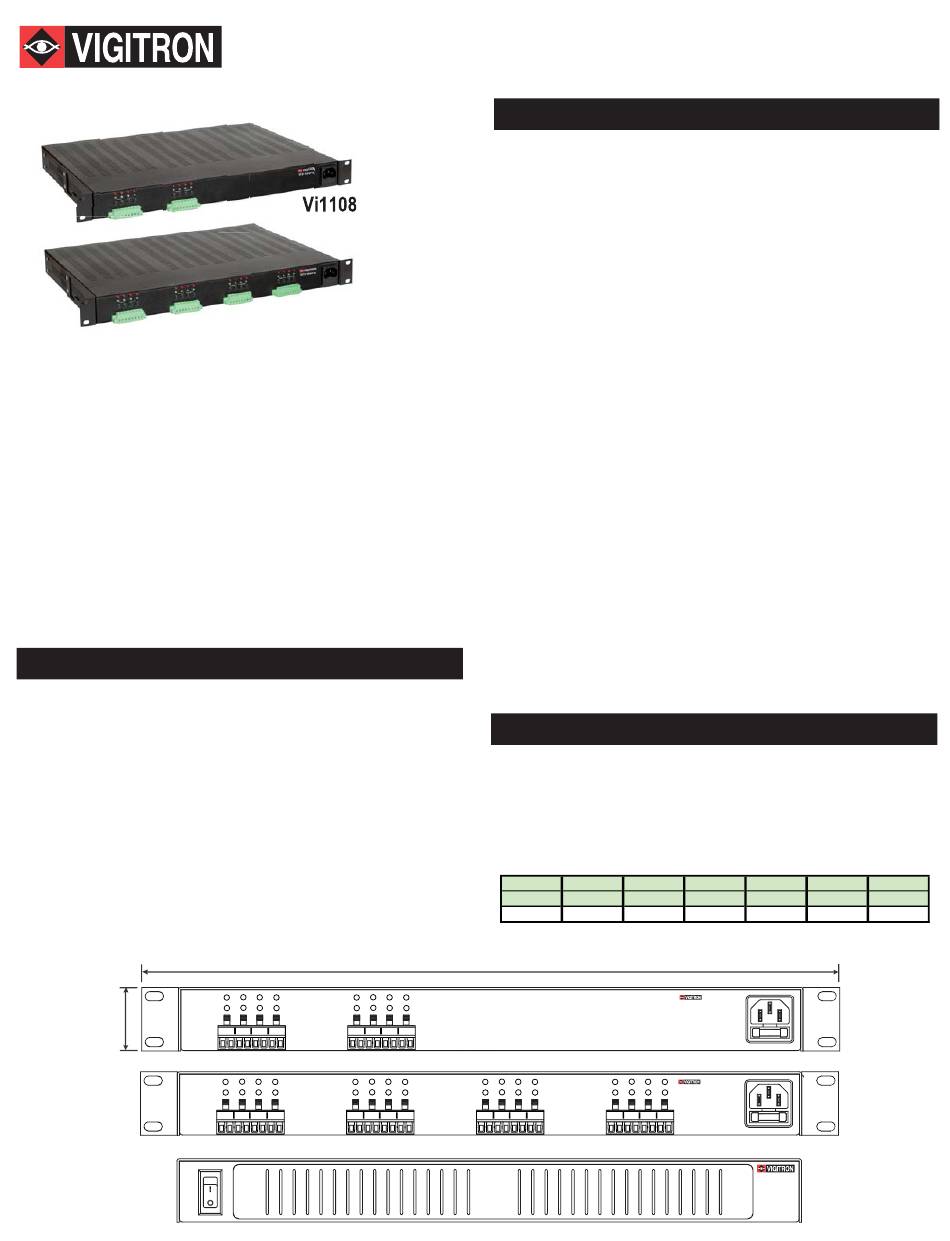

Vigitron Vi1108PS Installation Manual

The Vi1108PS and Vi1116PS are high quality 8-ch and16-ch fully isolated
class II power supplies that their outputs can be set individually to 24 VAC
or 28 VAC. Each power output can be individually turned on or off, is
equipped with surge protection and a 2 A glass fuse easily accessible from
front panel. The input voltage can be set to 110 VAC or 220 VAC via an
external switch.
These power supplies are 1U height and 19" rack mountable. These units
can mounted from front or rear in the rack. The output connections are
through detachable terminal blocks to ease the installation. There are one
LED for power and one LED for fault detection per output. The optional
cooling fan option can increase the aggregated current from 12 A to 16 A.
The Vi1108PS and Vi1116PS are ideal for CCTV projects or for structured
cabling environment.
Features
• 16 isolated outputs, individually selectable to
24 VAC or 28 VAC
• 1 A max per channel, 12 A aggregated
• Built-in surge protection
• A glass fuse per channel, accessible from front panel
• Power present and fault indicator LEDs for each camera
• 19", low profile 1U wall or rack or wall mountable
• Optional cooling fans with temperature control
• Designed for structured wiring applications
• Limited Lifetime warranty
1.75"
Vi1108PS & Vi1116PS Isolated power supply Installation Manual
Vi1108PS
Vi1116PS
FUSE FUSE
LOAD LOAD
24 V 24 V
OFF OFF
28 V 28 V
1 2 3 4 5 6
+ - + - + - + - + - + -
FUSE FUSE
LOAD LOAD
24 V 24 V
OFF OFF
28 V 28 V
1 2 3 4 5 6
+ - + - + - + - - + - + -
POWER
Electrical
Input Voltage
Input Current
Output Voltage
Output Current:
Fault Protection
Diagnostics LEDs No Load or Shut down: 16 Red LEDs, one per
channel
Connectors
Transient Immunity
Environmental
Humidity
Temperature
Minimum Airflow
Heat
Mechanical
Dimensions
Weight
Material
Vigitron recommends the use of 18 AWG or thicker solid wires for power
connections. Verify wire distance, camera current requirement and wire
resistance limit for the maximum distance that Power can travel. Use "Power
Distance Chart" to verify the wire distance.
Loop Resistance per 1,000ft (305m)
AWG
mm
Ohm
19"
7 8
+ - + -
FUSE
LOAD
24 V
OFF
28 V
7 8 9 10 11 12
+ - + - + - + - + - + -
Rear View
Front View
Specifications
110 VAC or 220 VAC, internally switch selectable
4.8 Amps (110 VAC) / 2.4 Amps (220 VAC)
Voltage: Isolated Class II, 24 V AC, off, 28V AC
Rear Panel switch selectable
1 A Max per camera, 12 A Max aggregated
Power: 340 VA
2 A glass fuse (front access) per camera
Power Present: 16 Green LEDs, one per channel
Camera Connection: RJ-45 Connector
Data: RJ-45 Connector
Control Room Video: BNCs
per ANSI 587 C62.41
0 to 95%, non-condensing
Operating: -20C to +50C
Storage: -30C to +70C
5 ft /min
1300 BTU/hour
1.75x17x12 Inches, 4.3x43x30.5 cm (HxWxL)
22 Lb, 10 Kg
Steel Sheet Metal
Wiring Notes
24AW G 22AW G 20AW G
0,5m m 0,6m m 0,7m m
52 32 20
Vi1108PS
8-Ch Power Supply
Vi1116PS
FUSE
16-Ch Power Supply
LOAD
24 V
OFF
28 V
13 14 15 16
+ - + - + - + -
19AW G 18AW G 16AW G
0,8m m 1,0m m 1,3m m
16 13 8.2
Vi1116VPD
