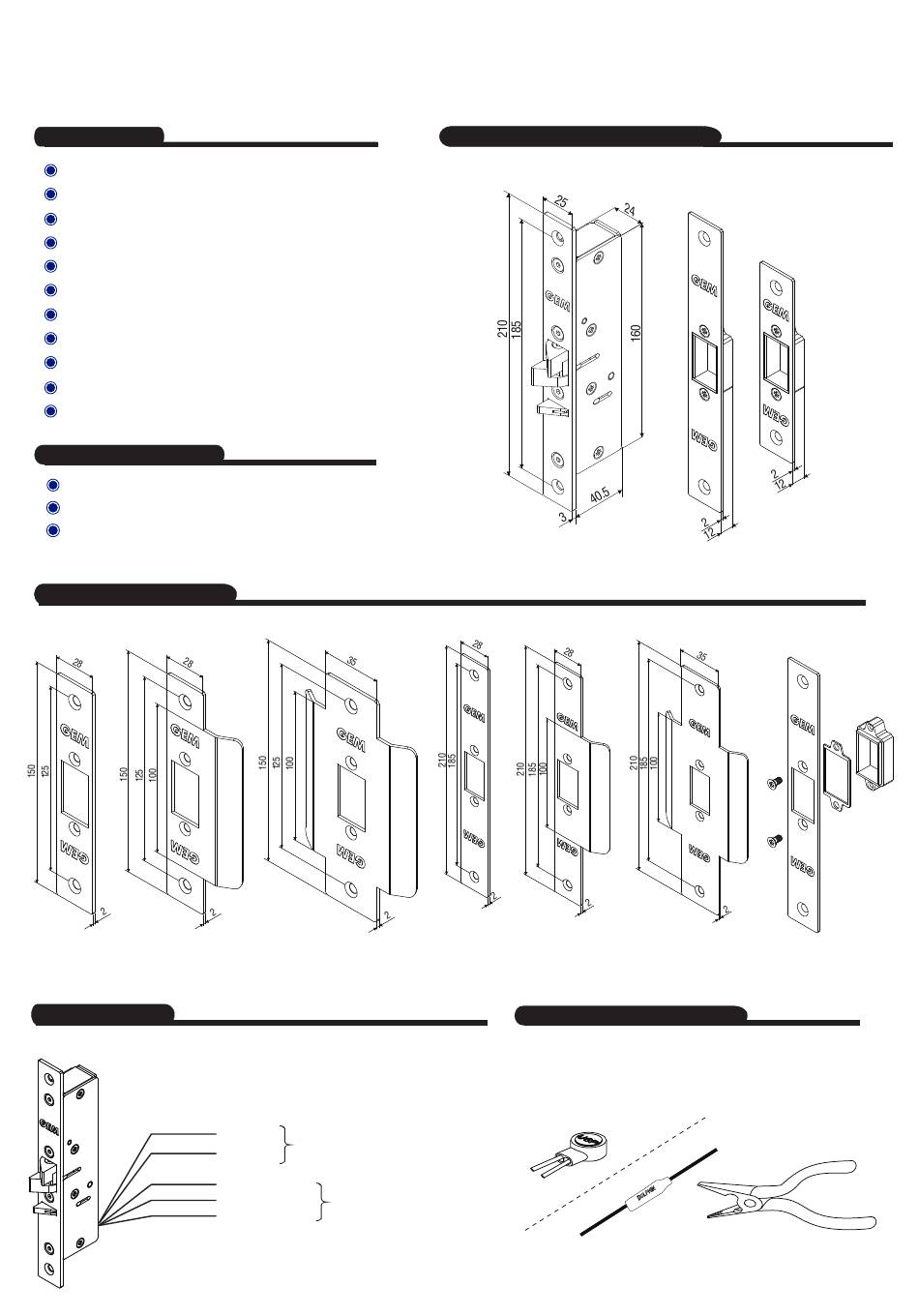

Specifications
Operating Voltage: 12 ~ 24 VDC/AC
Current Draw: 280mA/12VDC; 180mA/24VDC
Locking Mode: Fail-Safe
Operating Temperature: -10°C~+49°C
Humidity: 0~85% non-condensing
Applicable to horizontal and vertical installation
For single/double action swing doors
Latch Throw: 16mm
Endurance Rating: 250,000 cycles (Factory tested)
Static strength: 1,500 lbs
Preload: 500 lbs of pressure strength
ML-400 Series Models
ML-400M: Mortise mount
ML-400MSMB: Surface mount
ML-400MVGL: Surface mount
(for frameless glass doors & walls)
Strike Plate Dimensions
KP-ML-400-A
KP-ML-400-B
Wiring Diagram
ML-400 Electric Lock
Installation Instruction
KP-ML-400-C
Red: +
12~24VDC/AC
Black: -
Blue: N.O.
Door Status Output:
Green: COM.
1A/125VAC
Yellow: N.C.
Copyright © All Rights Reserved. P-MU-ML-400 Published: 2021.11.29
Mortise Mount Model Dimensions
KP-ML-400-D
KP-ML-400-E
Butt Splice (IDC) Connector
Using crimper or pliers and pressing the header
of connector down to even position.
ML-400M
KP-ML-400-F
Complete assembly
Unti:mm
Advertisement
Table of Contents
Related Manuals for ANXELL ML-400M
Summary of Contents for ANXELL ML-400M
- Page 1 Latch Throw: 16mm Endurance Rating: 250,000 cycles (Factory tested) Static strength: 1,500 lbs Preload: 500 lbs of pressure strength ML-400 Series Models ML-400M: Mortise mount ML-400MSMB: Surface mount ML-400MVGL: Surface mount ML-400M (for frameless glass doors & walls) Strike Plate Dimensions...
- Page 2 Unti:mm Mortise Mount Installation Door Loop (Optional) ø5.2mm ø5.2mm The door loop protects the wiring from damage at the door hinge. Attention! Please ensure that the template is the correct way up. ø5.2mm ø5.2mm ø5.2mm ø5.2mm Alignment CL Align the center line (CL) of the lock ø5.2mm ø5.2mm body template with the CL of the door...
- Page 3 Surface Mount Installation Blind Nut M6 x 25 Screw M6 x 25 Screw Blind Nut Unti:mm Glass Mount Model Dimensions ML-400MVGL Copyright All Rights Reserved. P-MU-ML-400 Published: 2021.11.29...
- Page 4 Glass Mount Installation 1.Confirm the installation location and clean the surface of the glasses. 2.Take off the sticker on the back side of the spacer and attach the space to the glass. Add more spacers if needed per glass thickness. Use silicone sealant or other adhesives to secure the bracket firmly.
