Translux Fair-Play MP-70 Series Quick Reference

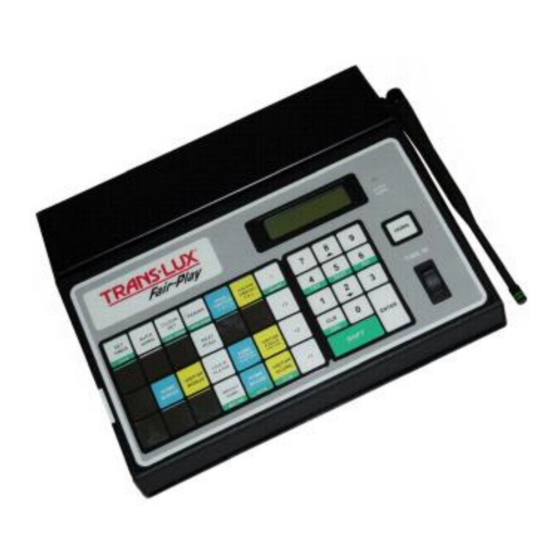

Scoreboard controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

A
BOUT THIS GUIDE
This is intended to be used as a portable document that you can use during sporting events to program your
MP-70/50's systems settings and sports-specific information. Remember that these settings are stored in your
control's permanent memory, and under normal circumstances, you should not have to change these settings.
S
HORTCUTS
POWER-ON PROCEDURES
Power On + [SHIFT] + [+1] ....Lock/Unlock Mode
Power On + [0] ....................System Settings Mode
Power On + [1] ....................Relay Mode
Power On + [2] ....................exit Segment Timer Mode
Power On + [SHIFT] + [2] ......enter Segment Timer Mode
Power On + [3] ....................Saved Configurations
Power On + [SHIFT] + [5] ......MP-50 Operating Mode
Power On + [SHIFT] + [6] ......enter ST50 Operating Mode
Power On + [8] ....................Test Pattern Mode
Power On + [ENTER] ............Sport Configuration Mode
T
C
ABLE OF
ONTENTS
............................................... 2
MP-70/50 • MP-72/52 • MP-73/53 • PN 98-0002-29-1 • REV 1907.10
MP-70/50 Series Scoreboard Controller
Quick Reference
Document No. 98-0002-29-1
Revision: 1907.10
Effective with firmware ver. 3.09
