TL VISION





®
TL VISION – EPIC – PROLINE
MESSAGE CONTROLLER
CONNECTION INSTRUCTIONS



PN 98‐0019‐57 • REV 1703.20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TL Vision and is the answer not in the manual?

Questions and answers

Summary of Contents for Translux TL Vision

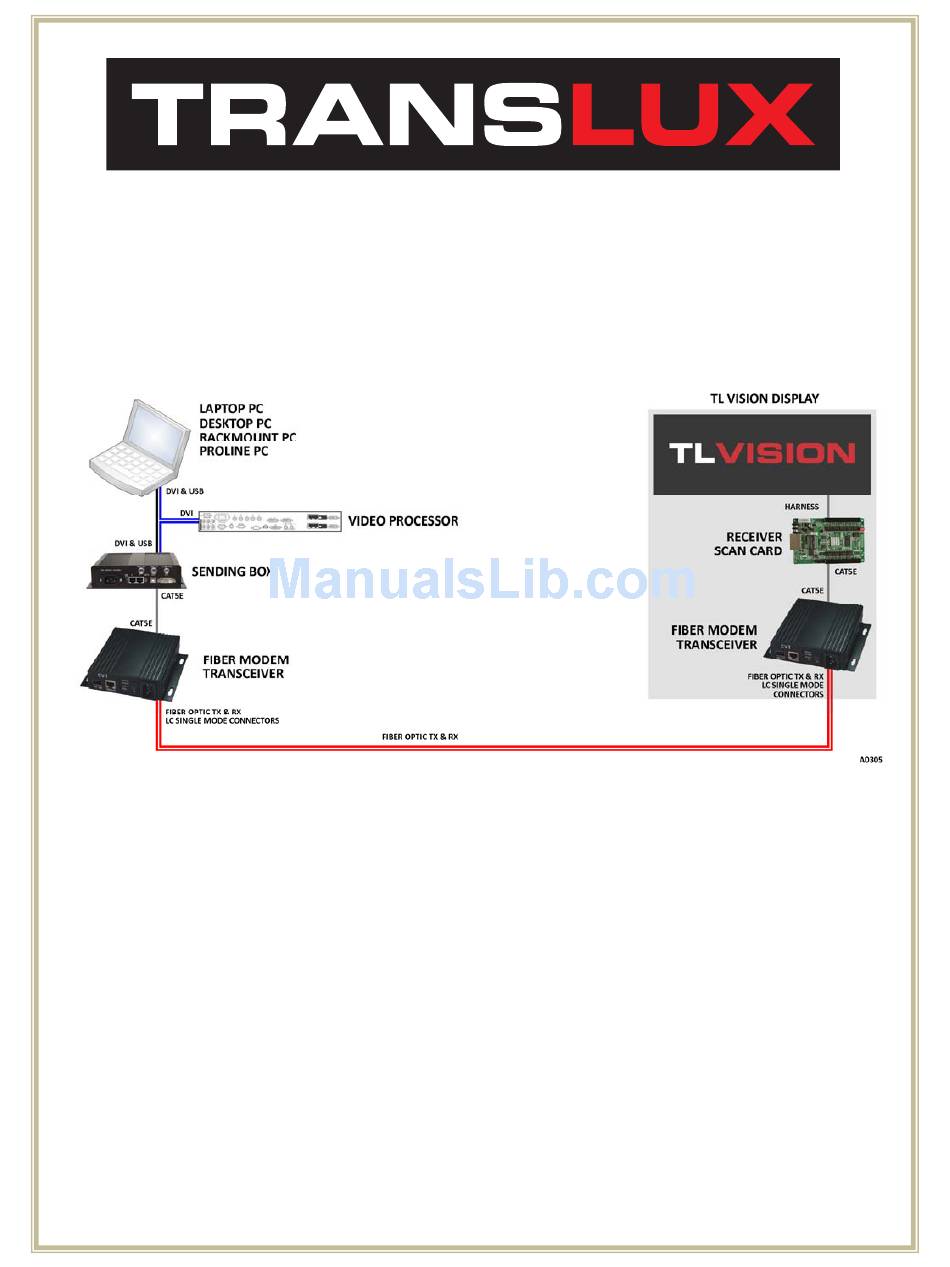

  • Page 1             TL VISION           ® TL VISION – EPIC – PROLINE MESSAGE CONTROLLER CONNECTION INSTRUCTIONS       PN 98‐0019‐57 • REV 1703.20 ...
  • Page 2 DISCLAIMER The suggestions and recommendations within this document are intended as a guide for connecting the  ProLine® PC to the sign. While Trans‐Lux believes the instructions contained herein are accurate and  correct, Trans‐Lux does not warrant the accuracy or correctness of such instructions and there are no  warranties, expressed or implied and not limited to any warranties of merchantability of fitness for a  particular purpose.  In no event shall Trans‐Lux be liable to the dealer or its customer for any indirect, special or  consequential damages or lost profits arising out of or related to this sale or the performance or breach  thereof even if Trans‐Lux has been advised of the possibility thereof. Trans‐Lux’s liability to the dealer, if  any, in connection with this sale shall in no event exceed the total amount paid by the dealer for the  software furnished by Trans‐Lux.  ProLine and the accompanying files are licensed "as is" and without warranties as to performance or  merchantability or any other warranties whether expressed or implied. In particular, Trans‐Lux does not  warrant that operation of ProLine will be error free or uninterrupted including interruption to other  programs that may be installed on the same computer (PC).  Good data processing procedures dictate that any program is thoroughly tested with non‐critical data  before relying on it. Such procedures should include verifying that the final content created in ProLine  appears satisfactory to the user when displayed on a connected sign. The user must assume the entire  risk of using the program.  These installation recommendations are subject to change without notice.  COPYRIGHT This document contains Trans‐Lux/Fair‐Play proprietary information. Any disclosure, use or duplication  of the document or of any information contained therein for other than the specific purpose for which it  was disclosed is expressly prohibited, except as may be otherwise agreed to in writing. Copyright  ©2017.  TRADEMARK Trans‐Lux, the Trans‐Lux logo, TLVision and ProLine® are either registered trademarks or trademarks of  Trans‐Lux Corporation in the United States and/or other countries. All rights reserved.        98‐0019‐57 • REV 1703.20  INE  ONNECTION  NSTRUCTIONS    ...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS   ............................ 1  NTRODUCTION  ........................ 1  USTOMER  ETUP  NFORMATION   ........................... 1  RDER  NFORMATION  .......................... 1  INE  OFTWARE &  .................... 2  ONNECTIONS   TARTUP    OWER    .......................... 2    ONNECT  ABLES  ............................ 2    TARTUP  ...................... 2    OWER  OWN  N  EVERSE ...
  • Page 4       [This page intentionally left blank]          98‐0019‐57 • REV 1703.20  INE  ONNECTION  NSTRUCTIONS    ...
  • Page 5: Introduction

      NTRODUCTION ProLine® is a software tool for creating and programming digital sign content to display on the TLVision  sign.  This manual provides procedures for connecting the ProLine Sign PC via fiber optic to the TLVision sign.  This connection method is used primarily for sports applications.  NOTE:  If you are connecting a ProLine PC to a ProLine Remote PC located within the TLVision via TCP/IP  CAT5e, LAN, Wireless or Wireless Network then please refer to TLVision Commercial ProLine  Message Controller Instructions 97‐0001‐04.  USTOMER ETUP NFORMATION RDER NFORMATION If Help Desk assistance is ever needed, the following information will be used to aid you in your  discussions with the service representatives and expedite your call. Please record the following  information:    Trans‐Lux Sales     Order Number:  This number is found in the upper right hand corner of the packing slip or invoice.   Model Number:    This number is found on the lower right corner of the TLVision sign.   Installation Date:    Dealer Info:              OFTWARE The ProLine PC already comes pre‐installed with the ProLine software.  If you opted to install the ProLine software to your own PC please ...
  • Page 6: Connect Cables

      & P ONNECTIONS TARTUP OWER WARNING! DO NOT start the ProLine PC/Laptop. All cables must be connected and equipment must be powered up and powered down in a specific order. Otherwise, loss of DVI configuration settings could occur. A. C ONNECT ABLES Refer to one of the following diagrams that match your equipment and connect all cables: ...
  • Page 7: Wiring Diagrams

      IRING IAGRAMS TL V 5 / E ISION   3  98‐0019‐57 • REV 1703.20      INE  ONNECTION  NSTRUCTIONS...
  • Page 8: Tl Vision / Cat 5 / Epic / Pro Line

      TL V 5 / E ISION   4    98‐0019‐57 • REV 1703.20  INE  ONNECTION  NSTRUCTIONS    ...
  • Page 9: Tl Vision / Fiber Optic / Epic / Pro Line

      TL V ISION IBER PTIC   5  98‐0019‐57 • REV 1703.20      INE  ONNECTION  NSTRUCTIONS...
  • Page 10: Tl Vision / Fiber Optic / Epic / Pro Line

      TL V / MP-70 ISION IBER PTIC   6    98‐0019‐57 • REV 1703.20  INE  ONNECTION  NSTRUCTIONS    ...
  • Page 11   TL V / MP-70 / SP-70 ISION IBER PTIC   7  98‐0019‐57 • REV 1703.20      INE  ONNECTION  NSTRUCTIONS...
  • Page 12: Troubleshooting

      ROUBLESHOOTING Problem  Possible Cause or Solution    Is the TL Vision powered ON?  TL Vision display is not  showing any messages.  o Is the Receiver inside the TL Vision display powered ON?  Refer to Receiver MRV300 on page 9.  o Is the Fiber Converter/Transceiver on the display powered  ON? Refer to Fiber Transceiver/Converter CVT320 on page 9    Are the fiber (TX and RX) cables are installed correctly and not  reversed? Refer to Fiber Optic Cables on page 9.   Is the Fiber Converter/Transceiver on the PC side powered ON?  Refer to Fiber Transceiver/Converter CVT320 on page 9.   Is the Sender Box powered ON? Refer to Sender Box MCTRL300 on  page 9.   Is the CAT5 cable connected from the Sender Box to the  Transceiver/Converter?   Is the USB cable connected from the PC to the Sender Box?   Is the DVI cable connected from:  o PC to Sender Box, or   o PC to Video Processor, and from Video Processor to Sender  Box?   Is the PC powered ON?   Is ProLine or Epic Management running a display message? ...
  • Page 13: Cables & Connections

      & C ABLES ONNECTIONS RS232, DVI, USB & C Verify that all cables, wires, and plugs are  connected according to one of the corresponding  Wiring Diagrams on pages 3 through 7.  IBER PTIC ABLES TX to RX and RX to TX – the transmit (TX) and  receive (RX) ends of the fiber optic cables may  have been plugged into the wrong ports during  installation.  Unplug the fiber optic cables on one end of the  Transceiver/Converter and switch them around.  NOTICE: As of 09/25/2013, fiber optic cable connections  for Epic hardware are terminated with LC  single mode connectors.  OMPONENT PERATION Verify that the power is ON and that the TL Vision, Converters, Sender Box, ProLine PC, MP‐70, and SP‐ 70 are all running.  MCTRL300 ENDER  STATUS – red light indicates power is ON.   RUN – flashing green light indicates data is  being transmitted.   CVT320 IBER RANSCEIVER ONVERTER ...
  • Page 14: Recover From Startup Error

      ECOVER TARTUP RROR 1. Windows Start > Control Panel > Hardware  and Sound > Display > Adjust resolution or   Windows desktop > Right‐click on  background screen > Screen resolution.  2. Make a note of the "Resolution:" setting.  The width value will be used on step 4c.            3. Plug the DVI cable to PC. Wait for the PC  to recognize the TL Vision as a Display 2.    4. Open Epic Management and relocate the  message window from Display 1 to  Display 2 as follows:  a. Windows Start > Programs >  Trans‐Lux > epic management >  epic management >   b. epic management > Settings(S) >  Display Settings(S).                c. Display Setting > Start X: > enter  the width value from step 2 > ...
  • Page 15: Help Desk

      The Help Desk provides technical support and product assistance for all Trans‐Lux and Fair‐Play  manufactured products. We can be reached by calling 1‐800‐462‐2716 between the hours of 8 a.m. and 7  p.m., Monday through Friday, Eastern Time.  The Help Desk is organized to assist with all types of questions and issues, including   Request for Return Material Authorization (RMA) of equipment to be repaired   Request for Warranty Parts Exchange   Product selection and upgrade assistance  When you call the Help Desk, you can expedite your calls by having the following information (refer to   on page 1) immediately available:  USTOMER  ETUP  NFORMATION  Sales order number   Model number of sign   Software that you are running and operating system   Your sign’s configuration    11  98‐0019‐57 • REV 1703.20      INE  ONNECTION  NSTRUCTIONS...
  • Page 16   NOTES 12    98‐0019‐57 • REV 1703.20  INE  ONNECTION  NSTRUCTIONS    ...
