Summary of Contents for Iiyama ProLite E2472HDD-1

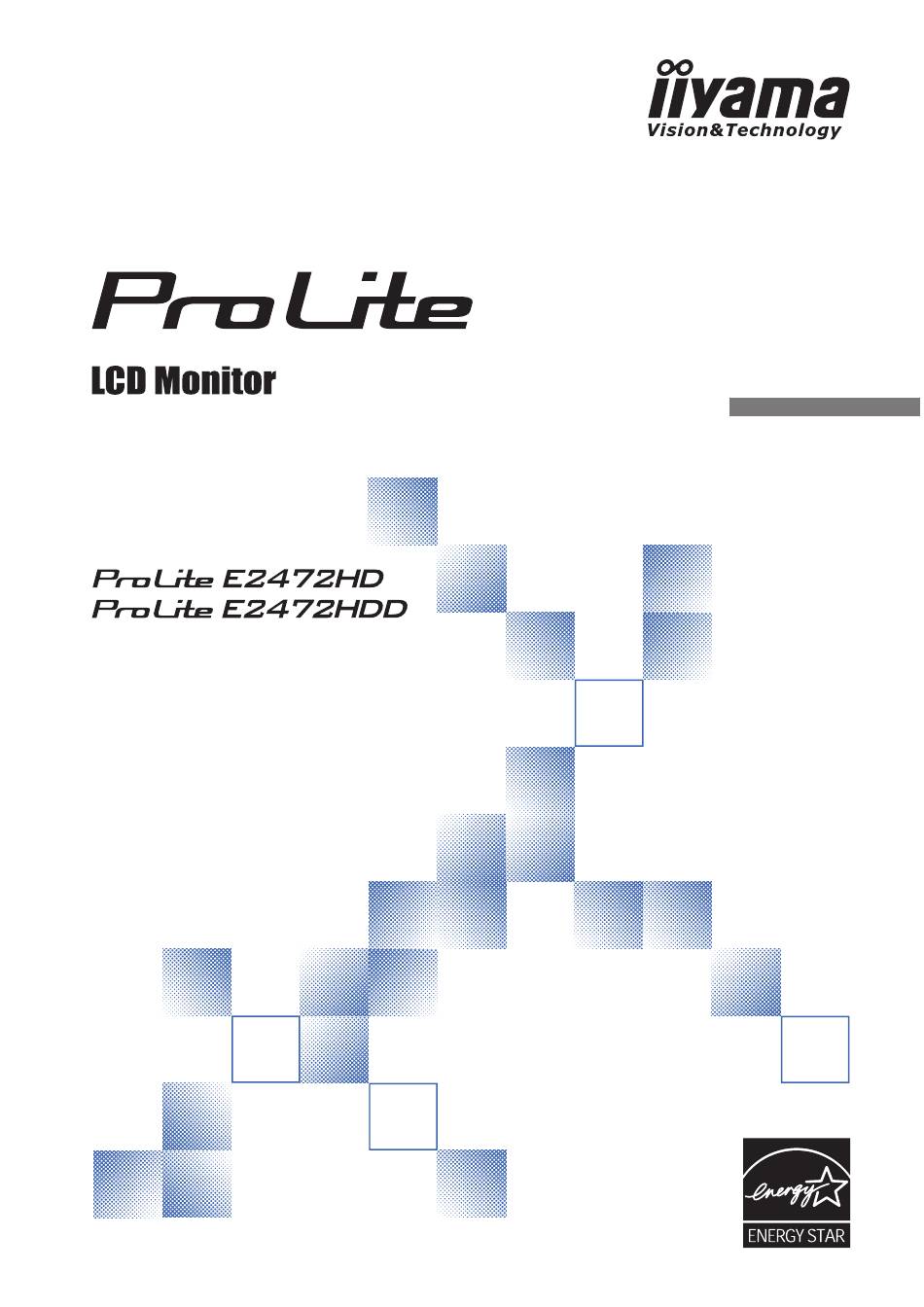

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
-
Page 3: Table Of Contents
IIYAMA CORPORATION: Breguetlaan 8, 1438BC Oude Meer The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com... -
Page 4: For Your Safety
CORRECT USE OF THE AC ADAPTER Use only the AC Adapter provided by iiyama. Any deviation from this by using another type of adapter may result in damage to the accessory and the monitor by fi re or electric shock. - Page 5 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 6: Special Notes On Lcd Monitors
Power Switch for some hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. -
Page 7: Before You Operate The Monitor
CHEKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. AC Adapter*... -
Page 8: Fitting And Removal Of Base
FITTING AND REMOVAL OF BASE Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. Unplug the monitor before removal or installation to avoid electric shock or damage. <Installation>... -
Page 9: Controls And Connectors
CONTROLS AND CONNECTORS <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 1W when receiving no horizontal and/or vertical sync signal. Power Switch ( Menu / Select Button (ENTER) Scroll Up Button ( Scroll Down / ECO Mode Button*... -
Page 10: Connecting Your Monitor
The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama offi... -
Page 11: Computer Setting
Change to the desired signal timing listed on page 23: COMPLIANT TIMING. Windows 95/98/2000/Me/XP/Vista/7 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 12: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 23. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 15 for SCREEN ADJUSTMENTS. -
Page 13: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Auto Adjust Only Analog Input Adjustment Item Problem / Option Button to Press A d j u s t H . / V. P o s i t i o n , P i x e l C l o c k a n d P h a s e Auto Adjust * Direct automatically. - Page 14 Geometry Only Analog Input Adjustment Item Problem / Option Button to Press Too left H. Position Too right Too low V. Position Too high Too narrow Pixel Clock Too wide Phase To correct fl ickering text or lines Color Adjustment Item Problem / Option Button to Press 9300K...
- Page 15 Language Adjustment Item Problem / Option Button to Press English English Español Spanish Dutch Français French Nederlands Language Japanese Deutsch German Simplifi ed Chinese Italiano Italian Polski Polish Russian Recall Adjustment Item Problem / Option Button to Press Factory-preset data is restored. Recall All Return to Menu.
- Page 16 Expansion display Display Mode Aspect Expansion display of Aspect Increased Response time Typical Response time iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is turned on. OPERATING THE MONITOR...
- Page 17 Input Select Adjustment Item Problem / Option Button to Press D-sub Select the Analog input. Input Select Select the Digital (DVI) input. HDMI* Select the Digital (HDMI) input. When only one of the three signal inputs is connected to the signal source, the one NOTE connected is automatically selected.
-
Page 18: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama. com). - Page 19 Press the Auto Button. (Auto Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi t to the display area.
- Page 20 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the Pixel Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 21: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 22: Trouble Shooting
2. Consult the following items if you cannot fi nd an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 23: Recycling Information
The signal timing of the computer is within the specifi cation of the monitor. The Volume is turned up. No sound. The Mute is OFF. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 24: Appendix
APPENDIX SPECIFICATIONS : ProLite E2472HD Size Category 24" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 24" (61cm) Pixel pitch 0.277mm H × 0.277mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), ACR Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time 5ms (Typical), 2ms (Gray to Gray) -
Page 25: Specifications : Prolite E2472Hdd
SPECIFICATIONS : ProLite E2472HDD Size Category 24" LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 24" (61cm) Pixel pitch 0.277mm H × 0.277mm V Brightness 250cd/m (Typical) Contrast ratio 1000 : 1 (Typical), ACR Function Available Viewable angle Right / Left : 85 degrees each, Up / Down : 80 degrees each (Typical) Response time 5ms (Typical), 2ms (Gray to Gray) -
Page 26: Dimensions
DIMENSIONS 570.0mm/22.4" 39.0mm/1.5" 533.5mm/21.0" COMPLIANT TIMING PC Input Horizontal Vertical Dot Clock Video Mode Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640×480 37.500kHz 75.000Hz 31.500MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800×600 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024×768 60.023kHz 75.029Hz 78.750MHz VESA 63.981kHz 60.020Hz 108.000MHz SXGA...
