Summary of Contents for Summit FF43ES

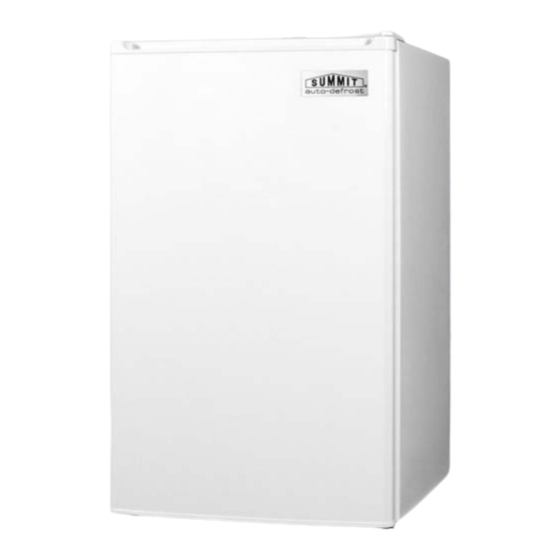

- Page 1 COMPACT REFRIGERATOR Instruction Manual Model FF41ES Model FF43ES BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS FELIX STORCH, INC. Write Model and Serial Numbers here: 770 Garrison Avenue ______________________________ Bronx, NY 10474 www.summitappliance.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safeguards ...............2 – 3 Location of Parts ..................4 Installation ..................5 – 7 Test Run ....................5 Reversing the Door Swing ..............6 – 7 Operation ....................8 Temperature control How to remove ice cubes from the tray Defrosting ....................9 Cleaning and Maintenance ..............10 Limited Warranty ................ -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS Your safety and the safety of others are very important to us. We have provided several important safety messages in this manual. Always read and obey all safety messages. Serious injury or even death can result if you do not follow these instructions. To reduce the risk of fire, electrical shock or injury when using the refrigerator, follow basic precautions, including the following: ... - Page 4 This unit is not designed to operate in enclosed spaces. When placing your unit, make sure you allow adequate airflow on all sides. Use two or more people to move and install this appliance. Failure to do so can result in back or other injury.
-
Page 5: Location Of Parts
LOCATION OF PARTS 1. Freezer Compartment – plastic ice cube tray included 2. Drip Tray – catches melt water during defrosting 3. Temperature Control Knob – rotate this to adjust refrigerator temperature and to defrost 4. -
Page 6: Installation
Before using the refrigerator, clean it and make a test run to see if it follows the behavior described here. If not, check the electricity supply. If the cause of the trouble cannot be located, contact your Summit dealer. 1. Set the Temperature Control Knob at the OFF position and then plug the power cord into an electrical outlet of 115 volts, 60Hz. -
Page 7: Reversing The Door Swing
Reversing the Door Swing Refer to the Disassembly Diagram on page 7 and change the door hinges following this procedure: (The numbers in the diagram indicate the procedure order in the instructions.) 1. Remove the hinge cap by twisting it off. 2. - Page 8 Disassembly Diagram for Reversing the Door Swing Upper Hexagonal Head Screw Hinge Cap Top Hinge Door Hinge Cap Hinge Cap Door Shaft Bottom Hinge Spacer Lower Hexagonal Head Screw 7 ...
-
Page 9: Operation
OPERATION Temperature Control The temperature in the refrigerator compartment can be adjusted colder or warmer by turning the Temperature Control Knob. Colder temperatures can be achieved by turning the knob clockwise toward the MAX position. Warmer temperatures can be selected by turning the knob counter-clockwise toward the MIN position. -
Page 10: Defrosting
DEFROSTING The automatic defrost timer must be set prior to the operation of the refrigerator. 1. Plug the power cord into a 115 volt electric power outlet. 2. Set the timer to local time: a. Using a pen or other similar nonconductive object, push the black button and hold for three seconds until the LED illuminates. -
Page 11: Cleaning And Maintenance
Use only mild soap and water to clean the door gasket. Never use acid, chemical thinners, gasoline, benzene or the like to clean any part of the refrigerator. Boiling water and benzene may deform or damage the plastic parts. Your Summit refrigerator does not require any maintenance. 10 ... -
Page 12: Limited Warranty
For details on specific warranty issues, please refer to the warranty packed with the product, or contact GENERAL PARTS AND LABOR WARRANTY Summit warrants to the original purchaser of every new unit that the cabinet and all parts thereof be free from defects in material or workmanship under normal and proper use and maintenance service as specified by Summit and upon proper installation and start-up in accordance with the instruction packet supplied with each Summit unit. - Page 13 ● IMPROPER USE: Summit assumes no liability for parts or labor coverage for component failure or other damages resulting from improper usage or installation or failure to clean and/or maintain product as set forth in the warranty packet provided with the unit.
- Page 14 13 ...
