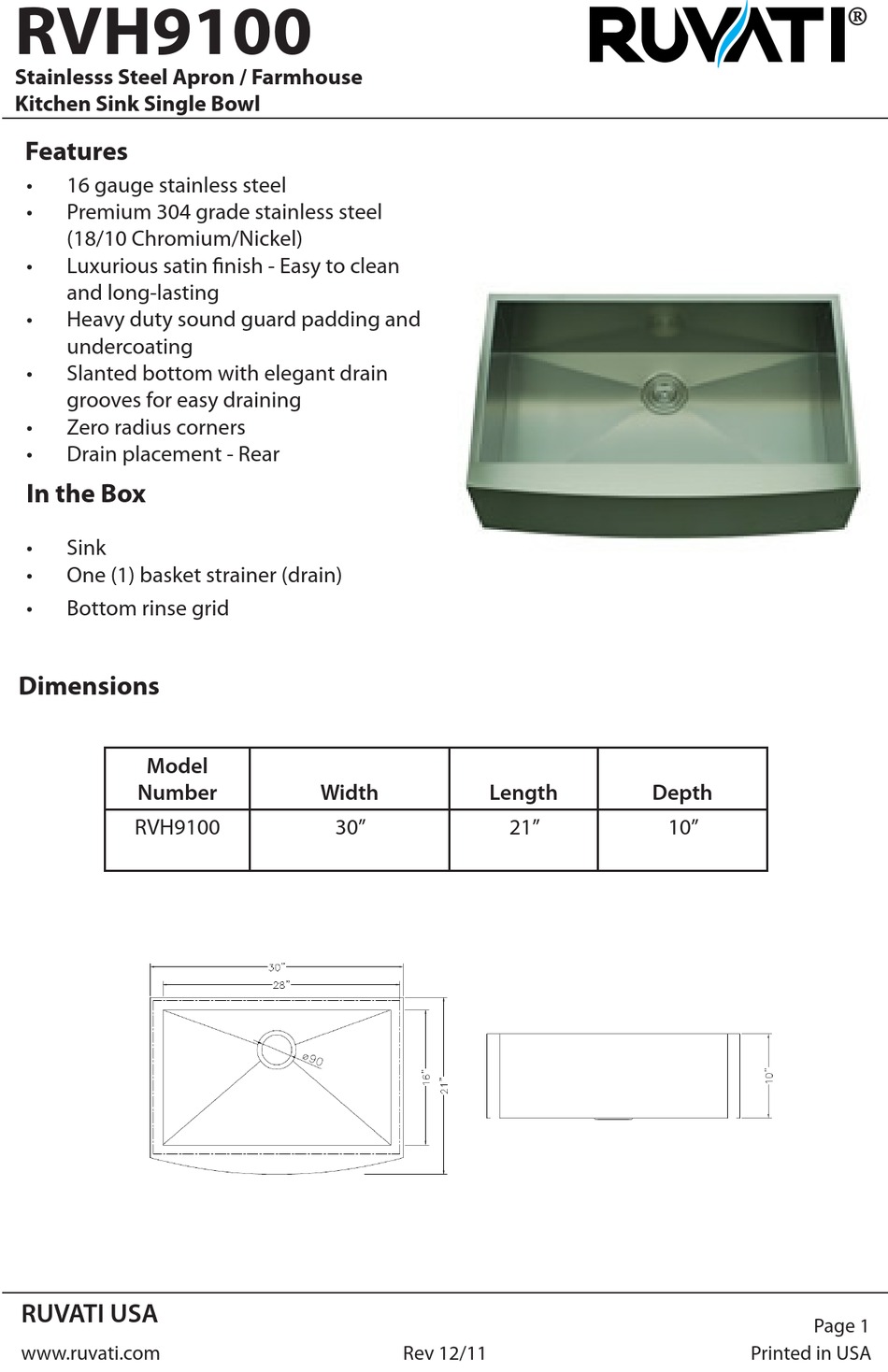

RVH9100

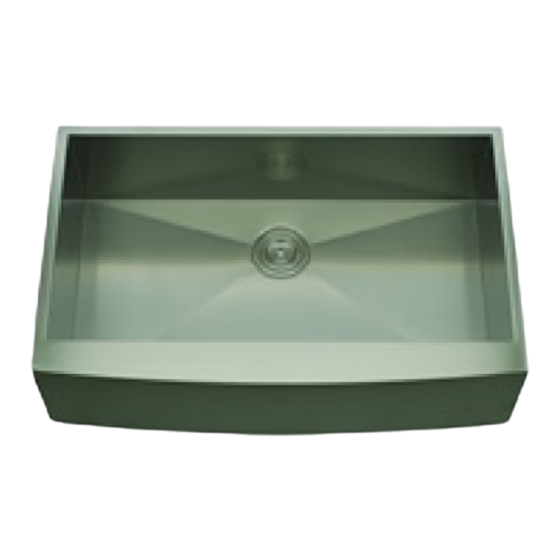

Stainlesss Steel Apron / Farmhouse
Kitchen Sink Single Bowl
Features
•
16 gauge stainless steel
•
Premium 304 grade stainless steel
(18/10 Chromium/Nickel)
•
Luxurious satin finish - Easy to clean
and long-lasting
•
Heavy duty sound guard padding and
undercoating
•
Slanted bottom with elegant drain
grooves for easy draining
•
Zero radius corners
•
Drain placement - Rear
In the Box
•
Sink
•
One (1) basket strainer (drain)
•
Bottom rinse grid
Dimensions
Model
Number
RVH9100
RUVATI USA
www.ruvati.com
Width
30"
Rev 12/11
Length
Depth
21"
10"
Page 1
Printed in USA
®
Advertisement
Related Manuals for RUVATI 608819734255
Summary of Contents for RUVATI 608819734255
- Page 1 Premium 304 grade stainless steel (18/10 Chromium/Nickel) • Luxurious satin finish - Easy to clean and long-lasting • Heavy duty sound guard padding and undercoating • Slanted bottom with elegant drain grooves for easy draining • Zero radius corners • Drain placement - Rear In the Box • Sink • One (1) basket strainer (drain) • Bottom rinse grid Dimensions Model Number Width Length Depth RVH9100 30” 21” 10” RUVATI USA Page 1 www.ruvati.com Rev 12/11 Printed in USA...
- Page 2 ® RVH9100 Attention Installer 1. Read these instructions carefully before installation. Inspect sink for damages. Do not install if the sink is damaged. 2. Ruvati recommends that installation of apron / farmhouse sinks be done by a professional installer. 3. Ruvati is not responsible for improper sink or countertop installation. Ruvati is not liable for any damages to sink or countertop or personal injury during installation. 4. Due to the special nature of this installation, Ruvati reccomends that an experienced cabinet maker use the actual sink to build a custom cabinet or modify an existing cabinet. 5. Observe all local plumbing and building codes. Alignment of sink to cutout is critical for a superior fit and finished look. Depending on your aesthetic preference, Ruvati sinks can be installed either with a 1/4” reveal, flush fit, or with a negative reveal. 1/4” reveal is reccomended. Decide on your prefence prior to installation. COUNTER TOP SEALANT 1/4” REVEAL CABINET WALL 2 SUPPORT BARS RUNNING BELOW SUPPORTING THE SINK (FRONT AND BACK)
- Page 3 3. Place a thin layer of sealant on the 7. Clean the rim of the sink and the under supporting frame where it will contact surface of the countertop where it the sink. will contact the rim. Apply a generous bead of sealant around the sink rim. 4. Gently position the sink on the frame. Verify that the sink sits level and sturdy 8. Gently position the countertop on the on the frame, and the top surface of sink. Ensure that the sealant provides a the sink is level and flush with the complete seal between the countertop top surface of the cabinet perimeter. and the sink. Wipe off any extra sealant Adjust or shim between the sink and using a wet cloth, and apply extra support if necessary. sealant if there are any gaps. RUVATI USA Page 3 www.ruvati.com Printed in USA Rev 12/11...
- Page 4 This warranty relates to defects in manufacture, materi- highest possible quality standards. Ruvati sinks carry a als or workmanship in a Ruvati stainless steel kitchen limited lifetime warranty for residential use. sink supplied for installation into domestic premises in the United States.
