Copy Writer : M2I corporation
-
When using M2I equipment, thoroughly read this datasheet and associated manuals
introduced in this datasheet, Also pay careful attention to safety and handle the
module properly.
-
Store this datasheet in a safe place so that you can take it out read it whenever
necessary
Main Module Users Manual
2008.05
CTOP3M
M2I Corporation
Advertisement
Table of Contents
Related Manuals for M2I CTOP3M
Summary of Contents for M2I CTOP3M

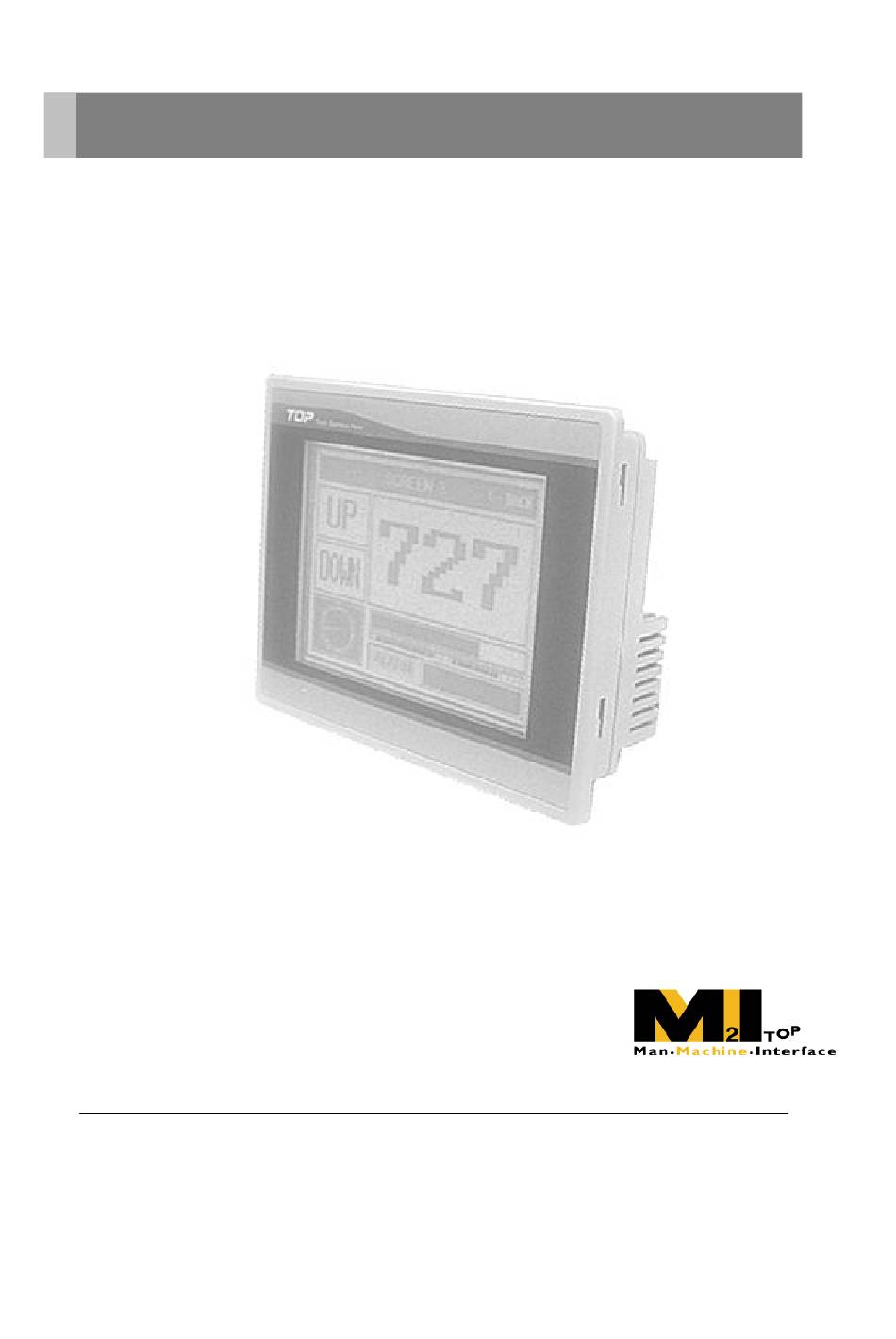

- Page 1 M2I Corporation Copy Writer : M2I corporation 2008.05 When using M2I equipment, thoroughly read this datasheet and associated manuals introduced in this datasheet, Also pay careful attention to safety and handle the module properly. Store this datasheet in a safe place so that you can take it out read it whenever...
-
Page 2: Installation Precautions
► Safety precautions are for using the product safely and correctly in order to prevent the accidents and danger, so make sure to follow all directions in safety precautions. The precautions are divided into 2 sections, ‘Warning’ and ‘Caution’. Each of the ►... -
Page 3: Design Precautions
Design Precautions Warning Install a safety circuit external to the TOP that keeps the entire system safe even when there are problems with the external power supply or the TOP module. Otherwise, serious trouble could result from erroneous output or erroneous operation. Outside the TOP, construct mechanical damage preventing interlock circuits such as emergency stop, protective circuits, positioning upper and lower limits switches and interlocking forward/reverse operation. -
Page 4: Installation
- Please separate power source cable from communication cable 3. Earth Connection - The FG and M2I port of the TOP main module should always be grounded using the Class 3 Ground. Failing to ground these ports sufficiently could cause electrical shock and malfunction. -
Page 5: Main Module Menu Summary
Main Module Menu Summary 1. Main Menu - Functions : Controller Type, Communication Protocol, Version Info., Language Setting and Time Setting. * Time Data is retained minimum 1week by super capacitor without input power voltage. 2. Communication Setting - Functions : Baud Rate, Data Bit, Stop Bit, Parity Bit, Signal Level, Station Num, Serial Timeout, Send Wait, Communication Error Message Display, N:1 Setting. -
Page 6: Wiring Precautions
Installation Precautions Caution Use the TOP in an environment that meets the general specification contained in this manual or datasheet. Using the TOP in an environment outside the range of the general specifications could result in electric shock, fire, erroneous operation, and damage to or deterioration of the product. -
Page 7: Disposal Precaution
Trial Running Repair Precautions Warning Do not touch the terminals while power is on. Doing so could cause electric shock or erroneous operation. Switch all phases of the external power supply off when cleaning the module or retightening the terminal or module mounting screws. Not doing so could result in electric shock or erroneous operation. - Page 8 Project File Up/Download Meaning of ‘Download’ is transferring projection file data from computer to TOP main module. And ‘Upload’ is transferring data from TOP Main module to computer. Main module data will be saved up forever on flash memory of TOP main module unless overwriting.
- Page 9 Outer Dimension (Front, Rear, Side, Upper, Bottom) [Fig. Front Outer Dimension] [Fig. Rear Outer Dimension]...
- Page 10 [Fig. Left/Right Outer Dimension] [Fig. Upper/Bottom Outer Dimension] * Panel Cutting size : 158(W) * 126(H)mm...
-
Page 11: Serial Interface (Rs-232C)
Serial Interface (RS-232C) Feature Item Contents Protocol Half Duplex Synch. Asynchronous Communication Distance About 15M Type of Connection Control Code ASCII Code or HEXA Code Baud Rate 9600, 19200, 38400, 57600, 76800, 115200bps Data Bit 7,8bit Data Type Parity Bit None, Odd, Even Parity Stop Bit 1,2bit... - Page 12 Serial Interface (RS-422/485) Connect main module to controller by RS-422/485 for communication. Feature Item Contents Protocol Half Duplex, 5wires Synch. Asynchronous Communication Distance About 500M Type of Connection 1:N(N≤31) Control Code ASCII Code or HEXA Code Baud Rate 9600,19200, 38400, 57600, 76800, 115200bps Data Bit 7,8bit Data Type...
- Page 13 Title of Parts [Fig. 1] Front View [Fig. 2] Rear View [Fig. 1] Front View Title Feature STN Mono 16GRAY Display Resolution 320 X 240 Screen Size 5.7 inch Brightness 200cd/㎡ Touch Panel Analog Front Sheet Front Vinyl Cover Sheet for Dampproof and Dustproof Status LED Status of Power [Fig.
-
Page 14: General Specification
TOP Feature Item Specification Ref. Compact TOP CTOP3M Display Device STN 16gray Mono Display Resolution 320 X 240 Serial RS232/422/485 Communication Interface Memory Back up 256K Brightness 200cd/㎡ Screen memory Panel Cut Size 158(W) X 126(H) General Specification ... - Page 15 Download Interface (RS232C) Download Connection RS232C In case of connecting Main Module 6P Connector and PC 9P Connector Main Module(6P Male) PC(9P Female) In case of connecting Main Module 6P Connector and PC 25P Connector Main Module(6P Male) PC(25P Female)
- Page 16 Head Office Kyonggi Venture Anyang Technical Center, 13 Floor, 572-5, Anyang 8-Dong, Dongan–Gu,Anyang–Si, Kyonggi–Do, Korea, 431–060 TEL : (82)31-465-3366 FAX : (82)31-465-3355 http://www.m2i.co.kr M2I Corporation...
